Name: ANTIEVAPORATION DEVICE
Rating: 4.5 (1 reviews)

Find Your Part

ANTIEVAPORATION DEVICE of Ferrari Ferrari F50

View All

Ferrari F50 - ANTIEVAPORATION DEVICE

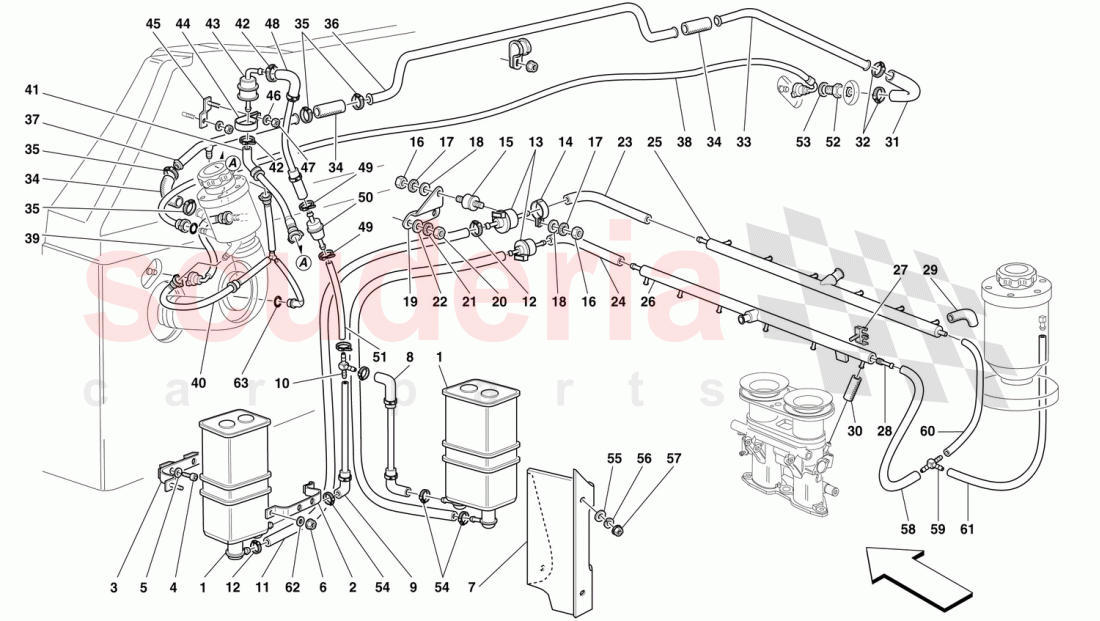

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	148413	Charcoal carbon canister	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154466	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154465	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW M6 X 14MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64780700	SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166775	PIPE FROM UNION TO REAR VAPOR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166776	PIPE TO FRONT VAPOR FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167058	3 WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167100	PIPE FROM VAPOR FILTER TO ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	130978	ANTI-EVAPORATION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147923	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148835	Buffer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496377	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162899	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134041	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579224	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169456	R.H. PIPE VALVE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169455	L.H. PIPE VALVE TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163084	R.H. ADDITIONAL AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163066	L.H. ADDITIONAL AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121790	2 HOUSING CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	117348	THREADED UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165174	R.H. PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163085	L.H. PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166602	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166623	R.H. TANK VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166622	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000490	Screw Collar	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167057	CENTRAL VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166624	L.H. TANK VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166612	R.H. GAS VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166609	L.H. GAS VENT PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166604	COMPLETE FUEL VAPOR FLOWING BACK PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166771	VENT PIPE FROM UNION TO ANTI FLOWING BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124193	ANTI FLOWING BACK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	124226	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167114	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166773	PIPE FROM ANTI FLOWING BACK VALVE TO TWO WAY VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157934	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114910	TANK VENTILATION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	167099	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	165939	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10257460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169360	SCREW COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	115666	PIPE FROM L.H. AIR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	121793	3-WAY UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169695	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169695	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	169455	L.H. PIPE VALVE TUBE	169455 L.H. PIPE VALVE TUBE	-	1	Enquire
-	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE	-	1	Enquire
1	148413	Charcoal carbon canister	148413 Charcoal carbon canister	-	2	Enquire
2	154466	BRACKET	154466 BRACKET	-	2	Enquire
3	154465	BRACKET	154465 BRACKET	-	2	Enquire
4	248334	SCREW M6 X 14MM	248334 SCREW M6 X 14MM	-	4	Enquire
5	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	4	Enquire
6	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
7	64780700	SHIELD	64780700 SHIELD	-	1	Enquire
8	166775	PIPE FROM UNION TO REAR VAPOR FILTER	166775 PIPE FROM UNION TO REAR VAPOR FILTER VAPOR FILTER	-	1	Enquire
9	166776	PIPE TO FRONT VAPOR FILTER	166776 PIPE TO FRONT VAPOR FILTER	-	1	Enquire
10	167058	3 WAY UNION	167058 3 WAY UNION	-	1	Enquire
11	167100	PIPE FROM VAPOR FILTER TO ENGINE	167100 PIPE FROM VAPOR FILTER TO ENGINE ENGINE	-	2	Enquire
12	157934	SCREW COLLAR	157934 SCREW COLLAR	-	4	Enquire
13	130978	ANTI-EVAPORATION VALVE	130978 ANTI-EVAPORATION VALVE	-	2	Enquire
14	147923	CLAMP	147923 CLAMP	-	2	Enquire
15	148835	Buffer	148835 Buffer	-	1	Enquire
16	15896470	NUT	15896470 NUT	-	2	Enquire
17	12604178	Washer	12604178 Washer	-	2	Enquire
18	14496377	WASHER	14496377 WASHER	-	2	Enquire
19	162899	PLATE	162899 PLATE	-	1	Enquire
20	134041	NUT	134041 NUT	-	2	Enquire
21	12601374	WASHER	12601374 WASHER	-	2	Enquire
22	13579224	WASHER	13579224 WASHER	-	2	Enquire
23	169456	R.H. PIPE VALVE TUBE	169456 R.H. PIPE VALVE TUBE Not as spare part for "F50" now / Replaced by 169456	-	1	Enquire
24	169455	L.H. PIPE VALVE TUBE	169455 L.H. PIPE VALVE TUBE Not as spare part now / Replaced by 169455	-	1	Enquire
25	163084	R.H. ADDITIONAL AIR PIPE	163084 R.H. ADDITIONAL AIR PIPE	-	1	Enquire
26	163066	L.H. ADDITIONAL AIR PIPE	163066 L.H. ADDITIONAL AIR PIPE	-	1	Enquire
27	121790	2 HOUSING CLIP	121790 2 HOUSING CLIP	-	3	Enquire
28	117348	THREADED UNION	117348 THREADED UNION	-	2	Enquire
29	165174	R.H. PIPE	165174 R.H. PIPE	-	6	Enquire
30	163085	L.H. PIPE	163085 L.H. PIPE	-	6	Enquire
31	166602	SLEEVE	166602 SLEEVE	-	1	Enquire
32	13000490	Screw Collar	13000490 Screw Collar	-	2	Enquire
33	166623	R.H. TANK VENT PIPE	166623 R.H. TANK VENT PIPE	-	1	Enquire
34	166622	SLEEVE	166622 SLEEVE	-	2	Enquire
35	13000490	Screw Collar	13000490 Screw Collar	-	6	Enquire
36	167057	CENTRAL VENT PIPE	167057 CENTRAL VENT PIPE	-	1	Enquire
37	166624	L.H. TANK VENT PIPE	166624 L.H. TANK VENT PIPE	-	1	Enquire
38	166612	R.H. GAS VENT PIPE	166612 R.H. GAS VENT PIPE	-	1	Enquire
39	166609	L.H. GAS VENT PIPE	166609 L.H. GAS VENT PIPE	-	1	Enquire
40	166604	COMPLETE FUEL VAPOR FLOWING BACK PIPE	166604 COMPLETE FUEL VAPOR FLOWING BACK PIPE BACK PIPE	-	1	Enquire
41	166771	VENT PIPE FROM UNION TO ANTI FLOWING BACK VALVE	166771 VENT PIPE FROM UNION TO ANTI FLOWING BACK VALVE FLOWING BACK VALVE	-	1	Enquire
42	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
43	124193	ANTI FLOWING BACK VALVE	124193 ANTI FLOWING BACK VALVE	-	1	Enquire
44	124226	Bracket	124226 Bracket	-	1	Enquire
45	167114	BRACKET	167114 BRACKET	-	1	Enquire
46	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	1	Enquire
47	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
48	166773	PIPE FROM ANTI FLOWING BACK VALVE TO TWO WAY VALVE	166773 PIPE FROM ANTI FLOWING BACK VALVE TO TWO WAY VALVE VALVE TO TWO WAY VALVE	-	1	Enquire
49	157934	SCREW COLLAR	157934 SCREW COLLAR	-	2	Enquire
50	114910	TANK VENTILATION VALVE	114910 TANK VENTILATION VALVE	-	1	Enquire
51	167099	PIPE	167099 PIPE	-	1	Enquire
52	165939	UNION	165939 UNION	-	1	Enquire
53	10257460	GASKET	10257460 GASKET	-	1	Enquire
54	169360	SCREW COLLAR	169360 SCREW COLLAR	-	3	Enquire
55	12643724	WASHER	12643724 WASHER	-	2	Enquire
56	127494	WASHER	127494 WASHER	-	2	Enquire
57	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
58	115666	PIPE FROM L.H. AIR PIPE	115666 PIPE FROM L.H. AIR PIPE TO 3-WAY UNION	-	1	Enquire
59	121793	3-WAY UNION	121793 3-WAY UNION	-	1	Enquire
60	169695	RUBBER PIPE	169695 RUBBER PIPE TO 3-WAY UNION	-	1	Enquire
61	169695	RUBBER PIPE	169695 RUBBER PIPE FILLER	-	1	Enquire
62	10519424	WASHER	10519424 WASHER	-	4	Enquire
63	127816	O-RING	127816 O-RING	-	2	Enquire
