Ferrari F50 - FUEL INJECTION SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
170067 FUEL FLOWING BACK PIPE $82.09 To Order
Photo Part No Description Price (each) Stock
13431570 COLLAR FOR HOSE UNION $1.26 To Order
Photo Part No Description Price (each) Stock
164331 Fitting $48.12 To Order
Photo Part No Description Price (each) Stock
11270150 GASKET $7.44 To Order
Photo Part No Description Price (each) Stock
164330 GASKET $3.45 To Order
Photo Part No Description Price (each) Stock
165775 L.H. FLANGE $1,556.44 To Order
Photo Part No Description Price (each) Stock
164329 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
174053 L.H. FUEL FLOWING BACK PIPE $507.28 To Order
Photo Part No Description Price (each) Stock
127816 O-RING $3.84 To Order
Photo Part No Description Price (each) Stock
174054 PIPE FROM FILTER TO FLAUTE $293.50 To Order
Photo Part No Description Price (each) Stock
109889 UNION $4.80 To Order
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.21 To Order
Photo Part No Description Price (each) Stock
186922 Fuel Filter $119.60 To Order
Photo Part No Description Price (each) Stock
11270160 Washer $1.70 To Order
Photo Part No Description Price (each) Stock
109797 UNION $35.25 To Order
Photo Part No Description Price (each) Stock
174050 PIPE FROM TANK TO FILTER $369.04 To Order
Photo Part No Description Price (each) Stock
152885 BRACKET WITH SHEATH $8.93 To Order
Photo Part No Description Price (each) Stock
10902524 SCREW $0.15 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
115200 SCREW $7.37 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
166730 SHIM $6.68 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
164334 R.H. FLANGE $1,556.44 To Order
Photo Part No Description Price (each) Stock
154102 GASKET $7.25 To Order
Photo Part No Description Price (each) Stock
165928 STUD $11.80 To Order
Photo Part No Description Price (each) Stock
165776 L.H. SAFETY PLATE $52.94 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
165929 SPACER $6.68 To Order
Photo Part No Description Price (each) Stock
165999 L.H. HEAT SHIELD SMALL SUMP $80.21 To Order
Photo Part No Description Price (each) Stock
14496204 WASHER $0.18 To Order
Photo Part No Description Price (each) Stock
14084015 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
129316 R.H. SAFETY PLATE $3.86 To Order
Photo Part No Description Price (each) Stock
168348 R.H. HEAT SHIELD SMALL SUMP $85.03 To Order
Photo Part No Description Price (each) Stock
164206 FILTER INSULATION $165.32 To Order
Photo Part No Description Price (each) Stock
169933 GROUND PIN $29.77 To Order
Photo Part No Description Price (each) Stock
169934 GROUND PIN $29.77 To Order
Photo Part No Description Price (each) Stock
170072 BUSHING FOR FLANGE $17.29 To Order
Photo Part No Description Price (each) Stock
14452681 GASKET $0.24 To Order
Photo Part No Description Price (each) Stock
134705 GASKET $0.36 To Order
Photo Part No Description Price (each) Stock
170017 BUSHING $202.63 To Order
Photo Part No Description Price (each) Stock
10519424 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
170069 POSITIVE ELECTRIC CABLE $240.67 To Order
Photo Part No Description Price (each) Stock
170070 NEGATIVE ELECTRIC CABLE $32.08 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
149951 WASHER $0.31 To Order
Photo Part No Description Price (each) Stock
15896470 NUT $7.33 To Order
Photo Part No Description Price (each) Stock
170698 FUEL FLOWING BACK PIPE Enquire To Order
Photo Part No Description Price (each) Stock
166540 NONRETURN VALVE $36.16 To Order
Photo Part No Description Price (each) Stock
170067 FUEL FLOWING BACK PIPE $82.09 To Order
Photo Part No Description Price (each) Stock
13431570 COLLAR FOR HOSE UNION $1.26 To Order
Photo Part No Description Price (each) Stock
14560180 CLAMP Enquire To Order
View All

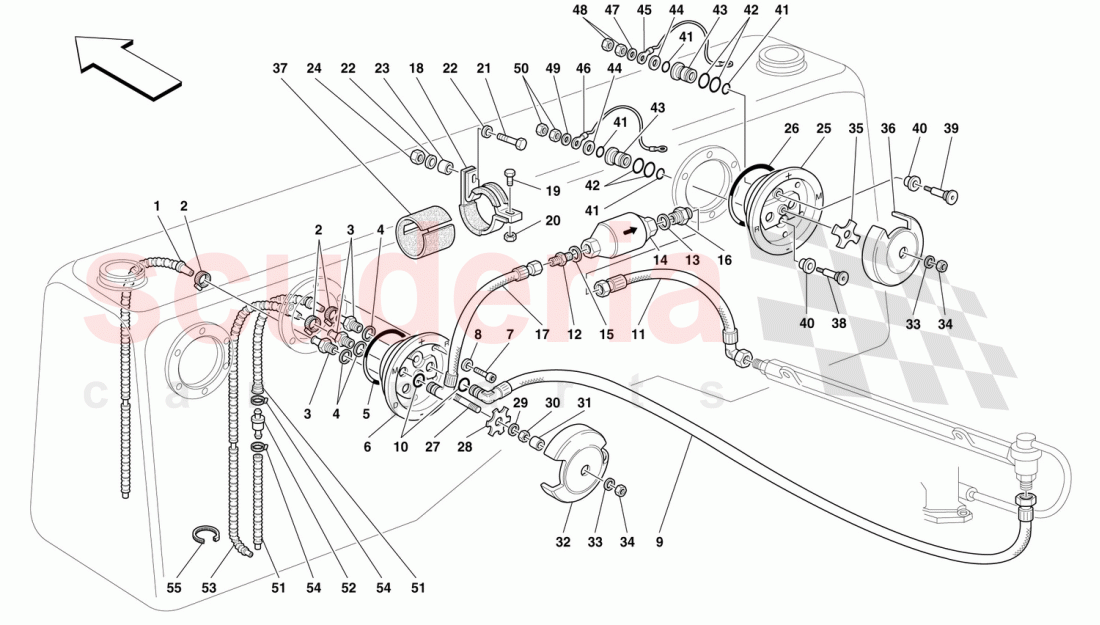

FUEL INJECTION SYSTEM of Ferrari Ferrari F50 Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 241986
COLLAR FOR HOSE UNION 		$1.05 4
- 174054
PIPE FROM FILTER TO FLAUTE
Valid after stock exhaustion of 162860 		$293.50 2
- 174049
R.H. FUEL FLOWING BACK PIPE 		$483.70 1
- 241986
COLLAR FOR HOSE UNION 		$1.05 5
1 170067
FUEL FLOWING BACK PIPE 		$82.09 1
2 13431570
COLLAR FOR HOSE UNION
Not as spare part now / Replaced by 171406 		$1.26 5
3 164331
Fitting 		$48.12 5
4 11270150
GASKET 		$7.44 (7% off) 5
5 164330
GASKET 		$3.45 2
6 165775
L.H. FLANGE 		$1,556.44 1
7 164329
SCREW 		$0.83 12
8 11197774
WASHER 		$0.06 (80% off) 12
9 174053
L.H. FUEL FLOWING BACK PIPE 		$507.28 1
10 127816
O-RING 		$3.84 (22.4% off) 8
11 174054
PIPE FROM FILTER TO FLAUTE 		$293.50 2
12 109889
UNION 		$4.80 (64% off) 2
13 10280060
WASHER COPPER D14. 20 X 1.5 		$0.21 (79% off) 2
14 186922
Fuel Filter 		$119.60 2
15 11270160
Washer 		$1.70 6
16 109797
UNION 		$35.25 (39.3% off) 2
17 174050
PIPE FROM TANK TO FILTER 		$369.04 2
18 152885
BRACKET WITH SHEATH 		$8.93 (58.5% off) 2
19 10902524
SCREW 		$0.15 2
20 14059290
FLANGED NUT M6 		$1.51 2
21 115200
SCREW 		$7.37 2
22 12644424
WASHER 		$0.06 (85% off) 4
23 166730
SHIM 		$6.68 2
24 14059290
FLANGED NUT M6 		$1.51 2
25 164334
R.H. FLANGE 		$1,556.44 1
26 154102
GASKET 		$7.25 2
27 165928
STUD 		$11.80 2
28 165776
L.H. SAFETY PLATE 		$52.94 1
29 11197774
WASHER 		$0.06 (80% off) 2
30 14059290
FLANGED NUT M6 		$1.51 2
31 165929
SPACER 		$6.68 2
32 165999
L.H. HEAT SHIELD SMALL SUMP 		$80.21 1
33 14496204
WASHER 		$0.18 2
34 14084015
NUT 		$0.06 2
35 129316
R.H. SAFETY PLATE 		$3.86 1
36 168348
R.H. HEAT SHIELD SMALL SUMP 		$85.03 1
37 164206
FILTER INSULATION 		$165.32 2
38 169933
GROUND PIN 		$29.77 2
39 169934
GROUND PIN 		$29.77 2
40 170072
BUSHING FOR FLANGE 		$17.29 4
41 14452681
GASKET 		$0.24 8
42 134705
GASKET 		$0.36 (56.1% off) 8
43 170017
BUSHING 		$202.63 4
44 10519424
WASHER 		$0.02 (92% off) 4
45 170069
POSITIVE ELECTRIC CABLE 		$240.67 2
46 170070
NEGATIVE ELECTRIC CABLE 		$32.08 2
47 12601374
WASHER 		$0.02 (92% off) 2
48 14059290
FLANGED NUT M6 		$1.51 4
49 149951
WASHER 		$0.31 2
50 15896470
NUT 		$7.33 4
51 170698
FUEL FLOWING BACK PIPE 		- 4 Enquire
52 166540
NONRETURN VALVE 		$36.16 (10.4% off) 2
53 170067
FUEL FLOWING BACK PIPE 		$82.09 2
54 13431570
COLLAR FOR HOSE UNION
Not as spare part now / Replaced by 171406 		$1.26 4
55 14560180
CLAMP 		- 4 Enquire
