Ferrari F40 - Brakes and clutch control pedals

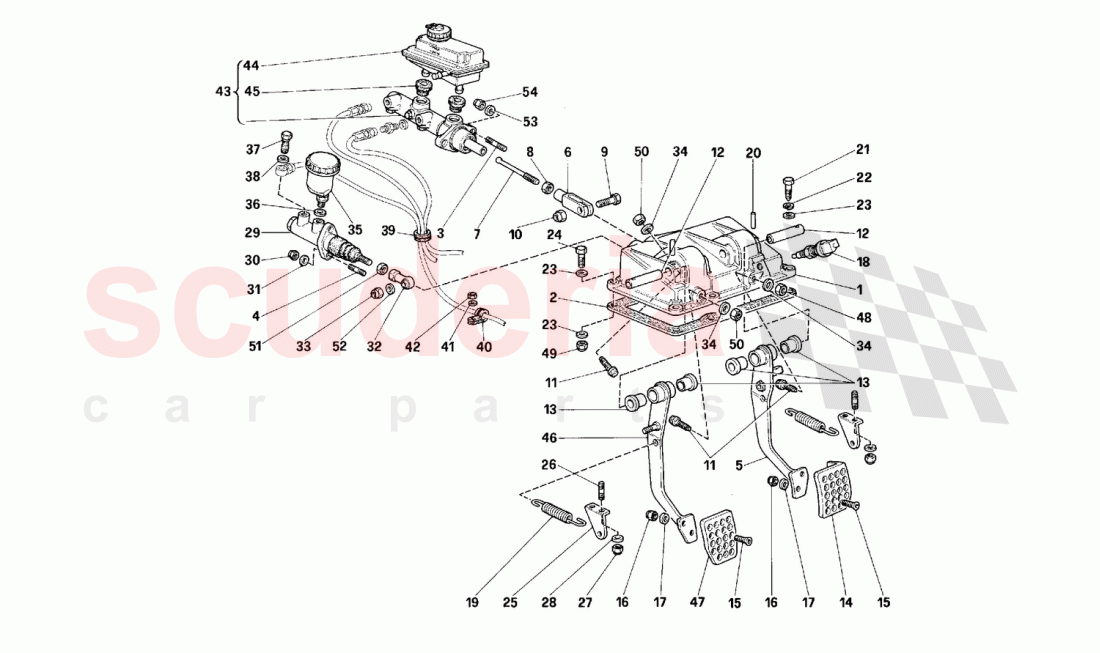

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	133344	Support	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128627	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12429621	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543324	Stud -Valid for gearbox	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133553	Brake pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133393	Fork	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137650	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137116	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128620	Screw pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133554	Pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128612	Bush pedal (As option Nr. 128613)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128608	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14441420	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14499370	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133555	PUSHBUTTON SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	138856	Spring pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	114623	Cotter pin	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16136021	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16044024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62431900	Plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001024	Stud	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137544	Clutch pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133989	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	123194	Ball joint	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135772	Small tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	136565	Hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10260160	Copper Washer D. 10 - 14 x 1	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10397380	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137651	Brake pump	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	133559	Small tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175189	SEAT RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128596	Clutch pedal	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128599	Clutch pedal plate	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16104411	Selflocking nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	140595	Brake pump	140595 Brake pump Valid for USA	-	1	Enquire
1	133344	Support	133344 Support	-	1	Enquire
2	128627	Gasket	128627 Gasket	-	1	Enquire
3	12429621	Stud	12429621 Stud	-	2	Enquire
4	13543324	Stud -Valid for gearbox	13543324 Stud -Valid for gearbox	-	2	Enquire
5	133553	Brake pedal	133553 Brake pedal	-	1	Enquire
6	133393	Fork	133393 Fork	-	1	Enquire
7	137650	Pin	137650 Pin	-	1	Enquire
8	16102314	NUT	16102314 NUT	-	1	Enquire
9	137116	Screw	137116 Screw	-	1	Enquire
10	16104411	Selflocking nut	16104411 Selflocking nut	-	1	Enquire
11	128620	Screw pedal	128620 Screw pedal	-	3	Enquire
12	133554	Pin	133554 Pin	-	2	Enquire
13	128612	Bush pedal (As option Nr. 128613)	128612 Bush pedal (As option Nr. 128613) (As option Nr. 128613)	-	4	Enquire
14	128608	Plate	128608 Plate	-	1	Enquire
15	14441420	Screw	14441420 Screw	-	4	Enquire
16	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
17	14499370	Washer	14499370 Washer	-	4	Enquire
18	133555	PUSHBUTTON SWITCH	133555 PUSHBUTTON SWITCH	-	1	Enquire
19	138856	Spring pedal	138856 Spring pedal	-	2	Enquire
20	114623	Cotter pin	114623 Cotter pin	-	2	Enquire
21	16136021	Screw	16136021 Screw	-	3	Enquire
22	127496	WASHER	127496 WASHER	-	3	Enquire
23	84653800	WASHER	84653800 WASHER	-	9	Enquire
24	16044024	SCREW	16044024 SCREW	-	3	Enquire
25	62431900	Plate	62431900 Plate	-	2	Enquire
26	11001024	Stud	11001024 Stud	-	4	Enquire
27	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	4	Enquire
28	14496324	WASHER	14496324 WASHER	-	4	Enquire
29	137544	Clutch pump	137544 Clutch pump	-	1	Enquire
30	133989	NUT	133989 NUT	-	2	Enquire
31	12601374	WASHER	12601374 WASHER	-	2	Enquire
32	123194	Ball joint	123194 Ball joint	-	1	Enquire
33	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	1	Enquire
34	84653800	WASHER	84653800 WASHER	-	3	Enquire
35	135772	Small tank	135772 Small tank	-	1	Enquire
36	10298460	GASKET	10298460 GASKET	-	1	Enquire
37	136565	Hose	136565 Hose	-	1	Enquire
38	10260160	Copper Washer D. 10 - 14 x 1	10260160 Copper Washer D. 10 - 14 x 1	-	1	Enquire
39	10397380	CABLE GROMMET	10397380 CABLE GROMMET	-	1	Enquire
40	10441590	BRACKET WITH SHEATH	10441590 BRACKET WITH SHEATH	-	1	Enquire
41	10519424	WASHER	10519424 WASHER	-	1	Enquire
42	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
43	137651	Brake pump	137651 Brake pump Not for USA	-	1	Enquire
44	133559	Small tank	133559 Small tank	-	1	Enquire
45	175189	SEAT RING	175189 SEAT RING	-	2	Enquire
46	128596	Clutch pedal	128596 Clutch pedal	-	1	Enquire
47	128599	Clutch pedal plate	128599 Clutch pedal plate	-	1	Enquire
48	16102314	NUT	16102314 NUT	-	1	Enquire
49	16104411	Selflocking nut	16104411 Selflocking nut	-	3	Enquire
50	16102314	NUT	16102314 NUT	-	2	Enquire
51	16102314	NUT	16102314 NUT	-	1	Enquire
52	84653800	WASHER	84653800 WASHER	-	1	Enquire
53	12601374	WASHER	12601374 WASHER	-	2	Enquire
54	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	2	Enquire
