Tanks and gasoline vent system -Valid for USA- of Ferrari Ferrari F40

View All

Ferrari F40 - Tanks and gasoline vent system -Valid for USA-

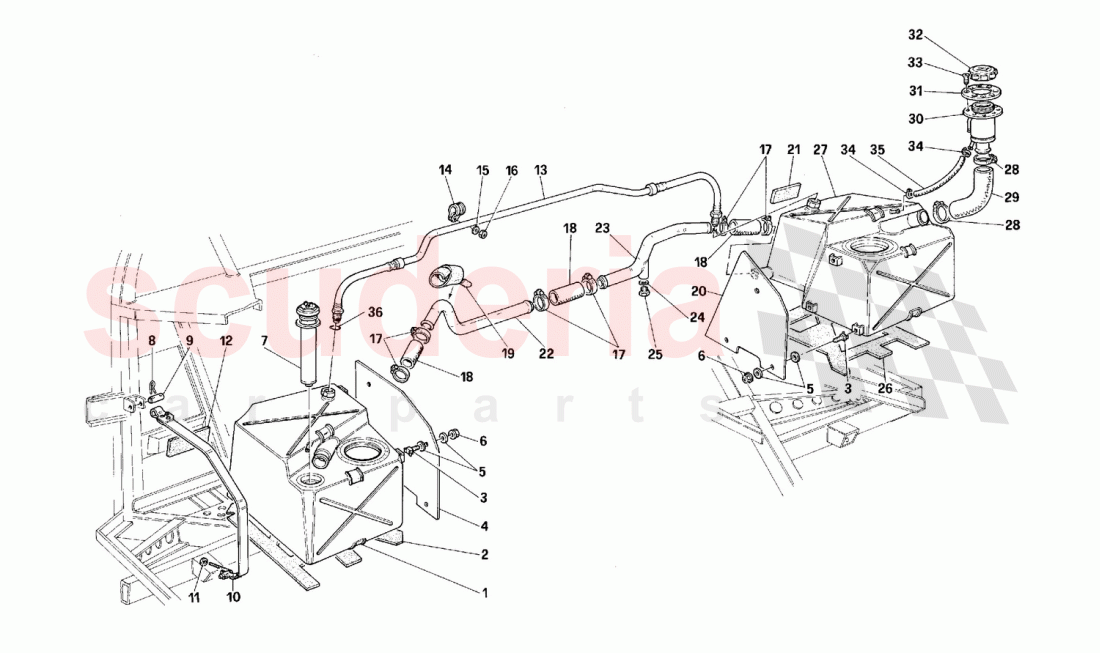

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	143445	Fuel tank L.H.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144005	Rubber spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14664790	CAGE SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	144348	L.H. protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143002	Fuel level	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	103447	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142786	Belt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142798	RUBBER SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137660	Exhaust pipe tanks	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13000590	SCREW COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	114277	R.H. and L.H. hose	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139298	Insulation	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144347	R.H. protection	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142797	Rubber spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144327	L.H. tank connection pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144326	R.H. tank connection pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10278650	Gasket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10300771	Oil Outlet Plug	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	142799	Rubber spacer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143444	Fuel tank R.H.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13000790	SCREW COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	143798	Pipe from union to tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140492	Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	143981	Flange	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180320	COPMLETE TANK PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149950	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157990	Hose Retaining Clip D. 7 - 11 x 5	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133984	Exhaust pipe	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128702	O.R. GASKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	143445	Fuel tank L.H.	143445 Fuel tank L.H.	-	1	Enquire
2	144005	Rubber spacer	144005 Rubber spacer	-	1	Enquire
3	14664790	CAGE SCREW IN STOCK	14664790 CAGE SCREW IN STOCK	-	7	Enquire
4	144348	L.H. protection	144348 L.H. protection	-	1	Enquire
5	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	14	Enquire
6	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	7	Enquire
7	143002	Fuel level	143002 Fuel level	-	1	Enquire
8	264555	SPLIT PIN	264555 SPLIT PIN	-	4	Enquire
9	103447	PIN	103447 PIN	-	2	Enquire
10	142786	Belt	142786 Belt	-	2	Enquire
11	104030	NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	104030 NYLOC NUT M8 X 1.25 X 9.5 IN STOCK	-	2	Enquire
12	142798	RUBBER SHIM	142798 RUBBER SHIM	-	1	Enquire
13	137660	Exhaust pipe tanks	137660 Exhaust pipe tanks	-	1	Enquire
14	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	-	3	Enquire
15	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	3	Enquire
16	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	3	Enquire
17	13000590	SCREW COLLAR IN STOCK	13000590 SCREW COLLAR IN STOCK	-	6	Enquire
18	114277	R.H. and L.H. hose	114277 R.H. and L.H. hose	-	3	Enquire
19	139298	Insulation	139298 Insulation	-	2	Enquire
20	144347	R.H. protection	144347 R.H. protection	-	1	Enquire
21	142797	Rubber spacer	142797 Rubber spacer	-	1	Enquire
22	144327	L.H. tank connection pipe	144327 L.H. tank connection pipe	-	1	Enquire
23	144326	R.H. tank connection pipe	144326 R.H. tank connection pipe	-	1	Enquire
24	10278650	Gasket	10278650 Gasket	-	1	Enquire
25	10300771	Oil Outlet Plug	10300771 Oil Outlet Plug	-	1	Enquire
26	142799	Rubber spacer	142799 Rubber spacer	-	1	Enquire
27	143444	Fuel tank R.H.	143444 Fuel tank R.H.	-	1	Enquire
28	13000790	SCREW COLLAR IN STOCK	13000790 SCREW COLLAR IN STOCK	-	4	Enquire
29	143798	Pipe from union to tank	143798 Pipe from union to tank	-	2	Enquire
30	140492	Union	140492 Union	-	2	Enquire
31	143981	Flange	143981 Flange	-	2	Enquire
32	180320	COPMLETE TANK PLUG	180320 COPMLETE TANK PLUG	-	2	Enquire
33	149950	Screw	149950 Screw	-	16	Enquire
34	157990	Hose Retaining Clip D. 7 - 11 x 5 IN STOCK	157990 Hose Retaining Clip D. 7 - 11 x 5 IN STOCK	-	4	Enquire
35	133984	Exhaust pipe	133984 Exhaust pipe	-	2	Enquire
36	128702	O.R. GASKET	128702 O.R. GASKET	-	2	Enquire
