Ferrari F40 - Pump and fuel piping -Not for USA-

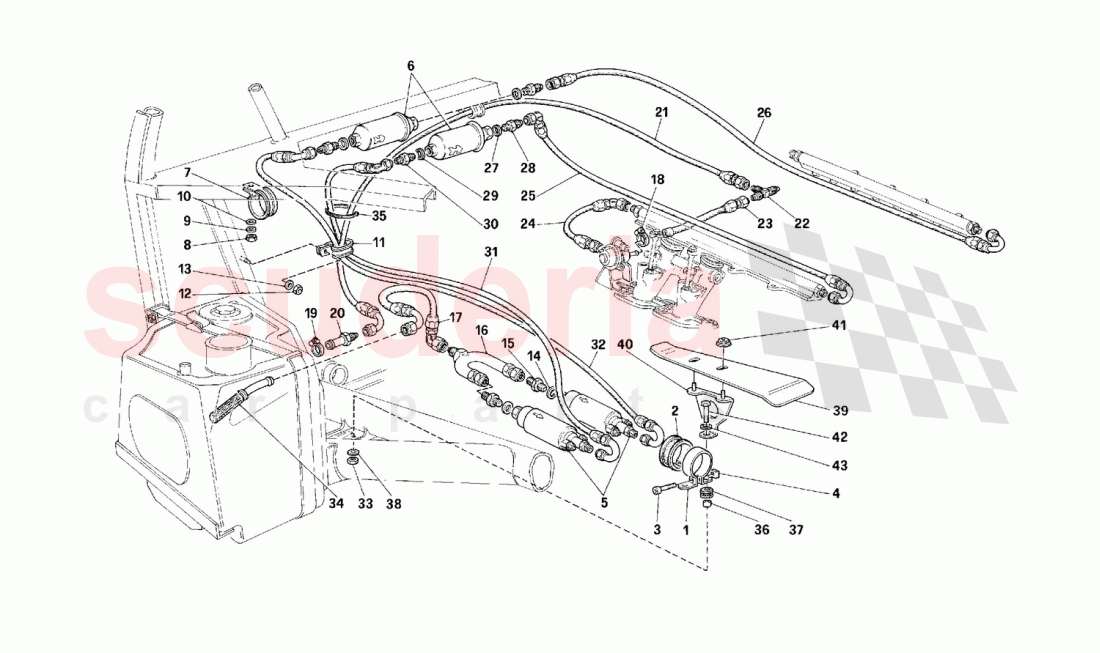

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	147617	Clip -Valid after	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	123848	Protection	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	14089311	Square nut	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	199618	Fuel pump	$787.70	To Order

Photo	Part No	Description	Price (each)	Stock
	134470	Fuel filter	$96.94	To Order

Photo	Part No	Description	Price (each)	Stock
	137243	Bracket	$3.29	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.77	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10261460	COPPER WASHER 16 X 24 X 1.5	$0.36	To Order

Photo	Part No	Description	Price (each)	Stock
	136845	Union	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	136935	Union	$1,187.39	To Order

Photo	Part No	Description	Price (each)	Stock
	136089	Fuel pipe from tank to 3 way pumps	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13432070	HOSE COLLAR	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	136107	Union	$8.33	To Order

Photo	Part No	Description	Price (each)	Stock
	136846	Fuel pipe from 3 way flutes to L.H. tank	$545.55	To Order

Photo	Part No	Description	Price (each)	Stock
	136109	Union	$75.22	To Order

Photo	Part No	Description	Price (each)	Stock
	146358	Fuel pipe from pressure adjuster to 3 way union	$497.41	To Order

Photo	Part No	Description	Price (each)	Stock
	136847	Pipe from flute to pressure adjuster	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	136848	Fuel pipe from L.H. filter to L.H. flute	$529.50	To Order

Photo	Part No	Description	Price (each)	Stock
	136852	Fuel pipe from R.H. filter to R.H. flute	$304.86	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	136077	Union	$55.56	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	136099	Union	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	136851	Fuel pipe from L.H. pump to L.H. filter	$593.69	To Order

Photo	Part No	Description	Price (each)	Stock
	136850	Fuel pipe from R.H. pump to R.H. filter	$577.64	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	137107	Filter	$204.79	To Order

Photo	Part No	Description	Price (each)	Stock
	14560187	Clamp (cable tie)	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	103550	Spacer bush -Only for	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	149083	Shield	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	149089	Bracket	$36.50	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	146358	Fuel pipe from pressure adjuster to 3 way union	146358 Fuel pipe from pressure adjuster to 3 way union adjuster to 3-way union / Valid after depletion / of 136849	$497.41	2
-	14305974	SCREW	14305974 SCREW	$0.24 MSRP: ~~0.59~~ (59.3% off)	2
-	147617	Clip -Valid after	147617 Clip -Valid after depletion of 134379	$2.74	2
1	147617	Clip -Valid after	147617 Clip -Valid after Valid till depletion	$2.74	2
2	123848	Protection	123848 Protection	$0.81	2
3	14305521	ALLEN SCREW SOCKET HEAD M6 X 30	14305521 ALLEN SCREW SOCKET HEAD M6 X 30	$0.11	2
4	14089311	Square nut	14089311 Square nut	$0.15	2
5	199618	Fuel pump	199618 Fuel pump	$787.70	2
6	134470	Fuel filter	134470 Fuel filter	$96.94 MSRP: ~~132.93~~ (27.1% off)	2
7	137243	Bracket	137243 Bracket	$3.29	2
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
9	11197774	WASHER	11197774 WASHER	$0.06 MSRP: ~~0.30~~ (80% off)	2
10	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	2
11	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	$1.77	1
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	1
13	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
14	10261460	COPPER WASHER 16 X 24 X 1.5	10261460 COPPER WASHER 16 X 24 X 1.5	$0.36 MSRP: ~~1.00~~ (64% off)	2
15	136845	Union	136845 Union	$36.89 MSRP: ~~45.00~~ (18% off)	2
16	136935	Union	136935 Union	$1,187.39	1
17	136089	Fuel pipe from tank to 3 way pumps	136089 Fuel pipe from tank to 3 way pumps to 3-way pumps	$545.55	1
18	13432070	HOSE COLLAR	13432070 HOSE COLLAR	$0.57 MSRP: ~~1.07~~ (46.7% off)	2
19	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	$1.60	1
20	136107	Union	136107 Union	$8.33	1
21	136846	Fuel pipe from 3 way flutes to L.H. tank	136846 Fuel pipe from 3 way flutes to L.H. tank to L.H. tank	$545.55	1
22	136109	Union	136109 Union	$75.22	1
23	146358	Fuel pipe from pressure adjuster to 3 way union	146358 Fuel pipe from pressure adjuster to 3 way union adjuster to 3-way union / Valid till depletion	$497.41	2
24	136847	Pipe from flute to pressure adjuster	136847 Pipe from flute to pressure adjuster pressure adjuster	$385.09	2
25	136848	Fuel pipe from L.H. filter to L.H. flute	136848 Fuel pipe from L.H. filter to L.H. flute to L.H. flute	$529.50	1
26	136852	Fuel pipe from R.H. filter to R.H. flute	136852 Fuel pipe from R.H. filter to R.H. flute to R.H. flute	$304.86	1
27	10298460	GASKET	10298460 GASKET	$0.15 MSRP: ~~1.25~~ (88% off)	2
28	136077	Union	136077 Union	$55.56	2
29	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	$0.21 MSRP: ~~1.00~~ (79% off)	2
30	136099	Union	136099 Union	$32.08	2
31	136851	Fuel pipe from L.H. pump to L.H. filter	136851 Fuel pipe from L.H. pump to L.H. filter to L.H. filter	$593.69 MSRP: ~~738.42~~ (19.6% off)	1
32	136850	Fuel pipe from R.H. pump to R.H. filter	136850 Fuel pipe from R.H. pump to R.H. filter to R.H. filter	$577.64 MSRP: ~~724.65~~ (20.3% off)	1
33	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	4
34	137107	Filter	137107 Filter	$204.79	1
35	14560187	Clamp (cable tie)	14560187 Clamp (cable tie)	$0.11	1
36	103550	Spacer bush -Only for	103550 Spacer bush -Only for clamp 147617	$1.99 MSRP: ~~3.25~~ (38.8% off)	4
37	812273	CABLE GROMMET	812273 CABLE GROMMET clamp 147617	$1.65	4
38	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
39	149083	Shield	149083 Shield	$224.63	1
40	149089	Bracket	149089 Bracket	$36.50	1
41	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
42	231625	SCREW	231625 SCREW	$0.65	1
43	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	1
