MAIN WIRING HARNESSES of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - MAIN WIRING HARNESSES

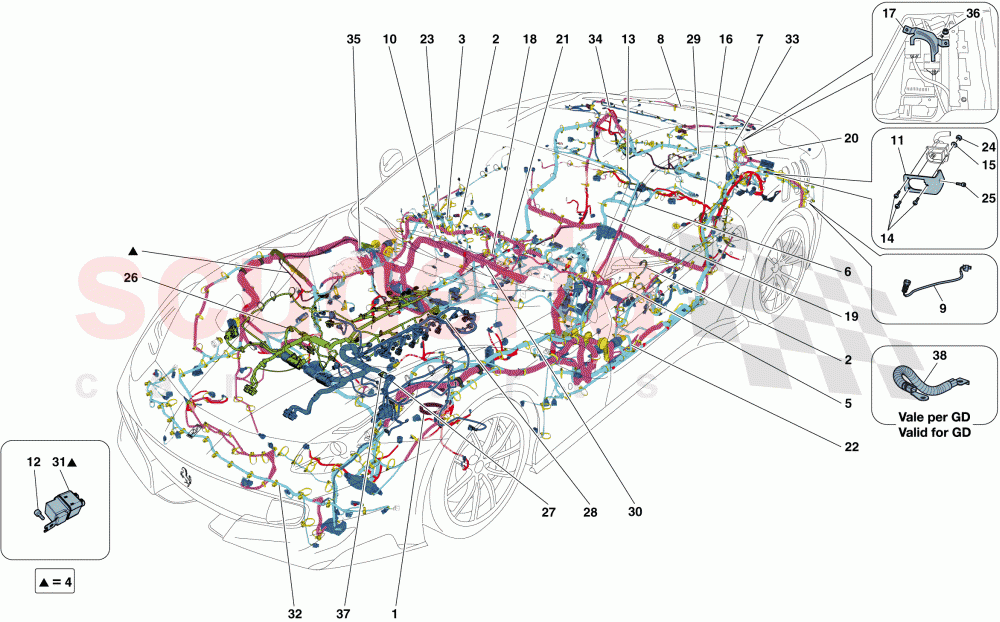

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	276837	ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID	$113.23	To Order

Photo	Part No	Description	Price (each)	Stock
	268214	DOOR SIDEBAG CABLE	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	266545	PASSENGER AIRBAG CABLE	$50.15	To Order

Photo	Part No	Description	Price (each)	Stock
	288465	VEHICLE LIFT CABLE	$433.23	To Order
	282880	VEHICLE LIFT CABLE	$401.13	To Order

Photo	Part No	Description	Price (each)	Stock
	296555	GROUND BRAID	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	302142	GROUND BRAID	$50.15	To Order
	302141	GROUND BRAID	$401.34	To Order

Photo	Part No	Description	Price (each)	Stock
	325942	LOCK CONNECTOR WIRING HARNESS	$40.11	To Order

Photo	Part No	Description	Price (each)	Stock
	319545	TAILGATE CABLE	$186.33	To Order

Photo	Part No	Description	Price (each)	Stock
	327403	REAR FOG LIGHT WIRING HARNESS	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	294222	DASHBOARD TWEETER CABLES	$47.28	To Order
	294224	DASHBOARD TWEETER CABLES	$106.07	To Order

Photo	Part No	Description	Price (each)	Stock
	295757	BATTERY CONDITIONER BRACKET	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	291354	PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE	$286.67	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	$0.21	To Order

Photo	Part No	Description	Price (each)	Stock
	12600474	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	292591	TANK CABLE	$155.63	To Order

Photo	Part No	Description	Price (each)	Stock
	274521	RH CONNECTOR MOUNTING BRACKET	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	306750	GPS ANTENNA EXTENSION CABLE	$144.40	To Order

Photo	Part No	Description	Price (each)	Stock
	310319	NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT	$104.62	To Order
	283387	NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT	$75.95	To Order

Photo	Part No	Description	Price (each)	Stock
	324546	DCT GEARBOX WIRING HARNESS	$930.65	To Order

Photo	Part No	Description	Price (each)	Stock
	314979	DASHBOARD CABLE	$845.72	To Order
	317869	DASHBOARD CABLE	$745.38	To Order
	294237	UPPER DASHBOARD WIRING HARNESS	$117.12	To Order

...and 10 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	288462	DRIVER SIDE DOOR CABLES	$641.82	To Order
	282871	DRIVER SIDE DOOR CABLES	$573.36	To Order
	288461	DRIVER SIDE DOOR CABLES	$530.36	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	288464	PASSENGER SIDE DOOR CABLES	$573.36	To Order
	282873	PASSENGER SIDE DOOR CABLES	$529.50	To Order
	288463	PASSENGER SIDE DOOR CABLES	$458.69	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833900	SCREW	$0.36	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	319627	RH INJECTION WIRING HARNESS	$2,226.15	To Order
	319626	RH INJECTION WIRING HARNESS	$2,105.22	To Order

Photo	Part No	Description	Price (each)	Stock
	319630	LH INJECTION WIRING HARNESS	$2,214.67	To Order
	319629	LH INJECTION WIRING HARNESS	$2,154.96	To Order

Photo	Part No	Description	Price (each)	Stock
	319632	ENGINE SERVICES CABLE	$358.34	To Order
	319631	ENGINE SERVICES CABLE	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	325539	REAR CABLE	$4,406.21	To Order
	325539	REAR CABLE	$4,406.21	To Order
	325538	REAR CABLE	$3,743.51	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	328265	FRONT CABLE	$5,919.35	To Order
	328262	FRONT CABLE	$5,540.29	To Order
	328263	FRONT CABLE	$5,798.32	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	251997	RELAY	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	324365	FRONT BUMPER CABLE	$200.67	To Order
	324364	FRONT BUMPER CABLE	$137.98	To Order

Photo	Part No	Description	Price (each)	Stock
	327402	REAR BUMPER CABLE	$215.00	To Order
	327400	REAR BUMPER CABLE	$152.42	To Order

Photo	Part No	Description	Price (each)	Stock
	291353	TAILGATE AM/FM ANTENNA CABLE	$385.09	To Order

Photo	Part No	Description	Price (each)	Stock
	278419	GROUND CABLE FROM SENSOR TO FALSE POLE	$43.31	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	244216	CLIP	$4.31	To Order

Photo	Part No	Description	Price (each)	Stock
	273382	GROUND CABLE	$59.35	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	276837	ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID	276837 ENGINE GROUND - CHASSIS GROUND CONNECTOR BRAID CHASSIS GROUND CONNECTOR BRAID	$113.23	2
2	268214	DOOR SIDEBAG CABLE	268214 DOOR SIDEBAG CABLE	$32.08	2
3	266545	PASSENGER AIRBAG CABLE	266545 PASSENGER AIRBAG CABLE	$50.15	1
4	288465	VEHICLE LIFT CABLE	288465 VEHICLE LIFT CABLE Version with shock absorber with lifter; Applicable for GD	$433.23	1
4	282880	VEHICLE LIFT CABLE	282880 VEHICLE LIFT CABLE Version with shock absorber with lifter; Not for GD	$401.13	1
5	296555	GROUND BRAID	296555 GROUND BRAID	$64.17	1
6	302142	GROUND BRAID	302142 GROUND BRAID Applicable for USA, CDN, USA LIGHT	$50.15 MSRP: ~~64.16~~ (21.8% off)	1
6	302141	GROUND BRAID	302141 GROUND BRAID Not for USA, CDN, USA LIGHT	$401.34	1
7	325942	LOCK CONNECTOR WIRING HARNESS	325942 LOCK CONNECTOR WIRING HARNESS	$40.11	1
8	319545	TAILGATE CABLE	319545 TAILGATE CABLE	$186.33	1
9	327403	REAR FOG LIGHT WIRING HARNESS	327403 REAR FOG LIGHT WIRING HARNESS Applicable from Ass. No. 132256	$27.26	1
10	294222	DASHBOARD TWEETER CABLES	294222 DASHBOARD TWEETER CABLES Not for premium Hi-Fi; Not for GD	$47.28	1
10	294224	DASHBOARD TWEETER CABLES	294224 DASHBOARD TWEETER CABLES Premium Hi-Fi version; Not for GD	$106.07	1
11	295757	BATTERY CONDITIONER BRACKET	295757 BATTERY CONDITIONER BRACKET Not for GD	$51.59	1
12	231619	SCREW	231619 SCREW M6 X 18	$0.31	1
13	291354	PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE	291354 PASSENGER COMPARTMENT AM/FM RADIO ANTENNA CABLE Not for USA, CDN	$286.67	1
14	14418074	SCREW	14418074 SCREW M3 X 10	$0.21	3
15	12600474	WASHER	12600474 WASHER	$0.03	3
16	292591	TANK CABLE	292591 TANK CABLE	$155.63	1
17	274521	RH CONNECTOR MOUNTING BRACKET	274521 RH CONNECTOR MOUNTING BRACKET	$37.25	1
18	306750	GPS ANTENNA EXTENSION CABLE	306750 GPS ANTENNA EXTENSION CABLE Dashboard	$144.40	1
19	310319	NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT	310319 NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT Passenger compartment; Applicable for Mexico	$104.62	1
19	283387	NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT	283387 NAV GPS ANTENNA EXTENSION CABLE, PASS. COMPARTMENT Passenger compartment; Not for Mexico	$75.95	1
20	324546	DCT GEARBOX WIRING HARNESS	324546 DCT GEARBOX WIRING HARNESS	$930.65	1
21	314979	DASHBOARD CABLE	314979 DASHBOARD CABLE Version without Hi-Fi; Applicable for GD	$845.72	1
21	317869	DASHBOARD CABLE	317869 DASHBOARD CABLE Version without Hi-Fi; Not for GD	$745.38	1
21	294237	UPPER DASHBOARD WIRING HARNESS	294237 UPPER DASHBOARD WIRING HARNESS Full house; Applicable for Hi-Fi premium version; Applicable for GD	$117.12	1
21	294235	UPPER DASHBOARD WIRING HARNESS	294235 UPPER DASHBOARD WIRING HARNESS Full house; Not for Hi-Fi premium version; Applicable for GD	$51.33	1
21	314983	DASHBOARD CABLE	314983 DASHBOARD CABLE High power Hi-Fi version; Version with telemetry; Applicable for GD	$2,031.19	1
21	317873	DASHBOARD CABLE	317873 DASHBOARD CABLE High power Hi-Fi version; Version with telemetry; Not for GD	$2,154.96	1
21	314981	DASHBOARD CABLE	314981 DASHBOARD CABLE High power Hi-Fi version; Version without telemetry; Applicable for GD	$1,747.36	1
21	317871	DASHBOARD CABLE	317871 DASHBOARD CABLE High power Hi-Fi version; Version without telemetry; Not for GD	$1,819.60	1
21	314982	DASHBOARD CABLE	314982 DASHBOARD CABLE Base Hi-Fi version; Version with telemetry; Applicable for GD	$2,025.46	1
21	317872	DASHBOARD CABLE	317872 DASHBOARD CABLE Base Hi-Fi version; Version with telemetry; Not for GD	$2,077.94	1
21	317870	DASHBOARD CABLE	317870 DASHBOARD CABLE Base Hi-Fi version; Full house; Version without telemetry; Version with passenger display, parking camera and lift system with racing seats and satellite alarm system; Not for GD	$1,774.67	1
21	322741	DASHBOARD CABLE	322741 DASHBOARD CABLE Base Hi-Fi version; Not for GD	$1,476.21	1
21	314980	DASHBOARD CABLE	314980 DASHBOARD CABLE Base Hi-Fi version; Applicable for GD	$1,690.03	1
22	288462	DRIVER SIDE DOOR CABLES	288462 DRIVER SIDE DOOR CABLES Premium Hi-Fi version; Applicable for GD	$641.82	1
22	282871	DRIVER SIDE DOOR CABLES	282871 DRIVER SIDE DOOR CABLES Premium Hi-Fi version; Not for GD	$573.36	1
22	288461	DRIVER SIDE DOOR CABLES	288461 DRIVER SIDE DOOR CABLES Base Hi-Fi version; Applicable for GD	$530.36	1
22	282870	DRIVER SIDE DOOR CABLES	282870 DRIVER SIDE DOOR CABLES Base Hi-Fi version; Not for GD	$465.32	1
22	314991	DRIVER SIDE DOOR CABLES	314991 DRIVER SIDE DOOR CABLES Version without Hi-Fi; Applicable for GD	$358.34	1
22	317882	DRIVER SIDE DOOR CABLES	317882 DRIVER SIDE DOOR CABLES Version without Hi-Fi; Not for GD	$387.02	1
23	288464	PASSENGER SIDE DOOR CABLES	288464 PASSENGER SIDE DOOR CABLES Premium Hi-Fi version; Applicable for GD	$573.36	1
23	282873	PASSENGER SIDE DOOR CABLES	282873 PASSENGER SIDE DOOR CABLES Premium Hi-Fi version; Not for GD	$529.50	1
23	288463	PASSENGER SIDE DOOR CABLES	288463 PASSENGER SIDE DOOR CABLES Base Hi-Fi version; Applicable for GD	$458.69	1
23	282872	PASSENGER SIDE DOOR CABLES	282872 PASSENGER SIDE DOOR CABLES Base Hi-Fi version; Not for GD	$369.04	1
23	314993	PASSENGER SIDE DOOR CABLES	314993 PASSENGER SIDE DOOR CABLES Version without Hi-Fi; Applicable for GD	$344.02	1
23	317884	PASSENGER SIDE DOOR CABLES	317884 PASSENGER SIDE DOOR CABLES Version without Hi-Fi; Not for GD	$336.95	1
24	16101714	NUT	16101714 NUT	-	3	Enquire
25	85833900	SCREW ARRIVING SOON	85833900 SCREW M5 X 14 ARRIVING SOON	$0.36	1
26	319627	RH INJECTION WIRING HARNESS	319627 RH INJECTION WIRING HARNESS Applicable for USA, CDN, USA LIGHT	$2,226.15	1
26	319626	RH INJECTION WIRING HARNESS	319626 RH INJECTION WIRING HARNESS Not for USA, CDN, USA LIGHT	$2,105.22	1
27	319630	LH INJECTION WIRING HARNESS	319630 LH INJECTION WIRING HARNESS Applicable for USA, CDN, USA LIGHT	$2,214.67	1
27	319629	LH INJECTION WIRING HARNESS	319629 LH INJECTION WIRING HARNESS Not for USA, CDN, USA LIGHT	$2,154.96	1
28	319632	ENGINE SERVICES CABLE	319632 ENGINE SERVICES CABLE Applicable for GD	$358.34	1
28	319631	ENGINE SERVICES CABLE	319631 ENGINE SERVICES CABLE Not for GD	$320.90	1
29	325539	REAR CABLE	325539 REAR CABLE Base Hi-Fi version; Full house; Version with parking camera and telemetry; Applicable for Apple Car Play; Not for GD	$4,406.21	1
29	325539	REAR CABLE	325539 REAR CABLE Base Hi-Fi version; Full house; Version with parking camera or telemetry; Not for GD	$4,406.21	1
29	325538	REAR CABLE	325538 REAR CABLE Base Hi-Fi version; Not for GD	$3,743.51	1
29	325537	REAR CABLE	325537 REAR CABLE Version without Hi-Fi; Not for CINA, GOLFO, J, GD	$3,671.30	1
29	325540	REAR CABLE	325540 REAR CABLE High power Hi-Fi version; Full house; Applicable for GD	$5,015.96	1
30	328265	FRONT CABLE	328265 FRONT CABLE Applicable for HELE; Version with adaptive headlights; Version with lifter; Not for GD	$5,919.35	1
30	328262	FRONT CABLE	328262 FRONT CABLE Not for HELE; Version with adaptive headlights; Version without lift; Not for GD	$5,540.29	1
30	328263	FRONT CABLE	328263 FRONT CABLE Not for HELE; Version with adaptive headlights; Version with lifter; Not for GD	$5,798.32	1
30	328264	FRONT CABLE	328264 FRONT CABLE Applicable for HELE; Version without adaptive headlights; Version without lift; Not for GD	$5,548.68	1
30	328266	FRONT CABLE	328266 FRONT CABLE Applicable for HELE; Version with adaptive headlights; Version without lift; Not for GD	$6,026.86	1
30	328261	FRONT CABLE	328261 FRONT CABLE Not for HELE; Version without adaptive headlights; Version without lift; Not for GD	$5,333.88	1
31	251997	RELAY	251997 RELAY	$272.77	1
32	324365	FRONT BUMPER CABLE	324365 FRONT BUMPER CABLE Applicable for USA, CDN, USA LIGHT	$200.67	1
32	324364	FRONT BUMPER CABLE	324364 FRONT BUMPER CABLE Not for USA, CDN, USA LIGHT	$137.98	1
33	327402	REAR BUMPER CABLE	327402 REAR BUMPER CABLE Applicable for USA, CDN, USA LIGHT	$215.00	1
33	327400	REAR BUMPER CABLE	327400 REAR BUMPER CABLE For vehicles up to Ass. No. 1322565, also order wiring harness 327403, ref. 9; Not for USA, CDN, USA LIGHT	$152.42	1
34	291353	TAILGATE AM/FM ANTENNA CABLE	291353 TAILGATE AM/FM ANTENNA CABLE Not for USA, CDN	$385.09	1
35	278419	GROUND CABLE FROM SENSOR TO FALSE POLE	278419 GROUND CABLE FROM SENSOR TO FALSE POLE	$43.31	1
36	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 M5	$1.51	2
37	244216	CLIP	244216 CLIP	$4.31	1
38	273382	GROUND CABLE	273382 GROUND CABLE Applicable for GD	$59.35	1
