DASHBOARD AND TUNNEL INSTRUMENTS of Ferrari Ferrari F12 TDF

View All

Ferrari F12 TDF - DASHBOARD AND TUNNEL INSTRUMENTS

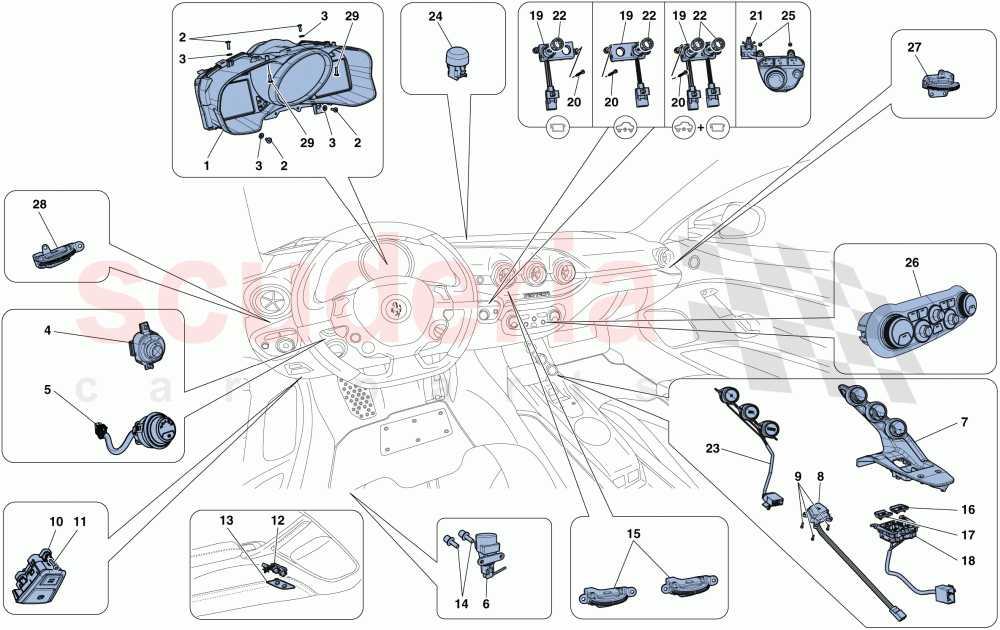

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	322622	INSTRUMENT PANEL	Enquire	To Order
	322460	INSTRUMENT PANEL	Enquire	To Order
	315159	INSTRUMENT PANEL	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259909	External Rear View Mirror Control	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283435	LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE	Enquire	To Order
	293039	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179087	INERTIAL SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	87554200	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	Enquire	To Order
	88263300	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	Enquire	To Order
	87529700	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246860	HAZARD WARNING LIGHT BUTTON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14418074	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	72587700	EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	311279	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order
	311278	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292350	SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order
	286949	SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286443	AIR VENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302236	RH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302237	LH POWER WINDOW SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	293193	COMPLETE POWER WINDOW CONTROLS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294973	CAMERA DUAL VIEW AND LIFT SYSTEM CONTROL	Enquire	To Order
	294971	VEHICLE LIFT CONTROL	Enquire	To Order
	294972	CAMERA DUAL VIEW CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687275	Screw	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	329635	NAVIGATOR CONTROLS	Enquire	To Order
	318286	NAVIGATOR CONTROLS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	268000	TRIM RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	304310	GEARBOX CONTROLS	Enquire	To Order
	302234	GEARBOX CONTROLS	Enquire	To Order
	303089	GEARBOX CONTROLS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	236871	SUNLIGHT SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88822200	SCREW TORX HEAD M4 X 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84874000	AC CONTROL PANEL	Enquire	To Order
	83422900	AIR CONDITIONING CONTROL PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286444	AIR VENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291214	LH VENT CONTROL	Enquire	To Order
	285313	AIR VENT CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	322622	INSTRUMENT PANEL	322622 INSTRUMENT PANEL Carbon version; Aluminium; Applicable for USA	-	1	Enquire
1	322460	INSTRUMENT PANEL	322460 INSTRUMENT PANEL Carbon version; Aluminium; Not for USA	-	1	Enquire
1	315159	INSTRUMENT PANEL	315159 INSTRUMENT PANEL Carbon version; White dial face; Applicable for USA	-	1	Enquire
1	315151	INSTRUMENT PANEL	315151 INSTRUMENT PANEL Carbon version; White dial face; Not for USA	-	1	Enquire
1	315158	INSTRUMENT PANEL	315158 INSTRUMENT PANEL Carbon version; Yellow dial face; Applicable for USA	-	1	Enquire
1	315150	INSTRUMENT PANEL	315150 INSTRUMENT PANEL Carbon version; Yellow dial face; Not for USA	-	1	Enquire
1	315157	INSTRUMENT PANEL	315157 INSTRUMENT PANEL Carbon version; Red dial face; Applicable for USA	-	1	Enquire
1	315149	INSTRUMENT PANEL	315149 INSTRUMENT PANEL Carbon version; Red dial face; Not for USA	-	1	Enquire
1	315156	INSTRUMENT PANEL	315156 INSTRUMENT PANEL Carbon version; Black dial face; Applicable for USA	-	1	Enquire
1	315148	INSTRUMENT PANEL	315148 INSTRUMENT PANEL Carbon version; Black dial face; Not for USA	-	1	Enquire
2	85833700	SCREW	85833700 SCREW M5 X 10	-	4	Enquire
3	62769800	WASHER	62769800 WASHER	-	4	Enquire
4	259909	External Rear View Mirror Control	259909 External Rear View Mirror Control	-	1	Enquire
5	283435	LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE	283435 LIGHTS AND REAR FOG LIGHT CONTROLS SATELLITE Applicable for J, GD	-	1	Enquire
5	293039	LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE	293039 LIGHTS AND REAR FOG LIGHT SWITCH SATELLITE Not for J, GD	-	1	Enquire
6	179087	INERTIAL SWITCH	179087 INERTIAL SWITCH	-	1	Enquire
7	87554200	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	87554200 COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL Applicable for GD	-	1	Enquire
7	88263300	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	88263300 COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL Applicable for USA, CDN, USA LIGHT	-	1	Enquire
7	87529700	COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL	87529700 COMPL. CENTRE TUNNEL CONSOLE CONTROL PANEL Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
8	246860	HAZARD WARNING LIGHT BUTTON	246860 HAZARD WARNING LIGHT BUTTON	-	1	Enquire
9	14418074	SCREW	14418074 SCREW M3 X 10	-	4	Enquire
10	72587700	EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..-	72587700 EPB Switch With AutoPark Disable -No longer supplied- -Replaced by 820259..- Plastic in interior leather trim colour	-	1	Enquire
11	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	3	Enquire
12	311279	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	311279 LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS Applicable for GD	-	1	Enquire
12	311278	LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	311278 LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS Not for GD	-	1	Enquire
13	292350	SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	292350 SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS Applicable for GD	-	1	Enquire
13	286949	SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS	286949 SURROUND FOR LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP RELEASE BUTTONS Not for GD	-	1	Enquire
14	81591700	SCREW	81591700 SCREW M5 X 20	-	2	Enquire
15	286443	AIR VENT CONTROL	286443 AIR VENT CONTROL	-	2	Enquire
16	302236	RH POWER WINDOW SWITCH	302236 RH POWER WINDOW SWITCH	-	1	Enquire
17	302237	LH POWER WINDOW SWITCH	302237 LH POWER WINDOW SWITCH	-	1	Enquire
18	293193	COMPLETE POWER WINDOW CONTROLS	293193 COMPLETE POWER WINDOW CONTROLS	-	1	Enquire
19	294973	CAMERA DUAL VIEW AND LIFT SYSTEM CONTROL	294973 CAMERA DUAL VIEW AND LIFT SYSTEM CONTROL Applicable for front and rear digital cameras and lift system; Version with parking camera and lift system	-	1	Enquire
19	294971	VEHICLE LIFT CONTROL	294971 VEHICLE LIFT CONTROL Version with lifter	-	1	Enquire
19	294972	CAMERA DUAL VIEW CONTROL	294972 CAMERA DUAL VIEW CONTROL Applicable for front and rear digital cameras; Version with parking camera	-	1	Enquire
20	15687275	Screw	15687275 Screw	-	2	Enquire
21	329635	NAVIGATOR CONTROLS	329635 NAVIGATOR CONTROLS Applicable for Apple Car Play	-	1	Enquire
21	318286	NAVIGATOR CONTROLS	318286 NAVIGATOR CONTROLS Not for Apple Car Play	-	1	Enquire
22	268000	TRIM RING	268000 TRIM RING	-	2	Enquire
23	304310	GEARBOX CONTROLS	304310 GEARBOX CONTROLS Version with red ring; Applicable for USA, CDN, USA LIGHT	-	1	Enquire
23	302234	GEARBOX CONTROLS	302234 GEARBOX CONTROLS Version with red ring; Not for USA, CDN, GD, USA LIGHT	-	1	Enquire
23	303089	GEARBOX CONTROLS	303089 GEARBOX CONTROLS Version with red ring; Applicable for GD	-	1	Enquire
24	236871	SUNLIGHT SENSOR	236871 SUNLIGHT SENSOR	-	1	Enquire
25	88822200	SCREW TORX HEAD M4 X 10MM	88822200 SCREW TORX HEAD M4 X 10MM M4 X 10	-	2	Enquire
26	84874000	AC CONTROL PANEL	84874000 AC CONTROL PANEL Applicable for USA	-	1	Enquire
26	83422900	AIR CONDITIONING CONTROL PANEL	83422900 AIR CONDITIONING CONTROL PANEL Not for USA	-	1	Enquire
27	286444	AIR VENT CONTROL	286444 AIR VENT CONTROL	-	1	Enquire
28	291214	LH VENT CONTROL	291214 LH VENT CONTROL Applicable for GD	-	1	Enquire
28	285313	AIR VENT CONTROL	285313 AIR VENT CONTROL Not for GD	-	1	Enquire
29	85833700	SCREW	85833700 SCREW M5 X 10	-	2	Enquire
