Ferrari F12 Berlinetta - GEARBOX OIL LUBRICATION AND COOLING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
318265 GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT Enquire To Order
Photo Part No Description Price (each) Stock
14307534 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12648321 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
268359 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248334 SCREW M6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
14058421 NUT Enquire To Order
Photo Part No Description Price (each) Stock
13604015 SPACER Enquire To Order
Photo Part No Description Price (each) Stock
264810 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
262813 ATF FLUID RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
254644 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
262827 FORK Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
261824 FORK Enquire To Order
Photo Part No Description Price (each) Stock
248471 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
253463 FORK WITH CAPTIVE SCREW Enquire To Order
Photo Part No Description Price (each) Stock
84317700 SCREW 8 X 30 Enquire To Order
Photo Part No Description Price (each) Stock
274638 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
265771 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
61712500 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
290918 REAR WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
290974 CENTRAL WATER DELIVERY PIPE Enquire To Order
Photo Part No Description Price (each) Stock
290919 REAR WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
282347 CENTRAL WATER RETURN PIPE Enquire To Order
Photo Part No Description Price (each) Stock
14498801 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
266783 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
271546 FRONT WATER DELIVERY HOSE Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
291103 FRONT WATER RETURN HOSE Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
86574700 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
273830 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER Enquire To Order
Photo Part No Description Price (each) Stock
272486 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
285513 BRACKET FASTENING WATER PIPES TO UNDERBODY Enquire To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath Enquire To Order
Photo Part No Description Price (each) Stock
291946 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
248454 BRACKET WITH SHEATH Enquire To Order
Photo Part No Description Price (each) Stock
13027224 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
10519424 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12640604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
291247 BRACKET FASTENING WATER PIPES TO UNDERBODY Enquire To Order
Photo Part No Description Price (each) Stock
14084111 NUT Enquire To Order
Photo Part No Description Price (each) Stock
13577724 WASHER Enquire To Order
View All

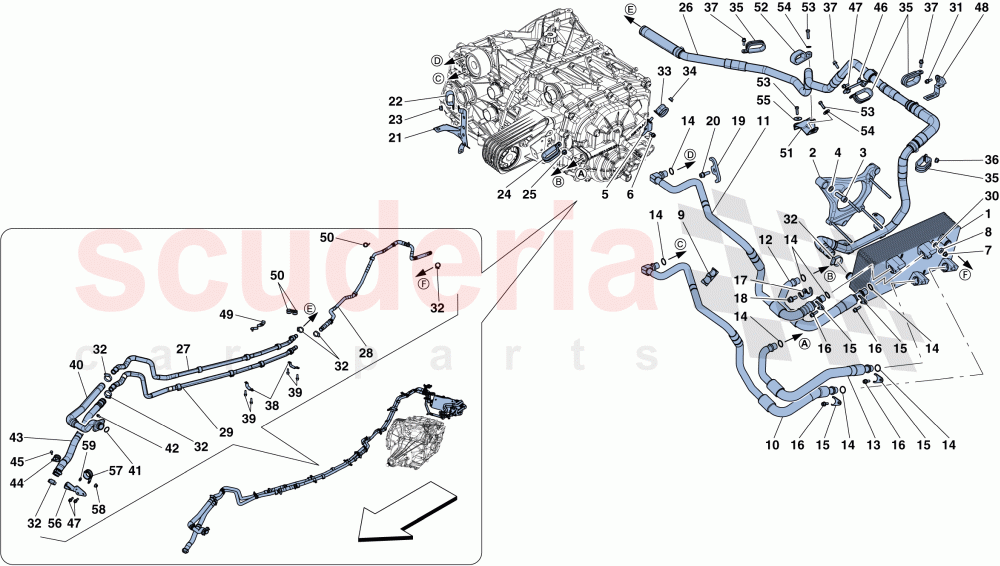

GEARBOX OIL LUBRICATION AND COOLING SYSTEM of Ferrari Ferrari F12 Berlinetta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
2 318265
GEARBOX SINGLE OIL HEAT EXCHANGER MOUNT 		- 1 Enquire
3 14307534
SCREW
M10 X 1.25 X 30 		- 3 Enquire
4 12648321
WASHER 		- 3 Enquire
5 268359
BRACKET 		- 1 Enquire
6 248334
SCREW M6 X 14MM
M6 X 12 		- 1 Enquire
7 14058421
NUT 		- 4 Enquire
8 13604015
SPACER 		- 4 Enquire
9 264810
SHIM 		- 1 Enquire
11 262813
ATF FLUID RETURN PIPE 		- 1 Enquire
14 254644
O-RING 		- 8 Enquire
15 262827
FORK 		- 4 Enquire
16 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 4 Enquire
17 261824
FORK 		- 1 Enquire
18 248471
SCREW
M8 X 20 		- 1 Enquire
19 253463
FORK WITH CAPTIVE SCREW 		- 1 Enquire
20 84317700
SCREW 8 X 30
M8 X 25 		- 1 Enquire
21 274638
BRACKET 		- 1 Enquire
22 265771
BRACKET 		- 1 Enquire
23 14059290
FLANGED NUT M6 		- 1 Enquire
24 61712500
BRACKET WITH SHEATH 		- 1 Enquire
25 14059290
FLANGED NUT M6 		- 1 Enquire
26 290918
REAR WATER DELIVERY PIPE 		- 1 Enquire
27 290974
CENTRAL WATER DELIVERY PIPE 		- 1 Enquire
28 290919
REAR WATER RETURN PIPE 		- 1 Enquire
29 282347
CENTRAL WATER RETURN PIPE 		- 1 Enquire
30 14498801
WASHER 		- 4 Enquire
31 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 1 Enquire
32 262111
JUBILEE CLAMP 		- 7 Enquire
33 291225
P clip Bracket With Sheath 		- 1 Enquire
34 14059290
FLANGED NUT M6 		- 1 Enquire
35 248454
BRACKET WITH SHEATH 		- 4 Enquire
36 14059290
FLANGED NUT M6 		- 1 Enquire
37 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 3 Enquire
38 266783
BRACKET 		- 2 Enquire
39 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 4 Enquire
40 271546
FRONT WATER DELIVERY HOSE 		- 1 Enquire
41 250888
GASKET 		- 1 Enquire
42 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 22 		- 2 Enquire
43 291103
FRONT WATER RETURN HOSE 		- 1 Enquire
44 291225
P clip Bracket With Sheath 		- 1 Enquire
45 86574700
SCREW
M6 X 16 		- 1 Enquire
46 273830
BRACKET
No longer supplied 		- 1 Enquire
47 231619
SOCKET HEAD SCREW M6 X 22 WITH WASHER
M6 X 18 		- 3 Enquire
48 272486
BRACKET 		- 1 Enquire
49 285513
BRACKET FASTENING WATER PIPES TO UNDERBODY 		- 1 Enquire
50 291225
P clip Bracket With Sheath 		- 2 Enquire
51 291946
BRACKET 		- 1 Enquire
52 248454
BRACKET WITH SHEATH 		- 1 Enquire
53 13027224
SCREW 		- 3 Enquire
54 10519424
WASHER 		- 2 Enquire
55 12640604
WASHER 		- 1 Enquire
56 291247
BRACKET FASTENING WATER PIPES TO UNDERBODY 		- 1 Enquire
57 10448790
BRACKET WITH SHEATH 		- 1 Enquire
58 14084111
NUT 		- 1 Enquire
59 13577724
WASHER 		- 1 Enquire
