Name: COMPLETE PEDAL BOARD ASSEMBLY
Rating: 5.0 (1 reviews)

COMPLETE PEDAL BOARD ASSEMBLY of Ferrari Ferrari F12 Berlinetta

View All

Ferrari F12 Berlinetta - COMPLETE PEDAL BOARD ASSEMBLY

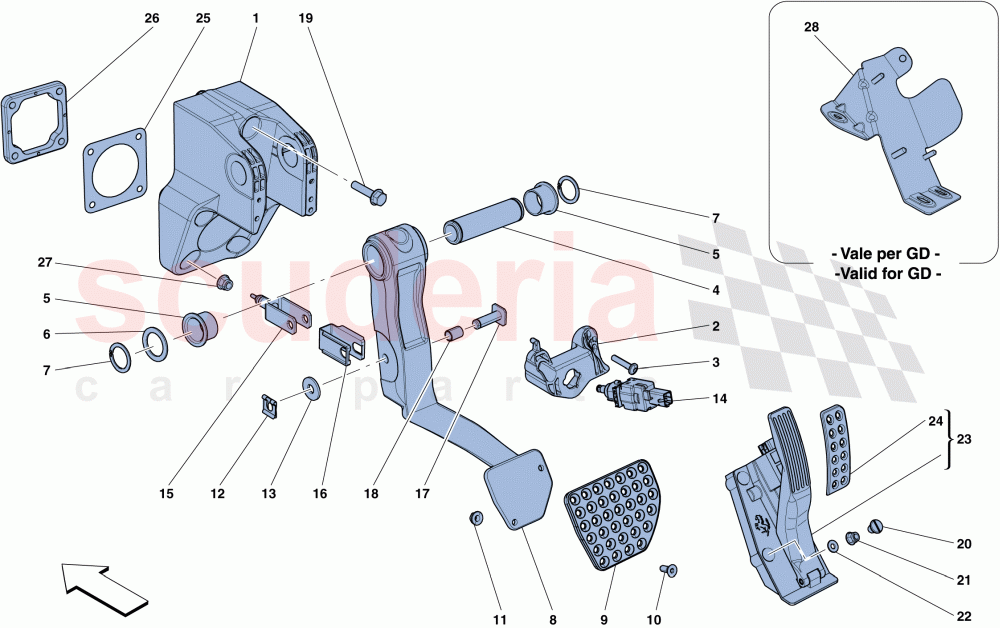

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	261612	PEDAL BOARD MOUNT	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	259123	F1 SWITCH BRACKET	$57.33	To Order

Photo	Part No	Description	Price (each)	Stock
	240931	SCREW	$4.80	To Order

Photo	Part No	Description	Price (each)	Stock
	240930	PIN	$85.03	To Order

Photo	Part No	Description	Price (each)	Stock
	147640	GASKET	$6.74	To Order

Photo	Part No	Description	Price (each)	Stock
	240929	RUBBER WASHER	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	12700076	SEEGER RING FOR SHAFT	$9.69	To Order

Photo	Part No	Description	Price (each)	Stock
	261832	BRAKE PEDAL	$1,412.03	To Order
	261846	BRAKE PEDAL	$1,412.03	To Order

Photo	Part No	Description	Price (each)	Stock
	240987	DRILLED PLATE	$272.77	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	11064176	SAFETY CLIP	$2.84	To Order

Photo	Part No	Description	Price (each)	Stock
	245181	RUBBER WASHER	$7.83	To Order

Photo	Part No	Description	Price (each)	Stock
	958694	PUSH-BUTTON SWITCH	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	245178	BRAKE SERVO LINKAGE YOKE	$78.61	To Order

Photo	Part No	Description	Price (each)	Stock
	245179	CAGE	$19.58	To Order

Photo	Part No	Description	Price (each)	Stock
	245180	PIN	$83.42	To Order

Photo	Part No	Description	Price (each)	Stock
	260639	BUSH	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	69855300	PRESS-FIT BUTTON	$0.55	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12646624	WASHER	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	243117	FLOOR HINGED ACCELERATOR PEDAL	$320.90	To Order

Photo	Part No	Description	Price (each)	Stock
	243120	ACCELERATOR PEDAL PLATE	$288.81	To Order

Photo	Part No	Description	Price (each)	Stock
	190378	GASKET	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	196080	SPACER	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	85620700	ACCELERATOR PEDAL BRACKET	$59.35	To Order
	82467100	ACCELERATOR PEDAL BRACKET	$33.68	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	261612	PEDAL BOARD MOUNT	261612 PEDAL BOARD MOUNT	$516.03	1
2	259123	F1 SWITCH BRACKET	259123 F1 SWITCH BRACKET	$57.33	1
3	240931	SCREW	240931 SCREW	$4.80	2
4	240930	PIN	240930 PIN	$85.03	1
5	147640	GASKET	147640 GASKET	$6.74 MSRP: ~~6.93~~ (2.7% off)	2
6	240929	RUBBER WASHER	240929 RUBBER WASHER	$10.76	1
7	12700076	SEEGER RING FOR SHAFT	12700076 SEEGER RING FOR SHAFT	$9.69	2
8	261832	BRAKE PEDAL	261832 BRAKE PEDAL Not for GD	$1,412.03	1
8	261846	BRAKE PEDAL	261846 BRAKE PEDAL Applicable for GD	$1,412.03	1
9	240987	DRILLED PLATE	240987 DRILLED PLATE	$272.77	1
10	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20 M6 X 16	$1.10 MSRP: ~~1.45~~ (24.1% off)	2
11	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
12	11064176	SAFETY CLIP	11064176 SAFETY CLIP	$2.84	1
13	245181	RUBBER WASHER	245181 RUBBER WASHER	$7.83	1
14	958694	PUSH-BUTTON SWITCH	958694 PUSH-BUTTON SWITCH	$33.68	1
15	245178	BRAKE SERVO LINKAGE YOKE	245178 BRAKE SERVO LINKAGE YOKE	$78.61	1
16	245179	CAGE	245179 CAGE	$19.58	1
17	245180	PIN	245180 PIN	$83.42	1
18	260639	BUSH	260639 BUSH	$14.68	1
19	16287524	SCREW	16287524 SCREW M8 X 35	$1.36	1
20	69855300	PRESS-FIT BUTTON	69855300 PRESS-FIT BUTTON	$0.55	3
21	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
22	12646624	WASHER	12646624 WASHER	$0.23 MSRP: ~~0.29~~ (20.7% off)	3
23	243117	FLOOR HINGED ACCELERATOR PEDAL	243117 FLOOR HINGED ACCELERATOR PEDAL	$320.90 MSRP: ~~407.11~~ (21.2% off)	1
24	243120	ACCELERATOR PEDAL PLATE	243120 ACCELERATOR PEDAL PLATE	$288.81	1
25	190378	GASKET	190378 GASKET	$1.18	1
26	196080	SPACER	196080 SPACER	$41.56	1
27	12578211	NUT	12578211 NUT	$0.31 MSRP: ~~1.25~~ (75.2% off)	4
28	85620700	ACCELERATOR PEDAL BRACKET	85620700 ACCELERATOR PEDAL BRACKET Applicable for GD; Applicable from Ass. No. 112201	$59.35	1
28	82467100	ACCELERATOR PEDAL BRACKET	82467100 ACCELERATOR PEDAL BRACKET Applicable for GD; Applicable up to Ass. No. 112200; Applicable until depletion	$33.68	1
