FRONT SUSPENSION - ARMS of Ferrari Ferrari Daytona SP3 Europe

View All

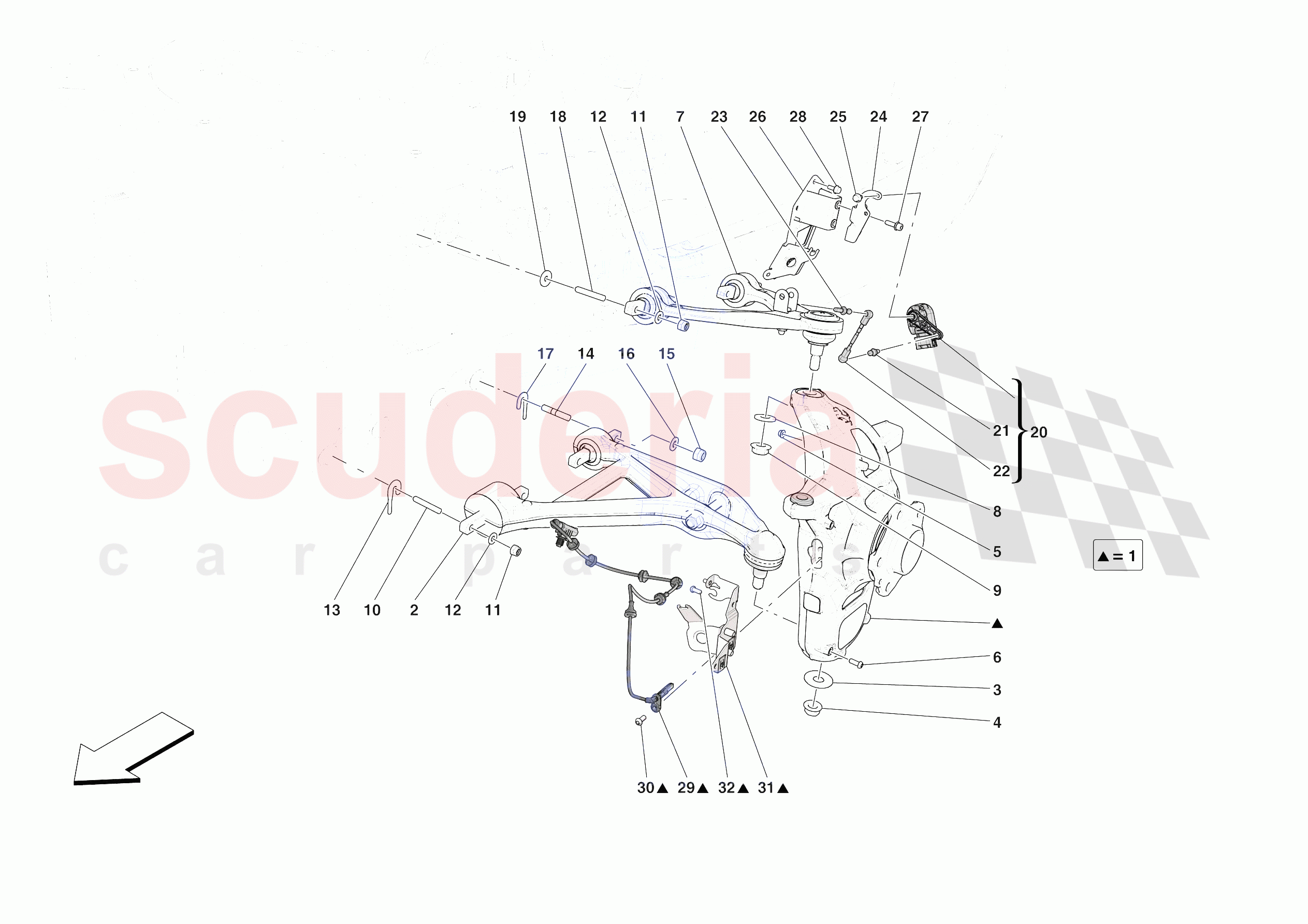

Ferrari Daytona SP3 Europe - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	744452	COMPL. LH FRONT HUB CARRIER	Enquire	To Order
	744456	COMPL. RH FRONT HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305467	COMPL. LOWER LH FRONT ARM	Enquire	To Order
	315459	COMPL. LOWER LH FRONT ARM	Enquire	To Order
	308585	COMPL. LOWER LH FRONT ARM	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	241689	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203795	NUT M14 x 1.5	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	13046011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	297986	COMPL. UPPER LH FRONT ARM	Enquire	To Order
	297987	COMPL. UPPER RH FRONT ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149807	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305454	ADJUSTMENT SHIM	Enquire	To Order
	305455	ADJUSTMENT SHIM	Enquire	To Order
	305456	ADJUSTMENT SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13546634	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262544	ADJUSTER SHIM	Enquire	To Order
	238693	ADJUSTMENT SHIM	Enquire	To Order
	238881	CAMBER SPACER 1.5MM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	13543734	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984046	COMPL. REAR MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340273	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984047	POTENTIOMETER LINK L=80MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	216973	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	871055	LH FRONT TRAVEL SENSOR FASTENER BRACKET	Enquire	To Order
	871056	RH FRONT TRAVEL SENSOR FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295999	LH FRONT JOINT BRACKET	Enquire	To Order
	296000	RH FRONT JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	336025	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292420	FRONT LH JOINT BRACKET	Enquire	To Order
	292421	FRONT RH JOINT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	744452	COMPL. LH FRONT HUB CARRIER	744452 COMPL. LH FRONT HUB CARRIER	-	1	Enquire
0001	744456	COMPL. RH FRONT HUB CARRIER	744456 COMPL. RH FRONT HUB CARRIER	-	1	Enquire
0002	305467	COMPL. LOWER LH FRONT ARM	305467 COMPL. LOWER LH FRONT ARM No longer supplied - Replaced by 315459	-	1	Enquire
0002	315459	COMPL. LOWER LH FRONT ARM	315459 COMPL. LOWER LH FRONT ARM No longer supplied - Replaced by 308585	-	1	Enquire
0002	308585	COMPL. LOWER LH FRONT ARM	308585 COMPL. LOWER LH FRONT ARM	-	1	Enquire
0002	305468	COMPL. LOWER RH FRONT ARM	305468 COMPL. LOWER RH FRONT ARM No longer supplied - Replaced by 315461	-	1	Enquire
0002	315461	COMPL. LOWER RH FRONT ARM	315461 COMPL. LOWER RH FRONT ARM No longer supplied - Replaced by 308586	-	1	Enquire
0002	308586	COMPL. LOWER RH FRONT ARM	308586 COMPL. LOWER RH FRONT ARM	-	1	Enquire
0003	241689	WASHER	241689 WASHER	-	2	Enquire
0004	203795	NUT M14 x 1.5 ARRIVING SOON	203795 NUT M14 x 1.5 ARRIVING SOON	-	2	Enquire
0005	13046011	NUT	13046011 NUT	-	2	Enquire
0006	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	4	Enquire
0007	297986	COMPL. UPPER LH FRONT ARM	297986 COMPL. UPPER LH FRONT ARM	-	1	Enquire
0007	297987	COMPL. UPPER RH FRONT ARM	297987 COMPL. UPPER RH FRONT ARM	-	1	Enquire
0008	12646921	WASHER	12646921 WASHER	-	4	Enquire
0009	149807	NUT	149807 NUT	-	2	Enquire
0010	13543724	STUD BOLT	13543724 STUD BOLT M8 X 16- -Shank length 35	-	4	Enquire
0011	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	12	Enquire
0012	14496524	WASHER	14496524 WASHER	-	12	Enquire
0013	305454	ADJUSTMENT SHIM	305454 ADJUSTMENT SHIM Th. 0.5 mm	-	4	Enquire
0013	305455	ADJUSTMENT SHIM	305455 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0013	305456	ADJUSTMENT SHIM	305456 ADJUSTMENT SHIM Th. 1.5 mm	-	4	Enquire
0013	305457	ADJUSTMENT SHIM	305457 ADJUSTMENT SHIM Th. 2 mm	-	4	Enquire
0013	305458	ADJUSTMENT SHIM	305458 ADJUSTMENT SHIM Th. 2.5 mm	-	4	Enquire
0013	305459	ADJUSTMENT SHIM	305459 ADJUSTMENT SHIM Th. 3 mm	-	4	Enquire
0013	305460	ADJUSTMENT SHIM	305460 ADJUSTMENT SHIM Th. 3.5 mm	-	4	Enquire
0013	305461	ADJUSTMENT SHIM	305461 ADJUSTMENT SHIM Th. 4 mm	-	4	Enquire
0014	13546634	STUD BOLT	13546634 STUD BOLT	-	4	Enquire
0015	104114	NUT	104114 NUT	-	4	Enquire
0016	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	4	Enquire
0017	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm	-	4	Enquire
0017	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	4	Enquire
0017	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	4	Enquire
0017	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	4	Enquire
0017	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	4	Enquire
0017	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	4	Enquire
0017	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	4	Enquire
0017	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	4	Enquire
0018	13543734	STUD BOLT	13543734 STUD BOLT	-	8	Enquire
0019	13578321	WASHER	13578321 WASHER	-	8	Enquire
0020	984046	COMPL. REAR MOTION SENSOR	984046 COMPL. REAR MOTION SENSOR	-	2	Enquire
0021	340273	BALL JOINT	340273 BALL JOINT	-	2	Enquire
0022	984047	POTENTIOMETER LINK L=80MM	984047 POTENTIOMETER LINK L=80MM	-	2	Enquire
0023	216973	BALL JOINT	216973 BALL JOINT	-	2	Enquire
0024	871055	LH FRONT TRAVEL SENSOR FASTENER BRACKET	871055 LH FRONT TRAVEL SENSOR FASTENER BRACKET	-	1	Enquire
0024	871056	RH FRONT TRAVEL SENSOR FASTENER BRACKET	871056 RH FRONT TRAVEL SENSOR FASTENER BRACKET	-	1	Enquire
0025	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	-	4	Enquire
0026	295999	LH FRONT JOINT BRACKET	295999 LH FRONT JOINT BRACKET	-	1	Enquire
0026	296000	RH FRONT JOINT BRACKET	296000 RH FRONT JOINT BRACKET	-	1	Enquire
0027	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	4	Enquire
0028	86574700	SCREW	86574700 SCREW M6 X 16	-	8	Enquire
0029	336025	ABS SENSOR	336025 ABS SENSOR	-	2	Enquire
0031	292420	FRONT LH JOINT BRACKET	292420 FRONT LH JOINT BRACKET	-	1	Enquire
0031	292421	FRONT RH JOINT BRACKET	292421 FRONT RH JOINT BRACKET	-	1	Enquire
0032	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	4	Enquire
