Name: COOLING SYSTEM PIPES
Rating: 4.1 (1 reviews)

COOLING SYSTEM PIPES of Ferrari Ferrari Daytona SP3 Europe

View All

Ferrari Daytona SP3 Europe - COOLING SYSTEM PIPES

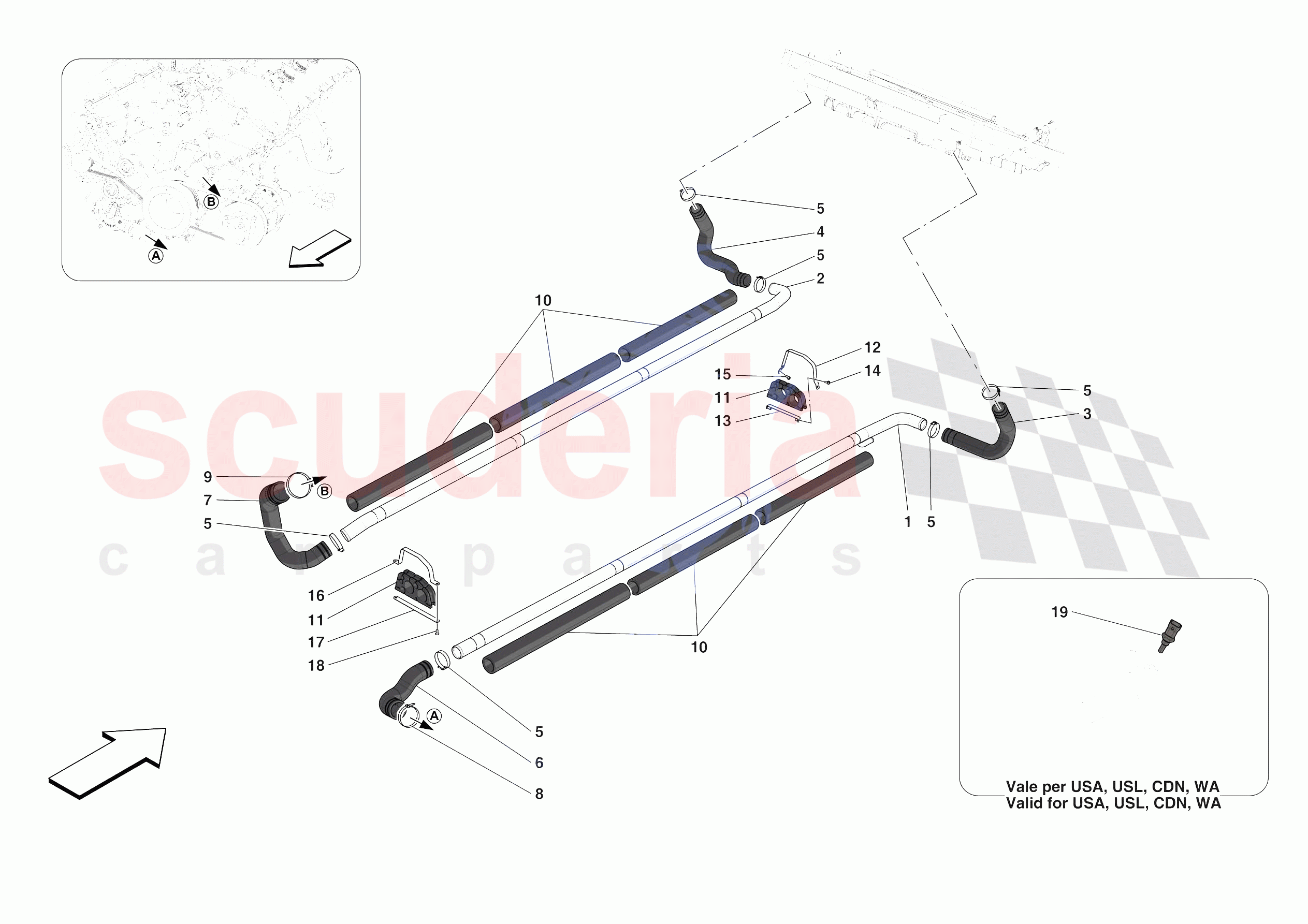

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	951188	WATER RETURN PIPE	$501.69	To Order

Photo	Part No	Description	Price (each)	Stock
	951186	WATER DELIVERY PIPE	$344.02	To Order
	951187	WATER DELIVERY PIPE	$616.38	To Order

Photo	Part No	Description	Price (each)	Stock
	869673	RADIATOR HOSE	$129.00	To Order

Photo	Part No	Description	Price (each)	Stock
	869680	RADIATOR - UNDERBODY PIPE HOSE	$136.16	To Order

Photo	Part No	Description	Price (each)	Stock
	262114	HOSE CLAMP	$1.20	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	869672	WATER RETURN HOSE	$97.46	To Order

Photo	Part No	Description	Price (each)	Stock
	869674	WATER DELIVERY HOSE	$172.00	To Order

Photo	Part No	Description	Price (each)	Stock
	262116	COLLAR	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	262383	COLLAR	$3.13	To Order

Photo	Part No	Description	Price (each)	Stock
	293041	INSULATED PIPE	$19.24	To Order

Photo	Part No	Description	Price (each)	Stock
	773400	FASTENER BLOCK FOR UNDERBODY PIPES	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	296126	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	296125	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$30.47	To Order

Photo	Part No	Description	Price (each)	Stock
	249161	SCREW	$4.18	To Order

Photo	Part No	Description	Price (each)	Stock
	14301424	SCREW	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	303492	BRACKET	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	303491	BRACKET	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14440834	SCREW	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	180137	TEMPERATURE SENSOR	$30.23	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	951188	WATER RETURN PIPE	951188 WATER RETURN PIPE	$501.69	1
0002	951186	WATER DELIVERY PIPE	951186 WATER DELIVERY PIPE Applicable for Chile	$344.02	1
0002	951187	WATER DELIVERY PIPE	951187 WATER DELIVERY PIPE Not applicable for Chile	$616.38	1
0003	869673	RADIATOR HOSE	869673 RADIATOR HOSE	$129.00	1
0004	869680	RADIATOR - UNDERBODY PIPE HOSE	869680 RADIATOR - UNDERBODY PIPE HOSE	$136.16	1
0005	262114	HOSE CLAMP ARRIVING SOON	262114 HOSE CLAMP ARRIVING SOON	$1.20	6
0006	869672	WATER RETURN HOSE	869672 WATER RETURN HOSE	$97.46	1
0007	869674	WATER DELIVERY HOSE	869674 WATER DELIVERY HOSE	$172.00	1
0008	262116	COLLAR	262116 COLLAR	$3.13	1
0009	262383	COLLAR	262383 COLLAR	$3.13	1
0010	293041	INSULATED PIPE	293041 INSULATED PIPE	$19.24	6
0011	773400	FASTENER BLOCK FOR UNDERBODY PIPES	773400 FASTENER BLOCK FOR UNDERBODY PIPES	$77.39	4
0012	296126	UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	296126 UPPER BRACKET FOR UNDERBODY PILLORY BLOCK	$33.68	3
0013	296125	LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	296125 LOWER BRACKET FOR UNDERBODY PILLORY BLOCK	$30.47	3
0014	249161	SCREW	249161 SCREW M5	$4.18	6
0015	14301424	SCREW	14301424 SCREW M5 X 8	$0.42	6
0016	303492	BRACKET	303492 BRACKET	$52.94	1
0017	303491	BRACKET	303491 BRACKET	$20.84	1
0018	14440834	SCREW	14440834 SCREW M5 X 12	$0.28 MSRP: ~~0.45~~ (37.8% off)	2
0019	180137	TEMPERATURE SENSOR	180137 TEMPERATURE SENSOR Not applicable for Chile	$30.23 MSRP: ~~32.99~~ (8.4% off)	1
