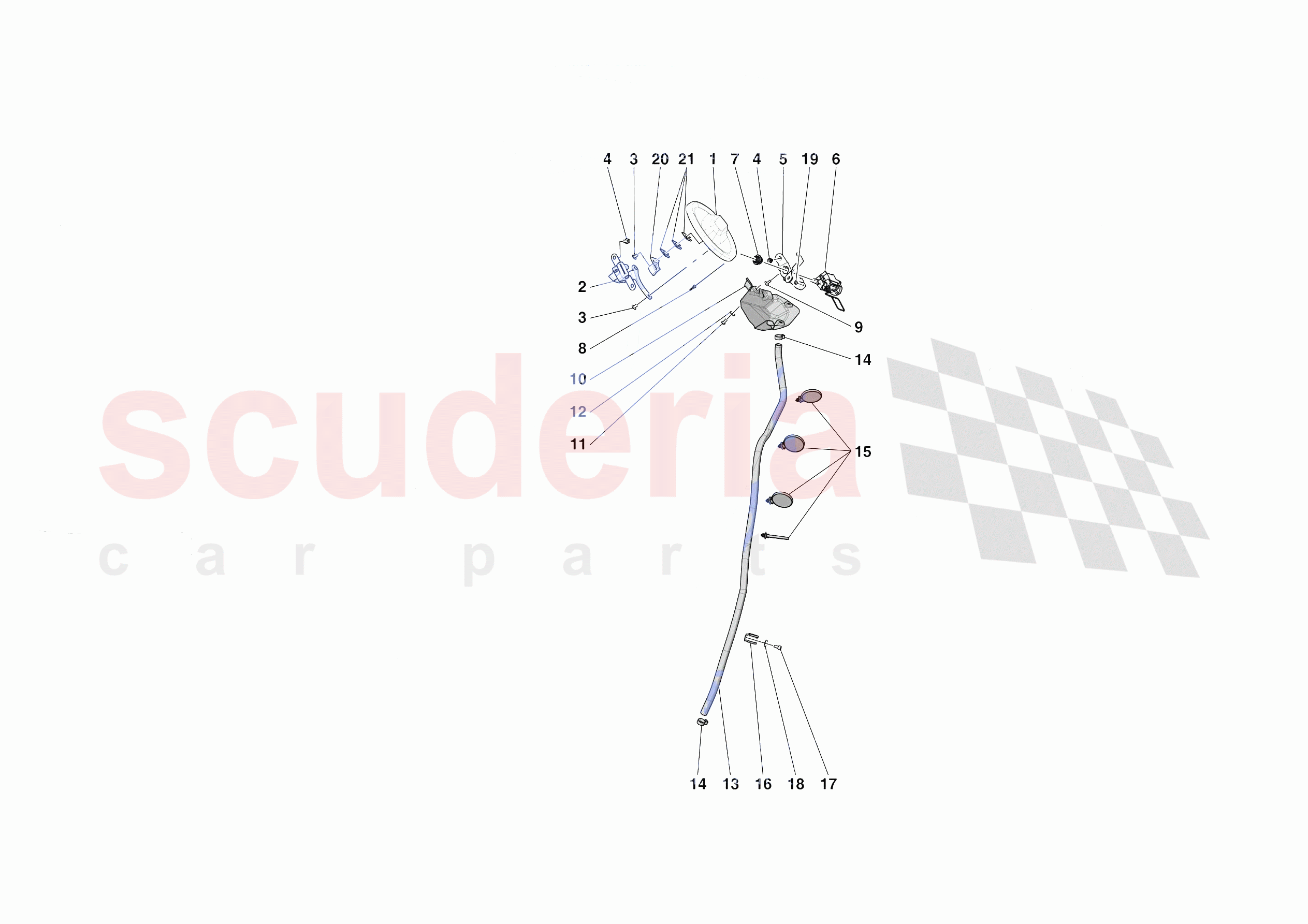

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	746770	FUEL FILLER FLAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	904763	COMPL. HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11566227	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	750733	ACTUATOR BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	788574	FUEL FILLER FLAP ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67485800	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86730400	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15689601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	749058	ACTUATOR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	920172	FUEL DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13432270	HOSE COLLAR	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	303385	CLIP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441590	BRACKET WITH SHEATH	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14304187	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	304634	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	748925	RUBBER CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	748672	STRIKER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	748675	SHIM PLATE	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	746770	FUEL FILLER FLAP	746770 FUEL FILLER FLAP Matte aluminium cover	-	1	Enquire
0002	904763	COMPL. HINGE	904763 COMPL. HINGE	-	1	Enquire
0003	85833700	SCREW	85833700 SCREW M5 X 10	-	3	Enquire
0004	11566227	SCREW IN STOCK	11566227 SCREW M5 X 14 IN STOCK	-	5	Enquire
0005	750733	ACTUATOR BRACKET	750733 ACTUATOR BRACKET	-	1	Enquire
0006	788574	FUEL FILLER FLAP ACTUATOR	788574 FUEL FILLER FLAP ACTUATOR	-	1	Enquire
0007	67485800	BUSH	67485800 BUSH	-	1	Enquire
0008	86730400	RUBBER PAD	86730400 RUBBER PAD	-	2	Enquire
0009	15689601	SCREW	15689601 SCREW M8 X 13	-	2	Enquire
0010	749058	ACTUATOR COVER	749058 ACTUATOR COVER	-	1	Enquire
0011	85833700	SCREW	85833700 SCREW M5 X 12	-	3	Enquire
0012	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	-	3	Enquire
0013	920172	FUEL DRAIN PIPE	920172 FUEL DRAIN PIPE	-	1	Enquire
0014	13432270	HOSE COLLAR IN STOCK	13432270 HOSE COLLAR IN STOCK	-	2	Enquire
0015	303385	CLIP IN STOCK	303385 CLIP 170 mm IN STOCK	-	3	Enquire
0016	10441590	BRACKET WITH SHEATH IN STOCK	10441590 BRACKET WITH SHEATH IN STOCK	-	1	Enquire
0017	14304187	SCREW IN STOCK	14304187 SCREW IN STOCK	-	1	Enquire
0018	304634	WASHER	304634 WASHER	-	1	Enquire
0019	748925	RUBBER CABLE GROMMET	748925 RUBBER CABLE GROMMET	-	1	Enquire
0020	748672	STRIKER	748672 STRIKER	-	1	Enquire
0021	748675	SHIM PLATE	748675 SHIM PLATE	-	3	Enquire
