DASHBOARD - TRIM of Ferrari Ferrari Daytona SP3 USA

View All

Ferrari Daytona SP3 USA - DASHBOARD - TRIM

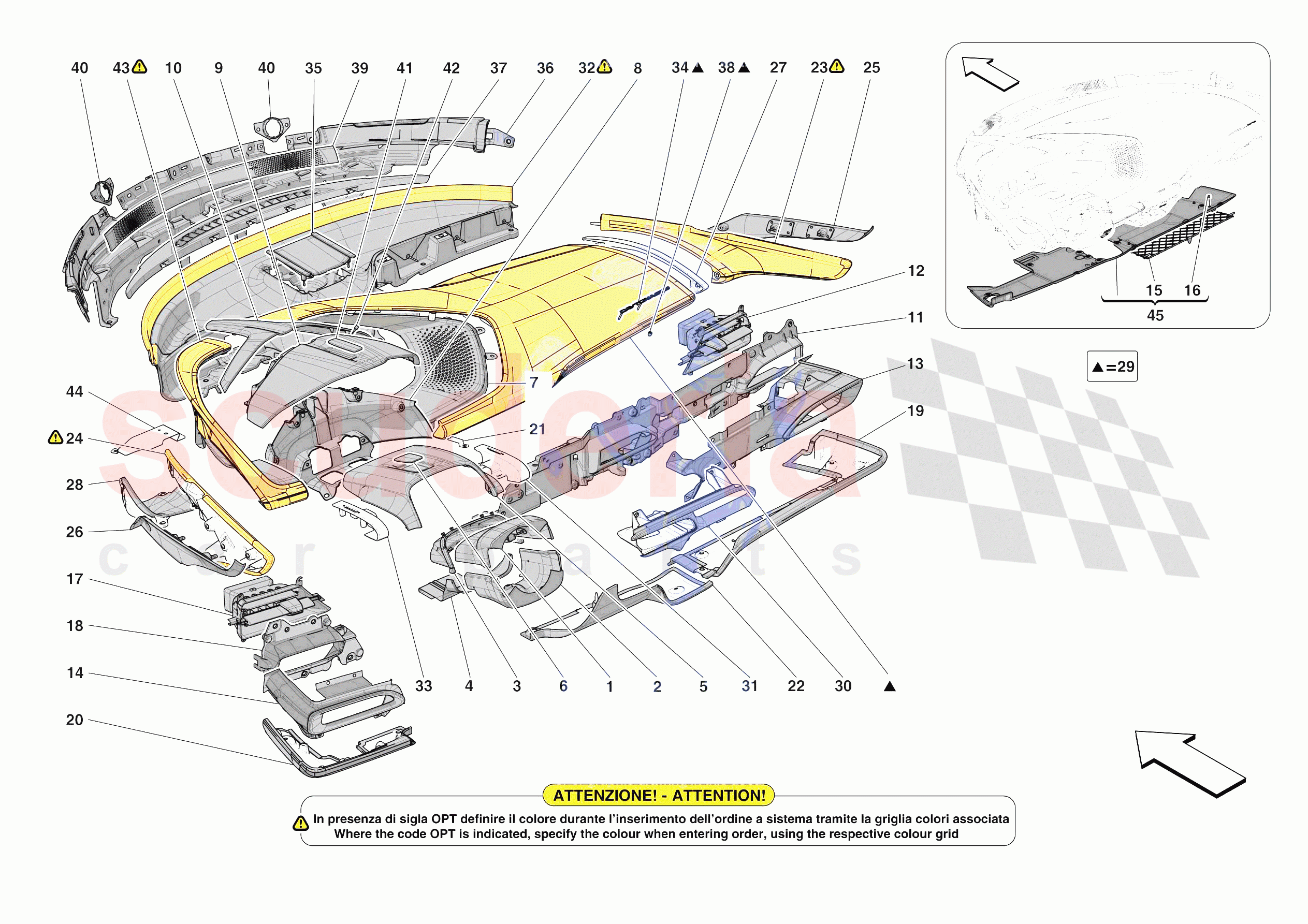

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	894718	UPPER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894805	LOWER STEERING COLUMN TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	748898	COMPL. STEERING COLUMN MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	885900	UNDER-STEERING COLUMN MEMBRANE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894702	UPPER STEERING COLUMN TRIM, FIXED PART	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	750419	COMPL. UPPER FIXED STEERING COLUMN COVER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797231	COMPL. COVER BAG BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894709	LOWER CLUSTER COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894722	COMPL. CLUSTER BROW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894800	CLUSTER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894790	UNDERDASHBOARD CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	969312	CENTRE VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	820412	RH VENT AND BEZEL ASSEMBLY	Enquire	To Order
	820430	RH VENT AND BEZEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	820411	LH VENT AND BEZEL ASSEMBLY	Enquire	To Order
	820426	LH VENT AND BEZEL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86240100	UNDERDASHBOARD ODDMENTS RETAINER MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	969314	VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894788	LH VENT COMPLETION ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894729	COMPL. RH UNDERDASHBOARD TRIM	Enquire	To Order
	745872	COMPL. RH UNDERDASHBOARD TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894801	COMPL. LH UNDERDASHBOARD TRIM	Enquire	To Order
	745858	COMPL. LH UNDERDASHBOARD TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	985406	GSM MICROPHONE INSULATION MESH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894769	COMPL. CENTRE UNDERDASHBOARD TRIM	Enquire	To Order
	745853	COMPL. CENTRE UNDERDASHBOARD TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894809	COMPL. RH QUARTERLIGHT	Enquire	To Order
	745848	COMPL. RH QUARTERLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	799167	COMPL. LH QUARTERLIGHT	Enquire	To Order
	799168	COMPL. LH QUARTERLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894807	OUTER COVER FOR RH QUARTERLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894823	OUTER COVER FOR LH QUARTERLIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949867	RH CHROME ACCENT WITH BACKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	750107	FRONT CLUSTER TRIM COMPL. LH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894699	COMPL. COVER BAG	Enquire	To Order
	745859	COMPL. COVER BAG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894739	COMPL. CENTRE AIR VENT SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	949868	AIRBAG COVER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	783546	UPPER DASHBOARD	Enquire	To Order
	834494	UPPER DASHBOARD	Enquire	To Order
	783543	UPPER DASHBOARD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	949870	CLUSTER CARRIER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	941074	DASHBOARD BADGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	797966	COMPL. VALENCE PANEL TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894804	COMPL. DEFROSTER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	88074800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	905805	TWEETER SURROUND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894700	TWEETER MOUNT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	750349	COMPL. BROW PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86730400	RUBBER PAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894803	LH TRIM	Enquire	To Order
	844833	LH TRIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	803837	STEERING COLUMN ZONE SHIELD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	894812	COMPL. LOWER DASHBOARD CLOSURE PANEL	Enquire	To Order
	838648	COMPL. LOWER DASHBOARD CLOSURE PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	894718	UPPER STEERING COLUMN TRIM	894718 UPPER STEERING COLUMN TRIM Matte Carbon	-	1	Enquire
0002	894805	LOWER STEERING COLUMN TRIM	894805 LOWER STEERING COLUMN TRIM Matte Carbon	-	1	Enquire
0003	748898	COMPL. STEERING COLUMN MEMBRANE	748898 COMPL. STEERING COLUMN MEMBRANE Black leather	-	1	Enquire
0004	885900	UNDER-STEERING COLUMN MEMBRANE	885900 UNDER-STEERING COLUMN MEMBRANE Black leather	-	1	Enquire
0005	894702	UPPER STEERING COLUMN TRIM, FIXED PART	894702 UPPER STEERING COLUMN TRIM, FIXED PART Matte Carbon	-	1	Enquire
0006	750419	COMPL. UPPER FIXED STEERING COLUMN COVER PAD	750419 COMPL. UPPER FIXED STEERING COLUMN COVER PAD Black Alcantara	-	1	Enquire
0007	797231	COMPL. COVER BAG BACKING	797231 COMPL. COVER BAG BACKING Matte Carbon	-	1	Enquire
0008	894709	LOWER CLUSTER COVER	894709 LOWER CLUSTER COVER Matte Carbon	-	1	Enquire
0009	894722	COMPL. CLUSTER BROW	894722 COMPL. CLUSTER BROW Matte Carbon	-	1	Enquire
0010	894800	CLUSTER ARM	894800 CLUSTER ARM Matte Carbon	-	1	Enquire
0011	894790	UNDERDASHBOARD CARRIER	894790 UNDERDASHBOARD CARRIER	-	1	Enquire
0012	969312	CENTRE VENT	969312 CENTRE VENT	-	2	Enquire
0013	820412	RH VENT AND BEZEL ASSEMBLY	820412 RH VENT AND BEZEL ASSEMBLY Gloss finish carbon version	-	1	Enquire
0013	820430	RH VENT AND BEZEL ASSEMBLY	820430 RH VENT AND BEZEL ASSEMBLY Matte finish carbon version	-	1	Enquire
0014	820411	LH VENT AND BEZEL ASSEMBLY	820411 LH VENT AND BEZEL ASSEMBLY Gloss finish carbon version	-	1	Enquire
0014	820426	LH VENT AND BEZEL ASSEMBLY	820426 LH VENT AND BEZEL ASSEMBLY Matte finish carbon version	-	1	Enquire
0015	86240100	UNDERDASHBOARD ODDMENTS RETAINER MESH	86240100 UNDERDASHBOARD ODDMENTS RETAINER MESH Not for J-RHD	-	1	Enquire
0016	62790300	NUT	62790300 NUT Not for J-RHD	-	8	Enquire
0017	969314	VENT	969314 VENT	-	1	Enquire
0018	894788	LH VENT COMPLETION ELEMENT	894788 LH VENT COMPLETION ELEMENT	-	1	Enquire
0019	894729	COMPL. RH UNDERDASHBOARD TRIM	894729 COMPL. RH UNDERDASHBOARD TRIM Black leather	-	1	Enquire
0019	745872	COMPL. RH UNDERDASHBOARD TRIM	745872 COMPL. RH UNDERDASHBOARD TRIM Black Alcantara	-	1	Enquire
0020	894801	COMPL. LH UNDERDASHBOARD TRIM	894801 COMPL. LH UNDERDASHBOARD TRIM Black leather	-	1	Enquire
0020	745858	COMPL. LH UNDERDASHBOARD TRIM	745858 COMPL. LH UNDERDASHBOARD TRIM Black Alcantara	-	1	Enquire
0021	985406	GSM MICROPHONE INSULATION MESH	985406 GSM MICROPHONE INSULATION MESH	-	1	Enquire
0022	894769	COMPL. CENTRE UNDERDASHBOARD TRIM	894769 COMPL. CENTRE UNDERDASHBOARD TRIM Black leather	-	1	Enquire
0022	745853	COMPL. CENTRE UNDERDASHBOARD TRIM	745853 COMPL. CENTRE UNDERDASHBOARD TRIM Black Alcantara	-	1	Enquire
0023	894809	COMPL. RH QUARTERLIGHT	894809 COMPL. RH QUARTERLIGHT Leather; INTP- -STC1- -STC2	-	1	Enquire
0023	745848	COMPL. RH QUARTERLIGHT	745848 COMPL. RH QUARTERLIGHT Black Alcantara; STC1- -STC2	-	1	Enquire
0024	799167	COMPL. LH QUARTERLIGHT	799167 COMPL. LH QUARTERLIGHT Leather; INTP- -STC1- -STC2	-	1	Enquire
0024	799168	COMPL. LH QUARTERLIGHT	799168 COMPL. LH QUARTERLIGHT Black Alcantara; STC1- -STC2	-	1	Enquire
0025	894807	OUTER COVER FOR RH QUARTERLIGHT	894807 OUTER COVER FOR RH QUARTERLIGHT Gloss carbon	-	1	Enquire
0026	894823	OUTER COVER FOR LH QUARTERLIGHT	894823 OUTER COVER FOR LH QUARTERLIGHT Gloss carbon	-	1	Enquire
0027	949867	RH CHROME ACCENT WITH BACKING	949867 RH CHROME ACCENT WITH BACKING	-	1	Enquire
0028	750107	FRONT CLUSTER TRIM COMPL. LH	750107 FRONT CLUSTER TRIM COMPL. LH Black Alcantara	-	1	Enquire
0029	894699	COMPL. COVER BAG	894699 COMPL. COVER BAG Leather; INTP- -STC1- -STC2	-	1	Enquire
0029	745859	COMPL. COVER BAG	745859 COMPL. COVER BAG Black Alcantara; STC1- -STC2	-	1	Enquire
0030	894739	COMPL. CENTRE AIR VENT SURROUND	894739 COMPL. CENTRE AIR VENT SURROUND Gloss black	-	1	Enquire
0031	949868	AIRBAG COVER BRACKET	949868 AIRBAG COVER BRACKET	-	1	Enquire
0032	783546	UPPER DASHBOARD	783546 UPPER DASHBOARD Leather - Not for J-RHD; INTP	-	1	Enquire
0032	834494	UPPER DASHBOARD	834494 UPPER DASHBOARD Leather - Applicable for J-RHD; INTP	-	1	Enquire
0032	783543	UPPER DASHBOARD	783543 UPPER DASHBOARD Black Alcantara - Not for J-RHD	-	1	Enquire
0032	835200	UPPER DASHBOARD	835200 UPPER DASHBOARD Black Alcantara - Applicable for J-RHD	-	1	Enquire
0033	949870	CLUSTER CARRIER BRACKET	949870 CLUSTER CARRIER BRACKET	-	1	Enquire
0034	941074	DASHBOARD BADGE	941074 DASHBOARD BADGE	-	1	Enquire
0036	797966	COMPL. VALENCE PANEL TRIM	797966 COMPL. VALENCE PANEL TRIM Black Alcantara	-	1	Enquire
0037	894804	COMPL. DEFROSTER SURROUND	894804 COMPL. DEFROSTER SURROUND	-	1	Enquire
0038	88074800	CLIP	88074800 CLIP	-	3	Enquire
0039	905805	TWEETER SURROUND	905805 TWEETER SURROUND	-	1	Enquire
0040	894700	TWEETER MOUNT	894700 TWEETER MOUNT	-	2	Enquire
0041	750349	COMPL. BROW PAD	750349 COMPL. BROW PAD Black Alcantara	-	1	Enquire
0042	86730400	RUBBER PAD	86730400 RUBBER PAD	-	1	Enquire
0043	894803	LH TRIM	894803 LH TRIM Leather; INTP	-	1	Enquire
0043	844833	LH TRIM	844833 LH TRIM Black Alcantara	-	1	Enquire
0044	803837	STEERING COLUMN ZONE SHIELD	803837 STEERING COLUMN ZONE SHIELD	-	1	Enquire
0045	894812	COMPL. LOWER DASHBOARD CLOSURE PANEL	894812 COMPL. LOWER DASHBOARD CLOSURE PANEL Includes oddments retainer mesh and nuts - Not for J-RHD	-	1	Enquire
0045	838648	COMPL. LOWER DASHBOARD CLOSURE PANEL	838648 COMPL. LOWER DASHBOARD CLOSURE PANEL Does not include oddments retainer mesh and nuts - Applicable for J-RHD	-	1	Enquire
