WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - WINDSCREEN WIPER, WINDSCREEN WASHER AND HORNS

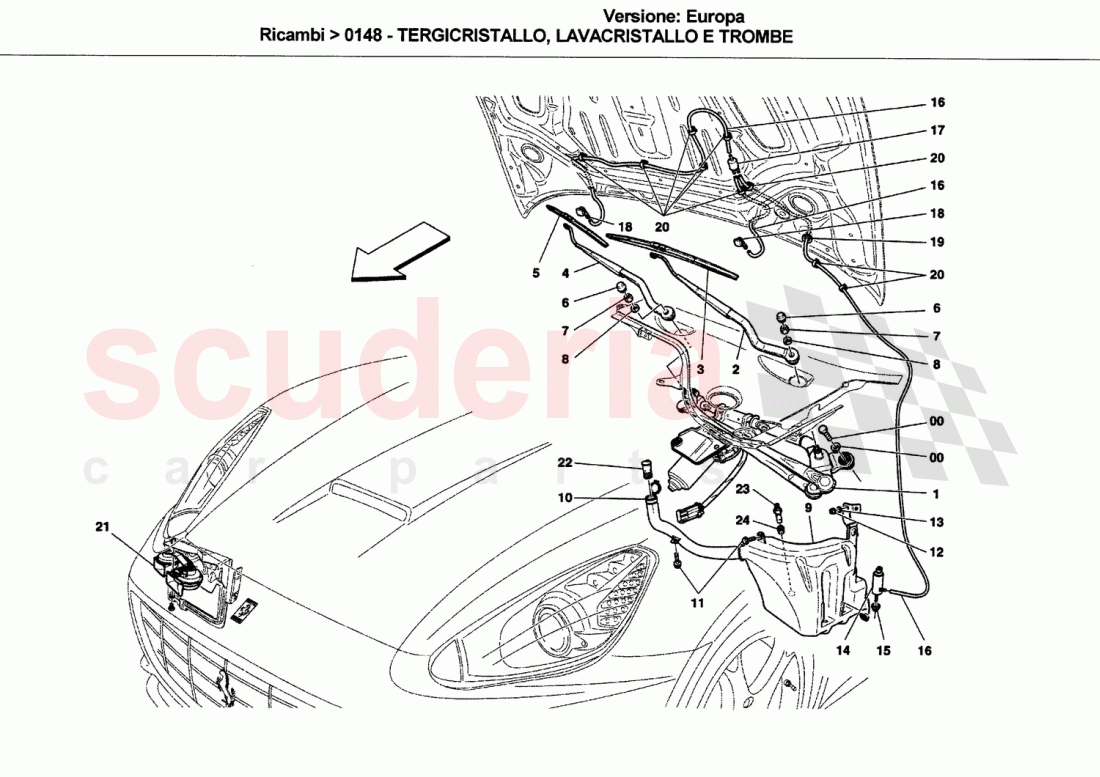

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	69770800	COMPLETE WINDSHIELD WIPER SET	Enquire	To Order
	80841000	COMPLETE WINDSHIELD WIPER SET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69771000	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	80840800	DRIVER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	Enquire	To Order
	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69771100	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order
	80840900	PASSENGER SIDE WINDSCREEN WIPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69771300	PASSENGER SIDE WINDSCREEN WIPER BLADE LHD	Enquire	To Order
	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15811787	PROTECTIVE CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791011	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81653600	Windscreen Washer Tank	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421300	Cap	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	82118300	SCREW -No longer supplied- -Replaced by 11625714-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13046112	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81632900	WINDSCREEN WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65775100	GASKET FOR WASHER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81041200	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81061000	COMPLETE WINDSCREEN WASHER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65191000	SPRAY NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	308092	NITTO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14501087	CLIP	Enquire	To Order
	14569580	CLIP	Enquire	To Order
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204704	Horn	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66421400	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81633100	FLUID LEVEL SENSOR	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	81633200	LEVEL SENSOR SEAL	Enquire	ARRIVING SOON

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	69770800	COMPLETE WINDSHIELD WIPER SET	69770800 COMPLETE WINDSHIELD WIPER SET	-	1	Enquire
1	80841000	COMPLETE WINDSHIELD WIPER SET	80841000 COMPLETE WINDSHIELD WIPER SET	-	1	Enquire
2	69771000	DRIVER SIDE WINDSCREEN WIPER ARM	69771000 DRIVER SIDE WINDSCREEN WIPER ARM	-	1	Enquire
2	80840800	DRIVER SIDE WINDSCREEN WIPER ARM	80840800 DRIVER SIDE WINDSCREEN WIPER ARM	-	1	Enquire
3	80534900	WINDSCREEN WIPER BLADE DRIVER SIDE LHD	80534900 WINDSCREEN WIPER BLADE DRIVER SIDE LHD	-	1	Enquire
3	80539000	WINDSCREEN WIPER BLADE DRIVER SIDE RHD	80539000 WINDSCREEN WIPER BLADE DRIVER SIDE RHD	-	1	Enquire
4	69771100	PASSENGER SIDE WINDSCREEN WIPER ARM	69771100 PASSENGER SIDE WINDSCREEN WIPER ARM	-	1	Enquire
4	80840900	PASSENGER SIDE WINDSCREEN WIPER ARM	80840900 PASSENGER SIDE WINDSCREEN WIPER ARM	-	1	Enquire
5	69771300	PASSENGER SIDE WINDSCREEN WIPER BLADE LHD	69771300 PASSENGER SIDE WINDSCREEN WIPER BLADE LHD	-	1	Enquire
5	80843800	PASSENGER SIDE WINDSCREEN WIPER BLADE	80843800 PASSENGER SIDE WINDSCREEN WIPER BLADE	-	1	Enquire
6	15811787	PROTECTIVE CAP	15811787 PROTECTIVE CAP	-	2	Enquire
7	10791011	NUT	10791011 NUT	-	2	Enquire
8	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
9	81653600	Windscreen Washer Tank	81653600 Windscreen Washer Tank	-	1	Enquire
10	66421300	Cap ARRIVING SOON	66421300 Cap ARRIVING SOON	-	1	Enquire
11	82118300	SCREW -No longer supplied- -Replaced by 11625714-	82118300 SCREW -No longer supplied- -Replaced by 11625714-	-	2	Enquire
12	13046112	NUT	13046112 NUT	-	2	Enquire
13	12643724	WASHER	12643724 WASHER	-	2	Enquire
14	81632900	WINDSCREEN WASHER PUMP	81632900 WINDSCREEN WASHER PUMP	-	1	Enquire
15	65775100	GASKET FOR WASHER PUMP	65775100 GASKET FOR WASHER PUMP	-	1	Enquire
16	81041200	PIPE	81041200 PIPE	-	1	Enquire
17	81061000	COMPLETE WINDSCREEN WASHER PIPE	81061000 COMPLETE WINDSCREEN WASHER PIPE	-	1	Enquire
18	65191000	SPRAY NOZZLE	65191000 SPRAY NOZZLE	-	2	Enquire
19	308092	NITTO	308092 NITTO	-	1	Enquire
20	14501087	CLIP	14501087 CLIP	-	7	Enquire
20	14569580	CLIP	14569580 CLIP	-	1	Enquire
20	248061	CLIP	248061 CLIP	-	1	Enquire
21	204704	Horn	204704 Horn	-	1	Enquire
22	66421400	FILTER	66421400 FILTER	-	1	Enquire
23	81633100	FLUID LEVEL SENSOR ARRIVING SOON	81633100 FLUID LEVEL SENSOR ARRIVING SOON	-	1	Enquire
24	81633200	LEVEL SENSOR SEAL ARRIVING SOON	81633200 LEVEL SENSOR SEAL ARRIVING SOON	-	1	Enquire
