A/C UNIT: ENGINE COMPARTMENT DEVICES of Ferrari Ferrari California (2008-2011)

View All

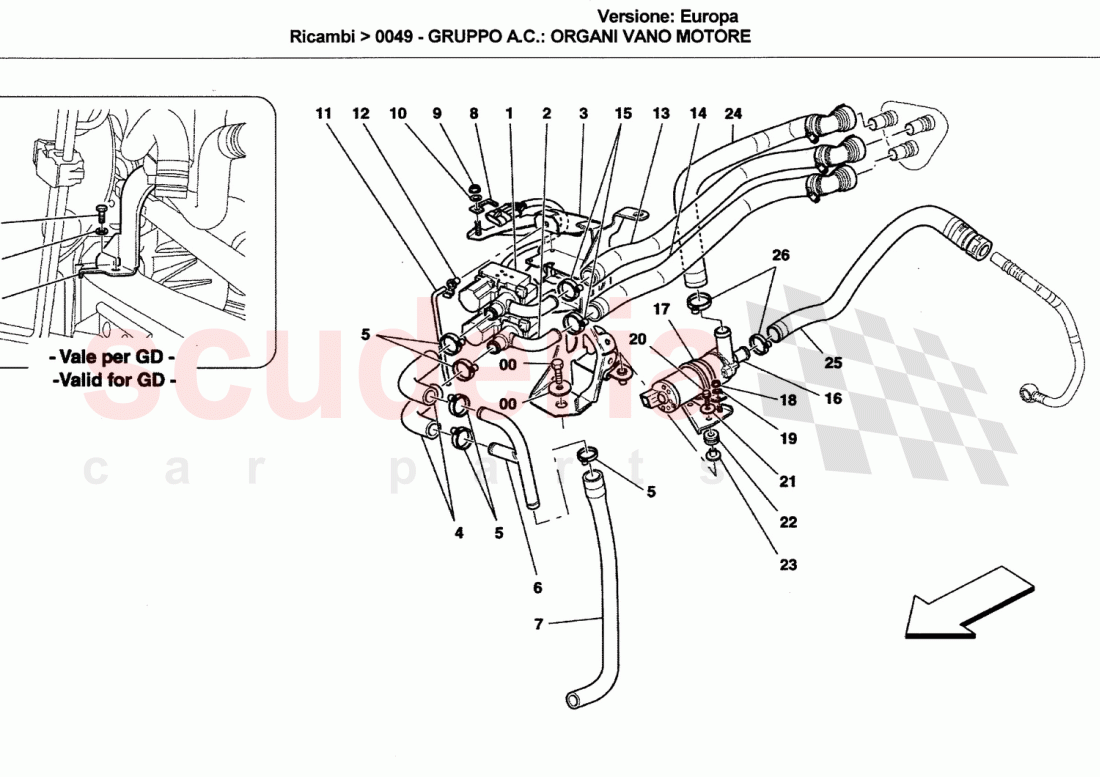

Ferrari California (2008-2011) - A/C UNIT: ENGINE COMPARTMENT DEVICES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67635900	RH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67444900	LH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	254335	VALVE MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	240729	HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247947	RIGID TGK VALVE OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247949	CONNECTOR PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155751	CLIP	Enquire	To Order
	252473	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574017	NUT	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67933600	TGK VALVE FASTENER ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	748925	RUBBER CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251945	PIPE FROM HEATER TO RH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251946	PIPE FROM HEATER TO LH TGK VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65460300	COMPLETE WATER PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	255370	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	251944	DELIVERY PIPE FROM PUMP TO A/C	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	251947	PIPE FROM ENGINE TO PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	IN STOCK

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67635900	RH TGK VALVE	67635900 RH TGK VALVE	-	1	Enquire
2	67444900	LH TGK VALVE	67444900 LH TGK VALVE	-	1	Enquire
3	254335	VALVE MOUNTING BRACKET	254335 VALVE MOUNTING BRACKET	-	1	Enquire
4	240729	HOSE	240729 HOSE	-	2	Enquire
5	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	5	Enquire
6	247947	RIGID TGK VALVE OUTLET PIPE	247947 RIGID TGK VALVE OUTLET PIPE	-	1	Enquire
7	247949	CONNECTOR PIPE	247949 CONNECTOR PIPE	-	1	Enquire
8	155751	CLIP	155751 CLIP	-	1	Enquire
8	252473	CLIP	252473 CLIP	-	1	Enquire
9	12574017	NUT IN STOCK	12574017 NUT IN STOCK	-	1	Enquire
10	62769800	WASHER IN STOCK	62769800 WASHER IN STOCK	-	1	Enquire
11	67933600	TGK VALVE FASTENER ROD	67933600 TGK VALVE FASTENER ROD	-	1	Enquire
12	748925	RUBBER CABLE GROMMET	748925 RUBBER CABLE GROMMET	-	1	Enquire
13	251945	PIPE FROM HEATER TO RH TGK VALVE	251945 PIPE FROM HEATER TO RH TGK VALVE	-	1	Enquire
14	251946	PIPE FROM HEATER TO LH TGK VALVE	251946 PIPE FROM HEATER TO LH TGK VALVE	-	1	Enquire
15	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	2	Enquire
16	65460300	COMPLETE WATER PUMP	65460300 COMPLETE WATER PUMP	-	1	Enquire
17	255370	BRACKET	255370 BRACKET	-	1	Enquire
18	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	-	1	Enquire
19	11197774	WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	11197774 WAVY WASHER D.6.4 X 12 X 1.2 IN STOCK	-	1	Enquire
20	231625	SCREW IN STOCK	231625 SCREW IN STOCK	-	2	Enquire
21	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	2	Enquire
22	812273	CABLE GROMMET	812273 CABLE GROMMET	-	2	Enquire
23	149707	SPACER IN STOCK	149707 SPACER IN STOCK	-	2	Enquire
24	251944	DELIVERY PIPE FROM PUMP TO A/C	251944 DELIVERY PIPE FROM PUMP TO A/C	-	1	Enquire
25	251947	PIPE FROM ENGINE TO PUMP	251947 PIPE FROM ENGINE TO PUMP	-	1	Enquire
26	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	-	2	Enquire
27	256880	TGK PIPE SHIELD	256880 TGK PIPE SHIELD	-	1	Enquire
28	10902224	SCREW IN STOCK	10902224 SCREW IN STOCK	-	1	Enquire
29	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	-	1	Enquire
