Front Suspension

Ferrari California (2008-2011)

Find Your Part

Ferrari California (2008-2011) - FRONT SUSPENSION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248758 LH Front Upper Arm Enquire To Order
248760 RH Front Upper Arm Enquire To Order
Photo Part No Description Price (each) Stock
262526 Complete Lower RH Front Arm Enquire To Order
262525 LH FRONT LOWER ARM Enquire To Order
Photo Part No Description Price (each) Stock
248845 COMPLETE FRONT RH HUB CARRIER Enquire To Order

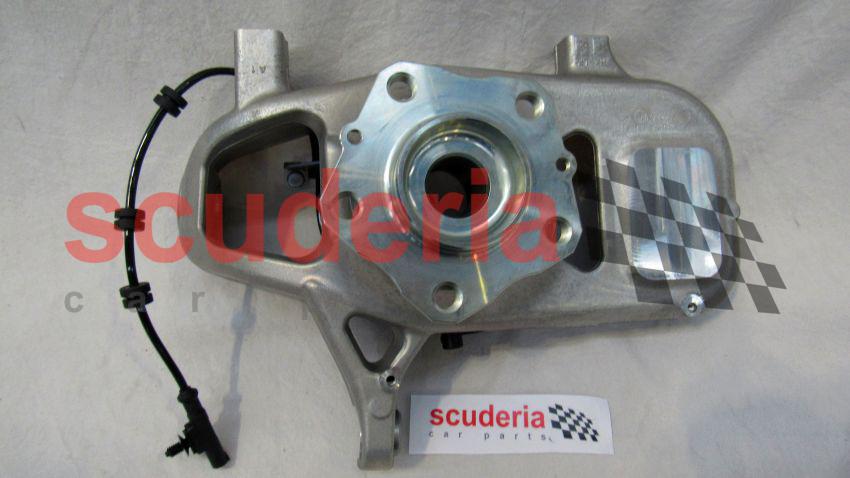

287186 Front LH Hub Carrier Enquire To Order
Photo Part No Description Price (each) Stock
221934 RH BALL TIE ROD JOINT Enquire To Order
221933 LH BALL TIE ROD JOINT Enquire To Order
Photo Part No Description Price (each) Stock
250809 ANTI-ROLL BAR Enquire To Order
Photo Part No Description Price (each) Stock
208304 Roll Bar Rubber D.26X38 Enquire To Order
Photo Part No Description Price (each) Stock
238041 PAD FASTENING PLATE Enquire To Order
Photo Part No Description Price (each) Stock
10791014 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12601474 WAVY WASHER 10MM Enquire To Order
Photo Part No Description Price (each) Stock
149807 NUT Enquire To Order
Photo Part No Description Price (each) Stock
12646921 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
203795 NUT M14 x 1.5 Enquire ARRIVING SOON
Photo Part No Description Price (each) Stock
241689 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
264528 THREADED ROD 10 X 1.25 Enquire To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut Enquire To Order
Photo Part No Description Price (each) Stock
12646821 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 Enquire To Order
Photo Part No Description Price (each) Stock
238883 ADJUSTMENT SHIM Enquire To Order
238884 ADJUSTMENT SHIM Enquire To Order
238885 CAMBER SPACER 4MM Enquire To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
247997 LH BRAKE AIR FLAP Enquire To Order
247998 RH BRAKE AIR FLAP Enquire To Order
View All

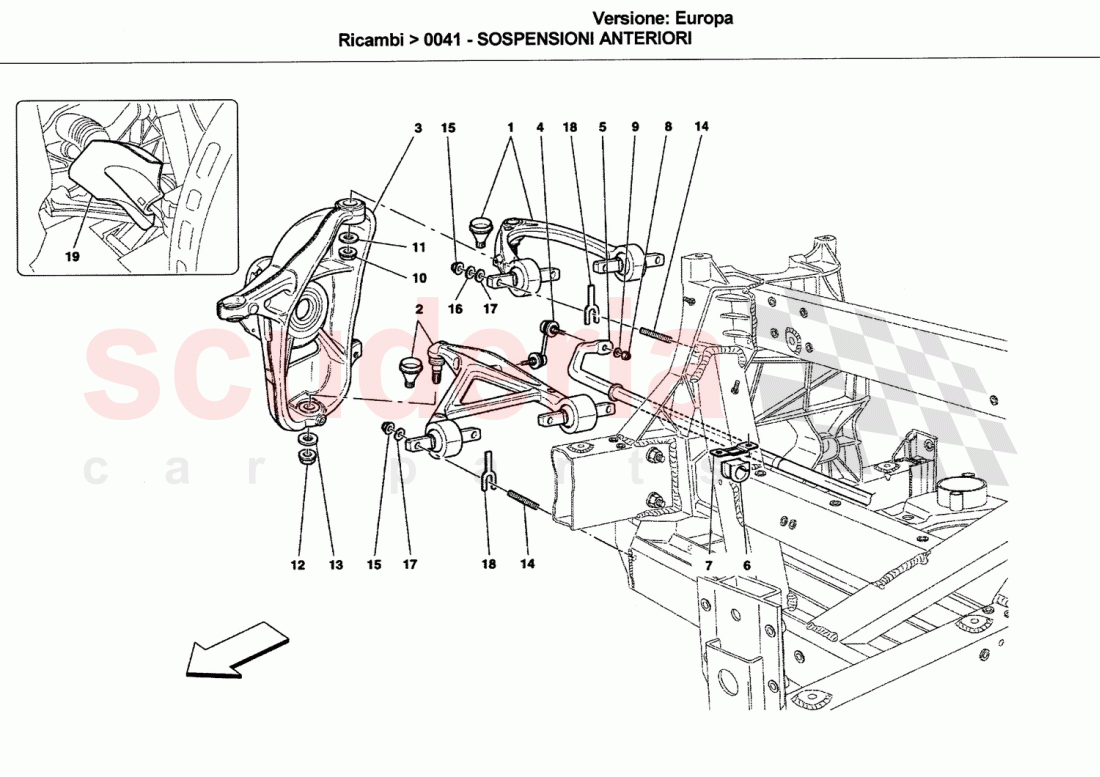

FRONT SUSPENSION of Ferrari Ferrari California (2008-2011) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248758
LH Front Upper Arm 		- 1 Enquire
1 248760
RH Front Upper Arm 		- 1 Enquire
2 262526
Complete Lower RH Front Arm 		- 1 Enquire
2 262525
LH FRONT LOWER ARM 		- 1 Enquire
3 248845
COMPLETE FRONT RH HUB CARRIER 		- 1 Enquire
3 287186
Front LH Hub Carrier 		- 1 Enquire
4 221934
RH BALL TIE ROD JOINT 		- 1 Enquire
4 221933
LH BALL TIE ROD JOINT 		- 1 Enquire
5 250809
ANTI-ROLL BAR 		- 1 Enquire
6 208304
Roll Bar Rubber D.26X38 		- 2 Enquire
7 238041
PAD FASTENING PLATE 		- 2 Enquire
8 10791014
NUT 		- 2 Enquire
9 12601474
WAVY WASHER 10MM 		- 2 Enquire
10 149807
NUT 		- 2 Enquire
11 12646921
WASHER 		- 2 Enquire
12 203795
NUT M14 x 1.5
ARRIVING SOON 		- 2 Enquire
13 241689
WASHER 		- 2 Enquire
14 264528
THREADED ROD 10 X 1.25 		- 16 Enquire
15 12574521
Nyloc Nut 		- 16 Enquire
16 12646821
WASHER 		- 8 Enquire
17 126648
WASHER D.10.5-21 X 2 		- 16 Enquire
18 238883
ADJUSTMENT SHIM 		- 8 Enquire
18 238884
ADJUSTMENT SHIM 		- 8 Enquire
18 238885
CAMBER SPACER 4MM 		- 8 Enquire
18 238692
ADJUSTMENT SHIM 		- 8 Enquire
18 238693
ADJUSTMENT SHIM 		- 8 Enquire
18 238881
CAMBER SPACER 1.5MM 		- 8 Enquire
18 238694
ADJUSTMENT SHIM 		- 8 Enquire
18 238882
ADJUSTMENT SHIM 		- 8 Enquire
19 247997
LH BRAKE AIR FLAP 		- 1 Enquire
19 247998
RH BRAKE AIR FLAP 		- 1 Enquire
