REAR SUSPENSION of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - REAR SUSPENSION

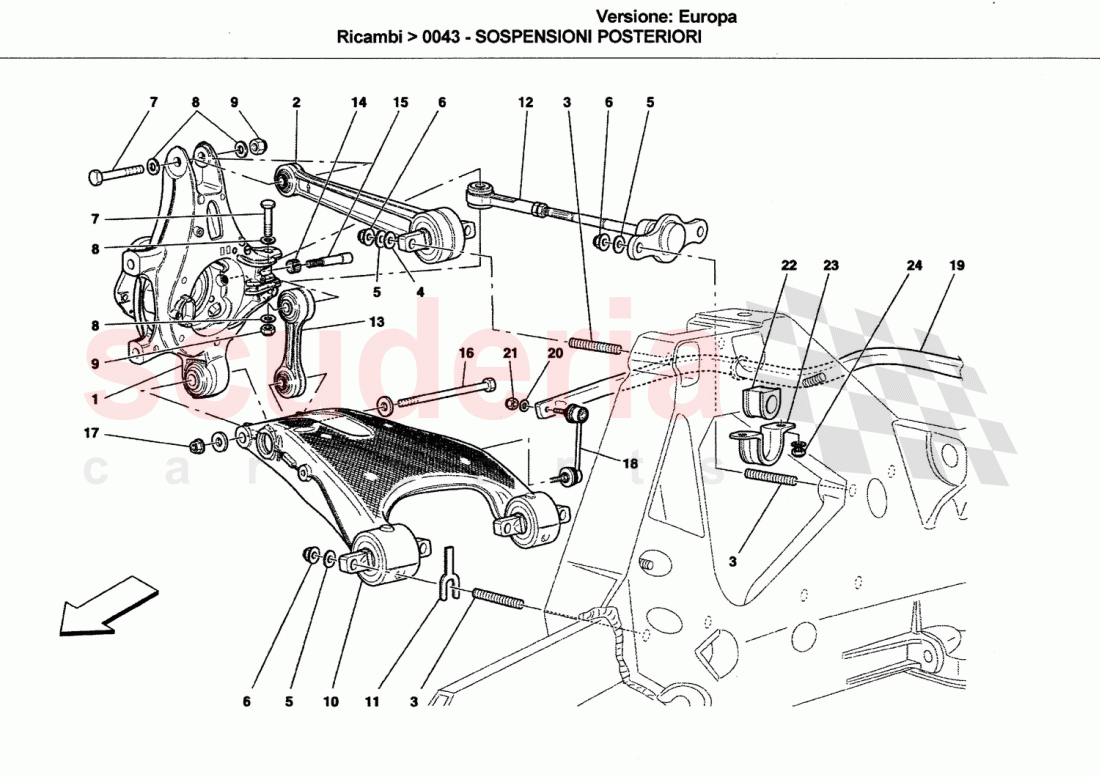

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	276810	COMPL. RH REAR HUB CARRIER	Enquire	To Order
	299933	COMPL. LH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259687	REAR UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12646821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12574521	Nyloc Nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	12643778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	810450	LH Rear Lower Arm	Enquire	To Order
	810463	RH Lower Rear Arm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238881	CAMBER SPACER 1.5MM	Enquire	To Order
	238694	ADJUSTMENT SHIM	Enquire	To Order
	238882	ADJUSTMENT SHIM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	245161	TIE-ROD	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	242391	BALL-JOINT TIE-ROD	Enquire	To Order
	242392	BALL-JOINT TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250810	REAR STABILISER BAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601474	WAVY WASHER 10MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10791014	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	247743	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	244778	RETAINER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578321	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	276810	COMPL. RH REAR HUB CARRIER	276810 COMPL. RH REAR HUB CARRIER	-	1	Enquire
1	299933	COMPL. LH REAR HUB CARRIER	299933 COMPL. LH REAR HUB CARRIER	-	1	Enquire
2	259687	REAR UPPER ARM	259687 REAR UPPER ARM	-	2	Enquire
3	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	16	Enquire
4	12646821	WASHER	12646821 WASHER	-	4	Enquire
5	126648	WASHER D.10.5-21 X 2	126648 WASHER D.10.5-21 X 2	-	16	Enquire
6	12574521	Nyloc Nut	12574521 Nyloc Nut	-	16	Enquire
7	15541434	SCREW ARRIVING SOON	15541434 SCREW ARRIVING SOON	-	4	Enquire
8	12643778	WASHER	12643778 WASHER	-	8	Enquire
9	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	4	Enquire
10	810450	LH Rear Lower Arm	810450 LH Rear Lower Arm	-	1	Enquire
10	810463	RH Lower Rear Arm	810463 RH Lower Rear Arm	-	1	Enquire
11	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM	-	8	Enquire
11	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM	-	8	Enquire
11	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM	-	8	Enquire
11	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM	-	8	Enquire
11	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM	-	8	Enquire
11	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM	-	8	Enquire
11	238692	ADJUSTMENT SHIM	238692 ADJUSTMENT SHIM	-	8	Enquire
11	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM	-	8	Enquire
12	245161	TIE-ROD ARRIVING SOON	245161 TIE-ROD ARRIVING SOON	-	2	Enquire
13	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	-	2	Enquire
14	222956	COMPENSATOR RING	222956 COMPENSATOR RING	-	2	Enquire
15	238258	SCREW	238258 SCREW	-	2	Enquire
16	238656	SPECIAL SCREW	238656 SPECIAL SCREW	-	2	Enquire
17	238063	NUT	238063 NUT	-	2	Enquire
18	242391	BALL-JOINT TIE-ROD	242391 BALL-JOINT TIE-ROD	-	1	Enquire
18	242392	BALL-JOINT TIE-ROD	242392 BALL-JOINT TIE-ROD	-	1	Enquire
19	250810	REAR STABILISER BAR	250810 REAR STABILISER BAR	-	1	Enquire
20	12601474	WAVY WASHER 10MM	12601474 WAVY WASHER 10MM	-	2	Enquire
21	10791014	NUT	10791014 NUT	-	2	Enquire
22	247743	PLUG	247743 PLUG	-	2	Enquire
23	244778	RETAINER BRACKET	244778 RETAINER BRACKET	-	2	Enquire
24	12578321	NUT	12578321 NUT	-	4	Enquire
