BRAKE SYSTEM -Not for GD- of Ferrari Ferrari California (2008-2011)

View All

Ferrari California (2008-2011) - BRAKE SYSTEM -Not for GD-

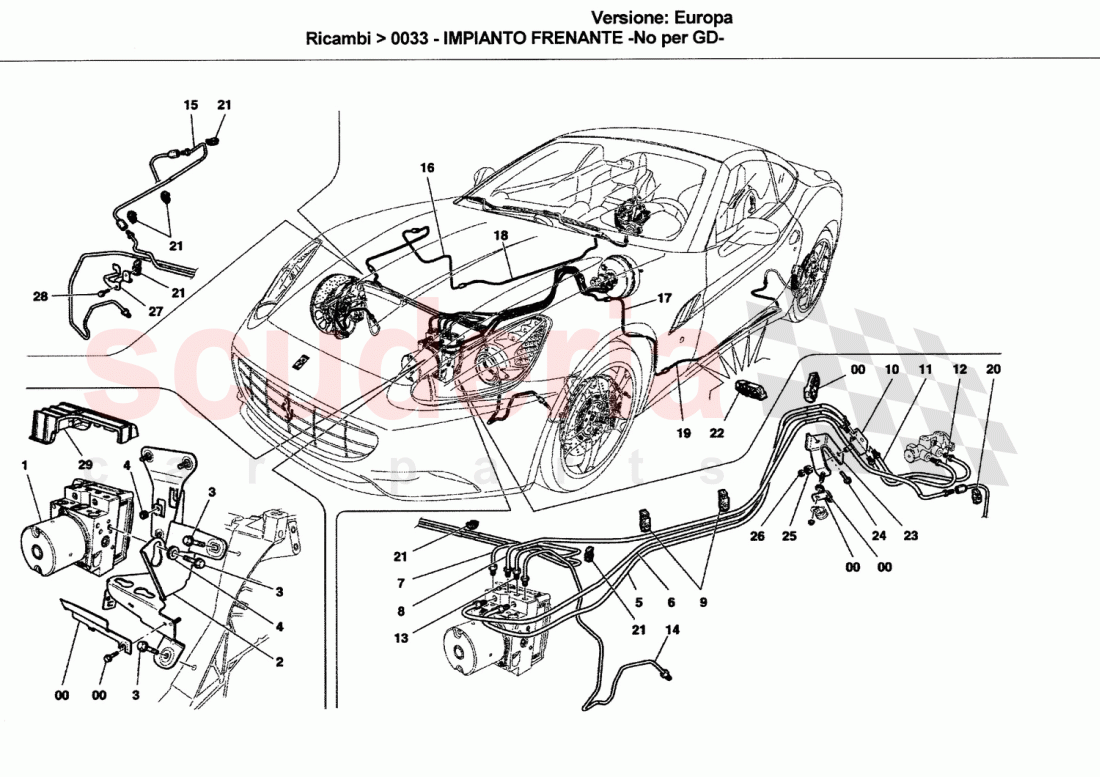

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	266977	ABS/ASR HYDRAULIC UNIT	$7,414.83	To Order

Photo	Part No	Description	Price (each)	Stock
	243419	MOUNTING	$154.03	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	232869	BUSH	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	246375	BRAKE PIPE FROM "R" TO CONNECTOR	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	246370	BRAKE PIPE FROM "F" TO CONNECTOR	$42.04	To Order

Photo	Part No	Description	Price (each)	Stock
	244407	BRAKE PIPE FROM "RR" TO R.H. REAR JUNCTION	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	249620	BRAKE PIPE FROM "RL" TO L.H. REAR JUNCTION	$54.54	To Order

Photo	Part No	Description	Price (each)	Stock
	234286	CLIP	$1.57	To Order

Photo	Part No	Description	Price (each)	Stock
	244792	FOUR-WAY UNION	$93.05	To Order

Photo	Part No	Description	Price (each)	Stock
	246372	BRAKE PIPE FROM UNION TO "MC1"	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	246377	BRAKE PIPE FROM UNION TO "MC2"	$36.89	To Order

Photo	Part No	Description	Price (each)	Stock
	244405	BRAKE PIPE FROM "FR" TO R.H. FRONT JUNCTION	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	242516	BRAKE PIPE FROM "FL" TO L.H. FRONT JUNCTION	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	244409	R.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	244453	BRAKE PIPE FROM SHIELD TO R.H. UNDERFLOOR PIPE	$25.66	To Order

Photo	Part No	Description	Price (each)	Stock
	249622	L.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	$43.50	To Order

Photo	Part No	Description	Price (each)	Stock
	244446	R.H. UNDERFLOOR BRAKE PIPE	$64.17	To Order

Photo	Part No	Description	Price (each)	Stock
	241136	L.H. UNDERFLOOR BRAKE PIPE	$77.00	To Order

Photo	Part No	Description	Price (each)	Stock
	234284	CLIP	$0.60	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	234285	CLIP	$0.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241118	CLIP	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	246383	FOUR-WAY UNION MOUNTING BRACKET	$71.38	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.96	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	232869	BUSH	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	14058519	FLANGED NUT M8 X 8	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	244424	BRACKET	$15.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13839224	SCREW	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock

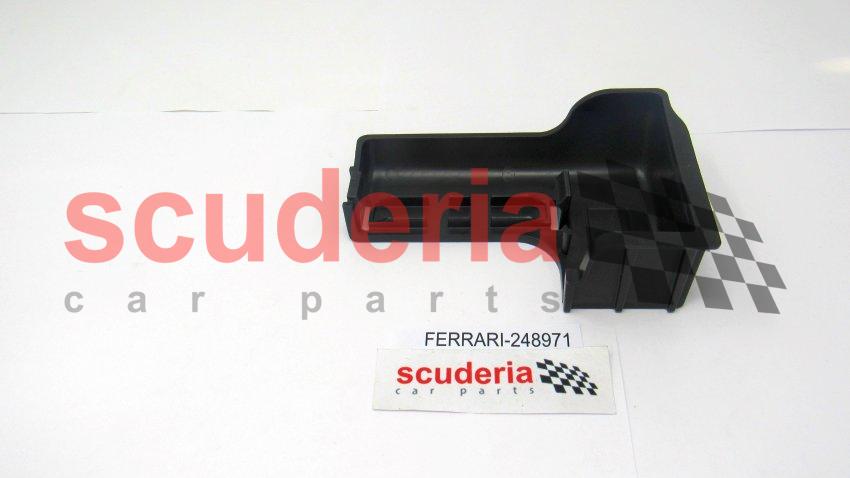

	248971	ECU cover	$15.07	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	266977	ABS/ASR HYDRAULIC UNIT	266977 ABS/ASR HYDRAULIC UNIT	$7,414.83	1
2	243419	MOUNTING	243419 MOUNTING	$154.03	1
3	13839224	SCREW	13839224 SCREW	$2.82	3
4	232869	BUSH	232869 BUSH	$40.10	3
5	246375	BRAKE PIPE FROM "R" TO CONNECTOR	246375 BRAKE PIPE FROM "R" TO CONNECTOR	$40.10	1
6	246370	BRAKE PIPE FROM "F" TO CONNECTOR	246370 BRAKE PIPE FROM "F" TO CONNECTOR	$42.04	1
7	244407	BRAKE PIPE FROM "RR" TO R.H. REAR JUNCTION	244407 BRAKE PIPE FROM "RR" TO R.H. REAR JUNCTION	$54.54	1
8	249620	BRAKE PIPE FROM "RL" TO L.H. REAR JUNCTION	249620 BRAKE PIPE FROM "RL" TO L.H. REAR JUNCTION	$54.54	1
9	234286	CLIP	234286 CLIP	$1.57	3
10	244792	FOUR-WAY UNION	244792 FOUR-WAY UNION	$93.05	1
11	246372	BRAKE PIPE FROM UNION TO "MC1"	246372 BRAKE PIPE FROM UNION TO "MC1"	$32.08	1
12	246377	BRAKE PIPE FROM UNION TO "MC2"	246377 BRAKE PIPE FROM UNION TO "MC2"	$36.89	1
13	244405	BRAKE PIPE FROM "FR" TO R.H. FRONT JUNCTION	244405 BRAKE PIPE FROM "FR" TO R.H. FRONT JUNCTION	$77.00	1
14	242516	BRAKE PIPE FROM "FL" TO L.H. FRONT JUNCTION	242516 BRAKE PIPE FROM "FL" TO L.H. FRONT JUNCTION	$52.94	1
15	244409	R.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	244409 R.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	$24.05	1
16	244453	BRAKE PIPE FROM SHIELD TO R.H. UNDERFLOOR PIPE	244453 BRAKE PIPE FROM SHIELD TO R.H. UNDERFLOOR PIPE	$25.66	1
17	249622	L.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	249622 L.H. BRAKE PIPE FROM JUNCTION TO SHIELD PIPE	$43.50	1
18	244446	R.H. UNDERFLOOR BRAKE PIPE	244446 R.H. UNDERFLOOR BRAKE PIPE	$64.17	1
19	241136	L.H. UNDERFLOOR BRAKE PIPE	241136 L.H. UNDERFLOOR BRAKE PIPE	$77.00	1
20	234284	CLIP IN STOCK	234284 CLIP IN STOCK	$0.60	2
21	234285	CLIP IN STOCK	234285 CLIP IN STOCK	$0.68	6
22	241118	CLIP IN STOCK	241118 CLIP IN STOCK	$1.38	12
23	246383	FOUR-WAY UNION MOUNTING BRACKET	246383 FOUR-WAY UNION MOUNTING BRACKET	$71.38	1
24	11568124	SCREW IN STOCK	11568124 SCREW IN STOCK	$0.96	1
25	232869	BUSH	232869 BUSH	$40.10	1
26	14058519	FLANGED NUT M8 X 8 IN STOCK	14058519 FLANGED NUT M8 X 8 IN STOCK	$0.23 MSRP: ~~0.95~~ (75.8% off)	1
27	244424	BRACKET	244424 BRACKET	$15.24	1
28	13839224	SCREW	13839224 SCREW	$2.82	3
29	248971	ECU cover	248971 ECU cover	$15.07	1
