STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

Find Your Part

Ferrari 812 Competizione Europe RH - STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
985325400 FRONT FIREWALL $3,698.31 To Order
289169 FRONT FIREWALL $1,010.88 To Order
Photo Part No Description Price (each) Stock
985273126 WINDSCREEN VALENCE PANEL Enquire To Order
292682 WINDSCREEN VALENCE PANEL $1,075.06 To Order
Photo Part No Description Price (each) Stock
985281535 COMPL. TUNNEL $24,842.38 To Order
293320 COMPL. TUNNEL $20,233.97 To Order
Photo Part No Description Price (each) Stock
331139 LH FASTENER BRACKET FOR FRONT UNIT $68.79 To Order
331140 RH FASTENER BRACKET FOR FRONT UNIT $68.79 To Order
Photo Part No Description Price (each) Stock
286419 LH FASTENER BRACKET FOR FRONT UNIT $5.72 To Order
286420 RH FASTENER BRACKET FOR FRONT UNIT $4.31 To Order
Photo Part No Description Price (each) Stock
286417 FRONT FASTENER BRACKET FOR FRONT UNIT $14.10 To Order
Photo Part No Description Price (each) Stock
331125 REAR FASTENER BRACKET FOR REAR UNIT $68.79 To Order
Photo Part No Description Price (each) Stock
14645690 RIVET $0.34 To Order
14645690 RIVET $0.34 To Order
Photo Part No Description Price (each) Stock
331149 REAR UNIT MOUNTING BRACKET $487.36 To Order
Photo Part No Description Price (each) Stock
985292692 LH LOWER EXTRUSION $513.46 To Order
985292691 RH LOWER EXTRUSION $559.03 To Order
Photo Part No Description Price (each) Stock
985273971 LH SEMI-FLOOR $1,684.81 To Order
985273972 RH SEMI-FLOOR $1,684.81 To Order
Photo Part No Description Price (each) Stock
273921 INNER FRONT BRACKET, LH SEAT $722.05 To Order
273922 INNER FRONT BRACKET, RH SEAT $722.05 To Order
Photo Part No Description Price (each) Stock
204430 RIVET $1.46 To Order
Photo Part No Description Price (each) Stock
985273926 OUTER LH FRONT SEAT BRACKET $577.64 To Order
985273925 OUTER RH FRONT SEAT BRACKET $577.64 To Order
Photo Part No Description Price (each) Stock
985281636 LH REAR SEAT OUTER EXTRUSION $641.82 To Order
985281637 RH REAR SEAT OUTER EXTRUSION $641.82 To Order
Photo Part No Description Price (each) Stock
252821 COMPL. GROUND $38.69 To Order
Photo Part No Description Price (each) Stock
294720 INNER REAR BRACKET, LH SEAT $573.36 To Order
294722 INNER REAR BRACKET, RH SEAT $573.36 To Order
Photo Part No Description Price (each) Stock
13579421 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
85633900 SCREW $8.41 To Order
Photo Part No Description Price (each) Stock
14639591 RIVET $1.56 To Order
Photo Part No Description Price (each) Stock
985274205 LH LOWER REAR FLOOR CROSS-PIECE $962.74 To Order
985274204 RH LOWER REAR FLOOR CROSS-PIECE $962.74 To Order
Photo Part No Description Price (each) Stock
985334363 LH SILL BEAM PILLAR SECTION $20,570.09 To Order
985334370 RH SILL BEAM PILLAR SECTION $20,570.09 To Order
336347 RH SILL BEAM PILLAR SECTION $20,360.81 To Order
Photo Part No Description Price (each) Stock
281611 INTERNAL LH FRONT TRUSS $433.23 To Order
281612 INTERNAL RH FRONT TRUSS $433.23 To Order
Photo Part No Description Price (each) Stock
985278430 INTERNAL LH PILLAR TRUSS $545.55 To Order
985278431 INTERNAL RH PILLAR TRUSS $545.55 To Order
Photo Part No Description Price (each) Stock
985278428 EXTERNAL LH PILLAR TRUSS $372.69 To Order
985278429 EXTERNAL RH PILLAR TRUSS $372.69 To Order
Photo Part No Description Price (each) Stock
331143 MAGNERIDE CONNECTOR BRACKET $68.79 To Order
Photo Part No Description Price (each) Stock
85492800 SOUNDPROOFING BLANKING CAP $2.14 To Order
Photo Part No Description Price (each) Stock
82882400 CAP FOR SLOT $3.40 To Order
Photo Part No Description Price (each) Stock
82299600 PLUG FOR FRONT MASTER POINT $2.54 To Order
View All

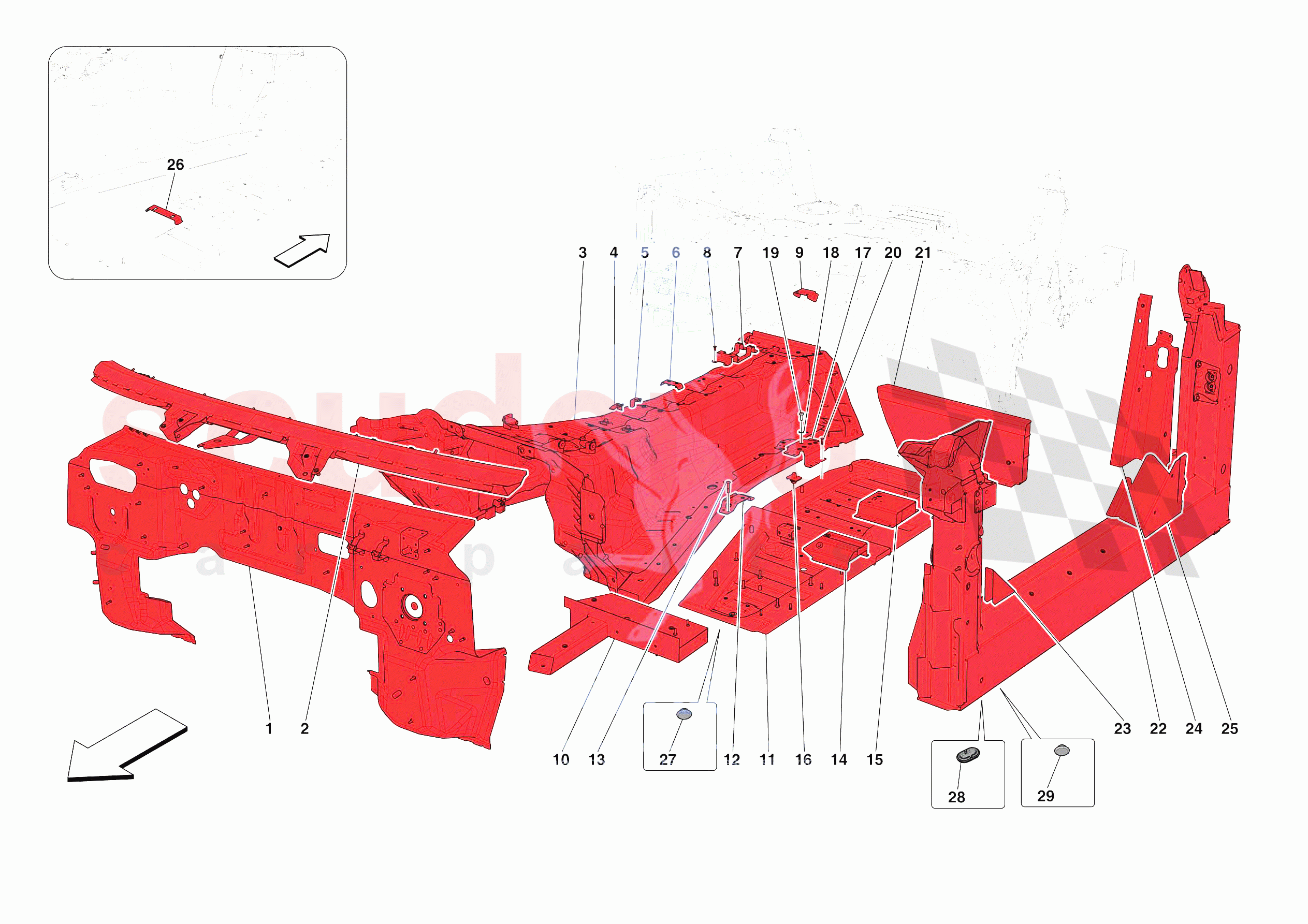

STRUCTURES AND ELEMENTS, CENTRE OF VEHICLE of Ferrari Ferrari 812 Competizione Europe RH Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
0001 985325400
FRONT FIREWALL
Request ASM authorisation 		$3,698.31 1
0001 289169
FRONT FIREWALL
Request ASM authorisation 		$1,010.88 1
0002 985273126
WINDSCREEN VALENCE PANEL 		- 1 Enquire
0002 292682
WINDSCREEN VALENCE PANEL 		$1,075.06 1
0003 985281535
COMPL. TUNNEL
Request ASM authorisation 		$24,842.38 1
0003 293320
COMPL. TUNNEL
Request ASM authorisation 		$20,233.97 1
0004 331139
LH FASTENER BRACKET FOR FRONT UNIT 		$68.79 1
0004 331140
RH FASTENER BRACKET FOR FRONT UNIT 		$68.79 1
0005 286419
LH FASTENER BRACKET FOR FRONT UNIT 		$5.72 1
0005 286420
RH FASTENER BRACKET FOR FRONT UNIT 		$4.31 1
0006 286417
FRONT FASTENER BRACKET FOR FRONT UNIT 		$14.10 1
0007 331125
REAR FASTENER BRACKET FOR REAR UNIT 		$68.79 1
0008 14645690
RIVET
4.8 X 10 		$0.34 2
0008 14645690
RIVET
4.8 X 10 		$0.34 2
0009 331149
REAR UNIT MOUNTING BRACKET 		$487.36 1
0010 985292692
LH LOWER EXTRUSION
Request ASM authorisation 		$513.46 1
0010 985292691
RH LOWER EXTRUSION
Request ASM authorisation 		$559.03 1
0011 985273971
LH SEMI-FLOOR
Request ASM authorisation 		$1,684.81 1
0011 985273972
RH SEMI-FLOOR
Request ASM authorisation 		$1,684.81 1
0012 273921
INNER FRONT BRACKET, LH SEAT 		$722.05 1
0012 273922
INNER FRONT BRACKET, RH SEAT 		$722.05 1
0013 204430
RIVET 		$1.46 12
0014 985273926
OUTER LH FRONT SEAT BRACKET 		$577.64 1
0014 985273925
OUTER RH FRONT SEAT BRACKET 		$577.64 1
0015 985281636
LH REAR SEAT OUTER EXTRUSION 		$641.82 1
0015 985281637
RH REAR SEAT OUTER EXTRUSION 		$641.82 1
0016 252821
COMPL. GROUND 		$38.69 1
0017 294720
INNER REAR BRACKET, LH SEAT 		$573.36 1
0017 294722
INNER REAR BRACKET, RH SEAT 		$573.36 1
0018 13579421
WASHER 		- 2 Enquire
0019 85633900
SCREW
M8 X 20 		$8.41 2
0020 14639591
RIVET 		$1.56 -
0021 985274205
LH LOWER REAR FLOOR CROSS-PIECE
Request ASM authorisation 		$962.74 1
0021 985274204
RH LOWER REAR FLOOR CROSS-PIECE
Request ASM authorisation 		$962.74 1
0022 985334363
LH SILL BEAM PILLAR SECTION
Request ASM authorisation 		$20,570.09 1
0022 985334370
RH SILL BEAM PILLAR SECTION
Request ASM authorisation 		$20,570.09 1
0022 336347
RH SILL BEAM PILLAR SECTION
Request ASM authorisation 		$20,360.81 1
0023 281611
INTERNAL LH FRONT TRUSS 		$433.23 1
0023 281612
INTERNAL RH FRONT TRUSS 		$433.23 1
0024 985278430
INTERNAL LH PILLAR TRUSS 		$545.55 1
0024 985278431
INTERNAL RH PILLAR TRUSS 		$545.55 1
0025 985278428
EXTERNAL LH PILLAR TRUSS 		$372.69 1
0025 985278429
EXTERNAL RH PILLAR TRUSS 		$372.69 1
0026 331143
MAGNERIDE CONNECTOR BRACKET 		$68.79 1
0027 85492800
SOUNDPROOFING BLANKING CAP 		$2.14 -
0028 82882400
CAP FOR SLOT 		$3.40 -
0029 82299600
PLUG FOR FRONT MASTER POINT 		$2.54 -
