Name: BATTERY INSTALLATION
Rating: 5.0 (1 reviews)

BATTERY INSTALLATION of Ferrari Ferrari 812 Competizione Europe RH

View All

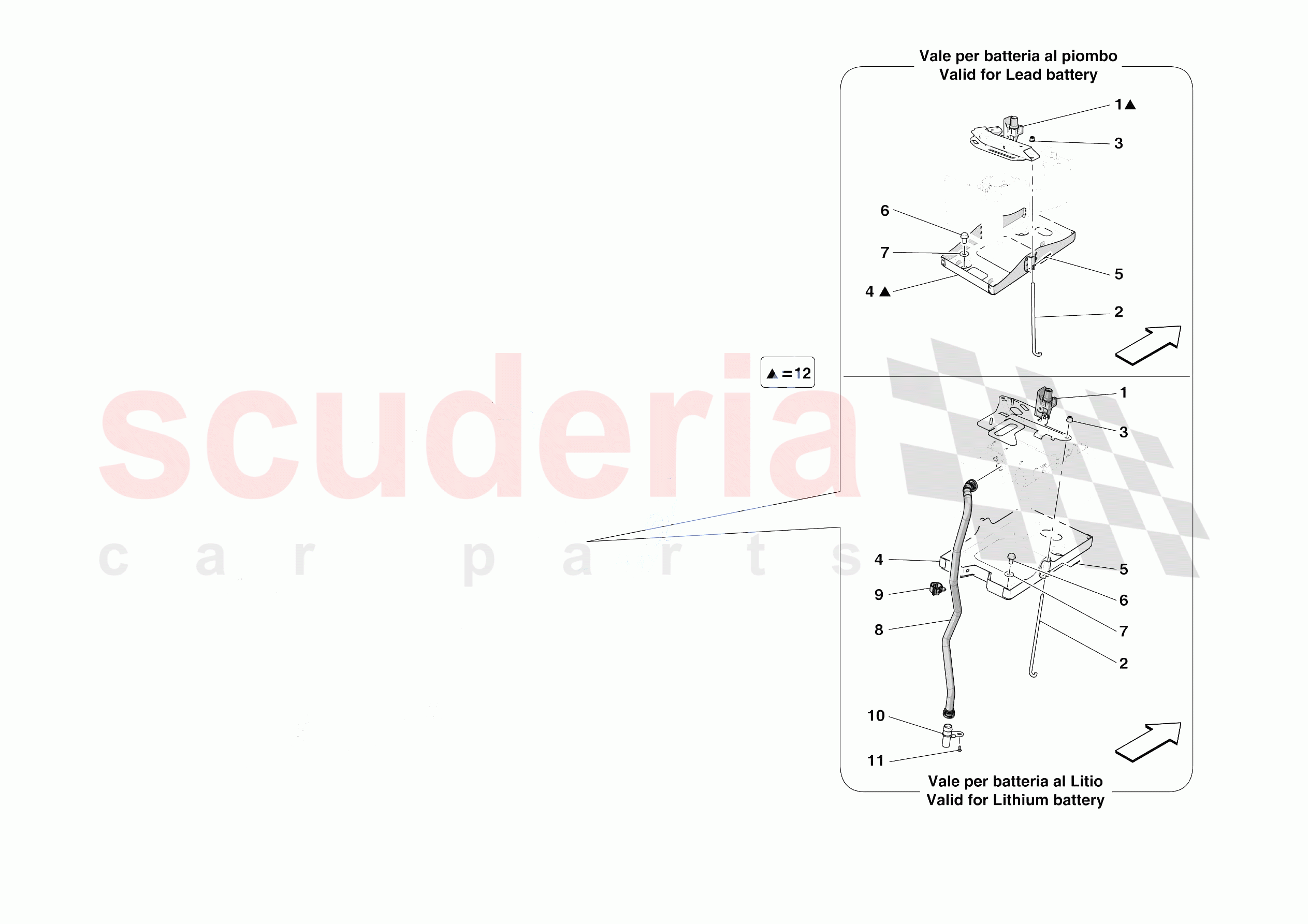

Ferrari 812 Competizione Europe RH - BATTERY INSTALLATION

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	905918	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	Enquire	To Order
	331908	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	$192.54	To Order
	905918	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	292882	BATTERY FASTENER TIE-ROD	$17.63	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	813420	COMPLETE LOWER BATTERY PLATE	$67.36	To Order
	949505	COMPL. BATTERY MOUNTING	$67.36	To Order
	813420	COMPLETE LOWER BATTERY PLATE	$67.36	To Order

Photo	Part No	Description	Price (each)	Stock
	10795206	SPLIT PIN	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	16287524	SCREW	$1.36	To Order

Photo	Part No	Description	Price (each)	Stock
	12625201	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	801615	VENTING PIPE	$139.03	To Order
	801615	VENTING PIPE	$139.03	To Order
	808533	VENTING PIPE	$131.85	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.63	To Order
	259508	CLIP	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	959535	BRACKET WITH FLANGE FOR VENTING PIPE	$55.89	To Order
	959535	BRACKET WITH FLANGE FOR VENTING PIPE	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	16281827	SCREW	$0.23	To Order
	16281827	SCREW	$0.23	To Order

Photo	Part No	Description	Price (each)	Stock
	779108	LEAD ACID BATTERY INSTALLATION KIT	$1,059.02	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	905918	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	905918 BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL Version for lithium battery	-	1	Enquire
0001	331908	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	331908 BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL Version for lead battery - Also included with lead acid battery installation kit	$192.54	1
0001	905918	BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	905918 BATTERY RETAINER COMPL. WITH NEGATIVE TERMINAL	-	1	Enquire
0002	292882	BATTERY FASTENER TIE-ROD	292882 BATTERY FASTENER TIE-ROD	$17.63	2
0003	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
0004	813420	COMPLETE LOWER BATTERY PLATE	813420 COMPLETE LOWER BATTERY PLATE Version for lithium battery	$67.36	1
0004	949505	COMPL. BATTERY MOUNTING	949505 COMPL. BATTERY MOUNTING Version for lead battery - Also included with lead acid battery installation kit	$67.36	1
0004	813420	COMPLETE LOWER BATTERY PLATE	813420 COMPLETE LOWER BATTERY PLATE	$67.36	1
0005	10795206	SPLIT PIN	10795206 SPLIT PIN	$0.06	2
0006	16287524	SCREW	16287524 SCREW M8 X 16	$1.36	4
0007	12625201	WASHER	12625201 WASHER	-	4	Enquire
0008	801615	VENTING PIPE	801615 VENTING PIPE Version for lithium battery	$139.03	1
0008	801615	VENTING PIPE	801615 VENTING PIPE	$139.03	1
0008	808533	VENTING PIPE	808533 VENTING PIPE Version for lithium battery	$131.85	1
0008	808533	VENTING PIPE	808533 VENTING PIPE	$131.85	1
0009	259508	CLIP	259508 CLIP Version for lithium battery; 1 compartment-	$0.63	1
0009	259508	CLIP	259508 CLIP 1 compartment-	$0.63	1
0010	959535	BRACKET WITH FLANGE FOR VENTING PIPE	959535 BRACKET WITH FLANGE FOR VENTING PIPE Version for lithium battery	$55.89	1
0010	959535	BRACKET WITH FLANGE FOR VENTING PIPE	959535 BRACKET WITH FLANGE FOR VENTING PIPE	$55.89	1
0011	16281827	SCREW	16281827 SCREW M5 X 14	$0.23	1
0011	16281827	SCREW	16281827 SCREW M5 X 14	$0.23	1
0012	779108	LEAD ACID BATTERY INSTALLATION KIT	779108 LEAD ACID BATTERY INSTALLATION KIT	$1,059.02	1
