REAR SUSPENSION - ARMS of Ferrari Ferrari 812 Competizione Europe RH

View All

Ferrari 812 Competizione Europe RH - REAR SUSPENSION - ARMS

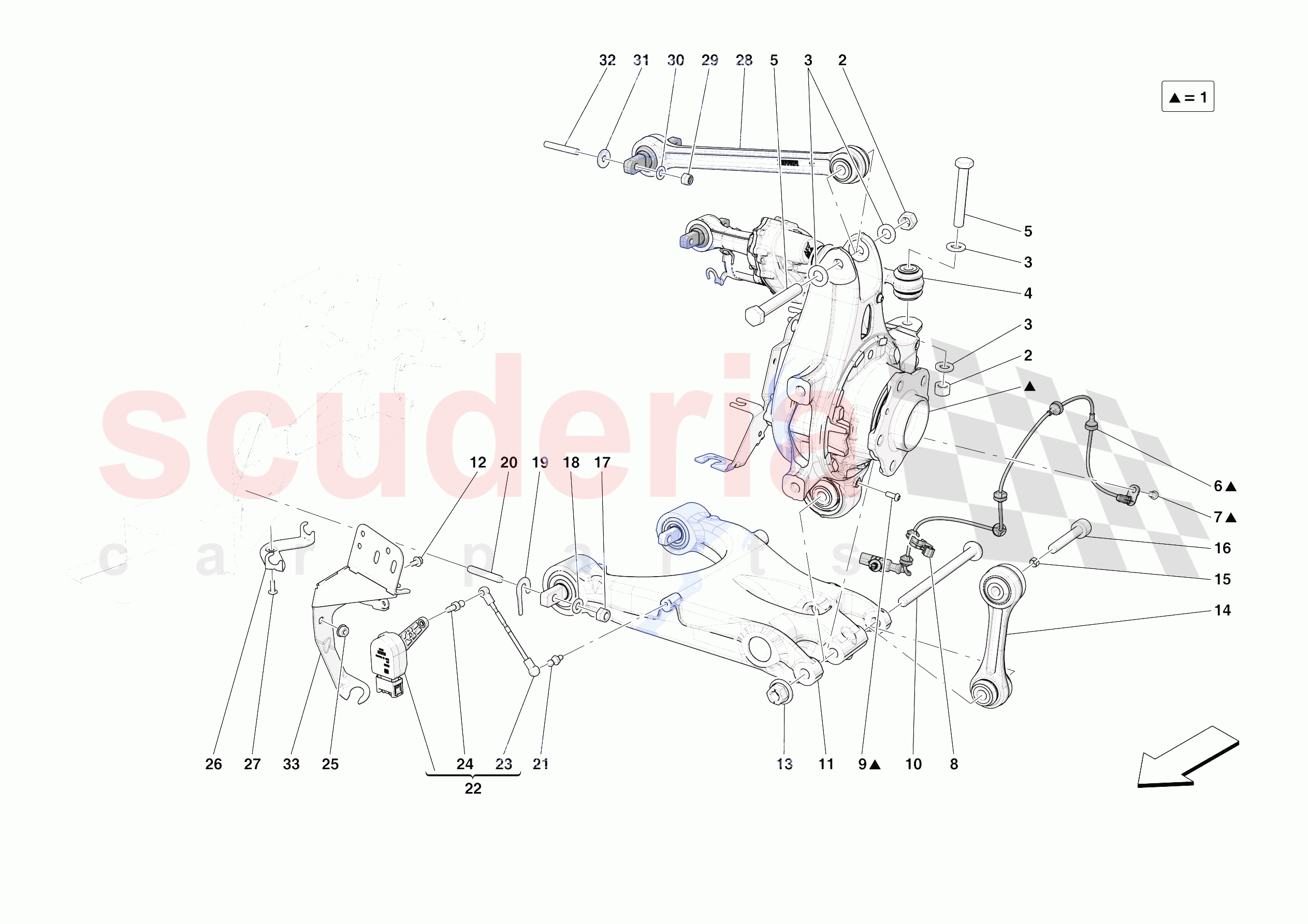

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	843923	LH REAR HUB CARRIER	Enquire	To Order
	843963	COMPL. RH REAR HUB CARRIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203666	NUT M12	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	14496721	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	763942	COMPL. LH ACTUATOR	Enquire	To Order
	763943	COMPL. RH ACTUATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15541434	SCREW	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	336026	ABS SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	310942	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250657	SCREW M6 X 14	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238656	SPECIAL SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	896443	COMPL. LOWER LH REAR ARM	Enquire	To Order
	911176	LH LOWER REAR ARM	Enquire	To Order
	896445	COMPL. LOWER RH REAR ARM	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238063	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	259688	ANTI-ROTATION LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	222956	COMPENSATOR RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238258	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262544	ADJUSTER SHIM	Enquire	To Order
	238693	ADJUSTMENT SHIM	Enquire	To Order
	238881	CAMBER SPACER 1.5MM	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	264528	THREADED ROD 10 X 1.25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	343376	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984051	COMPL. REAR MOTION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	984044	POTENTIOMETER LINK	Enquire	To Order
	984044	POTENTIOMETER LINK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340273	BALL JOINT	Enquire	To Order
	340273	BALL JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14040614	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	314125	ACTUATOR CABLE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295792	REAR UPPER ARM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104030	NYLOC NUT M8 X 1.25 X 9.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578321	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302406	THREADED ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	829997	LH REAR BRACKET	Enquire	To Order
	830032	RH REAR BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	843923	LH REAR HUB CARRIER	843923 LH REAR HUB CARRIER	-	1	Enquire
0001	843963	COMPL. RH REAR HUB CARRIER	843963 COMPL. RH REAR HUB CARRIER	-	1	Enquire
0002	203666	NUT M12 ARRIVING SOON	203666 NUT M12 ARRIVING SOON	-	4	Enquire
0003	14496721	WASHER	14496721 WASHER	-	8	Enquire
0004	763942	COMPL. LH ACTUATOR	763942 COMPL. LH ACTUATOR	-	1	Enquire
0004	763943	COMPL. RH ACTUATOR	763943 COMPL. RH ACTUATOR	-	1	Enquire
0005	15541434	SCREW ARRIVING SOON	15541434 SCREW M12 X 1.25 X 80 ARRIVING SOON	-	4	Enquire
0006	336026	ABS SENSOR	336026 ABS SENSOR	-	2	Enquire
0008	310942	CLIP	310942 CLIP 3 compartments	-	4	Enquire
0009	250657	SCREW M6 X 14	250657 SCREW M6 X 14 M6 X 14	-	6	Enquire
0010	238656	SPECIAL SCREW	238656 SPECIAL SCREW M14 X 1.5 X 210	-	2	Enquire
0011	896443	COMPL. LOWER LH REAR ARM	896443 COMPL. LOWER LH REAR ARM No longer supplied - Replaced by 911176	-	1	Enquire
0011	911176	LH LOWER REAR ARM	911176 LH LOWER REAR ARM	-	1	Enquire
0011	896445	COMPL. LOWER RH REAR ARM	896445 COMPL. LOWER RH REAR ARM No longer supplied - Replaced by 911175	-	1	Enquire
0011	911175	RH REAR LOWER ARM	911175 RH REAR LOWER ARM	-	1	Enquire
0012	16284934	FLANGED SCREW	16284934 FLANGED SCREW M5 X 10	-	4	Enquire
0013	238063	NUT	238063 NUT	-	2	Enquire
0014	259688	ANTI-ROTATION LINKAGE	259688 ANTI-ROTATION LINKAGE	-	2	Enquire
0015	222956	COMPENSATOR RING	222956 COMPENSATOR RING	-	2	Enquire
0016	238258	SCREW	238258 SCREW M12 X 1.25 X 75	-	2	Enquire
0017	104114	NUT	104114 NUT	-	8	Enquire
0018	14496624	WASHER	14496624 WASHER D. 10.5-21 X 2	-	8	Enquire
0019	262544	ADJUSTER SHIM	262544 ADJUSTER SHIM Th. 0.5 mm	-	8	Enquire
0019	238693	ADJUSTMENT SHIM	238693 ADJUSTMENT SHIM Th. 1 mm	-	8	Enquire
0019	238881	CAMBER SPACER 1.5MM	238881 CAMBER SPACER 1.5MM Th. 1.5 mm	-	8	Enquire
0019	238694	ADJUSTMENT SHIM	238694 ADJUSTMENT SHIM Th. 2 mm	-	8	Enquire
0019	238882	ADJUSTMENT SHIM	238882 ADJUSTMENT SHIM Th. 2.5 mm	-	8	Enquire
0019	238883	ADJUSTMENT SHIM	238883 ADJUSTMENT SHIM Th. 3 mm	-	8	Enquire
0019	238884	ADJUSTMENT SHIM	238884 ADJUSTMENT SHIM Th. 3.5 mm	-	8	Enquire
0019	238885	CAMBER SPACER 4MM	238885 CAMBER SPACER 4MM Th. 4 mm	-	8	Enquire
0020	264528	THREADED ROD 10 X 1.25	264528 THREADED ROD 10 X 1.25	-	8	Enquire
0021	343376	BALL JOINT	343376 BALL JOINT	-	2	Enquire
0022	984051	COMPL. REAR MOTION SENSOR	984051 COMPL. REAR MOTION SENSOR	-	2	Enquire
0023	984044	POTENTIOMETER LINK	984044 POTENTIOMETER LINK	-	1	Enquire
0023	984044	POTENTIOMETER LINK	984044 POTENTIOMETER LINK	-	1	Enquire
0024	340273	BALL JOINT	340273 BALL JOINT	-	1	Enquire
0024	340273	BALL JOINT	340273 BALL JOINT	-	1	Enquire
0025	14040614	NUT	14040614 NUT	-	4	Enquire
0026	314125	ACTUATOR CABLE FASTENER BRACKET	314125 ACTUATOR CABLE FASTENER BRACKET	-	2	Enquire
0027	81911600	SCREW	81911600 SCREW M6 X 1 X 18	-	2	Enquire
0028	295792	REAR UPPER ARM	295792 REAR UPPER ARM	-	2	Enquire
0029	104030	NYLOC NUT M8 X 1.25 X 9.5	104030 NYLOC NUT M8 X 1.25 X 9.5	-	8	Enquire
0030	14496524	WASHER	14496524 WASHER	-	8	Enquire
0031	13578321	WASHER	13578321 WASHER	-	8	Enquire
0032	302406	THREADED ROD	302406 THREADED ROD	-	8	Enquire
0033	829997	LH REAR BRACKET	829997 LH REAR BRACKET	-	1	Enquire
0033	830032	RH REAR BRACKET	830032 RH REAR BRACKET	-	1	Enquire
