OIL PIPES AND ENGINE OIL LEVEL SENSOR of Ferrari Ferrari 812 Competizione Europe RH

View All

Ferrari 812 Competizione Europe RH - OIL PIPES AND ENGINE OIL LEVEL SENSOR

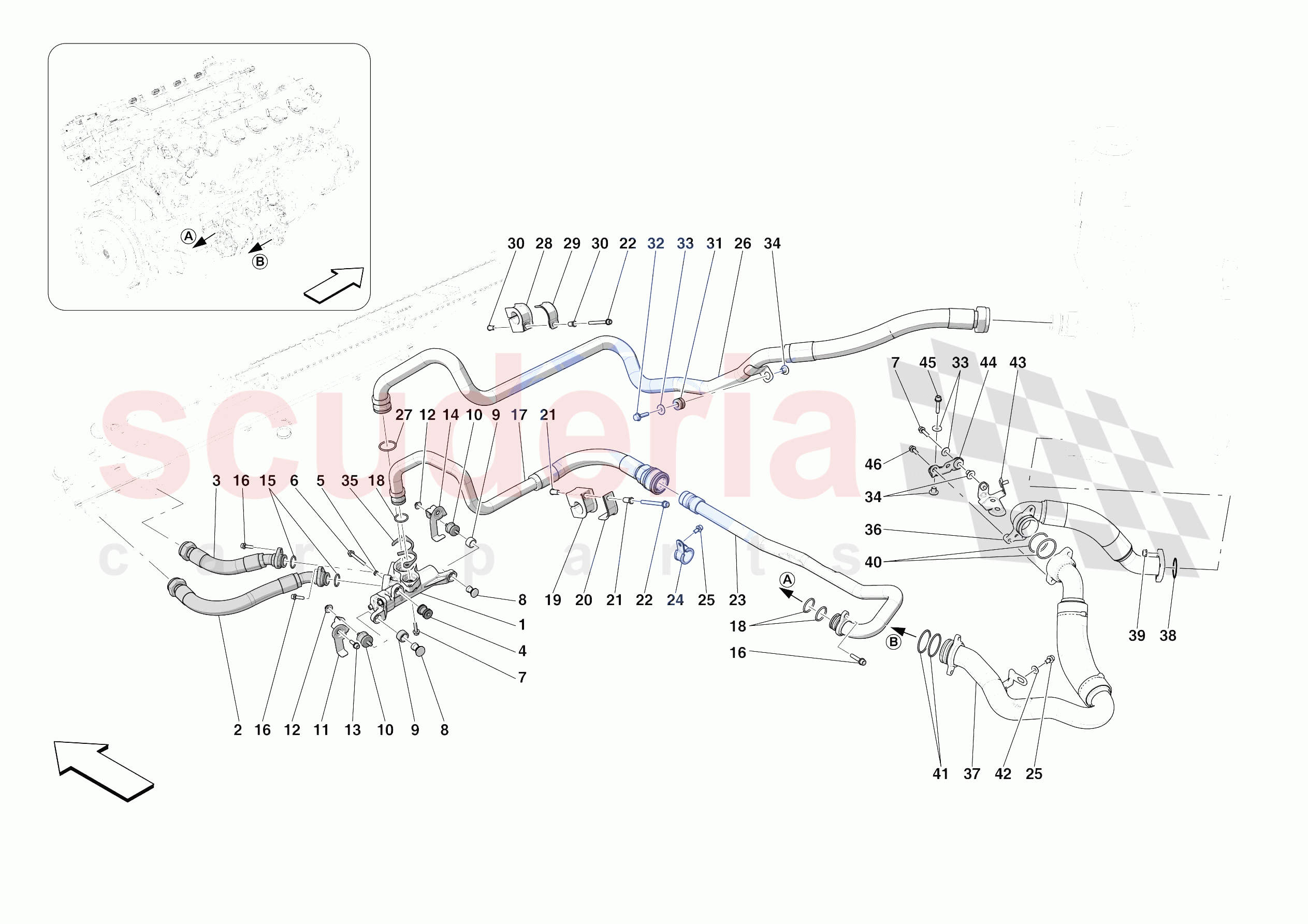

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	316675	COMPL. OIL THERMOSTAT	$1,059.02	To Order

Photo	Part No	Description	Price (each)	Stock
	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	$465.32	To Order

Photo	Part No	Description	Price (each)	Stock
	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	$449.27	To Order

Photo	Part No	Description	Price (each)	Stock
	267300	DAMPED MOUNT	$12.33	To Order

Photo	Part No	Description	Price (each)	Stock
	341672	SPACER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	341649	PIN	$41.56	To Order

Photo	Part No	Description	Price (each)	Stock
	341666	SPACER	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	285553	VIBRATION DAMPER	$20.84	To Order

Photo	Part No	Description	Price (each)	Stock
	341699	BRACKET	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	341700	BRACKET	$25.79	To Order

Photo	Part No	Description	Price (each)	Stock
	122791	O-RING	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	$1,091.11	To Order

Photo	Part No	Description	Price (each)	Stock
	121903	GASKET	$0.81	To Order

Photo	Part No	Description	Price (each)	Stock
	315529	RETAINER BLOCK	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	315539	RETAINER BLOCK FASTENER PLATE	$28.66	To Order

Photo	Part No	Description	Price (each)	Stock
	315649	FLANGED BUSHING	$4.51	To Order

Photo	Part No	Description	Price (each)	Stock
	255495	SCREW	$0.92	To Order

Photo	Part No	Description	Price (each)	Stock
	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	$516.03	To Order

Photo	Part No	Description	Price (each)	Stock
	322190	BRACKET	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	248334	SCREW	$0.68	To Order

Photo	Part No	Description	Price (each)	Stock
	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	$745.38	To Order

Photo	Part No	Description	Price (each)	Stock
	104212	O-RING	$0.70	To Order

Photo	Part No	Description	Price (each)	Stock
	315530	RETAINER BLOCK	$49.73	To Order

Photo	Part No	Description	Price (each)	Stock
	315540	RETAINER BLOCK FASTENER PLATE	$28.87	To Order

Photo	Part No	Description	Price (each)	Stock
	304075	BUSH	$6.37	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.17	To Order

Photo	Part No	Description	Price (each)	Stock
	311723	ENGINE OIL PIPE RETAINER FORK	$107.49	To Order

Photo	Part No	Description	Price (each)	Stock
	792663	OIL PIPE FROM TANK	$989.06	To Order

Photo	Part No	Description	Price (each)	Stock
	792664	OIL PIPE FROM DISCONNECTER UNION TO PUMP	$1,103.74	To Order

Photo	Part No	Description	Price (each)	Stock
	862084	GASKET	$5.61	To Order

Photo	Part No	Description	Price (each)	Stock
	14040611	NUT	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	934034	O-RING	$1.83	To Order

Photo	Part No	Description	Price (each)	Stock
	101044	O-RING	$1.60	To Order

Photo	Part No	Description	Price (each)	Stock
	12649624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	799107	BRACKET FASTENING OIL PIPE TO CHASSIS	$40.11	To Order

Photo	Part No	Description	Price (each)	Stock
	939276	COMPL. FLANGE ON OIL PIPE	$55.89	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	316675	COMPL. OIL THERMOSTAT	316675 COMPL. OIL THERMOSTAT	$1,059.02	1
0002	317220	OIL DELIVERY PIPE FROM VALVE TO RADIATOR	317220 OIL DELIVERY PIPE FROM VALVE TO RADIATOR	$465.32	1
0003	315531	OIL RETURN PIPE FROM RADIATOR TO VALVE	315531 OIL RETURN PIPE FROM RADIATOR TO VALVE	$449.27	1
0004	267300	DAMPED MOUNT	267300 DAMPED MOUNT	$12.33	1
0005	341672	SPACER	341672 SPACER	$5.58	1
0006	231625	SCREW	231625 SCREW M6 X 50	$0.65	1
0007	231620	SCREW	231620 SCREW M6 X 25	$0.32 MSRP: ~~0.35~~ (8.6% off)	3
0008	341649	PIN	341649 PIN	$41.56	2
0009	341666	SPACER	341666 SPACER	$5.58	2
0010	285553	VIBRATION DAMPER	285553 VIBRATION DAMPER	$20.84	2
0011	341699	BRACKET	341699 BRACKET	$24.05	1
0012	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
0013	231619	SCREW	231619 SCREW M6 X 22	$0.31	5
0014	341700	BRACKET	341700 BRACKET	$25.79	1
0015	122791	O-RING	122791 O-RING	$2.25	2
0016	231619	SCREW	231619 SCREW M6 X 22	$0.31	5
0017	311647	ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	311647 ENGINE OIL RETURN PIPE FROM DISCONNECTER UNION TO THERMOSTAT VALVE	$1,091.11	1
0018	121903	GASKET	121903 GASKET	$0.81 MSRP: ~~1.95~~ (58.5% off)	3
0019	315529	RETAINER BLOCK	315529 RETAINER BLOCK	$49.73	1
0020	315539	RETAINER BLOCK FASTENER PLATE	315539 RETAINER BLOCK FASTENER PLATE	$28.66	1
0021	315649	FLANGED BUSHING	315649 FLANGED BUSHING	$4.51	2
0022	255495	SCREW	255495 SCREW M6 X 65	$0.92	2
0023	311558	ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	311558 ENGINE OIL RETURN PIPE FROM ENGINE TO DISCONNECTER UNION	$516.03	1
0024	322190	BRACKET	322190 BRACKET	$42.98	1
0025	248334	SCREW	248334 SCREW M6 X 14	$0.68	2
0026	311743	ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	311743 ENGINE OIL RETURN PIPE FROM VALVE TO RESERVOIR	$745.38	1
0027	104212	O-RING	104212 O-RING	$0.70 MSRP: ~~1.00~~ (30% off)	1
0028	315530	RETAINER BLOCK	315530 RETAINER BLOCK	$49.73	1
0029	315540	RETAINER BLOCK FASTENER PLATE	315540 RETAINER BLOCK FASTENER PLATE	$28.87	1
0030	304075	BUSH	304075 BUSH	$6.37	2
0031	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.65	1
0032	231625	SCREW	231625 SCREW M6 X 25	$0.65	1
0033	12643724	WASHER	12643724 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	3
0034	149707	SPACER	149707 SPACER	$1.17 MSRP: ~~1.75~~ (33.1% off)	3
0035	311723	ENGINE OIL PIPE RETAINER FORK	311723 ENGINE OIL PIPE RETAINER FORK	$107.49	1
0036	792663	OIL PIPE FROM TANK	792663 OIL PIPE FROM TANK	$989.06	1
0037	792664	OIL PIPE FROM DISCONNECTER UNION TO PUMP	792664 OIL PIPE FROM DISCONNECTER UNION TO PUMP	$1,103.74	1
0038	862084	GASKET	862084 GASKET	$5.61	1
0039	14040611	NUT	14040611 NUT	$0.29	3
0040	934034	O-RING	934034 O-RING	$1.83	2
0041	101044	O-RING	101044 O-RING	$1.60 MSRP: ~~3.70~~ (56.8% off)	2
0042	12649624	WASHER	12649624 WASHER	-	1	Enquire
0043	799107	BRACKET FASTENING OIL PIPE TO CHASSIS	799107 BRACKET FASTENING OIL PIPE TO CHASSIS	$40.11	1
0044	939276	COMPL. FLANGE ON OIL PIPE	939276 COMPL. FLANGE ON OIL PIPE	$55.89	1
0045	231620	SCREW	231620 SCREW M6 X 30	$0.32 MSRP: ~~0.35~~ (8.6% off)	1
0046	231619	SCREW	231619 SCREW M6 X 18	$0.31	4
