Name: CYLINDER HEADS - TIMING
Rating: 5.0 (1 reviews)

CYLINDER HEADS - TIMING of Ferrari Ferrari 812 Competizione A Europe RH

View All

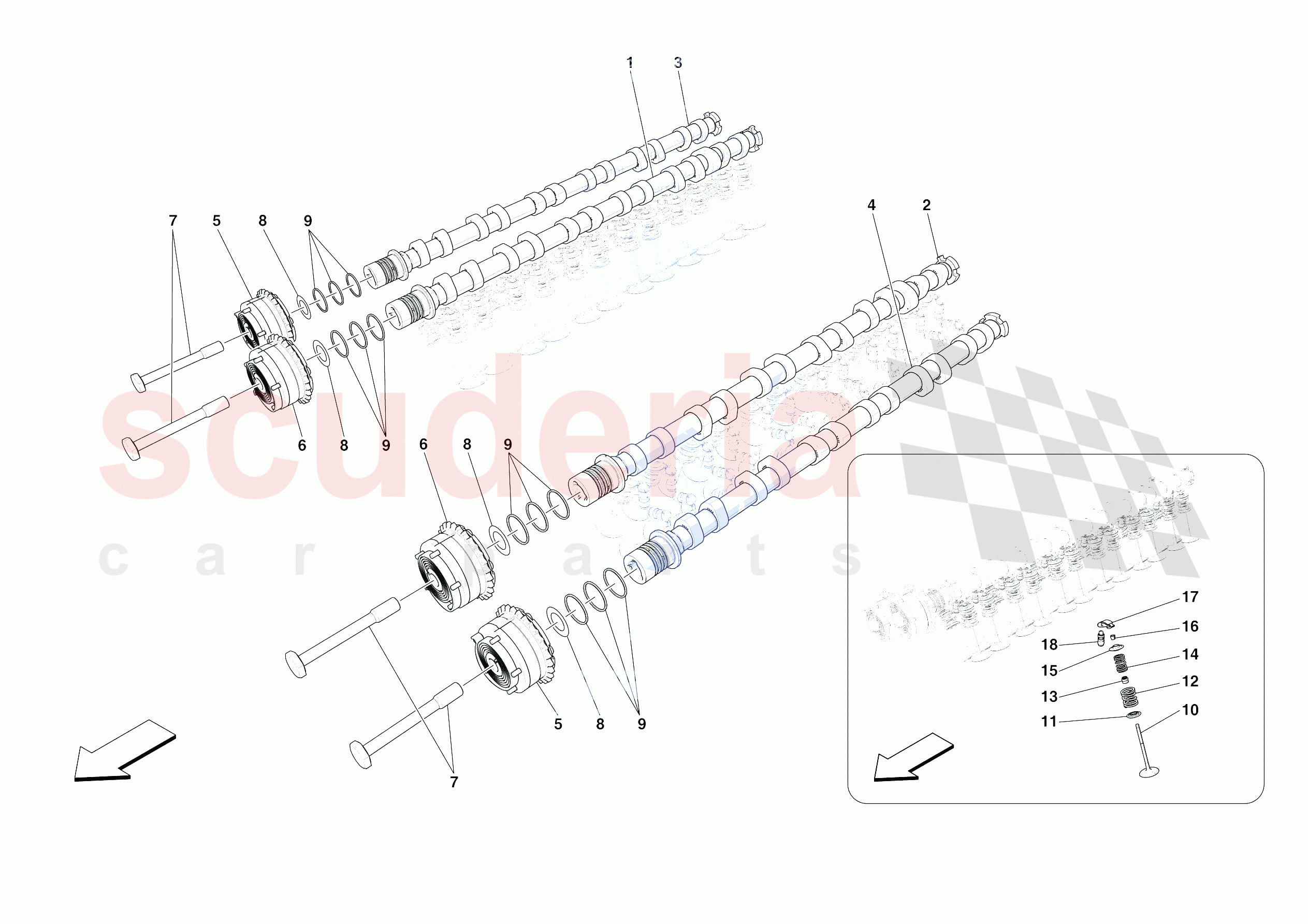

Ferrari 812 Competizione A Europe RH - CYLINDER HEADS - TIMING

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	831968	RH INTAKE CAMSHAFT	$867.55	To Order

Photo	Part No	Description	Price (each)	Stock
	831969	LH INTAKE CAMSHAFT	$867.55	To Order

Photo	Part No	Description	Price (each)	Stock
	831970	RH EXHAUST CAMSHAFT	$837.11	To Order

Photo	Part No	Description	Price (each)	Stock
	831971	LH EXHAUST CAMSHAFT	$837.11	To Order

Photo	Part No	Description	Price (each)	Stock
	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT	$529.50	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	254892	SCREW	$14.15	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	240559	DIAMOND COATED WASHER	$9.51	To Order

Photo	Part No	Description	Price (each)	Stock
	197975	SEAL RING	$7.99	To Order

Photo	Part No	Description	Price (each)	Stock
	777849	INTAKE VALVE	$68.79	To Order
	911024	EXHAUST VALVE	$157.66	To Order

Photo	Part No	Description	Price (each)	Stock
	911028	LOWER VALVE SPRING CAP	$10.75	To Order

Photo	Part No	Description	Price (each)	Stock
	910742	EXTERNAL VALVE RETURN SPRING	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	899547	OIL SEAL FOR VALVE SEAL	$5.12	To Order

Photo	Part No	Description	Price (each)	Stock
	910743	INTERNAL VALVE RETURN SPRING	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	776263	UPPER VALVE SPRING CAP	$21.48	To Order

Photo	Part No	Description	Price (each)	Stock
	179763	VALVE SPRING SEMI-CONE	$0.91	To Order

Photo	Part No	Description	Price (each)	Stock
	911027	PAD ROLLER FINGER	$128.35	To Order

Photo	Part No	Description	Price (each)	Stock
	830096	TAPPET FOR ROLLER FINGER	$42.98	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	831968	RH INTAKE CAMSHAFT	831968 RH INTAKE CAMSHAFT	$867.55	1
0002	831969	LH INTAKE CAMSHAFT	831969 LH INTAKE CAMSHAFT	$867.55	1
0003	831970	RH EXHAUST CAMSHAFT	831970 RH EXHAUST CAMSHAFT	$837.11	1
0004	831971	LH EXHAUST CAMSHAFT	831971 LH EXHAUST CAMSHAFT	$837.11	1
0005	248020	VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT ARRIVING SOON	$529.50	2
0006	241906	VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT ARRIVING SOON	$529.50	2
0007	254892	SCREW ARRIVING SOON	254892 SCREW M14 X 1.5 ARRIVING SOON	$14.15	4
0008	240559	DIAMOND COATED WASHER	240559 DIAMOND COATED WASHER	$9.51	4
0009	197975	SEAL RING	197975 SEAL RING Also included in engine gasket set	$7.99 MSRP: ~~12.85~~ (37.8% off)	12
0010	777849	INTAKE VALVE	777849 INTAKE VALVE	$68.79	24
0010	911024	EXHAUST VALVE	911024 EXHAUST VALVE	$157.66	24
0011	911028	LOWER VALVE SPRING CAP	911028 LOWER VALVE SPRING CAP	$10.75	48
0012	910742	EXTERNAL VALVE RETURN SPRING	910742 EXTERNAL VALVE RETURN SPRING	$27.26	48
0013	899547	OIL SEAL FOR VALVE SEAL	899547 OIL SEAL FOR VALVE SEAL	$5.12	48
0014	910743	INTERNAL VALVE RETURN SPRING	910743 INTERNAL VALVE RETURN SPRING	$27.26	48
0015	776263	UPPER VALVE SPRING CAP	776263 UPPER VALVE SPRING CAP	$21.48	48
0016	179763	VALVE SPRING SEMI-CONE	179763 VALVE SPRING SEMI-CONE	$0.91	96
0017	911027	PAD ROLLER FINGER	911027 PAD ROLLER FINGER	$128.35	48
0018	830096	TAPPET FOR ROLLER FINGER	830096 TAPPET FOR ROLLER FINGER	$42.98	48
