Name: CRANKSHAFT
Rating: 4.2 (1 reviews)

View All

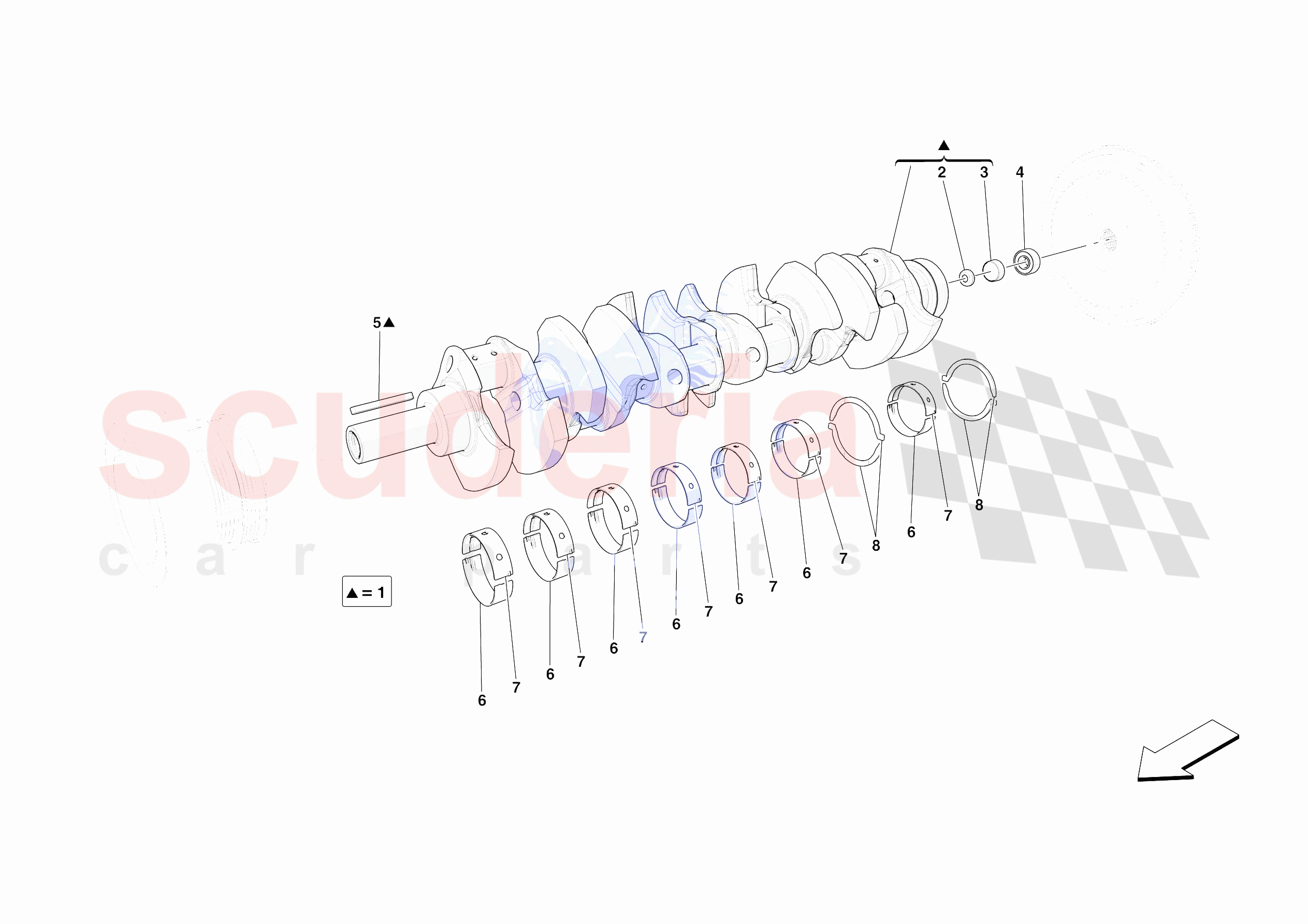

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	985696	COMPL. CRANKSHAFT	$4,735.07	To Order

Photo	Part No	Description	Price (each)	Stock
	14328801	PLUG	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	176396	THREADED PLUG	$5.71	To Order

Photo	Part No	Description	Price (each)	Stock
	103877	BEARING	$33.28	To Order

Photo	Part No	Description	Price (each)	Stock
	190981	TAB	$1.10	To Order

...and 2 more part variants. See table on right for more details.

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	261727	SHIM RING	$10.89	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	985696	COMPL. CRANKSHAFT	985696 COMPL. CRANKSHAFT	$4,735.07	1
0002	14328801	PLUG	14328801 PLUG	$0.34	1
0003	176396	THREADED PLUG	176396 THREADED PLUG	$5.71	1
0004	103877	BEARING	103877 BEARING	$33.28	1
0005	190981	TAB	190981 TAB	$1.10	1
0006	800695	LOWER HALF-BEARING	800695 LOWER HALF-BEARING Orange	$28.66	7
0006	271024	LOWER HALF-BEARING	271024 LOWER HALF-BEARING Yellow	$40.11	7
0006	271025	LOWER HALF-BEARING	271025 LOWER HALF-BEARING Green	$38.69	7
0006	313687	LOWER HALF-BEARING	313687 LOWER HALF-BEARING Brown	$28.66	7
0006	313688	LOWER HALF-BEARING	313688 LOWER HALF-BEARING Pink	$28.66	7
0007	800694	UPPER HALF-BEARING	800694 UPPER HALF-BEARING Orange	$28.66	7
0007	271029	UPPER HALF-BEARING	271029 UPPER HALF-BEARING Yellow	$40.11	7
0007	271030	UPPER HALF-BEARING	271030 UPPER HALF-BEARING Green	$38.69	7
0007	313685	UPPER HALF-BEARING	313685 UPPER HALF-BEARING Brown	$28.66	7
0007	313686	UPPER HALF-BEARING	313686 UPPER HALF-BEARING Pink	$28.66	7
0008	261727	SHIM RING	261727 SHIM RING	$10.89	4
