EXPANSION TANK of Ferrari Ferrari 812 Competizione A Europe

View All

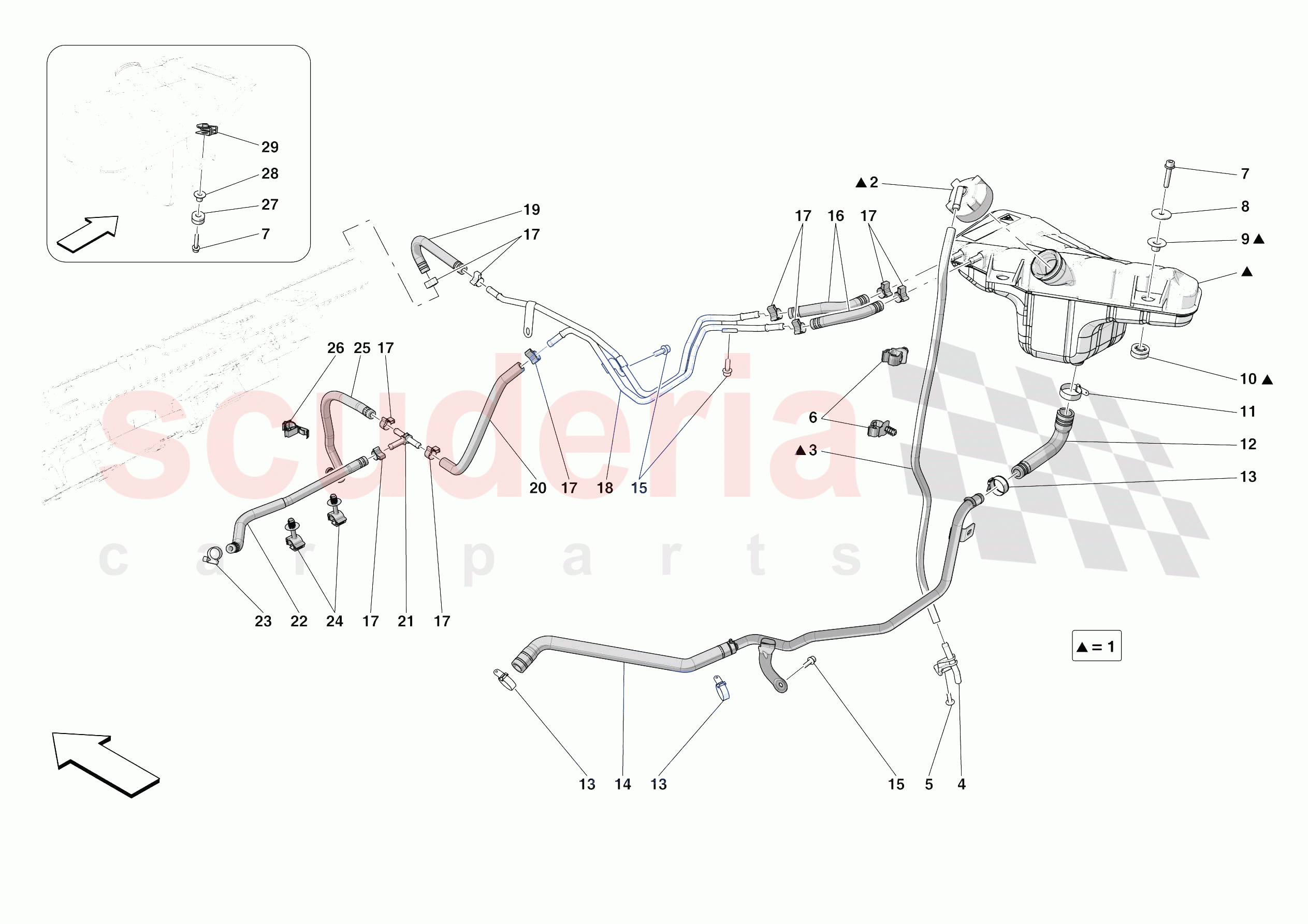

Ferrari 812 Competizione A Europe - EXPANSION TANK

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	750859	COMPL. EXPANSION TANK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145030	CAP WITH BREATHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	873407	HEADER TANK DRAIN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	908282	HEADER TANK VENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85833700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	250318	SNAP CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

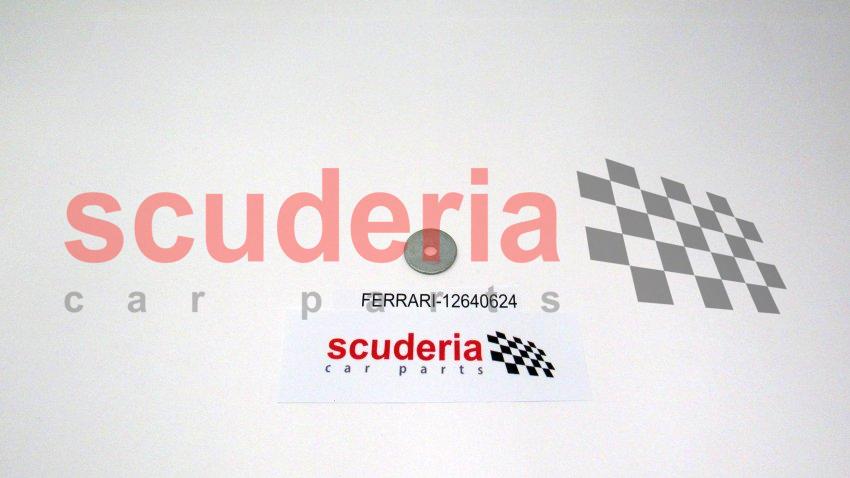

	12640624	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286491	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	286492	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	813272	COMPL. EXPANSION TANK OUTLET PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13125470	COLLAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	324412	COMPL. BREATHER PIPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	288385	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	342162	PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13430770	Collar for Hose Union	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	339343	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	340329	RUBBER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	257273	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	750859	COMPL. EXPANSION TANK	750859 COMPL. EXPANSION TANK	-	1	Enquire
0002	145030	CAP WITH BREATHER	145030 CAP WITH BREATHER	-	1	Enquire
0003	873407	HEADER TANK DRAIN PIPE	873407 HEADER TANK DRAIN PIPE D. 7 X 1.5 X 640	-	1	Enquire
0004	908282	HEADER TANK VENT	908282 HEADER TANK VENT	-	1	Enquire
0005	85833700	SCREW	85833700 SCREW M5 X 16	-	1	Enquire
0006	250318	SNAP CLIP	250318 SNAP CLIP	-	2	Enquire
0007	231620	SCREW	231620 SCREW M6 X 30	-	3	Enquire
0008	12640624	WASHER	12640624 WASHER	-	2	Enquire
0009	286491	SPACER	286491 SPACER	-	2	Enquire
0010	286492	CABLE GROMMET	286492 CABLE GROMMET	-	2	Enquire
0011	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP	-	1	Enquire
0012	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION	-	1	Enquire
0013	262111	JUBILEE CLAMP	262111 JUBILEE CLAMP D.17 - 25	-	2	Enquire
0014	813272	COMPL. EXPANSION TANK OUTLET PIPE	813272 COMPL. EXPANSION TANK OUTLET PIPE	-	1	Enquire
0015	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 18	-	5	Enquire
0016	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	-	4	Enquire
0017	13125470	COLLAR	13125470 COLLAR	-	11	Enquire
0018	324412	COMPL. BREATHER PIPING	324412 COMPL. BREATHER PIPING	-	1	Enquire
0019	288387	RUBBER PIPE	288387 RUBBER PIPE	-	1	Enquire
0020	288385	RUBBER PIPE	288385 RUBBER PIPE D. 7-14 X 235	-	1	Enquire
0021	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	-	1	Enquire
0022	342162	PIPE	342162 PIPE	-	1	Enquire
0023	13430770	Collar for Hose Union	13430770 Collar for Hose Union	-	1	Enquire
0024	339343	CLIP	339343 CLIP	-	2	Enquire
0025	340329	RUBBER PIPE	340329 RUBBER PIPE D. 7-14	-	1	Enquire
0026	257273	CLIP	257273 CLIP	-	1	Enquire
0027	812273	CABLE GROMMET	812273 CABLE GROMMET	-	1	Enquire
0028	149707	SPACER	149707 SPACER	-	1	Enquire
0029	62766300	CLIP	62766300 CLIP	-	1	Enquire
