Find Your Part

EXHAUST SYSTEM - REAR SECTION of Ferrari Ferrari 812 Competizione A Europe

View All

Ferrari 812 Competizione A Europe - EXHAUST SYSTEM - REAR SECTION

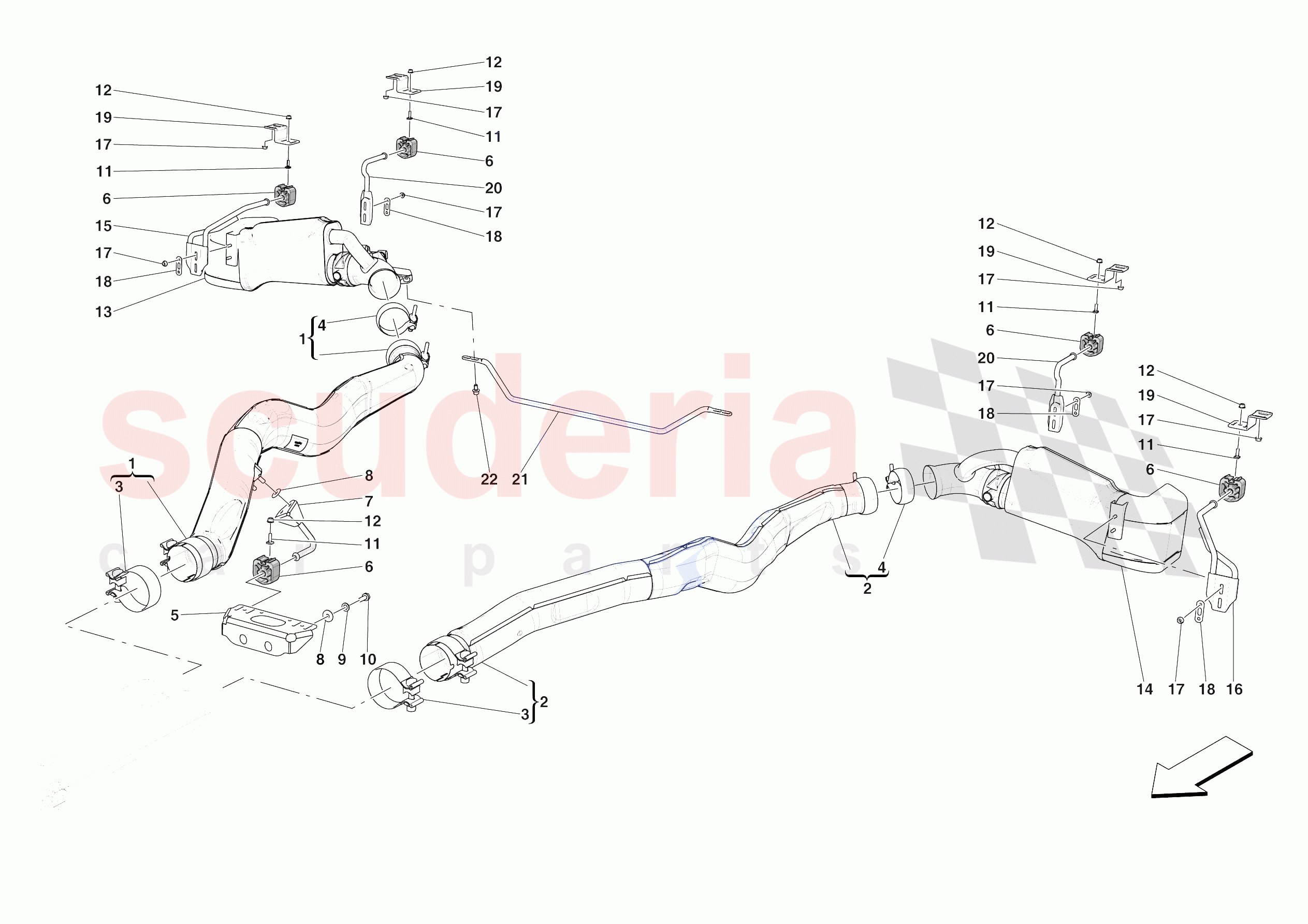

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	331671	RH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	331672	LH REAR EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282998	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	270454	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	272447	EXTENSION MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	289529	FLEXIBLE SILENCER MOUNTING BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	278732	RH REMOVABLE BRACKET	Enquire	To Order
	278733	LH REMOVABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13578324	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	986899	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283425	SQUARE HEADED SCREW M6 X 18.5MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14058421	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	920503	COMPL. RH SILENCER	Enquire	To Order
	956081	COMPL. RH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	920505	COMPL. LH SILENCER	Enquire	To Order
	956080	COMPL. LH SILENCER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893741	RH OUTER SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	893742	LH OUTER SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	321116	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	911473	UPPER SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	776639	INNER SILENCER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	283513	SILENCER CROSS PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231627	SCREW	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	331671	RH REAR EXTENSION	331671 RH REAR EXTENSION	-	1	Enquire
0002	331672	LH REAR EXTENSION	331672 LH REAR EXTENSION	-	1	Enquire
0003	282998	CLAMP	282998 CLAMP	-	2	Enquire
0004	270454	CLAMP	270454 CLAMP	-	2	Enquire
0005	272447	EXTENSION MOUNTING BRACKET	272447 EXTENSION MOUNTING BRACKET	-	1	Enquire
0006	289529	FLEXIBLE SILENCER MOUNTING BUSH	289529 FLEXIBLE SILENCER MOUNTING BUSH	-	6	Enquire
0007	278732	RH REMOVABLE BRACKET	278732 RH REMOVABLE BRACKET	-	1	Enquire
0007	278733	LH REMOVABLE BRACKET	278733 LH REMOVABLE BRACKET	-	1	Enquire
0008	13578324	WASHER	13578324 WASHER D. 8.15 - 24 X 2	-	6	Enquire
0009	986899	WASHER	986899 WASHER	-	2	Enquire
0010	16043524	SCREW	16043524 SCREW M8 X 22	-	2	Enquire
0011	283425	SQUARE HEADED SCREW M6 X 18.5MM	283425 SQUARE HEADED SCREW M6 X 18.5MM M6 X 18.5	-	6	Enquire
0012	14058421	NUT	14058421 NUT	-	6	Enquire
0013	920503	COMPL. RH SILENCER	920503 COMPL. RH SILENCER Not for Taiwan	-	1	Enquire
0013	956081	COMPL. RH SILENCER	956081 COMPL. RH SILENCER Applicable for Taiwan only	-	1	Enquire
0014	920505	COMPL. LH SILENCER	920505 COMPL. LH SILENCER Not for Taiwan	-	1	Enquire
0014	956080	COMPL. LH SILENCER	956080 COMPL. LH SILENCER Applicable for Taiwan only	-	1	Enquire
0015	893741	RH OUTER SILENCER BRACKET	893741 RH OUTER SILENCER BRACKET	-	1	Enquire
0016	893742	LH OUTER SILENCER BRACKET	893742 LH OUTER SILENCER BRACKET	-	1	Enquire
0017	14059211	NUT	14059211 NUT M6	-	16	Enquire
0018	321116	PLATE	321116 PLATE	-	4	Enquire
0019	911473	UPPER SILENCER BRACKET	911473 UPPER SILENCER BRACKET	-	4	Enquire
0020	776639	INNER SILENCER BRACKET	776639 INNER SILENCER BRACKET	-	2	Enquire
0021	283513	SILENCER CROSS PIECE	283513 SILENCER CROSS PIECE	-	1	Enquire
0022	231627	SCREW	231627 SCREW M8 X 16	-	4	Enquire
