Name: PISTONS AND CONNECTING RODS
Rating: 5.0 (1 reviews)

View All

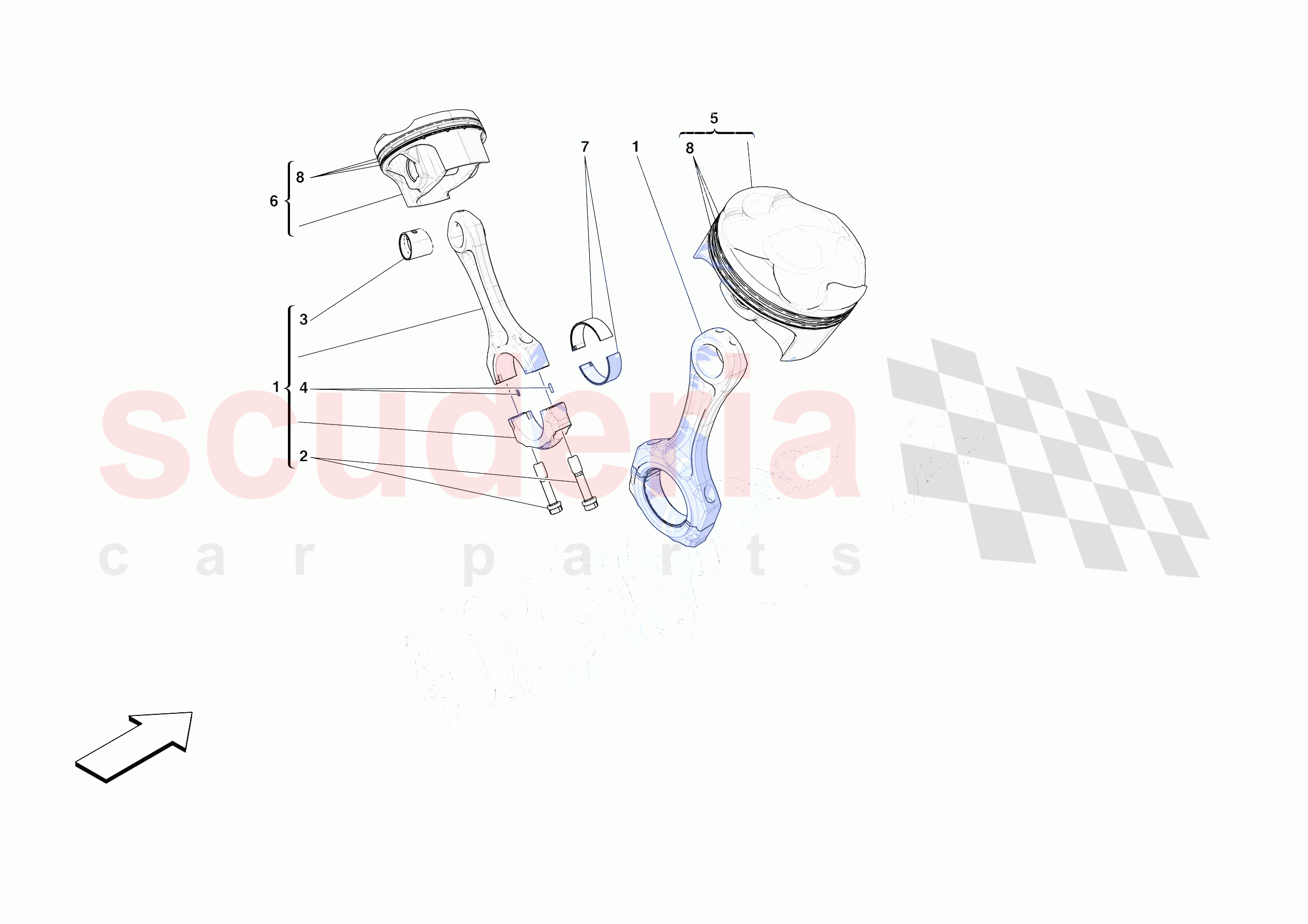

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	805669	COMPL. CONNECTING ROD AND CAP	$1,126.30	To Order

Photo	Part No	Description	Price (each)	Stock
	767760	CON. ROD FASTENER SCREW	$42.98	To Order

Photo	Part No	Description	Price (each)	Stock
	912359	BUSH	$44.43	To Order

Photo	Part No	Description	Price (each)	Stock
	337553	ALIGNMENT PIN	$6.86	To Order

Photo	Part No	Description	Price (each)	Stock
	811361	COMPL. RH CYL. BANK PISTON	$731.05	To Order

Photo	Part No	Description	Price (each)	Stock
	811362	COMPL. LH CYL. BANK PISTON	$731.05	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	855453	COMPL. PISTON RING SET	$387.02	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
0001	805669	COMPL. CONNECTING ROD AND CAP	805669 COMPL. CONNECTING ROD AND CAP	$1,126.30	12
0002	767760	CON. ROD FASTENER SCREW	767760 CON. ROD FASTENER SCREW	$42.98	24
0003	912359	BUSH	912359 BUSH	$44.43	12
0004	337553	ALIGNMENT PIN	337553 ALIGNMENT PIN	$6.86	24
0005	811361	COMPL. RH CYL. BANK PISTON	811361 COMPL. RH CYL. BANK PISTON	$731.05	6
0006	811362	COMPL. LH CYL. BANK PISTON	811362 COMPL. LH CYL. BANK PISTON	$731.05	6
0007	910540	CONNECTING ROD HALF-BEARING	910540 CONNECTING ROD HALF-BEARING Brown	$21.48	24
0007	304682	CONNECTING ROD HALF-BEARING	304682 CONNECTING ROD HALF-BEARING Red	$21.48	24
0007	823846	CONNECTING ROD HALF-BEARING	823846 CONNECTING ROD HALF-BEARING Green	$20.84	24
0007	304681	CONNECTING ROD HALF-BEARING	304681 CONNECTING ROD HALF-BEARING Blue	$21.48	24
0007	304680	CONNECTING ROD HALF-BEARING	304680 CONNECTING ROD HALF-BEARING Black	$20.84	24
0008	855453	COMPL. PISTON RING SET	855453 COMPL. PISTON RING SET	$387.02	12
