CRANKCASE of Ferrari Ferrari 812 Competizione A Europe

View All

Ferrari 812 Competizione A Europe - CRANKCASE

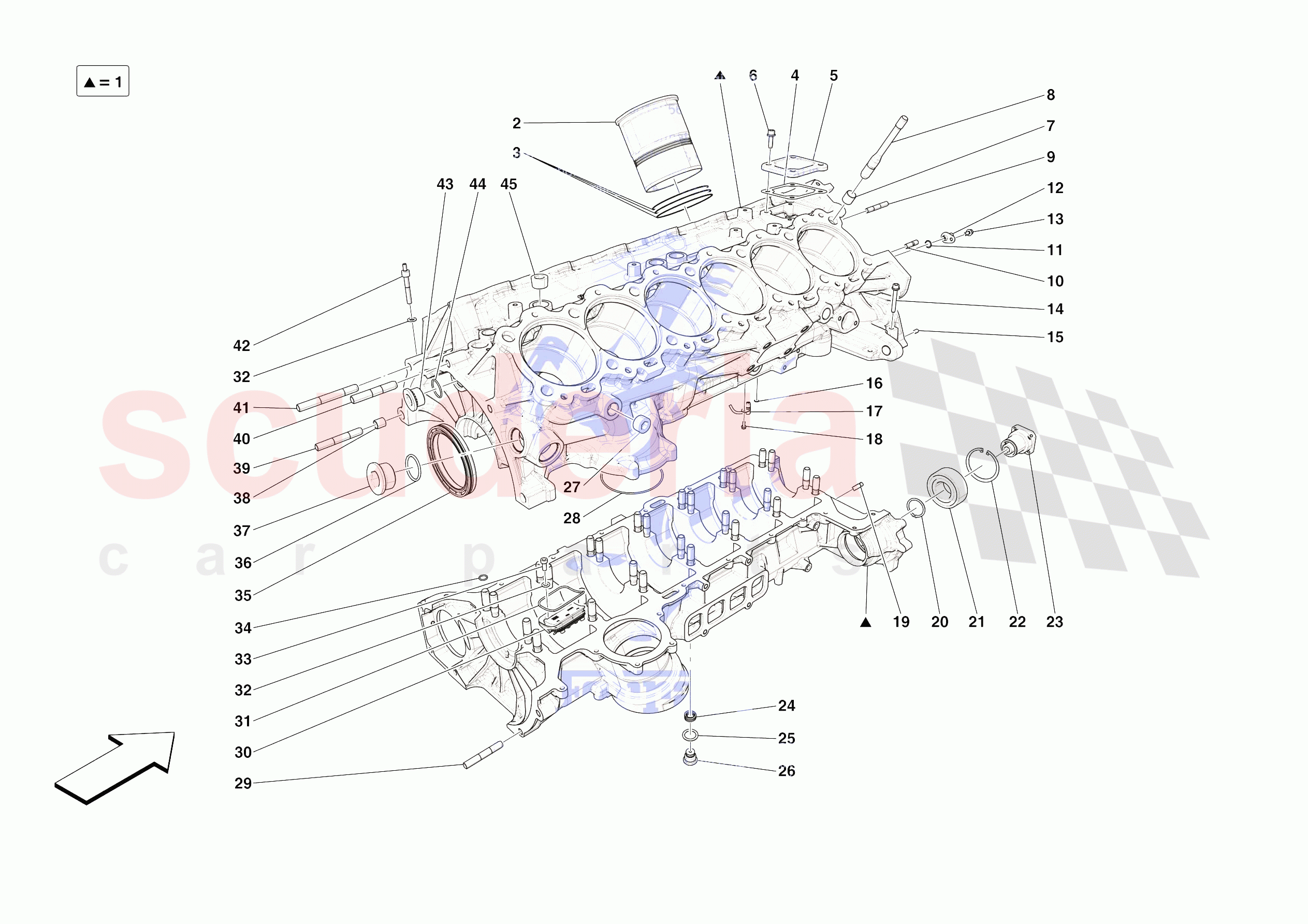

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order
	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE D.94	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319988	COMPL. PISTON COOLING JET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	315493	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	766469	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	CIRCLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED PLUG M22 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	300580	COMPL. VALVE HOLDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	240214	GASKET	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	952890	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915186	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13546834	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13547234	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	915159	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	952889	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
0001	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	55002685 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	-	1	Enquire
0001	55002685	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	55002685 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	-	1	Enquire
0002	266366	CYLINDER SLEEVE D.94	266366 CYLINDER SLEEVE D.94 D. 94	-	12	Enquire
0003	186251	O-RING	186251 O-RING Also included in engine gasket set	-	36	Enquire
0004	317312	GASKET	317312 GASKET Also included in engine gasket set	-	1	Enquire
0005	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	-	1	Enquire
0006	231619	SOCKET HEAD SCREW M6 X 22 WITH WASHER	231619 SOCKET HEAD SCREW M6 X 22 WITH WASHER M6 X 20	-	4	Enquire
0007	185360	CENTERING DOWEL	185360 CENTERING DOWEL	-	4	Enquire
0008	802590	STUD BOLT	802590 STUD BOLT	-	28	Enquire
0009	13543824	STUD BOLT	13543824 STUD BOLT M8 X 16	-	1	Enquire
0010	13543124	STUD BOLT	13543124 STUD BOLT M8 X 16	-	1	Enquire
0011	137192	O-RING	137192 O-RING	-	1	Enquire
0012	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	-	1	Enquire
0013	282393	SCREW	282393 SCREW M6 X 16	-	1	Enquire
0014	231624	SCREW	231624 SCREW M6 X 45	-	1	Enquire
0015	175611	CENTERING DOWEL	175611 CENTERING DOWEL	-	2	Enquire
0016	164877	O-RING	164877 O-RING Also included in engine gasket set	-	12	Enquire
0017	319988	COMPL. PISTON COOLING JET	319988 COMPL. PISTON COOLING JET	-	12	Enquire
0018	315493	SCREW	315493 SCREW M4 X 10	-	12	Enquire
0019	766469	PIN	766469 PIN	-	1	Enquire
0020	11068376	CIRCLIP	11068376 CIRCLIP	-	1	Enquire
0021	128799	BEARING	128799 BEARING	-	1	Enquire
0022	11061576	SEEGER RING	11061576 SEEGER RING	-	1	Enquire
0023	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	-	1	Enquire
0024	223577	THREADED INSERT M22 X 1.5 X 9MM	223577 THREADED INSERT M22 X 1.5 X 9MM	-	1	Enquire
0025	10261860	COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5	10261860 COPPER WASHER FOR OIL DRAIN PLUG D.20 - 30 X 1.5 Also included in engine gasket set	-	1	Enquire
0026	104280	MAGNETIC THREADED PLUG M22 X 1.5	104280 MAGNETIC THREADED PLUG M22 X 1.5	-	1	Enquire
0027	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	-	5	Enquire
0028	176388	O-RING	176388 O-RING	-	1	Enquire
0029	13546834	STUD BOLT	13546834 STUD BOLT Shank length 45 mm	-	3	Enquire
0030	300580	COMPL. VALVE HOLDER	300580 COMPL. VALVE HOLDER	-	6	Enquire
0031	154691	GASKET	154691 GASKET Also included in engine gasket set	-	6	Enquire
0032	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	13	Enquire
0033	13026924	SCREW	13026924 SCREW M6 X 14	-	12	Enquire
0034	134704	O-RING ARRIVING SOON	134704 O-RING Also included in engine gasket set ARRIVING SOON	-	28	Enquire
0035	240214	GASKET ARRIVING SOON	240214 GASKET Also included in engine gasket set ARRIVING SOON	-	1	Enquire
0036	952890	O-RING	952890 O-RING	-	2	Enquire
0037	915186	PLUG	915186 PLUG	-	2	Enquire
0038	100052	CENTERING DOWEL	100052 CENTERING DOWEL	-	2	Enquire
0039	13546934	STUD BOLT	13546934 STUD BOLT Shank length 50 mm	-	2	Enquire
0040	13546834	STUD BOLT	13546834 STUD BOLT Shank length 40 mm	-	1	Enquire
0041	13547234	STUD BOLT	13547234 STUD BOLT M10 X 1.25 X 20	-	1	Enquire
0042	219283	STUD BOLT	219283 STUD BOLT	-	1	Enquire
0043	915159	PLUG	915159 PLUG	-	1	Enquire
0044	952889	O-RING	952889 O-RING	-	1	Enquire
0045	282753	THREADED PLUG	282753 THREADED PLUG	-	5	Enquire
