LUGGAGE COMPARTMENT ECUs of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - LUGGAGE COMPARTMENT ECUs

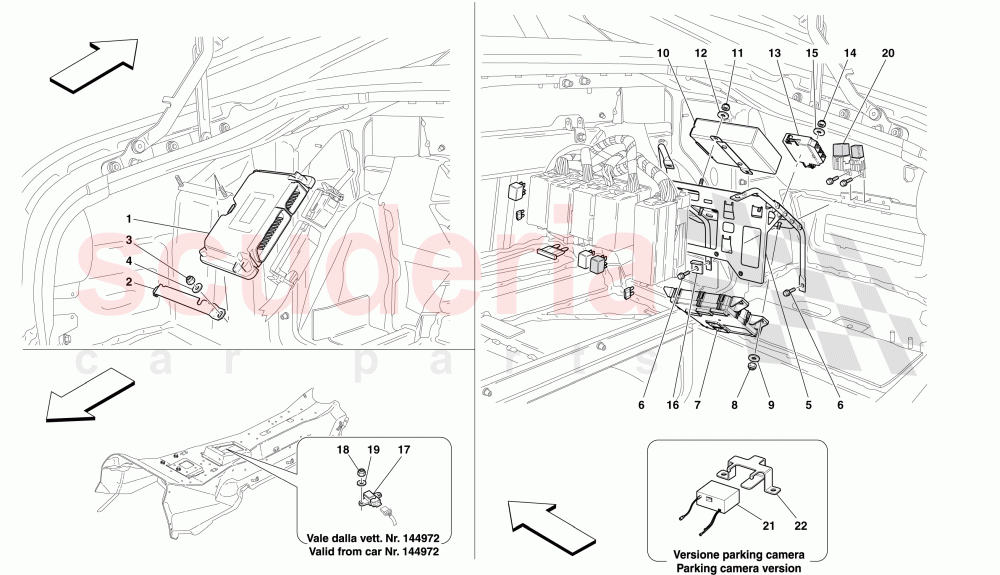

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	219589	ELECTRONICALLY CONTROLLED GEARBOX ECU	Enquire	To Order
	219589	ELECTRONICALLY CONTROLLED GEARBOX ECU	Enquire	To Order
	221501	ELECTRONICALLY CONTROLLED GEARBOX ECU	Enquire	To Order

...and 11 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	191530	F1 ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67584200	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191517	ECU MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191360	LUGGAGE COMPARTMENT ECU	Enquire	To Order
	236134	LUGGAGE COMPARTMENT ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	205620	SKYHOOK ECU	Enquire	To Order
	234925	SKYHOOK ECU	Enquire	To Order
	219880	SKYHOOK ECU	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	203963	PARKING SENSOR NODE	Enquire	To Order
	221500	PARKING SENSOR NODE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13579101	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191522	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	206071	ACCELERATION SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233100	FUSE 12V 50A	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	234996	PARKING CAMERA ECU	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221567	ECU FASTENER BRACKET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	219589	ELECTRONICALLY CONTROLLED GEARBOX ECU	219589 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for F1 gearbox; Applicable up to gearbox No. 197; Applicable up to engine No. 90177	-	1	Enquire
1	219589	ELECTRONICALLY CONTROLLED GEARBOX ECU	219589 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for F1 gearbox; Applicable from gearbox No. 3 up to gearbox No. 728; Applicable from engine No. 90178	-	1	Enquire
1	221501	ELECTRONICALLY CONTROLLED GEARBOX ECU	221501 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for F1 gearbox; Applicable from gearbox No. 729 up to gearbox No. 1385	-	1	Enquire
1	240668	ELECTRONICALLY CONTROLLED GEARBOX ECU	240668 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for F1 gearbox; Applicable up to gearbox No. 234967	-	1	Enquire
1	243475	ELECTRONICALLY CONTROLLED GEARBOX ECU	243475 ELECTRONICALLY CONTROLLED GEARBOX ECU MY 08; Applicable for enhanced version; Applicable for "60°anniversario"; Not for USA, CDN, J; Applicable for F1 gearbox	-	1	Enquire
1	244777	ELECTRONICALLY CONTROLLED GEARBOX ECU	244777 ELECTRONICALLY CONTROLLED GEARBOX ECU MY 08; Applicable for enhanced version; Applicable for USA, CDN; Applicable for F1 gearbox	-	1	Enquire
1	240673	ELECTRONICALLY CONTROLLED GEARBOX ECU	240673 ELECTRONICALLY CONTROLLED GEARBOX ECU HGTC version; Optional; Applicable for F1 gearbox	-	1	Enquire
1	241670	ELECTRONICALLY CONTROLLED GEARBOX ECU	241670 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for Taiwan; Applicable for F1 gearbox	-	1	Enquire
1	240675	ELECTRONICALLY CONTROLLED GEARBOX ECU	240675 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for Taiwan; Applicable from MY 07; HGTC version; Optional; Applicable for F1 gearbox	-	1	Enquire
1	243476	ELECTRONICALLY CONTROLLED GEARBOX ECU	243476 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable from MY 07; Applicable for J; Applicable for F1 gearbox	-	1	Enquire
1	243476	ELECTRONICALLY CONTROLLED GEARBOX ECU	243476 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for enhanced version; Applicable for "60°anniversario"; Applicable for J; Applicable for F1 gearbox	-	1	Enquire
1	240674	ELECTRONICALLY CONTROLLED GEARBOX ECU	240674 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable from MY 07; HGTC version; Optional; Applicable for J; Applicable for F1 gearbox	-	1	Enquire
1	251731	ELECTRONICALLY CONTROLLED GEARBOX ECU	251731 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for "OTO"; Not for USA, CDN, J; Applicable for F1 gearbox	-	1	Enquire
1	251731	ELECTRONICALLY CONTROLLED GEARBOX ECU	251731 ELECTRONICALLY CONTROLLED GEARBOX ECU Applicable for "OTO"; Applicable for USA, CDN; Applicable for F1 gearbox	-	1	Enquire
2	191530	F1 ECU MOUNTING BRACKET	191530 F1 ECU MOUNTING BRACKET Applicable for F1 gearbox	-	1	Enquire
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Applicable for F1 gearbox	-	2	Enquire
4	67584200	WASHER	67584200 WASHER Applicable for F1 gearbox	-	2	Enquire
5	191517	ECU MOUNTING BRACKET	191517 ECU MOUNTING BRACKET	-	1	Enquire
6	16297024	SCREW	16297024 SCREW	-	2	Enquire
7	191360	LUGGAGE COMPARTMENT ECU	191360 LUGGAGE COMPARTMENT ECU	-	1	Enquire
7	236134	LUGGAGE COMPARTMENT ECU	236134 LUGGAGE COMPARTMENT ECU Enhanced version; Applicable for version without Bose NIT; Applicable for J	-	1	Enquire
8	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	4	Enquire
9	12637824	WASHER	12637824 WASHER	-	4	Enquire
10	205620	SKYHOOK ECU	205620 SKYHOOK ECU Not for enhanced version; Applicable up to Ass. No. 70534	-	1	Enquire
10	234925	SKYHOOK ECU	234925 SKYHOOK ECU Enhanced version; Applicable from Ass. No. 70535	-	1	Enquire
10	219880	SKYHOOK ECU	219880 SKYHOOK ECU Not for enhanced version; HGTC version; Optional; Applicable up to Ass. No. 70534	-	1	Enquire
10	234926	SKYHOOK ECU	234926 SKYHOOK ECU Not for enhanced version; HGTC version; Optional; Applicable from Ass. No. 70535	-	1	Enquire
11	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
12	12637824	WASHER	12637824 WASHER	-	2	Enquire
13	203963	PARKING SENSOR NODE	203963 PARKING SENSOR NODE Not for front parking sensors	-	1	Enquire
13	221500	PARKING SENSOR NODE	221500 PARKING SENSOR NODE Front parking sensors; Optional	-	1	Enquire
14	14059114	NUT	14059114 NUT Parking sensors	-	1	Enquire
15	13579101	WASHER	13579101 WASHER Parking sensors	-	1	Enquire
16	191522	BRACKET	191522 BRACKET	-	2	Enquire
17	206071	ACCELERATION SENSOR	206071 ACCELERATION SENSOR	-	1	Enquire
18	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	-	2	Enquire
19	12638124	WASHER	12638124 WASHER	-	2	Enquire
20	233100	FUSE 12V 50A ARRIVING SOON	233100 FUSE 12V 50A ARRIVING SOON	-	1	Enquire
21	234996	PARKING CAMERA ECU	234996 PARKING CAMERA ECU	-	1	Enquire
22	221567	ECU FASTENER BRACKET	221567 ECU FASTENER BRACKET	-	1	Enquire
