AUDIO SYSTEM - Enhanced version of Ferrari Ferrari 612 Sessanta

View All

Ferrari 612 Sessanta - AUDIO SYSTEM - Enhanced version

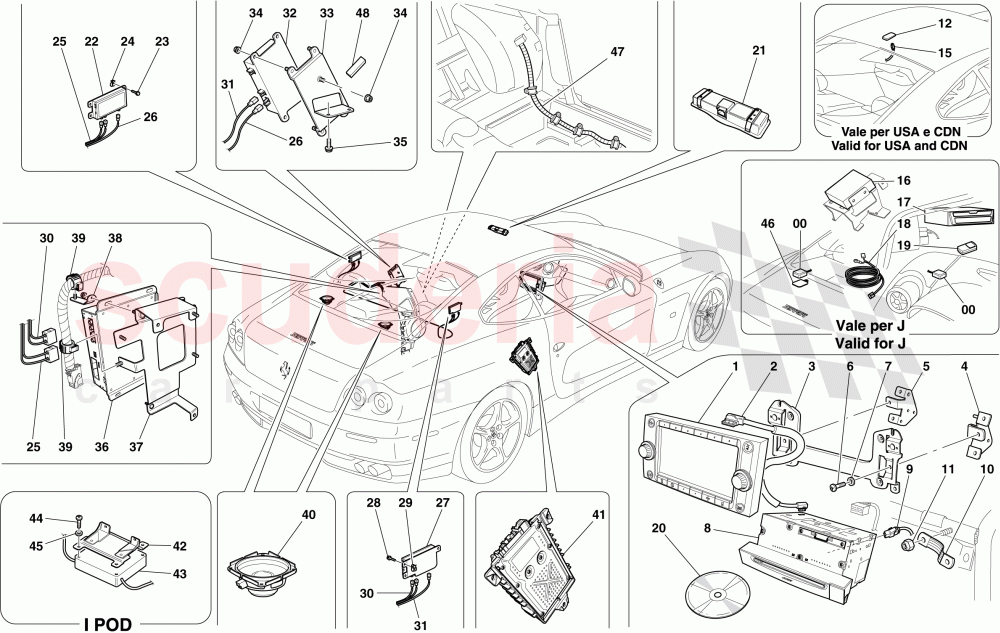

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	228168	NIT-DISPLAY CONNECTOR LVDS CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80271200	DISPLAY FACE PLATE FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80270700	RH 2 DIN SILVER BOX BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80270900	LH 2 DIN SILVER BOX BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271617	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218292	2 DIN SILVER BOX BOSE NIT	Enquire	To Order
	237110	2 DIN SILVER BOX BOSE NIT LH ROW	Enquire	To Order
	228159	2 DIN SILVER BOX BOSE NIT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	232297	GPS ANTENNA EXTENSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	302141	GROUND BRAID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12578211	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238629	XM ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	238309	XM ANTENNA COAX EXTENSION CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191588	BOSE NIT VICS ANTENNA KIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218297	BOSE NIT NAVI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232295	COAX CABLE FROM RADIO TUNER-GPS NAVIGATOR	Enquire	To Order
	239844	NAVIGATOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	228162	NAVI REMOTE CONTROL	Enquire	To Order
	257177	NAVI REMOTE CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	237298	NAVI MAP DVD DISK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218296	BOSE NIT MICROPHONE ARRAY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227226	AMPLIFIER FOR FM2 ANTENNA	Enquire	To Order
	232102	AMPLIFIER FOR FM2 TV2-TV4 ANTENNA	Enquire	To Order
	227230	AMPLIFIER FOR FM2 ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370571	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232298	COAX CABLE FROM TV2-TV4 TUNER-FRONT AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232252	FM2 ANTENNA CABLE TO RADIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227224	AMPLIFIER FOR AM-FM1 ANTENNA	Enquire	To Order
	227227	AMPLIFIER FOR AM-FM1 TV1-TV3 ANTENNA	Enquire	To Order
	227229	AMPLIFIER FOR AM-FM1 ANTENNA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13272011	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14370571	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232299	COAX CABLE FROM TV1-TV3 TUNER-FRONT AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232253	AM-FM1 ANTENNA CABLE TO RADIO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60666089	ANALOGUE TV TUNER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221560	TUNER BOX BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	218295	BOSE NIT TUNER BOX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221561	ANALOGUE TV TUNER BRACKET	Enquire	To Order
	237161	ANALOGUE TV TUNER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	221566	TV TUNER WIRING HARNESS BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	204777	CLIP	Enquire	To Order
	204775	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227270	TWIDDLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227271	AUDIO AMPLIFIER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80270500	iPod FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	233878	BOSE NIT EIPMP MODULE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271617	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80023900	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	246663	TV TUNER WIRING HARNESS	Enquire	To Order
	246664	TV TUNER WIRING HARNESS	Enquire	To Order
	239840	TV TUNER WIRING HARNESS	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	68304200	FOAM	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	228168	NIT-DISPLAY CONNECTOR LVDS CABLE	228168 NIT-DISPLAY CONNECTOR LVDS CABLE	-	1	Enquire
3	80271200	DISPLAY FACE PLATE FASTENER BRACKET	80271200 DISPLAY FACE PLATE FASTENER BRACKET	-	1	Enquire
4	80270700	RH 2 DIN SILVER BOX BRACKET	80270700 RH 2 DIN SILVER BOX BRACKET	-	1	Enquire
5	80270900	LH 2 DIN SILVER BOX BRACKET	80270900 LH 2 DIN SILVER BOX BRACKET	-	1	Enquire
6	13271617	SCREW	13271617 SCREW	-	6	Enquire
7	62769800	WASHER	62769800 WASHER	-	6	Enquire
8	218292	2 DIN SILVER BOX BOSE NIT	218292 2 DIN SILVER BOX BOSE NIT With navigation; Not for USA, CDN, J	-	1	Enquire
8	237110	2 DIN SILVER BOX BOSE NIT LH ROW	237110 2 DIN SILVER BOX BOSE NIT LH ROW Without navigation; Not for USA, CDN, J	-	1	Enquire
8	228159	2 DIN SILVER BOX BOSE NIT	228159 2 DIN SILVER BOX BOSE NIT Applicable for USA, CDN	-	1	Enquire
8	228160	2 DIN SILVER BOX BOSE NIT	228160 2 DIN SILVER BOX BOSE NIT Applicable for J	-	1	Enquire
9	232297	GPS ANTENNA EXTENSION	232297 GPS ANTENNA EXTENSION	-	1	Enquire
10	302141	GROUND BRAID	302141 GROUND BRAID	-	1	Enquire
11	12578211	NUT	12578211 NUT	-	2	Enquire
12	238629	XM ANTENNA	238629 XM ANTENNA Applicable for USA, CDN	-	1	Enquire
13	238624	XM ANTENNA COVER	238624 XM ANTENNA COVER Imagine not available; Applicable for USA, CDN	-	1	Enquire
14	246264	SCREW	246264 SCREW Imagine not available; Applicable for USA, CDN	-	4	Enquire
15	238309	XM ANTENNA COAX EXTENSION CABLE	238309 XM ANTENNA COAX EXTENSION CABLE Applicable for USA, CDN	-	1	Enquire
16	191588	BOSE NIT VICS ANTENNA KIT	191588 BOSE NIT VICS ANTENNA KIT Applicable for J	-	1	Enquire
17	218297	BOSE NIT NAVI	218297 BOSE NIT NAVI Applicable for China 2010; Applicable for J	-	1	Enquire
18	232295	COAX CABLE FROM RADIO TUNER-GPS NAVIGATOR	232295 COAX CABLE FROM RADIO TUNER-GPS NAVIGATOR Applicable for J	-	1	Enquire
18	239844	NAVIGATOR WIRING HARNESS	239844 NAVIGATOR WIRING HARNESS Applicable for China 2010; Applicable for J	-	1	Enquire
19	228162	NAVI REMOTE CONTROL	228162 NAVI REMOTE CONTROL Applicable for J	-	1	Enquire
19	257177	NAVI REMOTE CONTROL	257177 NAVI REMOTE CONTROL Applicable for China 2010	-	1	Enquire
20	237298	NAVI MAP DVD DISK	237298 NAVI MAP DVD DISK Applicable for J	-	1	Enquire
21	218296	BOSE NIT MICROPHONE ARRAY	218296 BOSE NIT MICROPHONE ARRAY	-	1	Enquire
22	227226	AMPLIFIER FOR FM2 ANTENNA	227226 AMPLIFIER FOR FM2 ANTENNA Standard	-	1	Enquire
22	232102	AMPLIFIER FOR FM2 TV2-TV4 ANTENNA	232102 AMPLIFIER FOR FM2 TV2-TV4 ANTENNA TV tuner; Not for J	-	1	Enquire
22	227230	AMPLIFIER FOR FM2 ANTENNA	227230 AMPLIFIER FOR FM2 ANTENNA TV tuner; Applicable for J	-	1	Enquire
23	13272011	SCREW	13272011 SCREW	-	3	Enquire
24	14370571	BRACKET	14370571 BRACKET	-	3	Enquire
25	232298	COAX CABLE FROM TV2-TV4 TUNER-FRONT AMPLIFIER	232298 COAX CABLE FROM TV2-TV4 TUNER-FRONT AMPLIFIER	-	1	Enquire
26	232252	FM2 ANTENNA CABLE TO RADIO	232252 FM2 ANTENNA CABLE TO RADIO	-	1	Enquire
27	227224	AMPLIFIER FOR AM-FM1 ANTENNA	227224 AMPLIFIER FOR AM-FM1 ANTENNA Standard	-	1	Enquire
27	227227	AMPLIFIER FOR AM-FM1 TV1-TV3 ANTENNA	227227 AMPLIFIER FOR AM-FM1 TV1-TV3 ANTENNA TV tuner; Not for J	-	1	Enquire
27	227229	AMPLIFIER FOR AM-FM1 ANTENNA	227229 AMPLIFIER FOR AM-FM1 ANTENNA TV tuner; Applicable for J	-	1	Enquire
28	13272011	SCREW	13272011 SCREW	-	3	Enquire
29	14370571	BRACKET	14370571 BRACKET	-	3	Enquire
30	232299	COAX CABLE FROM TV1-TV3 TUNER-FRONT AMPLIFIER	232299 COAX CABLE FROM TV1-TV3 TUNER-FRONT AMPLIFIER	-	1	Enquire
31	232253	AM-FM1 ANTENNA CABLE TO RADIO	232253 AM-FM1 ANTENNA CABLE TO RADIO	-	1	Enquire
32	60666089	ANALOGUE TV TUNER	60666089 ANALOGUE TV TUNER	-	1	Enquire
33	221560	TUNER BOX BRACKET	221560 TUNER BOX BRACKET	-	1	Enquire
34	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
35	86574700	SCREW	86574700 SCREW	-	2	Enquire
36	218295	BOSE NIT TUNER BOX	218295 BOSE NIT TUNER BOX	-	1	Enquire
37	221561	ANALOGUE TV TUNER BRACKET	221561 ANALOGUE TV TUNER BRACKET	-	1	Enquire
37	237161	ANALOGUE TV TUNER BRACKET	237161 ANALOGUE TV TUNER BRACKET Applicable for enhanced version and "60° anniversario" version	-	1	Enquire
38	221566	TV TUNER WIRING HARNESS BRACKET	221566 TV TUNER WIRING HARNESS BRACKET	-	1	Enquire
39	204777	CLIP	204777 CLIP D. from 13 to 15	-	1	Enquire
39	204775	CLIP	204775 CLIP D. from 17 to 21	-	1	Enquire
40	227270	TWIDDLER	227270 TWIDDLER D. 90	-	2	Enquire
41	227271	AUDIO AMPLIFIER	227271 AUDIO AMPLIFIER	-	1	Enquire
42	80270500	iPod FASTENER BRACKET	80270500 iPod FASTENER BRACKET Version with provision for iPod	-	1	Enquire
43	233878	BOSE NIT EIPMP MODULE	233878 BOSE NIT EIPMP MODULE Version with provision for iPod	-	1	Enquire
44	13271617	SCREW	13271617 SCREW Version with provision for iPod	-	4	Enquire
45	62769800	WASHER	62769800 WASHER Version with provision for iPod	-	4	Enquire
46	80023900	BRACKET	80023900 BRACKET Applicable for China 2010; Applicable for J	-	1	Enquire
47	246663	TV TUNER WIRING HARNESS	246663 TV TUNER WIRING HARNESS Applicable for "OTO"; Not for GD	-	1	Enquire
47	246664	TV TUNER WIRING HARNESS	246664 TV TUNER WIRING HARNESS Applicable for "OTO"; Applicable for GD	-	1	Enquire
47	239840	TV TUNER WIRING HARNESS	239840 TV TUNER WIRING HARNESS Enhanced version	-	1	Enquire
47	239945	PARKING CAMERA WIRING HARNESS	239945 PARKING CAMERA WIRING HARNESS	-	1	Enquire
48	68304200	FOAM	68304200 FOAM	-	1	Enquire
