Tunnel - Substructure And Accessories -Applicable For "Oto"-

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - TUNNEL - SUBSTRUCTURE AND ACCESSORIES -Applicable for "OTO"-

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
80539300 CENTRE CONSOLE UNIT SUBSTRUCTURE Enquire To Order
80539700 CENTRE CONSOLE UNIT SUBSTRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
69552400 SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM Enquire To Order
81160800 SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
81160900 SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM Enquire To Order
81166400 SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
81161000 SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM Enquire To Order
81166500 SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
80280800 SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM Enquire To Order
81161500 SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM Enquire To Order
Photo Part No Description Price (each) Stock
80278400 TUNNEL INSULATION $101.07 To Order
Photo Part No Description Price (each) Stock
81161900 UPPER REAR CENTRE TUNNEL CONSOLE LINING Enquire To Order
Photo Part No Description Price (each) Stock
81162700 GLOVE COMPARTMENT LID BACKING SUBSTRUCTURE $112.31 To Order
Photo Part No Description Price (each) Stock
81162300 GLOVE COMPARTMENT SUBSTRUCTURE Enquire To Order
Photo Part No Description Price (each) Stock
67004700 COMPL. LID HINGE $150.82 To Order
Photo Part No Description Price (each) Stock
66976100 ASHTRAY $272.77 IN STOCK
Photo Part No Description Price (each) Stock
183271 CIGARETTE LIGHTER SOCKET $35.28 IN STOCK
Photo Part No Description Price (each) Stock
66704500 CIGARETTE LIGHTER Enquire To Order
Photo Part No Description Price (each) Stock
67326300 FRONT BRACKET $54.54 To Order
Photo Part No Description Price (each) Stock
67325300 RH BRACKET $19.24 To Order
Photo Part No Description Price (each) Stock
67325400 REAR BRACKET $38.49 To Order
Photo Part No Description Price (each) Stock
67170300 YAW SENSOR FASTENER BRACKET $49.73 To Order
Photo Part No Description Price (each) Stock
66853800 AIR VENT $192.54 IN STOCK
Photo Part No Description Price (each) Stock
68316600 PIPE CONNECTOR $580.15 To Order
67924900 PIPE CONNECTOR $449.27 To Order
69542600 PIPE CONNECTOR $513.46 To Order
Photo Part No Description Price (each) Stock
13273911 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
66854000 REAR AIR DUCT $152.42 To Order
68119500 REAR AIR DUCT $188.53 To Order
Photo Part No Description Price (each) Stock
15526501 SCREW $5.12 To Order
Photo Part No Description Price (each) Stock
13550078 WASHER $0.83 To Order
Photo Part No Description Price (each) Stock
13274114 SCREW $0.05 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67003900 AIR VENT FASTENER BRACKET $28.87 To Order
Photo Part No Description Price (each) Stock
13273911 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12637824 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
67628600 ECU FASTENER BRACKET $65.77 To Order
Photo Part No Description Price (each) Stock
13271814 SCREW $1.65 IN STOCK
Photo Part No Description Price (each) Stock
67004100 BASE $84.64 IN STOCK
81161400 FRONT BASE Enquire To Order
Photo Part No Description Price (each) Stock
69353600 ACCELERATOR PEDAL SHIELD $272.77 To Order
67932500 ACCELERATOR PEDAL SHIELD $240.67 To Order
Photo Part No Description Price (each) Stock
81162800 LOCK LINER $97.77 To Order
Photo Part No Description Price (each) Stock
15957701 SCREW $0.13 To Order
Photo Part No Description Price (each) Stock
67004800 LID LATCH $35.28 IN STOCK
Photo Part No Description Price (each) Stock
80540500 PARKING BRAKE COVER Enquire To Order
Photo Part No Description Price (each) Stock
15901501 SCREW $0.03 To Order
Photo Part No Description Price (each) Stock
15915701 SCREW $0.05 To Order
Photo Part No Description Price (each) Stock
15526501 SCREW $5.12 To Order
Photo Part No Description Price (each) Stock
12639901 WASHER $0.10 IN STOCK
Photo Part No Description Price (each) Stock
81161800 GLOVE COMPARTMENT Enquire To Order
Photo Part No Description Price (each) Stock
81190000 BASE Enquire To Order
Photo Part No Description Price (each) Stock
80276300 FRONT BASE Enquire To Order
View All

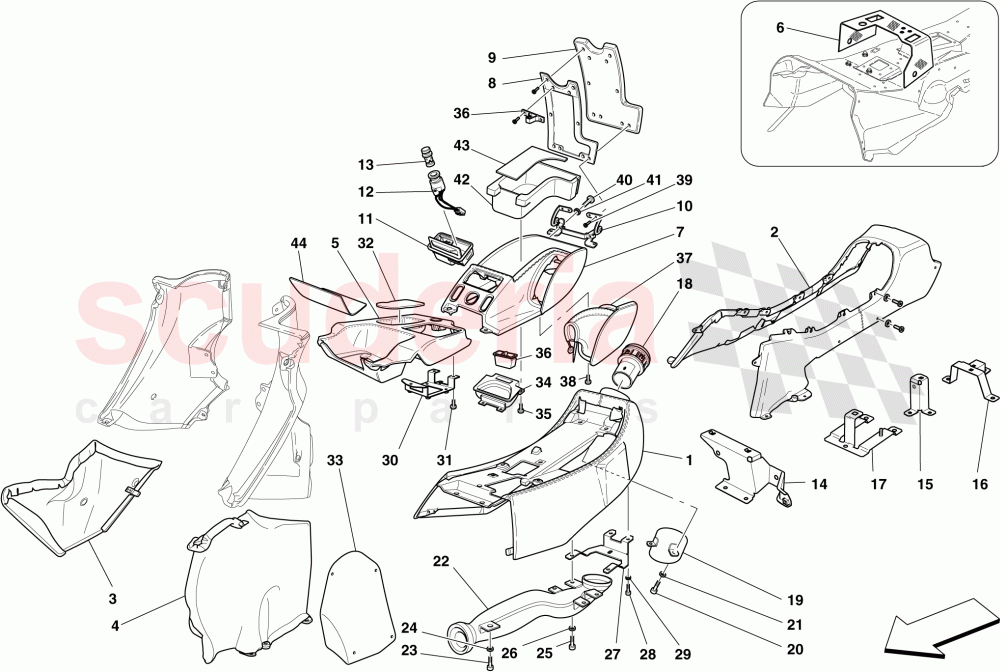

TUNNEL - SUBSTRUCTURE AND ACCESSORIES -Applicable for "OTO"- of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 80539300
CENTRE CONSOLE UNIT SUBSTRUCTURE
Not for GD 		- 1 Enquire
1 80539700
CENTRE CONSOLE UNIT SUBSTRUCTURE
Applicable for GD 		- 1 Enquire
2 69552400
SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM 		- 1 Enquire
2 81160800
SUBSTRUCTURE FOR REAR PART OF CENTRE TUNNEL TRIM 		- 1 Enquire
3 81160900
SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM
Not for GD 		- 1 Enquire
3 81166400
SUBSTRUCTURE FOR RH FRONT PART OF CENTRE TUNNEL TRIM
Applicable for GD 		- 1 Enquire
4 81161000
SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM
Not for GD 		- 1 Enquire
4 81166500
SUBSTRUCTURE FOR LH FRONT PART OF CENTRE TUNNEL TRIM
Applicable for GD 		- 1 Enquire
5 80280800
SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM
Not for front parking sensors; Applicable for GD 		- 1 Enquire
5 81161500
SUBSTRUCTURE FOR UPPER PART OF CENTRE TUNNEL TRIM
Not for GD 		- 1 Enquire
6 80278400
TUNNEL INSULATION 		$101.07 1
7 81161900
UPPER REAR CENTRE TUNNEL CONSOLE LINING 		- 1 Enquire
8 81162700
GLOVE COMPARTMENT LID BACKING SUBSTRUCTURE 		$112.31 1
9 81162300
GLOVE COMPARTMENT SUBSTRUCTURE 		- 1 Enquire
10 67004700
COMPL. LID HINGE 		$150.82 1
11 66976100
ASHTRAY
IN STOCK 		$272.77 1
12 183271
CIGARETTE LIGHTER SOCKET
IN STOCK 		$35.28 1
13 66704500
CIGARETTE LIGHTER 		- 1 Enquire
14 67326300
FRONT BRACKET 		$54.54 1
15 67325300
RH BRACKET 		$19.24 1
16 67325400
REAR BRACKET 		$38.49 1
17 67170300
YAW SENSOR FASTENER BRACKET 		$49.73 1
18 66853800
AIR VENT
IN STOCK 		$192.54 1
19 68316600
PIPE CONNECTOR
Painted 		$580.15 1
19 67924900
PIPE CONNECTOR
DARK; Painted; Optional 		$449.27 1
19 69542600
PIPE CONNECTOR
Carbon version; Optional 		$513.46 1
20 13273911
SCREW 		$0.16 3
21 12637824
WASHER
IN STOCK 		$0.06 (88% off) 3
22 66854000
REAR AIR DUCT
Not for GD 		$152.42 1
22 68119500
REAR AIR DUCT
Applicable for GD 		$188.53 1
23 15526501
SCREW 		$5.12 1
24 13550078
WASHER 		$0.83 1
25 13274114
SCREW 		$0.05 2
26 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
27 67003900
AIR VENT FASTENER BRACKET 		$28.87 1
28 13273911
SCREW 		$0.16 2
29 12637824
WASHER
IN STOCK 		$0.06 (88% off) 2
30 67628600
ECU FASTENER BRACKET
Applicable for F1 gearbox 		$65.77 1
31 13271814
SCREW
IN STOCK 		$1.65 3
32 67004100
BASE
IN STOCK 		$84.64 1
32 81161400
FRONT BASE
Not for GD 		- 1 Enquire
33 69353600
ACCELERATOR PEDAL SHIELD
Not for GD 		$272.77 1
33 67932500
ACCELERATOR PEDAL SHIELD
Applicable for GD 		$240.67 1
34 81162800
LOCK LINER 		$97.77 1
35 15957701
SCREW 		$0.13 4
36 67004800
LID LATCH
IN STOCK 		$35.28 (27.3% off) 1
37 80540500
PARKING BRAKE COVER 		- 1 Enquire
38 15901501
SCREW 		$0.03 5
39 15915701
SCREW 		$0.05 4
40 15526501
SCREW 		$5.12 2
41 12639901
WASHER
IN STOCK 		$0.10 2
42 81161800
GLOVE COMPARTMENT 		- 1 Enquire
43 81190000
BASE 		- 1 Enquire
44 80276300
FRONT BASE 		- 1 Enquire
