LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP of Ferrari Ferrari 612 Scaglietti

View All

Ferrari 612 Scaglietti - LUGGAGE COMPARTMENT LID AND FUEL FILLER FLAP

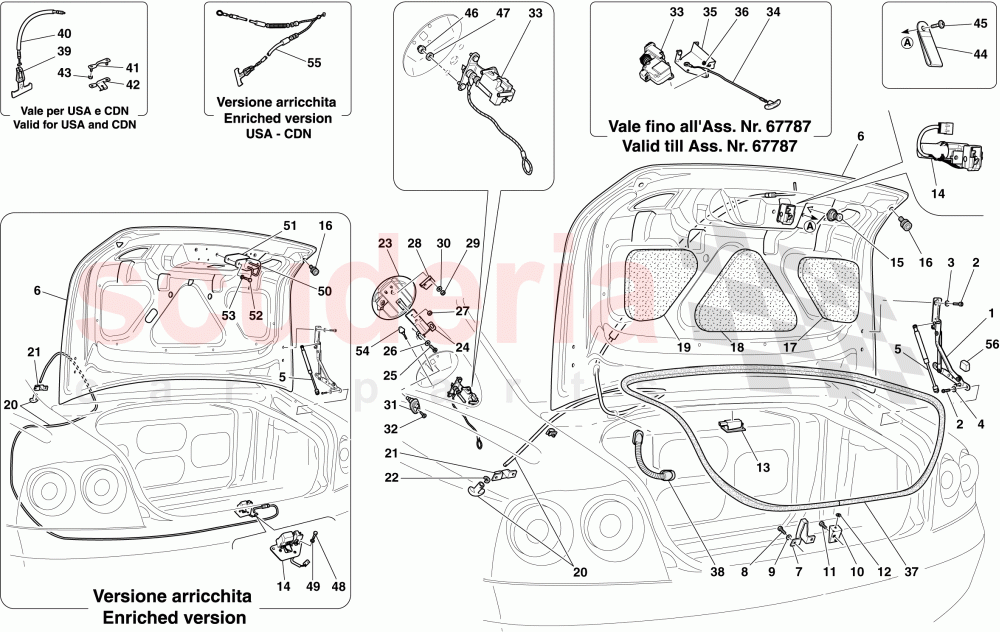

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67625100	COMPLETE RH HINGE	Enquire	To Order
	67625200	COMPLETE LH HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67079900	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER 6 X 20 X 2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67739900	GAS STRUT	Enquire	To Order
	80584200	GAS STRUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66990411	LUGGAGE COMPARTMENT LID	Enquire	To Order
	80014911	LUGGAGE COMPARTMENT LID	Enquire	To Order
	80589311	LUGGAGE COMPARTMENT LID	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67877200	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16132314	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67614600	RH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	86574700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

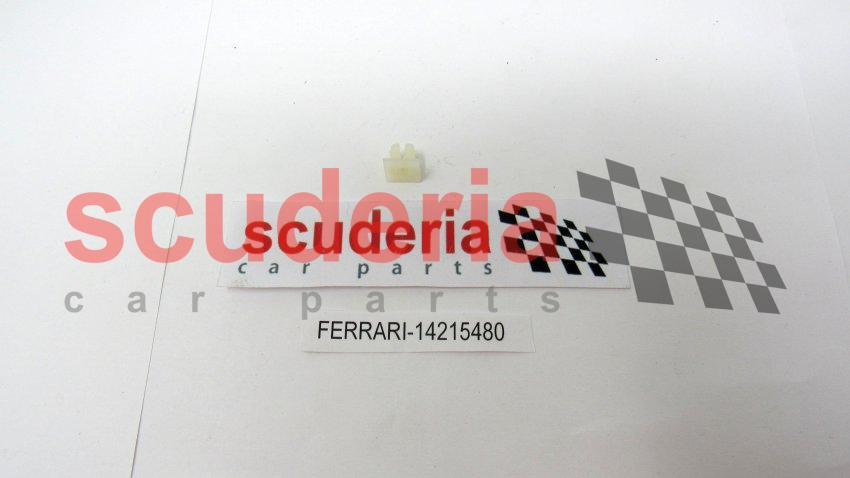

	14215480	BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188250	DOME LAMP UNIT	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	67826200	Rear Boot Lock	Enquire	To Order

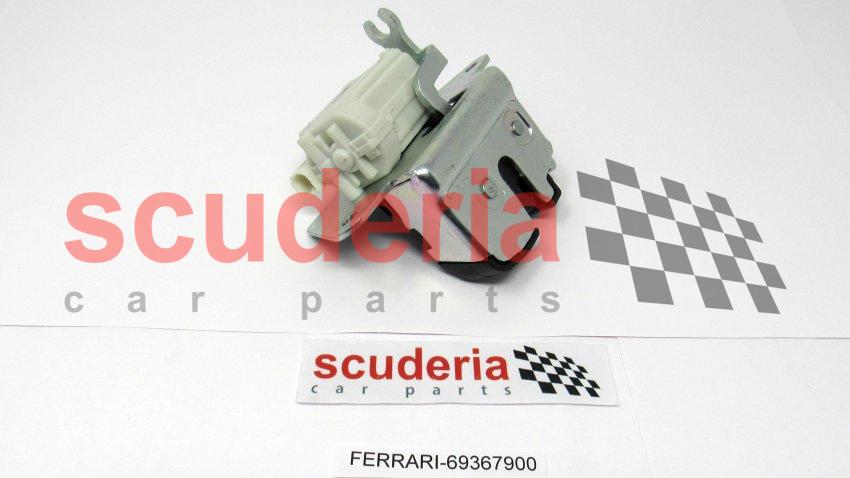

	69367900	Luggage Compartment Lid Lock	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81805000	VIBRATION DAMPER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67161800	VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66966800	RH LUGGAGE COMPARTMENT LID INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66967000	CENTRAL LUGGAGE COMPARTMENT LID INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66966900	LH LUGGAGE COMPARTMENT LID INSULATION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68123500	LID SAFETY CABLE	Enquire	To Order
	80024300	LID SAFETY CABLE	Enquire	To Order
	236135	LOCK CONNECTOR WIRING HARNESS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67853300	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67092611	FUEL FILLER FLAP COVER	Enquire	To Order
	80462300	FUEL FILLER FLAP COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67934900	FUEL FILLER FLAP HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62797600	Allen Bolt Countersunk M6 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67840400	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14084111	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68115400	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153069	SWITCH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16082401	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65395900	ROCKWELL ACTUATOR	Enquire	To Order
	69543400	ACTUATOR COMPLETE WITH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66678200	SAFETY CABLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66679800	ACTUATOR MOUNTING BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087675	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66982600	LID SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	191546	CABLE GUIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66403900	EMERGENCY HANDLE FOR CHILDREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67928500	RELEASE TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68309400	FASTENER BRACKET FOR SAFETY CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68315200	SAFETY CABLE BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock

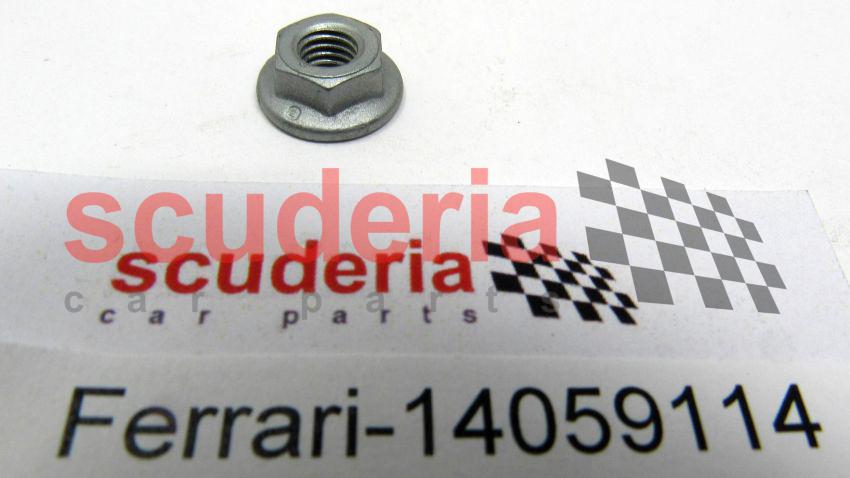

	14059114	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68964800	RETAINER STRAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16132314	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69242700	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69242600	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	860172	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63879900	RUBBER VIBRATION DAMPER	Enquire	To Order
	81193300	RUBBER VIBRATION DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80289100	LUGGAGE COMPARTMENT ESCAPE CABLE FOR CHILDREN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67625300	RUBBER PAD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67625100	COMPLETE RH HINGE	67625100 COMPLETE RH HINGE	-	1	Enquire
1	67625200	COMPLETE LH HINGE	67625200 COMPLETE LH HINGE	-	1	Enquire
2	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	10	Enquire
3	67079900	WASHER	67079900 WASHER	-	4	Enquire
4	68040000	WASHER 6 X 20 X 2	68040000 WASHER 6 X 20 X 2	-	6	Enquire
5	67739900	GAS STRUT	67739900 GAS STRUT	-	2	Enquire
5	80584200	GAS STRUT	80584200 GAS STRUT Enhanced version	-	2	Enquire
6	66990411	LUGGAGE COMPARTMENT LID	66990411 LUGGAGE COMPARTMENT LID	-	1	Enquire
6	80014911	LUGGAGE COMPARTMENT LID	80014911 LUGGAGE COMPARTMENT LID Enhanced version; Not for USA, CDN	-	1	Enquire
6	80589311	LUGGAGE COMPARTMENT LID	80589311 LUGGAGE COMPARTMENT LID Enhanced version; Applicable for USA, CDN	-	1	Enquire
7	67877200	STRIKER PLATE	67877200 STRIKER PLATE	-	1	Enquire
8	16132314	SCREW	16132314 SCREW	-	2	Enquire
9	860172	WASHER	860172 WASHER	-	2	Enquire
10	67614600	RH BRACKET	67614600 RH BRACKET	-	1	Enquire
11	86574700	SCREW	86574700 SCREW	-	2	Enquire
12	14215480	BLOCK	14215480 BLOCK	-	1	Enquire
13	188250	DOME LAMP UNIT ARRIVING SOON	188250 DOME LAMP UNIT ARRIVING SOON	-	1	Enquire
14	67826200	Rear Boot Lock	67826200 Rear Boot Lock	-	1	Enquire
14	69367900	Luggage Compartment Lid Lock	69367900 Luggage Compartment Lid Lock Enhanced version	-	1	Enquire
15	81805000	VIBRATION DAMPER BLOCK	81805000 VIBRATION DAMPER BLOCK	-	1	Enquire
16	67161800	VIBRATION DAMPER	67161800 VIBRATION DAMPER	-	2	Enquire
17	66966800	RH LUGGAGE COMPARTMENT LID INSULATION	66966800 RH LUGGAGE COMPARTMENT LID INSULATION	-	1	Enquire
18	66967000	CENTRAL LUGGAGE COMPARTMENT LID INSULATION	66967000 CENTRAL LUGGAGE COMPARTMENT LID INSULATION	-	1	Enquire
19	66966900	LH LUGGAGE COMPARTMENT LID INSULATION	66966900 LH LUGGAGE COMPARTMENT LID INSULATION	-	1	Enquire
20	68123500	LID SAFETY CABLE	68123500 LID SAFETY CABLE	-	1	Enquire
20	80024300	LID SAFETY CABLE	80024300 LID SAFETY CABLE Enhanced version	-	1	Enquire
20	236135	LOCK CONNECTOR WIRING HARNESS	236135 LOCK CONNECTOR WIRING HARNESS Enhanced version; Applicable for version without Bose NIT; Applicable for J	-	1	Enquire
21	67853300	BRACKET	67853300 BRACKET	-	1	Enquire
22	11087675	SNAP RING	11087675 SNAP RING	-	1	Enquire
23	67092611	FUEL FILLER FLAP COVER	67092611 FUEL FILLER FLAP COVER	-	1	Enquire
23	80462300	FUEL FILLER FLAP COVER	80462300 FUEL FILLER FLAP COVER Carbon; Optional JPNS	-	1	Enquire
24	67934900	FUEL FILLER FLAP HINGE	67934900 FUEL FILLER FLAP HINGE	-	1	Enquire
25	62797600	Allen Bolt Countersunk M6 x 20	62797600 Allen Bolt Countersunk M6 x 20	-	2	Enquire
26	12604178	Washer	12604178 Washer	-	2	Enquire
27	14084111	NUT	14084111 NUT	-	2	Enquire
28	67840400	STRIKER PLATE	67840400 STRIKER PLATE	-	1	Enquire
29	14084111	NUT	14084111 NUT	-	2	Enquire
30	68115400	SHIM	68115400 SHIM	-	4	Enquire
31	153069	SWITCH	153069 SWITCH	-	1	Enquire
32	16082401	SCREW	16082401 SCREW	-	1	Enquire
33	65395900	ROCKWELL ACTUATOR	65395900 ROCKWELL ACTUATOR Applicable up to Ass. No. 67787	-	1	Enquire
33	69543400	ACTUATOR COMPLETE WITH BRACKET	69543400 ACTUATOR COMPLETE WITH BRACKET Applicable from Ass. No. 67788	-	1	Enquire
34	66678200	SAFETY CABLE	66678200 SAFETY CABLE Applicable up to Ass. No. 67787	-	1	Enquire
35	66679800	ACTUATOR MOUNTING BRACKET	66679800 ACTUATOR MOUNTING BRACKET Applicable up to Ass. No. 67787	-	1	Enquire
36	11087675	SNAP RING	11087675 SNAP RING Applicable up to Ass. No. 67787	-	1	Enquire
37	66982600	LID SEAL	66982600 LID SEAL	-	1	Enquire
38	191546	CABLE GUIDE	191546 CABLE GUIDE	-	2	Enquire
39	66403900	EMERGENCY HANDLE FOR CHILDREN	66403900 EMERGENCY HANDLE FOR CHILDREN Applicable for USA, CDN	-	1	Enquire
40	67928500	RELEASE TIE-ROD	67928500 RELEASE TIE-ROD Applicable for USA, CDN	-	1	Enquire
41	68309400	FASTENER BRACKET FOR SAFETY CABLE BRACKET	68309400 FASTENER BRACKET FOR SAFETY CABLE BRACKET Applicable for USA, CDN	-	1	Enquire
42	68315200	SAFETY CABLE BRACKET	68315200 SAFETY CABLE BRACKET Applicable for USA, CDN	-	1	Enquire
43	14059114	NUT	14059114 NUT Applicable for USA, CDN	-	2	Enquire
44	68964800	RETAINER STRAP	68964800 RETAINER STRAP	-	1	Enquire
45	81591700	SCREW	81591700 SCREW	-	1	Enquire
47	62769800	WASHER	62769800 WASHER	-	2	Enquire
48	16132314	SCREW	16132314 SCREW Enhanced version	-	2	Enquire
49	860172	WASHER	860172 WASHER Enhanced version	-	2	Enquire
50	69242700	STRIKER PLATE	69242700 STRIKER PLATE Enhanced version	-	1	Enquire
51	69242600	SHIM	69242600 SHIM Enhanced version	-	5	Enquire
52	10902524	SCREW	10902524 SCREW Enhanced version	-	2	Enquire
53	860172	WASHER	860172 WASHER Enhanced version	-	2	Enquire
54	63879900	RUBBER VIBRATION DAMPER	63879900 RUBBER VIBRATION DAMPER Applicable up to Ass. No. 79794	-	2	Enquire
54	81193300	RUBBER VIBRATION DAMPER	81193300 RUBBER VIBRATION DAMPER Applicable from Ass. No. 79795	-	2	Enquire
55	80289100	LUGGAGE COMPARTMENT ESCAPE CABLE FOR CHILDREN	80289100 LUGGAGE COMPARTMENT ESCAPE CABLE FOR CHILDREN Enhanced version; Applicable for USA, CDN	-	1	Enquire
56	67625300	RUBBER PAD	67625300 RUBBER PAD	-	1	Enquire
