Headlights And Taillights

Ferrari 612 Scaglietti

Find Your Part

Ferrari 612 Scaglietti - HEADLIGHTS AND TAILLIGHTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
68269100 RH HIGH/LOW BEAM HEADLIGHT Enquire To Order
80223900 RH HIGH/LOW BEAM HEADLIGHT $4,047.69 To Order
68713500 RH HIGH/LOW BEAM HEADLIGHT Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68269200 LH HIGH/LOW BEAM HEADLIGHT Enquire To Order
80224000 LH HIGH/LOW BEAM HEADLIGHT $2,880.82 To Order
68713600 LH HIGH/LOW BEAM HEADLIGHT Enquire To Order
...and 6 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
67731100 ADJUSTER $8.82 To Order
Photo Part No Description Price (each) Stock
10903834 SCREW $6.77 To Order
Photo Part No Description Price (each) Stock
66121400 WASHER $11.46 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
63346800 HEADLIGHT ADJUSTER SCREW $7.62 To Order
Photo Part No Description Price (each) Stock
165558 SIDE TURN INDICATOR $33.03 To Order
Photo Part No Description Price (each) Stock
192632 RH REAR EXTERNAL TAILLIGHT $549.08 To Order
193994 RH REAR EXTERNAL TAILLIGHT $658.76 To Order
192633 LH REAR EXTERNAL TAILLIGHT $658.76 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
192630 RH REAR INTERNAL TAILLIGHT $576.55 To Order
221544 RH REAR INTERNAL TAILLIGHT $236.46 To Order
193992 RH REAR INTERNAL TAILLIGHT $658.76 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
191526 BRACKET $13.31 To Order
Photo Part No Description Price (each) Stock
14654995 SCREW $1.15 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
65775100 GASKET FOR WASHER PUMP $5.53 IN STOCK
Photo Part No Description Price (each) Stock
66981600 PIPE FROM PUMP TO CONNECTOR $59.35 To Order
Photo Part No Description Price (each) Stock
67008300 LH Cap $80.21 IN STOCK
67008200 RH CAP $80.21 To Order
Photo Part No Description Price (each) Stock
66223700 HEADLIGHT WASHER FASTENER RING $369.04 To Order
Photo Part No Description Price (each) Stock
66223800 TOOL FOR FASTENER $112.31 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
67008400 TELESCOPING SYSTEM COMPLETE WITH PIPES $593.69 To Order
Photo Part No Description Price (each) Stock
202091 THIRD STOP LIGHT $115.63 To Order
Photo Part No Description Price (each) Stock
67622900 THIRD STOP LIGHT SHIELD $105.89 To Order
Photo Part No Description Price (each) Stock
16083501 TRIM SCREW 4 X 12MM $0.06 IN STOCK
Photo Part No Description Price (each) Stock
217894 FRONT SIDE MARKER $266.91 ARRIVING SOON
Photo Part No Description Price (each) Stock
191504 REAR SIDE MARKER $93.76 IN STOCK
Photo Part No Description Price (each) Stock
213502 BALLAST ECU $838.51 To Order
Photo Part No Description Price (each) Stock
228393 BALLAST WIRING HARNESS Enquire To Order
Photo Part No Description Price (each) Stock
80224500 VALEO HEADLAMP KIT $4,157.08 To Order
80224700 VALEO HEADLAMP KIT Enquire To Order
80224600 VALEO HEADLAMP KIT Enquire To Order
Photo Part No Description Price (each) Stock
255515 BUSH $2.07 IN STOCK
View All

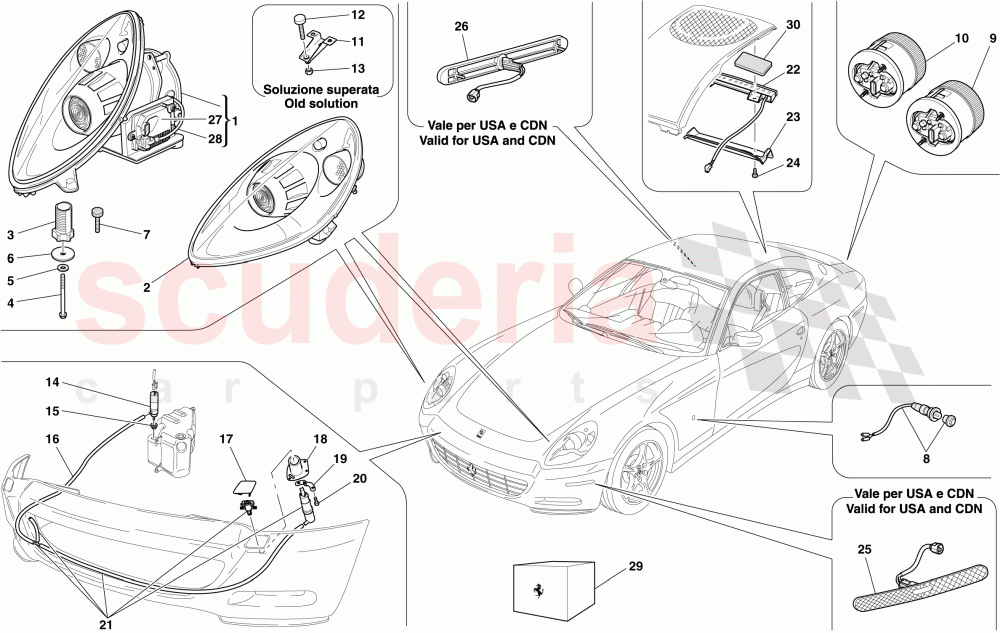

HEADLIGHTS AND TAILLIGHTS of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 68269100
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802245... ref. 29; Not for USA, CDN, J, GD; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
1 80223900
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Not for USA, CDN, J, GD; Applicable from Ass. No. 66618 		$4,047.69 1
1 68713500
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802247... ref. 29; Applicable for J, GD; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
1 80224300
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Applicable for J, GD; Applicable from Ass. No. 66618 		- 1 Enquire
1 68713700
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802246... ref. 29; Applicable for USA, CDN; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
1 80224100
RH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Applicable for USA, CDN; Applicable from Ass. No. 66618 		- 1 Enquire
1 237165
RH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Not for USA, CDN, J, GD
IN STOCK 		$4,375.46 1
1 237163
RH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Applicable for USA, CDN 		$2,880.82 1
1 237167
RH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Applicable for J, GD
IN STOCK 		$3,036.18 1
2 68269200
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802245... ref. 29; Not for USA, CDN, J, GD; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
2 80224000
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Not for USA, CDN, J, GD; Applicable from Ass. No. 66618 		$2,880.82 1
2 68713600
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802247... ref. 29; Applicable for J, GD; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
2 80224400
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Applicable for J, GD; Applicable from Ass. No. 66618 		- 1 Enquire
2 68713800
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Replaced by kit 802246... ref. 29; Applicable for USA, CDN; Applicable up to Ass. No. 66617; No longer supplied 		- 1 Enquire
2 80224200
LH HIGH/LOW BEAM HEADLIGHT
For paint colours, see specific table; Applicable for USA, CDN; Applicable from Ass. No. 66618 		- 1 Enquire
2 237166
LH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Not for USA, CDN, J, GD 		$4,375.46 1
2 237164
LH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Applicable for USA, CDN 		$2,880.82 1
2 237168
LH HIGH/LOW BEAM HEADLIGHT
Applicable for "60°anniversario"; Applicable for J, GD 		$3,036.18 1
3 67731100
ADJUSTER 		$8.82 6
4 10903834
SCREW 		$6.77 6
5 66121400
WASHER
IN STOCK 		$11.46 (22.4% off) 6
6 12643724
WASHER
IN STOCK 		$0.06 (88% off) 6
7 63346800
HEADLIGHT ADJUSTER SCREW 		$7.62 (23% off) 4
8 165558
SIDE TURN INDICATOR 		$33.03 (12.2% off) 2
9 192632
RH REAR EXTERNAL TAILLIGHT
Not for USA, CDN 		$549.08 1
9 193994
RH REAR EXTERNAL TAILLIGHT
Applicable for Korea; Applicable for USA, CDN 		$658.76 1
9 192633
LH REAR EXTERNAL TAILLIGHT
Not for USA, CDN 		$658.76 1
9 193995
LH REAR EXTERNAL TAILLIGHT
Applicable for Korea; Applicable for USA, CDN 		$658.76 (40.5% off) 1
10 192630
RH REAR INTERNAL TAILLIGHT
Not applicable for Korea; Not for USA, CDN 		$576.55 1
10 221544
RH REAR INTERNAL TAILLIGHT
Applicable for Korea 		$236.46 1
10 193992
RH REAR INTERNAL TAILLIGHT
Applicable for USA, CDN 		$658.76 1
10 192631
LH REAR INTERNAL TAILLIGHT
Not applicable for Korea; Not for USA, CDN 		$658.76 1
10 221545
LH REAR INTERNAL TAILLIGHT
Applicable for Korea 		$236.46 1
10 193993
LH REAR INTERNAL TAILLIGHT
Applicable for USA, CDN 		$658.76 (40.5% off) 1
11 191526
BRACKET 		$13.31 2
12 14654995
SCREW 		$1.15 4
13 14059290
FLANGED NUT M6
IN STOCK 		$1.43 4
15 65775100
GASKET FOR WASHER PUMP
Not for USA, CDN
IN STOCK 		$5.53 (1.6% off) 1
16 66981600
PIPE FROM PUMP TO CONNECTOR
Not for USA, CDN 		$59.35 1
17 67008300
LH Cap
Not for USA, CDN
IN STOCK 		$80.21 1
17 67008200
RH CAP
Not for USA, CDN 		$80.21 1
18 66223700
HEADLIGHT WASHER FASTENER RING
Not for USA, CDN 		$369.04 2
19 66223800
TOOL FOR FASTENER
Not for USA, CDN 		$112.31 2
20 11568124
SCREW
Not for USA, CDN
IN STOCK 		$0.96 6
21 67008400
TELESCOPING SYSTEM COMPLETE WITH PIPES
Not for USA, CDN 		$593.69 1
22 202091
THIRD STOP LIGHT 		$115.63 1
23 67622900
THIRD STOP LIGHT SHIELD 		$105.89 1
24 16083501
TRIM SCREW 4 X 12MM
IN STOCK 		$0.06 (96.5% off) 4
25 217894
FRONT SIDE MARKER
Applicable for USA, CDN
ARRIVING SOON 		$266.91 2
26 191504
REAR SIDE MARKER
Applicable for USA, CDN
IN STOCK 		$93.76 (9.2% off) 2
27 213502
BALLAST ECU
No longer supplied 		$838.51 2
28 228393
BALLAST WIRING HARNESS
No longer supplied 		- 2 Enquire
29 80224500
VALEO HEADLAMP KIT
Replaces 682691.. ref. 1 and 682692.. ref. 2; Not for USA, CDN, J, GD 		$4,157.08 1
29 80224700
VALEO HEADLAMP KIT
Replaces 687135.. ref. 1 and 687136.. ref. 2; Applicable for J, GD 		- 1 Enquire
29 80224600
VALEO HEADLAMP KIT
Replaces 687137.. ref. 1 and 687138.. ref. 2; Applicable for USA, CDN 		- 1 Enquire
30 255515
BUSH
IN STOCK 		$2.07 1
