FRONT EXHAUST SYSTEM

Find Your Part

Ferrari 612 Scaglietti - FRONT EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
189758 RH FRONT EXHAUST MANIFOLD $5,001.52 To Order
189758 RH FRONT EXHAUST MANIFOLD $5,001.52 To Order
225132 RH FRONT EXHAUST MANIFOLD $4,954.98 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
194006 RH REAR EXHAUST MANIFOLD $6,102.27 To Order
194006 RH REAR EXHAUST MANIFOLD $6,102.27 To Order
225134 RH REAR EXHAUST MANIFOLD $4,703.06 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
189759 LH FRONT EXHAUST MANIFOLD $5,267.88 To Order
189759 LH FRONT EXHAUST MANIFOLD $5,267.88 To Order
225133 LH FRONT EXHAUST MANIFOLD $4,703.06 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
194007 LH REAR EXHAUST MANIFOLD $6,102.27 To Order
194007 LH REAR EXHAUST MANIFOLD $6,102.27 To Order
225135 LH REAR EXHAUST MANIFOLD $4,703.06 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
152630 THREADED CONNECTOR $52.82 To Order
Photo Part No Description Price (each) Stock
150595 CAP NUT $0.89 To Order
Photo Part No Description Price (each) Stock
182837 Front Lambda Sensor $491.98 To Order
187587 FRONT LAMBDA SENSOR $527.98 To Order
Photo Part No Description Price (each) Stock
180915 Rear Lambda Sensor $227.98 To Order
187586 REAR LAMBDA SENSOR $246.12 To Order
Photo Part No Description Price (each) Stock
16045124 SCREW $2.14 To Order
Photo Part No Description Price (each) Stock
114748 Nut $16.18 To Order
Photo Part No Description Price (each) Stock
128010 Washer $2.46 To Order
Photo Part No Description Price (each) Stock
114749 Spacer D8. 10 x 23 $3.84 To Order
Photo Part No Description Price (each) Stock
111743 EXHAUST BRACKET SPRING $43.96 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.36 To Order
Photo Part No Description Price (each) Stock
206739 CLAMP $8.93 To Order
Photo Part No Description Price (each) Stock
185408 BRACKET $18.62 To Order
Photo Part No Description Price (each) Stock
143408 GASKET $22.59 To Order
Photo Part No Description Price (each) Stock
138392 Exhaust Brass Locknut M8 x 1.25 $1.22 To Order
Photo Part No Description Price (each) Stock
154981 GASKET $43.75 To Order
Photo Part No Description Price (each) Stock
197578 RH CATALYTIC CONVERTER $6,623.77 To Order
197578 RH CATALYTIC CONVERTER $6,623.77 To Order
225138 RH CATALYTIC CONVERTER $7,382.74 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
197577 LH CATALYTIC CONVERTER $6,623.77 To Order
197577 LH CATALYTIC CONVERTER $6,623.77 To Order
225139 LH CATALYTIC CONVERTER $7,382.74 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
200934 EXHAUST GAS TEMPERATURE SENSOR $202.68 ARRIVING SOON
236195 CAP $34.02 To Order
Photo Part No Description Price (each) Stock
196440 RH BRACKET $73.80 To Order
Photo Part No Description Price (each) Stock
196441 LH BRACKET $73.80 To Order
Photo Part No Description Price (each) Stock
16043224 SCREW $0.16 To Order
Photo Part No Description Price (each) Stock
12646678 WASHER $0.78 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
16044124 SCREW $0.52 To Order
Photo Part No Description Price (each) Stock
107618 WASHER $1.94 To Order
Photo Part No Description Price (each) Stock
190622 SHIM $11.73 To Order
Photo Part No Description Price (each) Stock
114748 Nut $16.18 To Order
Photo Part No Description Price (each) Stock
199731 VIBRATION DAMPER MOUNTING $73.50 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.24 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.73 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
208856 LH SIDE ENGINE CABLE HEAT SHIELD $58.20 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $5.12 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 To Order
View All

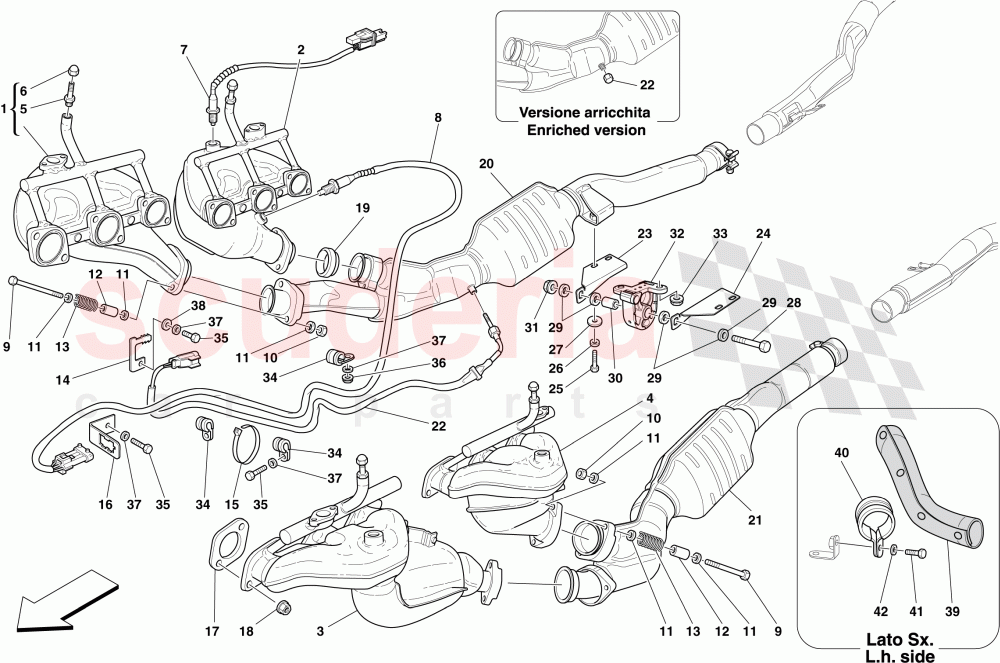

FRONT EXHAUST SYSTEM of Ferrari Ferrari 612 Scaglietti Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 189758
RH FRONT EXHAUST MANIFOLD
Not for USA, CDN; Applicable up to Ass. No. 69518 		$5,001.52 1
1 189758
RH FRONT EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$5,001.52 1
1 225132
RH FRONT EXHAUST MANIFOLD
Not for USA, CDN; Applicable from Ass. No. 69519 		$4,954.98 1
1 225132
RH FRONT EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$4,954.98 1
1 253884
RH FRONT EXHAUST MANIFOLD
Applicable for Korea 		- 1 Enquire
2 194006
RH REAR EXHAUST MANIFOLD
Not for USA, CDN; Applicable up to Ass. No. 69518 		$6,102.27 1
2 194006
RH REAR EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$6,102.27 1
2 225134
RH REAR EXHAUST MANIFOLD
Not for USA, CDN; Applicable from Ass. No. 69519 		$4,703.06 1
2 225134
RH REAR EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$4,703.06 1
2 253886
RH REAR EXHAUST MANIFOLD
Applicable for Korea 		- 1 Enquire
3 189759
LH FRONT EXHAUST MANIFOLD
Not for USA, CDN; Applicable up to Ass. No. 69518 		$5,267.88 1
3 189759
LH FRONT EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$5,267.88 1
3 225133
LH FRONT EXHAUST MANIFOLD
Not for USA, CDN; Applicable from Ass. No. 69519 		$4,703.06 1
3 225133
LH FRONT EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$4,703.06 1
3 253885
LH FRONT EXHAUST MANIFOLD
Applicable for Korea 		- 1 Enquire
4 194007
LH REAR EXHAUST MANIFOLD
Not for USA, CDN; Applicable up to Ass. No. 69518 		$6,102.27 1
4 194007
LH REAR EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$6,102.27 1
4 225135
LH REAR EXHAUST MANIFOLD
Not for USA, CDN; Applicable from Ass. No. 69519 		$4,703.06 1
4 225135
LH REAR EXHAUST MANIFOLD
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$4,703.06 1
4 253887
LH REAR EXHAUST MANIFOLD
Applicable for Korea 		- 1 Enquire
5 152630
THREADED CONNECTOR 		$52.82 4
6 150595
CAP NUT 		$0.89 (40.7% off) 4
7 182837
Front Lambda Sensor
For front cylinder bank 		$491.98 2
7 187587
FRONT LAMBDA SENSOR
For rear cylinder bank 		$527.98 2
8 180915
Rear Lambda Sensor
For front cylinder bank 		$227.98 2
8 187586
REAR LAMBDA SENSOR
For rear cylinder bank 		$246.12 2
9 16045124
SCREW 		$2.14 (54.9% off) 8
10 114748
Nut 		$16.18 8
11 128010
Washer 		$2.46 (73.2% off) 24
12 114749
Spacer D8. 10 x 23 		$3.84 (20.8% off) 8
13 111743
EXHAUST BRACKET SPRING 		$43.96 8
14 162606
CLIP 		$1.36 (7.5% off) 2
15 206739
CLAMP 		$8.93 7
16 185408
BRACKET 		$18.62 4
17 143408
GASKET 		$22.59 12
18 138392
Exhaust Brass Locknut M8 x 1.25 		$1.22 (34.1% off) 24
19 154981
GASKET 		$43.75 4
20 197578
RH CATALYTIC CONVERTER
Not for USA, CDN; Applicable up to Ass. No. 69518 		$6,623.77 1
20 197578
RH CATALYTIC CONVERTER
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$6,623.77 1
20 225138
RH CATALYTIC CONVERTER
Not for USA, CDN; Applicable from Ass. No. 69519 		$7,382.74 1
20 225138
RH CATALYTIC CONVERTER
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$7,382.74 1
20 253891
RH CATALYTIC CONVERTER
Applicable for Korea 		- 1 Enquire
21 197577
LH CATALYTIC CONVERTER
Not for USA, CDN; Applicable up to Ass. No. 69518 		$6,623.77 1
21 197577
LH CATALYTIC CONVERTER
Applicable for USA, CDN; Applicable up to Ass. No. 69400 		$6,623.77 1
21 225139
LH CATALYTIC CONVERTER
Not for USA, CDN; Applicable from Ass. No. 69519 		$7,382.74 1
21 225139
LH CATALYTIC CONVERTER
Applicable for USA, CDN; Applicable from Ass. No. 69401 		$7,382.74 1
21 253892
LH CATALYTIC CONVERTER
Applicable for Korea 		- 1 Enquire
22 200934
EXHAUST GAS TEMPERATURE SENSOR
ARRIVING SOON 		$202.68 (6.6% off) 2
22 236195
CAP
Enhanced version 		$34.02 (32.5% off) 2
23 196440
RH BRACKET 		$73.80 1
24 196441
LH BRACKET 		$73.80 1
25 16043224
SCREW 		$0.16 (68% off) 4
26 12646678
WASHER 		$0.78 4
27 84653800
WASHER 		$5.75 4
28 16044124
SCREW 		$0.52 1
29 107618
WASHER 		$1.94 (48.7% off) 4
30 190622
SHIM 		$11.73 1
31 114748
Nut 		$16.18 1
32 199731
VIBRATION DAMPER MOUNTING 		$73.50 1
33 14058519
FLANGED NUT M8 X 8 		$0.24 (74.7% off) 2
34 10441790
BRACKET WITH SHEATH 		$0.73 (78.8% off) 4
35 10902224
SCREW M6 X 16 		$0.06 (86.7% off) 10
36 14059290
FLANGED NUT M6 		$1.51 1
37 127494
WASHER 		$0.08 (88.2% off) 12
38 12643724
WASHER 		$0.06 (88% off) 2
39 208856
LH SIDE ENGINE CABLE HEAT SHIELD 		$58.20 1
40 291225
P clip Bracket With Sheath 		$5.12 1
41 81591700
SCREW 		$2.22 1
42 127494
WASHER 		$0.08 (88.2% off) 1
