DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari 599 SA Aperta

View All

Ferrari 599 SA Aperta - DOORS - OPENING MECHANISM AND HINGES

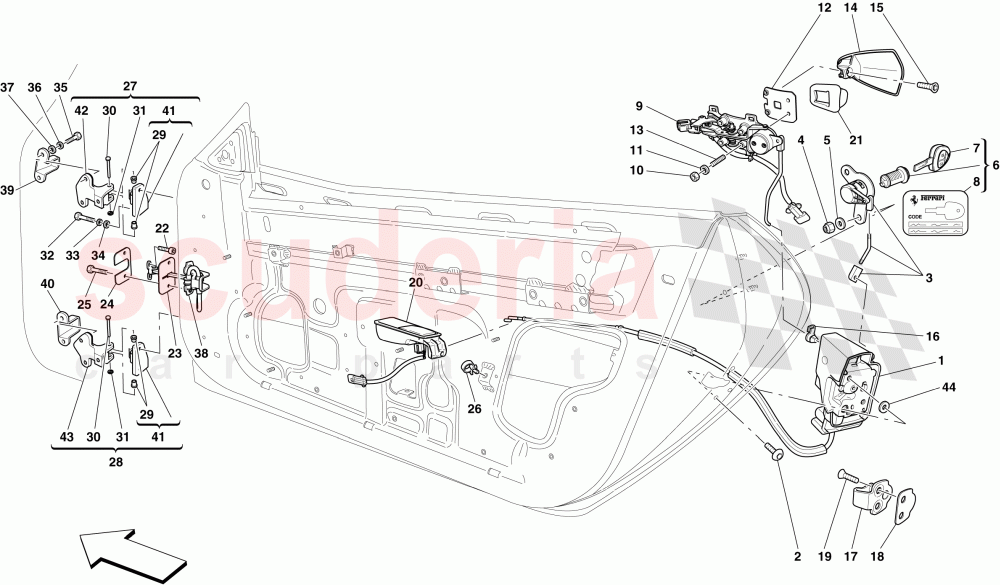

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	67935400	RH DOOR LOCK	Enquire	To Order
	67935500	LH DOOR LOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67077900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67130400	RH CONTROL LINKAGE	Enquire	To Order
	67130500	LH CONTROL LINKAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	223867	COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	227551	UNCODED KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153603	CODE CARD FERRARI	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67129600	RH EXTERNAL HANDLE	Enquire	To Order
	67129700	LH EXTERNAL HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10721910	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550078	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64659500	PLATE	Enquire	To Order
	69960100	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67447300	STUD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67130210	EXTERNAL DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64214600	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	248061	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	85321500	STRIKER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69718300	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14442434	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	83804900	RH INNER DOOR HANDLE	Enquire	To Order
	83805100	LH INNER DOOR HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13027024	SCREW M6 X 16MM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67440800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67440700	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67926800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140727	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69124700	COMPL. UPPER RH HINGE	Enquire	To Order
	69124800	COMPL. UPPER LH HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69124900	COMPL. LOWER RH HINGE	Enquire	To Order
	69125000	COMPL. LOWER LH HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62825300	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67332700	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11087974	SNAP RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16043436	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14496524	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67105900	DOOR RETAINER TIE-ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69358300	RH UPPER FRONT REINFORCEMENT	Enquire	To Order
	69358400	LH UPPER FRONT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	69358500	RH LOWER FRONT REINFORCEMENT	Enquire	To Order
	69358600	LH LOWER FRONT REINFORCEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	80205400	RH MOBILE DOOR HINGE	Enquire	To Order
	80205500	LH MOBILE DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68055900	UPPER RH FIXED DOOR HINGE	Enquire	To Order
	68056000	UPPER LH FIXED DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	68552900	LOWER RH FIXED DOOR HINGE	Enquire	To Order
	68553000	LOWER LH FIXED DOOR HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12644478	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	67935400	RH DOOR LOCK	67935400 RH DOOR LOCK	-	1	Enquire
1	67935500	LH DOOR LOCK	67935500 LH DOOR LOCK	-	1	Enquire
2	67077900	SCREW	67077900 SCREW	-	6	Enquire
3	67130400	RH CONTROL LINKAGE	67130400 RH CONTROL LINKAGE	-	1	Enquire
3	67130500	LH CONTROL LINKAGE	67130500 LH CONTROL LINKAGE	-	1	Enquire
4	13046011	NUT	13046011 NUT	-	4	Enquire
5	13577724	WASHER	13577724 WASHER	-	4	Enquire
6	223867	COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS	223867 COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS	-	1	Enquire
7	227551	UNCODED KEY	227551 UNCODED KEY	-	-	Enquire
8	153603	CODE CARD FERRARI	153603 CODE CARD FERRARI	-	1	Enquire
9	67129600	RH EXTERNAL HANDLE	67129600 RH EXTERNAL HANDLE	-	1	Enquire
9	67129700	LH EXTERNAL HANDLE	67129700 LH EXTERNAL HANDLE	-	1	Enquire
10	10721910	NUT	10721910 NUT	-	8	Enquire
11	13550078	WASHER	13550078 WASHER	-	8	Enquire
12	64659500	PLATE	64659500 PLATE	-	2	Enquire
12	69960100	PLATE	69960100 PLATE Installed if necessary	-	2	Enquire
13	67447300	STUD BOLT	67447300 STUD BOLT	-	8	Enquire
14	67130210	EXTERNAL DOOR HANDLE	67130210 EXTERNAL DOOR HANDLE	-	2	Enquire
15	64214600	SCREW	64214600 SCREW	-	2	Enquire
16	248061	CLIP	248061 CLIP	-	2	Enquire
17	85321500	STRIKER PLATE	85321500 STRIKER PLATE	-	2	Enquire
18	69718300	SHIM	69718300 SHIM	-	2	Enquire
19	14442434	SCREW	14442434 SCREW	-	4	Enquire
20	83804900	RH INNER DOOR HANDLE	83804900 RH INNER DOOR HANDLE	-	1	Enquire
20	83805100	LH INNER DOOR HANDLE	83805100 LH INNER DOOR HANDLE	-	1	Enquire
21	69866000	HANDLE SEAL	69866000 HANDLE SEAL	-	2	Enquire
22	13027024	SCREW M6 X 16MM	13027024 SCREW M6 X 16MM	-	4	Enquire
23	67440800	GASKET	67440800 GASKET	-	2	Enquire
24	67440700	PLATE	67440700 PLATE	-	2	Enquire
25	67926800	SCREW	67926800 SCREW	-	4	Enquire
26	140727	CLIP	140727 CLIP	-	2	Enquire
27	69124700	COMPL. UPPER RH HINGE	69124700 COMPL. UPPER RH HINGE Applicable until depletion	-	1	Enquire
27	69124800	COMPL. UPPER LH HINGE	69124800 COMPL. UPPER LH HINGE Applicable until depletion	-	1	Enquire
28	69124900	COMPL. LOWER RH HINGE	69124900 COMPL. LOWER RH HINGE Applicable until depletion	-	1	Enquire
28	69125000	COMPL. LOWER LH HINGE	69125000 COMPL. LOWER LH HINGE Applicable until depletion	-	1	Enquire
29	62825300	BUSHING	62825300 BUSHING	-	4	Enquire
30	67332700	PIN	67332700 PIN	-	4	Enquire
31	11087974	SNAP RING	11087974 SNAP RING	-	4	Enquire
32	16043436	SCREW	16043436 SCREW	-	8	Enquire
33	12601374	WASHER	12601374 WASHER	-	8	Enquire
34	14496524	WASHER	14496524 WASHER	-	8	Enquire
35	231629	SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	231629 SOCKET HEAD ALLEN SCREW WITH WASHER M8 X 30	-	12	Enquire
36	12601374	WASHER	12601374 WASHER	-	12	Enquire
37	14496524	WASHER	14496524 WASHER	-	12	Enquire
38	67105900	DOOR RETAINER TIE-ROD	67105900 DOOR RETAINER TIE-ROD	-	2	Enquire
39	69358300	RH UPPER FRONT REINFORCEMENT	69358300 RH UPPER FRONT REINFORCEMENT Applicable for USA, CDN	-	1	Enquire
39	69358400	LH UPPER FRONT REINFORCEMENT	69358400 LH UPPER FRONT REINFORCEMENT Applicable for USA, CDN	-	1	Enquire
40	69358500	RH LOWER FRONT REINFORCEMENT	69358500 RH LOWER FRONT REINFORCEMENT Applicable for USA, CDN	-	1	Enquire
40	69358600	LH LOWER FRONT REINFORCEMENT	69358600 LH LOWER FRONT REINFORCEMENT Applicable for USA, CDN	-	1	Enquire
41	80205400	RH MOBILE DOOR HINGE	80205400 RH MOBILE DOOR HINGE	-	2	Enquire
41	80205500	LH MOBILE DOOR HINGE	80205500 LH MOBILE DOOR HINGE	-	2	Enquire
42	68055900	UPPER RH FIXED DOOR HINGE	68055900 UPPER RH FIXED DOOR HINGE	-	1	Enquire
42	68056000	UPPER LH FIXED DOOR HINGE	68056000 UPPER LH FIXED DOOR HINGE	-	1	Enquire
43	68552900	LOWER RH FIXED DOOR HINGE	68552900 LOWER RH FIXED DOOR HINGE	-	1	Enquire
43	68553000	LOWER LH FIXED DOOR HINGE	68553000 LOWER LH FIXED DOOR HINGE	-	1	Enquire
44	12644478	WASHER	12644478 WASHER	-	1	Enquire
