Rear Exhaust System

Ferrari 599 SA Aperta

Find Your Part

Ferrari 599 SA Aperta - REAR EXHAUST SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220193 RH REAR SILENCER Enquire To Order
278999 REAR RH SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
220194 LH REAR SILENCER Enquire To Order
279000 REAR LH SILENCER Enquire To Order
Photo Part No Description Price (each) Stock
16044124 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
127496 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
222366 LH FRONT BRACKET Enquire To Order
222364 RH FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
222367 LH REAR BRACKET Enquire To Order
222365 RH REAR BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
199731 VIBRATION DAMPER MOUNTING Enquire To Order
226357 VIBRATION DAMPER MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
196105 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
196106 SILENCER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
223224 CROSS MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
14059311 NUT Enquire To Order
Photo Part No Description Price (each) Stock
220196 LH BRACKET Enquire To Order
220195 RH BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
14306924 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
13578305 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
80208100 RH FRONT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
80208200 LH FRONT SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
279272 RH REAR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
279271 LH REAR SHIELD Enquire To Order
Photo Part No Description Price (each) Stock
175283 Nut Enquire To Order
View All

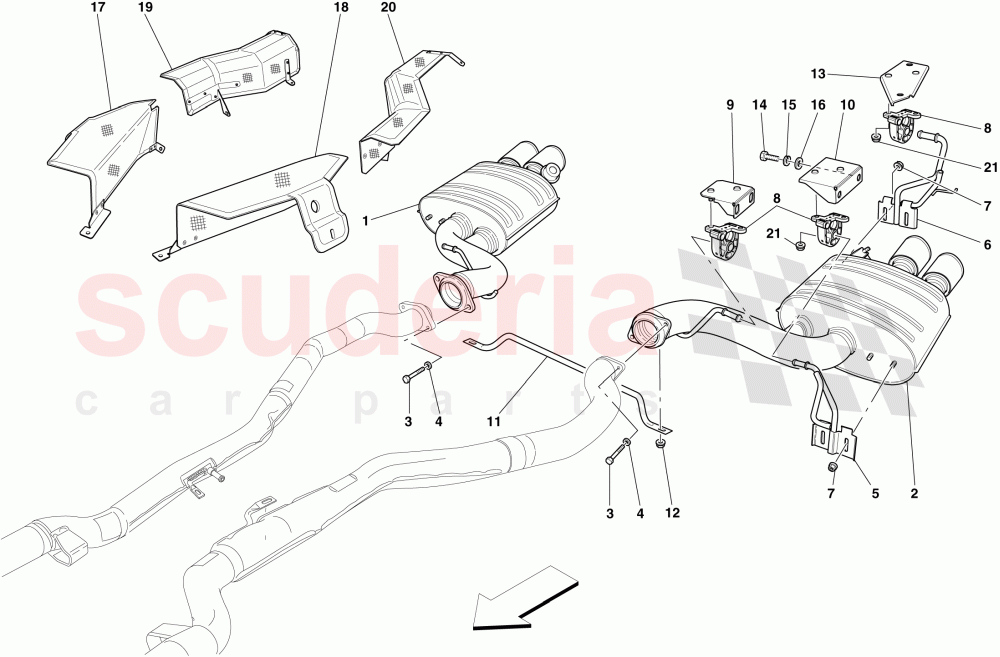

REAR EXHAUST SYSTEM of Ferrari Ferrari 599 SA Aperta Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220193
RH REAR SILENCER
Not for Taiwan, J and Korea 		- 1 Enquire
1 278999
REAR RH SILENCER
Applicable for Taiwan, J and Korea 		- 1 Enquire
2 220194
LH REAR SILENCER
Not for Taiwan, J and Korea 		- 1 Enquire
2 279000
REAR LH SILENCER
Applicable for Taiwan, J and Korea 		- 1 Enquire
3 16044124
SCREW 		- 4 Enquire
4 127496
WASHER 		- 4 Enquire
5 222366
LH FRONT BRACKET 		- 1 Enquire
5 222364
RH FRONT BRACKET 		- 1 Enquire
6 222367
LH REAR BRACKET 		- 1 Enquire
6 222365
RH REAR BRACKET 		- 1 Enquire
7 14059311
NUT 		- 8 Enquire
8 199731
VIBRATION DAMPER MOUNTING 		- 2 Enquire
8 226357
VIBRATION DAMPER MOUNTING 		- 4 Enquire
9 196105
SILENCER MOUNTING BRACKET 		- 2 Enquire
10 196106
SILENCER MOUNTING BRACKET 		- 2 Enquire
11 223224
CROSS MEMBER 		- 1 Enquire
12 14059311
NUT 		- 2 Enquire
13 220196
LH BRACKET 		- 1 Enquire
13 220195
RH BRACKET 		- 1 Enquire
14 14306924
SCREW 		- 12 Enquire
15 13578305
WASHER 		- 12 Enquire
16 12601374
WASHER 		- 12 Enquire
17 80208100
RH FRONT SHIELD 		- 1 Enquire
18 80208200
LH FRONT SHIELD 		- 1 Enquire
19 279272
RH REAR SHIELD 		- 1 Enquire
20 279271
LH REAR SHIELD 		- 1 Enquire
21 175283
Nut 		- 14 Enquire
