DOORS - POWER WINDOWS AND REAR-VIEW MIRROR

Find Your Part

Ferrari 599 GTO - DOORS - POWER WINDOWS AND REAR-VIEW MIRROR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
83060900 RH SIDE WINDOW $595.68 To Order
83061000 LH SIDE WINDOW $595.68 To Order
Photo Part No Description Price (each) Stock
83061300 RH WINDOW LIFT $547.05 To Order
83061400 LH WINDOW LIFT $547.05 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.51 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
68568110 RH EXTERNAL MIRROR $1,769.90 To Order
69129810 RH EXTERNAL MIRROR $1,721.59 To Order
69134410 RH EXTERNAL MIRROR $2,078.80 To Order
...and 9 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
68577600 RH GASKET $301.97 To Order
68577700 LH GASKET $301.97 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
10978024 SCREW $0.15 To Order
80217200 SCREW $0.83 To Order
Photo Part No Description Price (each) Stock
860172 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
68559600 RH INTERNAL SURROUND $32.08 To Order
68559700 LH INTERNAL SURROUND $32.08 To Order
Photo Part No Description Price (each) Stock
69376100 RH BRACKET $24.05 To Order
69376200 LH BRACKET $24.05 To Order
Photo Part No Description Price (each) Stock
14184374 CLIP $0.41 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
69895900 RH EXTERNAL REAR VIEW MIRROR GLASS $161.01 To Order
69895700 LH EXTERNAL REAR VIEW MIRROR GLASS $161.01 To Order
Photo Part No Description Price (each) Stock
69969500 WASHER $0.63 To Order
Photo Part No Description Price (each) Stock
68723000 EXTERNAL TEMPERATURE SENSOR $114.27 To Order
View All

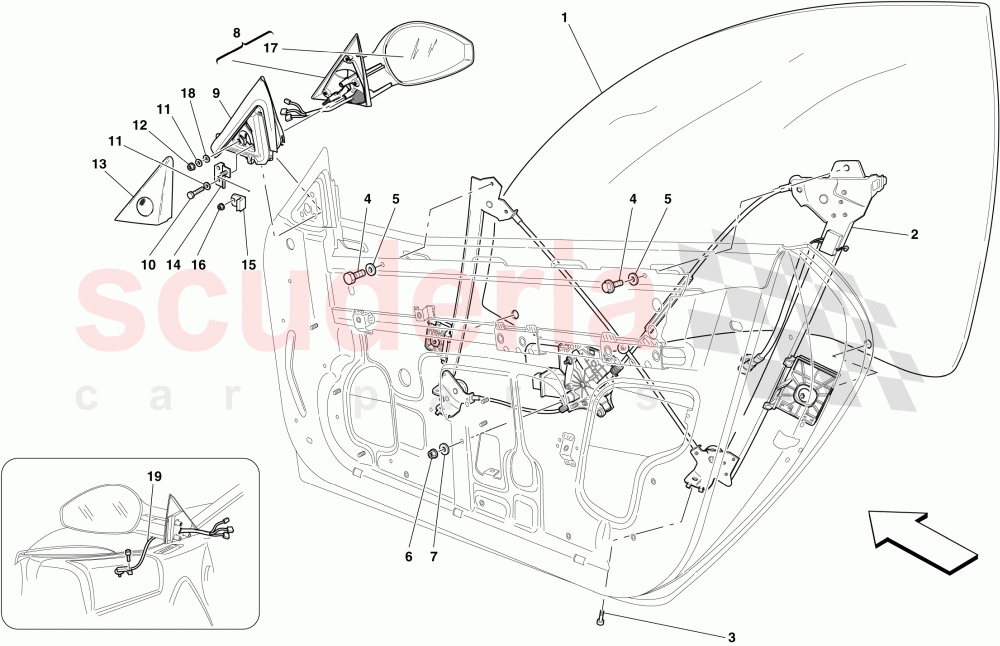

DOORS - POWER WINDOWS AND REAR-VIEW MIRROR of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 83060900
RH SIDE WINDOW 		$595.68 1
1 83061000
LH SIDE WINDOW 		$595.68 1
2 83061300
RH WINDOW LIFT 		$547.05 1
2 83061400
LH WINDOW LIFT 		$547.05 1
3 248334
SCREW 		$0.68 4
4 10902224
SCREW M6 X 16 		$0.06 (86.7% off) 4
5 11197774
WASHER 		$0.06 (80% off) 4
6 14059290
FLANGED NUT M6 		$1.51 6
7 12643724
WASHER 		$0.06 (88% off) 6
8 68568110
RH EXTERNAL MIRROR
Standard; Not for USA, CDN, GD 		$1,769.90 1
8 69129810
RH EXTERNAL MIRROR
Standard; Applicable for USA, CDN 		$1,721.59 1
8 69134410
RH EXTERNAL MIRROR
Standard; Applicable for GD 		$2,078.80 1
8 69704910
RH EXTERNAL MIRROR
Full electric version; Not for USA, CDN, GD 		$2,105.15 1
8 69705110
RH EXTERNAL MIRROR
Full electric version; Applicable for USA, CDN 		$2,105.15 1
8 69705310
RH EXTERNAL MIRROR
Full electric version; Applicable for GD 		$2,105.15 1
8 68568210
LH EXTERNAL MIRROR
Standard; Not for USA, CDN, GD 		$1,769.90 1
8 69129910
LH EXTERNAL MIRROR
Standard; Applicable for USA, CDN 		$1,766.97 1
8 69134510
LH EXTERNAL MIRROR
Standard; Applicable for GD 		$2,026.09 1
8 69705010
LH EXTERNAL MIRROR
Full electric version; Not for USA, CDN, GD 		$2,105.15 1
8 69705210
LH EXTERNAL MIRROR
Full electric version; Applicable for USA, CDN 		$2,105.15 1
8 69705410
LH EXTERNAL MIRROR
Full electric version; Applicable for GD 		$2,105.15 1
9 68577600
RH GASKET 		$301.97 1
9 68577700
LH GASKET 		$301.97 1
10 81591700
SCREW
M5 X 20; No longer supplied; Replaced by 10978024 		$2.22 4
10 10978024
SCREW
M5 X 20 		$0.15 4
10 80217200
SCREW
M4 X 8 		$0.83 4
11 860172
WASHER 		- 6 Enquire
12 13046011
NUT 		$0.39 2
13 68559600
RH INTERNAL SURROUND 		$32.08 1
13 68559700
LH INTERNAL SURROUND 		$32.08 1
14 69376100
RH BRACKET 		$24.05 1
14 69376200
LH BRACKET 		$24.05 1
15 14184374
CLIP 		$0.41 (67.2% off) 2
16 14059211
NUT 		$0.06 2
17 69895900
RH EXTERNAL REAR VIEW MIRROR GLASS 		$161.01 1
17 69895700
LH EXTERNAL REAR VIEW MIRROR GLASS 		$161.01 1
18 69969500
WASHER 		$0.63 2
19 68723000
EXTERNAL TEMPERATURE SENSOR 		$114.27 1
