Doors - Opening Mechanism And Hinges

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - DOORS - OPENING MECHANISM AND HINGES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
67935400 RH DOOR LOCK $304.86 To Order
67935500 LH DOOR LOCK $304.86 To Order
Photo Part No Description Price (each) Stock
67077900 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
67130400 RH CONTROL LINKAGE $79.47 To Order
67130500 LH CONTROL LINKAGE $79.47 To Order
Photo Part No Description Price (each) Stock
13046011 NUT $0.39 To Order
Photo Part No Description Price (each) Stock
12644424 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
223867 COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS $1,347.85 To Order
Photo Part No Description Price (each) Stock
227551 UNCODED KEY $641.82 To Order
Photo Part No Description Price (each) Stock
153603 CODE CARD FERRARI $62.56 To Order
Photo Part No Description Price (each) Stock
67129600 RH EXTERNAL HANDLE $529.50 To Order
67129700 LH EXTERNAL HANDLE $529.50 To Order
Photo Part No Description Price (each) Stock
10721910 NUT $0.05 To Order
Photo Part No Description Price (each) Stock
13550078 WASHER $0.83 To Order
Photo Part No Description Price (each) Stock
64659500 PLATE $33.68 To Order
69960100 PLATE $8.66 To Order
Photo Part No Description Price (each) Stock
67447300 STUD BOLT $40.10 To Order
Photo Part No Description Price (each) Stock
67130210 EXTERNAL DOOR HANDLE $75.40 To Order
Photo Part No Description Price (each) Stock
64214600 SCREW $11.31 To Order
Photo Part No Description Price (each) Stock
248061 CLIP $2.14 IN STOCK
Photo Part No Description Price (each) Stock
85321500 STRIKER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
69718300 SHIM $8.33 IN STOCK
Photo Part No Description Price (each) Stock
14442434 SCREW $0.58 To Order
Photo Part No Description Price (each) Stock
68559400 RH INTERNAL DOOR HANDLE $272.77 To Order
68559500 LH INTERNAL DOOR HANDLE $224.63 To Order
Photo Part No Description Price (each) Stock
69866000 HANDLE SEAL $49.06 To Order
Photo Part No Description Price (each) Stock
13027024 SCREW M6 X 16MM $0.21 IN STOCK
Photo Part No Description Price (each) Stock
67440800 GASKET $24.05 To Order
Photo Part No Description Price (each) Stock
67440700 PLATE $32.08 To Order
Photo Part No Description Price (each) Stock
67926800 SCREW $5.15 To Order
Photo Part No Description Price (each) Stock
140727 CLIP $0.26 IN STOCK
Photo Part No Description Price (each) Stock
69124700 COMPL. UPPER RH HINGE $295.23 To Order
69124800 COMPL. UPPER LH HINGE $295.23 To Order
Photo Part No Description Price (each) Stock
69124900 COMPL. LOWER RH HINGE $295.23 To Order
69125000 COMPL. LOWER LH HINGE $593.69 To Order
Photo Part No Description Price (each) Stock
62825300 BUSHING $33.68 To Order
Photo Part No Description Price (each) Stock
67332700 PIN $27.26 To Order
Photo Part No Description Price (each) Stock
11087974 SNAP RING $0.19 IN STOCK
Photo Part No Description Price (each) Stock
16043436 SCREW $0.47 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
231629 SCREW $0.65 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
67105900 DOOR RETAINER TIE-ROD $70.59 To Order
Photo Part No Description Price (each) Stock
69358300 RH UPPER FRONT REINFORCEMENT $30.47 To Order
69358400 LH UPPER FRONT REINFORCEMENT $60.96 To Order
Photo Part No Description Price (each) Stock
69358500 RH LOWER FRONT REINFORCEMENT $30.47 To Order
69358600 LH LOWER FRONT REINFORCEMENT $60.96 To Order
Photo Part No Description Price (each) Stock
80205400 RH MOBILE DOOR HINGE $385.09 To Order
80205500 LH MOBILE DOOR HINGE $385.09 To Order
Photo Part No Description Price (each) Stock
68055900 UPPER RH FIXED DOOR HINGE $290.06 To Order
68056000 UPPER LH FIXED DOOR HINGE $290.06 To Order
Photo Part No Description Price (each) Stock
68552900 LOWER RH FIXED DOOR HINGE Enquire To Order
68553000 LOWER LH FIXED DOOR HINGE Enquire To Order
Photo Part No Description Price (each) Stock
12644478 WASHER $0.23 To Order
View All

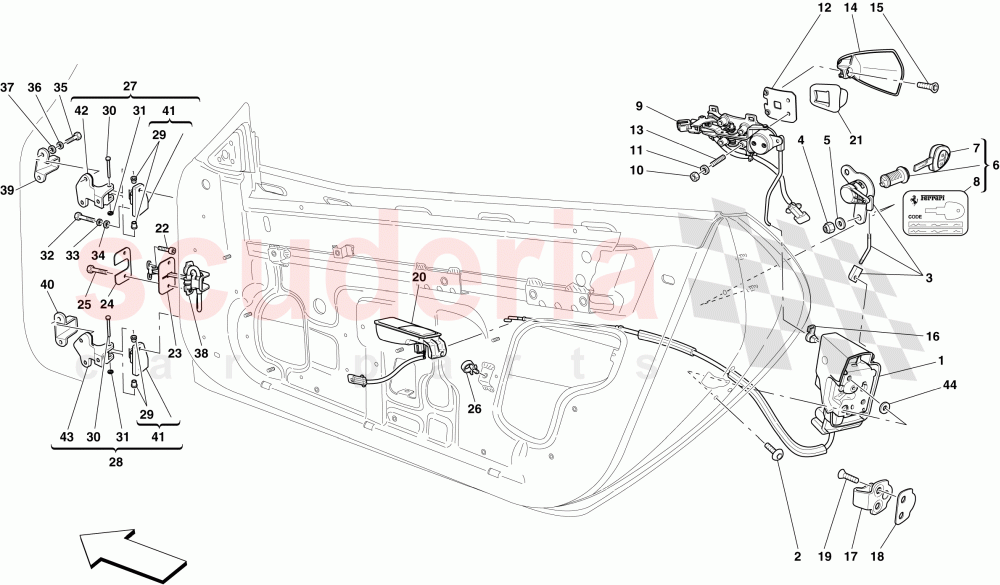

DOORS - OPENING MECHANISM AND HINGES of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 67935400
RH DOOR LOCK 		$304.86 1
1 67935500
LH DOOR LOCK 		$304.86 1
2 67077900
SCREW 		$0.63 6
3 67130400
RH CONTROL LINKAGE 		$79.47 1
3 67130500
LH CONTROL LINKAGE 		$79.47 1
4 13046011
NUT 		$0.39 4
5 12644424
WASHER
IN STOCK 		$0.06 (85% off) 4
6 223867
COMPLETE STEERING LOCK/ANTITHEFT SYSTEM LOCK SET WITH KEYS 		$1,347.85 1
7 227551
UNCODED KEY 		$641.82 (27.5% off) -
8 153603
CODE CARD FERRARI 		$62.56 (10.8% off) 1
9 67129600
RH EXTERNAL HANDLE 		$529.50 1
9 67129700
LH EXTERNAL HANDLE 		$529.50 1
10 10721910
NUT 		$0.05 8
11 13550078
WASHER 		$0.83 8
12 64659500
PLATE 		$33.68 2
12 69960100
PLATE
Installed if necessary 		$8.66 2
13 67447300
STUD BOLT 		$40.10 8
14 67130210
EXTERNAL DOOR HANDLE 		$75.40 2
15 64214600
SCREW 		$11.31 2
16 248061
CLIP
IN STOCK 		$2.14 2
17 85321500
STRIKER PLATE 		- 2 Enquire
18 69718300
SHIM
IN STOCK 		$8.33 2
19 14442434
SCREW 		$0.58 4
20 68559400
RH INTERNAL DOOR HANDLE 		$272.77 1
20 68559500
LH INTERNAL DOOR HANDLE 		$224.63 1
21 69866000
HANDLE SEAL 		$49.06 2
22 13027024
SCREW M6 X 16MM
IN STOCK 		$0.21 (79% off) 4
23 67440800
GASKET 		$24.05 2
24 67440700
PLATE 		$32.08 2
25 67926800
SCREW 		$5.15 4
26 140727
CLIP
IN STOCK 		$0.26 (65.3% off) 2
27 69124700
COMPL. UPPER RH HINGE
Applicable until depletion 		$295.23 1
27 69124800
COMPL. UPPER LH HINGE
Applicable until depletion 		$295.23 1
28 69124900
COMPL. LOWER RH HINGE
Applicable until depletion 		$295.23 1
28 69125000
COMPL. LOWER LH HINGE
Applicable until depletion 		$593.69 1
29 62825300
BUSHING 		$33.68 (30.8% off) 4
30 67332700
PIN 		$27.26 4
31 11087974
SNAP RING
IN STOCK 		$0.19 (61.2% off) 4
32 16043436
SCREW
IN STOCK 		$0.47 8
33 12601374
WASHER
IN STOCK 		$0.02 (92% off) 8
34 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 8
35 231629
SCREW
IN STOCK 		$0.65 (31.6% off) 12
36 12601374
WASHER
IN STOCK 		$0.02 (92% off) 12
37 14496524
WASHER
IN STOCK 		$0.11 (92.7% off) 12
38 67105900
DOOR RETAINER TIE-ROD 		$70.59 2
39 69358300
RH UPPER FRONT REINFORCEMENT
Applicable for USA, CDN 		$30.47 1
39 69358400
LH UPPER FRONT REINFORCEMENT
Applicable for USA, CDN 		$60.96 1
40 69358500
RH LOWER FRONT REINFORCEMENT
Applicable for USA, CDN 		$30.47 1
40 69358600
LH LOWER FRONT REINFORCEMENT
Applicable for USA, CDN 		$60.96 1
41 80205400
RH MOBILE DOOR HINGE 		$385.09 2
41 80205500
LH MOBILE DOOR HINGE 		$385.09 2
42 68055900
UPPER RH FIXED DOOR HINGE 		$290.06 1
42 68056000
UPPER LH FIXED DOOR HINGE 		$290.06 1
43 68552900
LOWER RH FIXED DOOR HINGE 		- 1 Enquire
43 68553000
LOWER LH FIXED DOOR HINGE 		- 1 Enquire
44 12644478
WASHER 		$0.23 1
