Ferrari 599 GTO - COOLING SYSTEM - RADIATOR AND HEADER TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
227454 WATER RADIATOR $4,637.27 IN STOCK
Photo Part No Description Price (each) Stock
213499 ENGINE OIL RADIATOR $4,271.42 To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $8.01 IN STOCK
Photo Part No Description Price (each) Stock
213559 BRACKET $52.94 IN STOCK
Photo Part No Description Price (each) Stock
220330 COWL FOR ELECTRIC FANS $465.32 IN STOCK
Photo Part No Description Price (each) Stock
212730 ELECTRIC FAN $657.87 To Order
Photo Part No Description Price (each) Stock
83243900 WATER RADIATOR DUCT $914.60 To Order
83244000 WATER RADIATOR DUCT $770.19 To Order
Photo Part No Description Price (each) Stock
69012000 LID $40.10 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
16285227 SCREW $0.32 IN STOCK
Photo Part No Description Price (each) Stock
235263 HEADER TANK $706.01 To Order
Photo Part No Description Price (each) Stock
195999 HEADER TANK CAP $51.33 To Order
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $17.63 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.43 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
250802 PIPE FROM RADIATOR TO HEADER TANK $72.77 To Order
Photo Part No Description Price (each) Stock
250802 PIPE FROM RADIATOR TO HEADER TANK $72.77 To Order
Photo Part No Description Price (each) Stock
177995 CLAMP $1.12 IN STOCK
Photo Part No Description Price (each) Stock
227431 Bushing $4.17 IN STOCK
Photo Part No Description Price (each) Stock
227430 WASHER $2.14 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.80 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.68 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
220821 WATER DRAIN PIPE $93.05 To Order
Photo Part No Description Price (each) Stock
211847 HOSE $158.61 To Order
Photo Part No Description Price (each) Stock
10260160 Copper Washer D. 10 - 14 x 1 $0.84 IN STOCK
Photo Part No Description Price (each) Stock
266456 PIPE FROM CONNECTOR TO HEADER TANK $80.21 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.64 IN STOCK
Photo Part No Description Price (each) Stock
67944600 FOUR-WAY UNION $81.82 To Order
Photo Part No Description Price (each) Stock
260570 PRESHAPED PIPE -Valid after stock exhaustion of 202612- $290.06 To Order
Photo Part No Description Price (each) Stock
13000490 Screw Collar $0.79 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.73 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.45 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
248423 RH CYLINDER HEAD WATER PIPE $369.04 To Order
Photo Part No Description Price (each) Stock
239553 LH CYLINDER HEAD WATER PIPE $320.90 IN STOCK
Photo Part No Description Price (each) Stock
235080 RUBBER SLEEVE - D.14,5 x 26,5 75- $64.17 IN STOCK
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.86 IN STOCK
Photo Part No Description Price (each) Stock
203787 PIPE UNION $9.06 To Order
Photo Part No Description Price (each) Stock
10259960 Copper Washer 18 - 24 x 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
217759 RUBBER SHIM $6.73 To Order
217760 RUBBER SHIM $6.73 To Order
225467 RUBBER SHIM $13.31 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
69250700 UPPER GASKET $2.84 To Order
69250800 LOWER SEAL $2.84 To Order
69250900 LATERAL SEAL $6.82 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
82242400 WASHER $0.10 To Order
Photo Part No Description Price (each) Stock
12638124 WASHER $0.05 IN STOCK
Photo Part No Description Price (each) Stock
849234 SCREW $2.95 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
13839224 SCREW $2.82 To Order
Photo Part No Description Price (each) Stock
80783800 UPPER GASKET $100.12 To Order
80784000 GASKET $34.94 To Order
80784100 GASKET $415.46 To Order
Photo Part No Description Price (each) Stock
80783900 LOWER SEAL $33.36 To Order
Photo Part No Description Price (each) Stock
251426 WATER DELIVERY PIPE $401.13 To Order
Photo Part No Description Price (each) Stock
209972 WATER RETURN PIPE $593.69 To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.78 IN STOCK
Photo Part No Description Price (each) Stock
226317 HOSE UNION MOUNT $60.96 To Order
Photo Part No Description Price (each) Stock
226394 MOUNT COVER $12.03 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.96 IN STOCK
Photo Part No Description Price (each) Stock
14498801 WASHER $0.11 IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.72 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
223456 PLATE $68.98 To Order
Photo Part No Description Price (each) Stock
296781 COLLAR 30-45MM $9.11 IN STOCK
Photo Part No Description Price (each) Stock
68574500 BRACKET $133.17 To Order
Photo Part No Description Price (each) Stock
14507387 CAP $1.88 To Order
Photo Part No Description Price (each) Stock
61081400 CLIP $0.52 To Order
View All

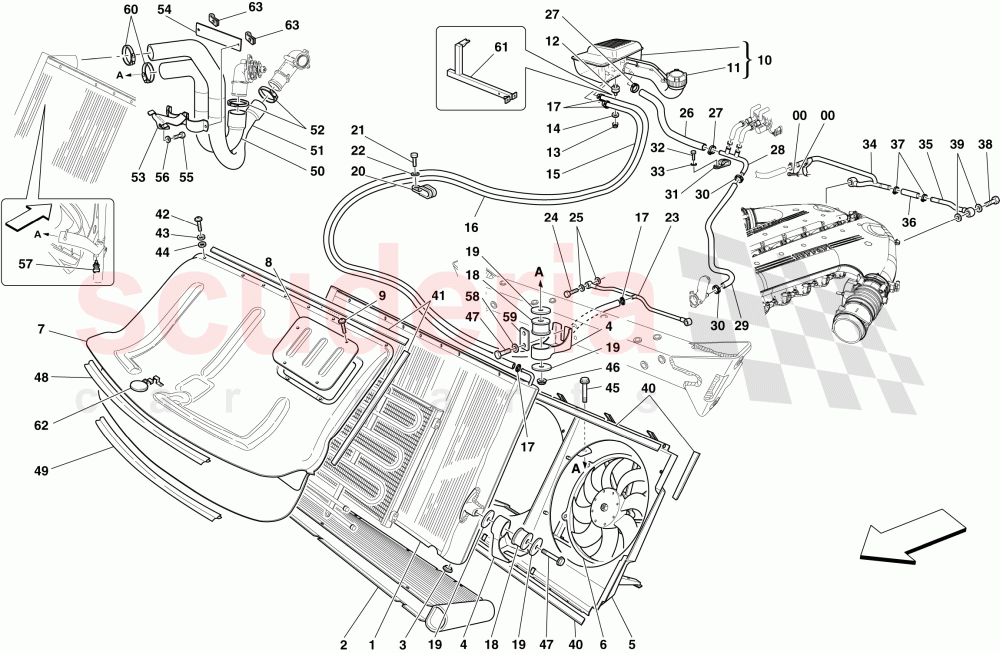

COOLING SYSTEM - RADIATOR AND HEADER TANK of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 227454

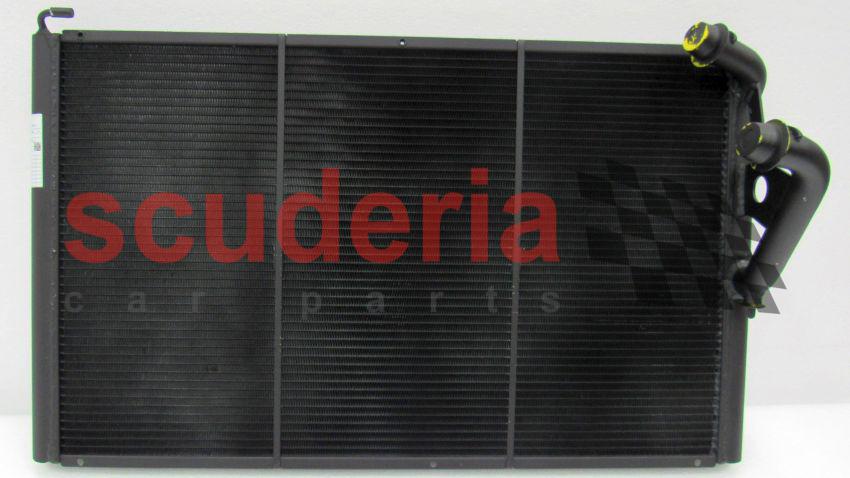

WATER RADIATOR
IN STOCK 		$4,637.27 (36.2% off) 1
2 213499
ENGINE OIL RADIATOR 		$4,271.42 1
3 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$8.01 2
4 213559
BRACKET
IN STOCK 		$52.94 3
5 220330
COWL FOR ELECTRIC FANS
IN STOCK 		$465.32 1
6 212730
ELECTRIC FAN 		$657.87 2
7 83243900
WATER RADIATOR DUCT
Not for USA, CDN 		$914.60 1
7 83244000
WATER RADIATOR DUCT
Applicable for USA, CDN 		$770.19 1
8 69012000
LID 		$40.10 1
9 11568124
SCREW
IN STOCK 		$0.96 3
9 16285227
SCREW
IN STOCK 		$0.32 1
10 235263
HEADER TANK 		$706.01 1
11 195999
HEADER TANK CAP 		$51.33 (29.1% off) 1
12 102947
VIBRATION DAMPER
IN STOCK 		$17.63 (9.7% off) 3
13 14059290
FLANGED NUT M6
IN STOCK 		$1.43 1
14 127494
WASHER
IN STOCK 		$0.08 (88.2% off) 1
15 250802
PIPE FROM RADIATOR TO HEADER TANK 		$72.77 1
16 250802
PIPE FROM RADIATOR TO HEADER TANK 		$72.77 1
17 177995
CLAMP
IN STOCK 		$1.12 (47.9% off) 4
18 227431
Bushing
IN STOCK 		$4.17 3
19 227430
WASHER 		$2.14 6
20 291225
P clip Bracket With Sheath
IN STOCK 		$4.80 1
21 86574700
SCREW 		$0.68 1
22 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
23 220821
WATER DRAIN PIPE 		$93.05 1
24 211847
HOSE 		$158.61 2
25 10260160
Copper Washer D. 10 - 14 x 1
IN STOCK 		$0.84 (6.7% off) 4
26 266456
PIPE FROM CONNECTOR TO HEADER TANK 		$80.21 1
27 262111
JUBILEE CLAMP
IN STOCK 		$1.64 2
28 67944600
FOUR-WAY UNION 		$81.82 1
29 260570
PRESHAPED PIPE -Valid after stock exhaustion of 202612- 		$290.06 1
30 13000490
Screw Collar
IN STOCK 		$0.79 (58.4% off) 2
31 10441790
BRACKET WITH SHEATH 		$0.73 (78.8% off) 1
32 16296934
SCREW 6 X 14MM
IN STOCK 		$0.45 1
33 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
34 248423
RH CYLINDER HEAD WATER PIPE 		$369.04 1
35 239553
LH CYLINDER HEAD WATER PIPE
IN STOCK 		$320.90 1
36 235080
RUBBER SLEEVE - D.14,5 x 26,5 75-
D. 14.5 X 26.5 X 75
IN STOCK 		$64.17 1
37 13433370
Screw Collar
IN STOCK 		$0.86 2
38 203787
PIPE UNION 		$9.06 2
39 10259960
Copper Washer 18 - 24 x 1.5
IN STOCK 		$0.32 (74.4% off) 4
40 217759
RUBBER SHIM
100 X 10 X 3 mm 		$6.73 3
40 217760
RUBBER SHIM
40 X 10 X 3 mm 		$6.73 2
40 225467
RUBBER SHIM
410 X 10 X 3 mm 		$13.31 4
40 225468
RUBBER SHIM
200 X 10 X 3 mm 		$13.31 3
41 69250700
UPPER GASKET 		$2.84 2
41 69250800
LOWER SEAL 		$2.84 2
41 69250900
LATERAL SEAL 		$6.82 2
41 69850200
CENTRAL SEAL 		$2.84 2
42 11568124
SCREW
IN STOCK 		$0.96 6
43 82242400
WASHER 		$0.10 6
44 12638124
WASHER
IN STOCK 		$0.05 (92.9% off) 6
45 849234
SCREW 		$2.95 3
46 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 1
47 13839224
SCREW 		$2.82 3
48 80783800
UPPER GASKET
Not for USA, CDN, GOLFO 		$100.12 1
48 80784000
GASKET
L. 338 mm; Applicable for USA, CDN, GOLFO 		$34.94 1
48 80784100
GASKET
L. 518 mm; Applicable for USA, CDN, GOLFO 		$415.46 1
49 80783900
LOWER SEAL 		$33.36 (4% off) 1
50 251426
WATER DELIVERY PIPE 		$401.13 1
51 209972
WATER RETURN PIPE 		$593.69 1
52 13000790
SCREW COLLAR
IN STOCK 		$0.78 (65.3% off) 2
53 226317
HOSE UNION MOUNT 		$60.96 1
54 226394
MOUNT COVER 		$12.03 1
55 11568124
SCREW
IN STOCK 		$0.96 2
56 14498801
WASHER
IN STOCK 		$0.11 (45% off) 2
57 180137
TEMPERATURE SENSOR
IN STOCK 		$28.72 (12.9% off) 1
58 12601374
WASHER
IN STOCK 		$0.02 (92% off) 2
59 223456
PLATE 		$68.98 3
60 296781
COLLAR 30-45MM
IN STOCK 		$9.11 2
61 68574500
BRACKET 		$133.17 1
62 14507387
CAP 		$1.88 (66.7% off) 1
63 61081400
CLIP 		$0.52 2
