Ferrari 599 GTO - AC SYSTEM - FREON PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
202285 AC CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
217745 RH LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
217746 LH LOWER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
217747 RH UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
217748 LH UPPER BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
226135 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
67949800 GAS PIPE FROM COMPRESSOR TO CONDENSER Enquire To Order
Photo Part No Description Price (each) Stock
67949600 GAS PIPE FROM CONDENSER TO FILTER Enquire To Order
Photo Part No Description Price (each) Stock
66374400 PRESSURE SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
67085100 GAS FILTER Enquire To Order
Photo Part No Description Price (each) Stock
67950000 DEHYDRATOR FILTER MOUNTING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13836971 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
12643724 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68570700 TUBE FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
13833614 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12638124 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
67949900 COMPRESSOR INLET PIPE Enquire To Order
Photo Part No Description Price (each) Stock
67949700 GAS PIPE FROM FILTER TO EVAPORATOR Enquire To Order
83576700 GAS PIPE FROM FILTER TO EVAPORATOR Enquire To Order
83576700 GAS PIPE FROM FILTER TO EVAPORATOR Enquire To Order
Photo Part No Description Price (each) Stock
69246600 TUBE FASTENING BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
250657 SCREW M6 X 14 Enquire To Order
Photo Part No Description Price (each) Stock
231625 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
11193274 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM Enquire To Order
Photo Part No Description Price (each) Stock
11197774 WAVY WASHER D.6.4 X 12 X 1.2 Enquire To Order
Photo Part No Description Price (each) Stock
16044024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12601374 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
68392000 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392100 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309600 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392700 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309700 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309400 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309500 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
66309800 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
68392800 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
11568124 SCREW Enquire To Order
View All

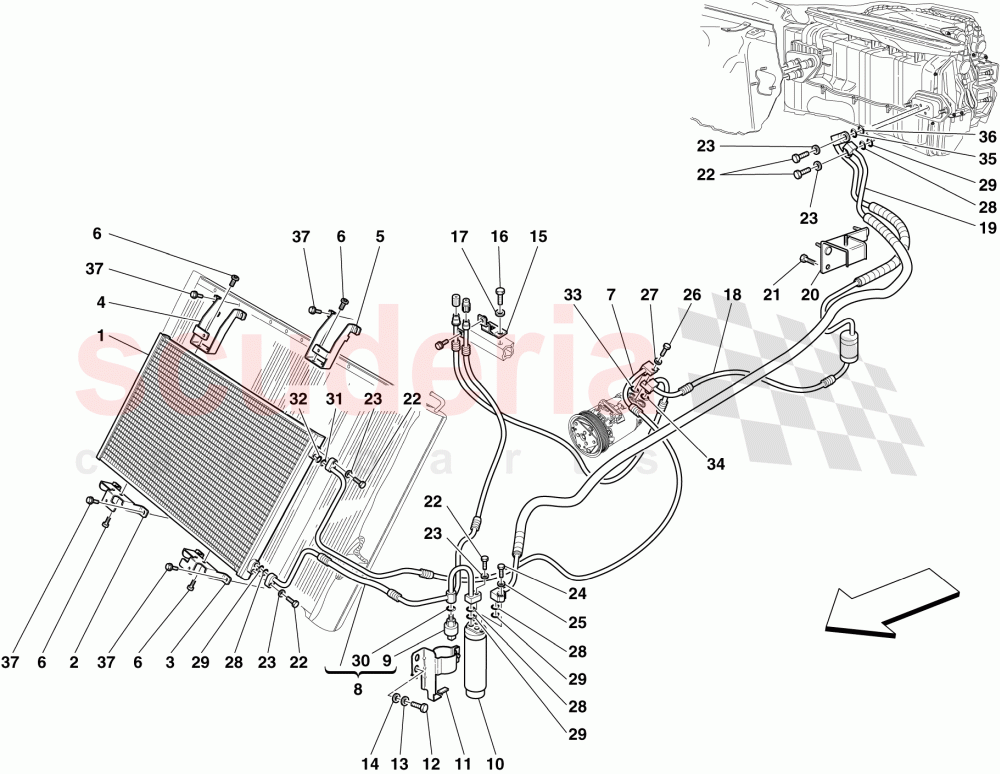

AC SYSTEM - FREON PIPES of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 202285
AC CONDENSER 		- 1 Enquire
2 217745
RH LOWER BRACKET 		- 1 Enquire
3 217746
LH LOWER BRACKET 		- 1 Enquire
4 217747
RH UPPER BRACKET 		- 1 Enquire
5 217748
LH UPPER BRACKET 		- 1 Enquire
6 226135
SCREW 		- 8 Enquire
7 67949800
GAS PIPE FROM COMPRESSOR TO CONDENSER 		- 1 Enquire
8 67949600
GAS PIPE FROM CONDENSER TO FILTER 		- 1 Enquire
9 66374400
PRESSURE SWITCH 		- 1 Enquire
10 67085100
GAS FILTER 		- 1 Enquire
11 67950000
DEHYDRATOR FILTER MOUNTING BRACKET 		- 1 Enquire
12 13836971
SCREW 		- 2 Enquire
13 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 2 Enquire
14 12643724
WASHER 		- 2 Enquire
15 68570700
TUBE FASTENING BRACKET
Applicable for GD 		- 1 Enquire
16 13833614
SCREW
Applicable for GD 		- 1 Enquire
17 12638124
WASHER
Applicable for GD 		- 1 Enquire
18 67949900
COMPRESSOR INLET PIPE 		- 1 Enquire
19 67949700
GAS PIPE FROM FILTER TO EVAPORATOR
Not for USA, CDN; Applicable up to Ass. No. 94354 		- 1 Enquire
19 83576700
GAS PIPE FROM FILTER TO EVAPORATOR
Not for USA, CDN; Applicable from Ass. No. 94355 		- 1 Enquire
19 83576700
GAS PIPE FROM FILTER TO EVAPORATOR
Applicable for USA, CDN 		- 1 Enquire
20 69246600
TUBE FASTENING BRACKET 		- 1 Enquire
21 250657
SCREW M6 X 14 		- 2 Enquire
22 231625
SCREW 		- 5 Enquire
23 11193274
WASHER 		- 5 Enquire
24 16296934
SCREW 6 X 14MM 		- 1 Enquire
25 11197774
WAVY WASHER D.6.4 X 12 X 1.2 		- 1 Enquire
26 16044024
SCREW 		- 1 Enquire
27 12601374
WASHER 		- 1 Enquire
28 68392000
O-RING 		- 4 Enquire
29 68392100
O-RING 		- 4 Enquire
30 66309600
O-RING 		- 1 Enquire
31 68392700
O-RING 		- 1 Enquire
32 66309700
O-RING 		- 1 Enquire
33 66309400
O-RING 		- 1 Enquire
34 66309500
O-RING 		- 1 Enquire
35 66309800
O-RING 		- 1 Enquire
36 68392800
O-RING 		- 1 Enquire
37 11568124
SCREW 		- 8 Enquire
