REAR SUSPENSION - WISHBONES AND STABILIZER BAR of Ferrari Ferrari 575M Maranello

View All

Ferrari 575M Maranello - REAR SUSPENSION - WISHBONES AND STABILIZER BAR

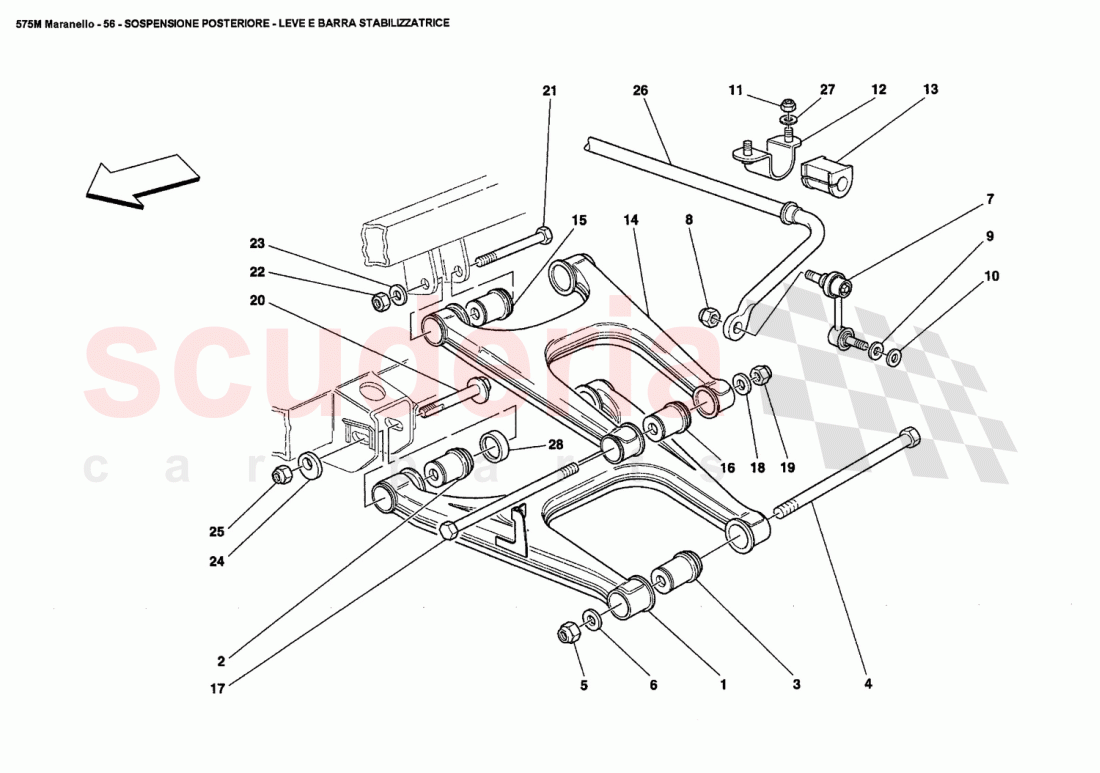

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	183956	R.H. LOWER LEVER	Enquire	To Order
	183772	LH. LOWER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186495	FLAMBLOCK FOR LOWER FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186496	FLAMBLOCK FOR LOWER FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168445	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150238	Nut -For car with lifting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	105434	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171812	TIE ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	102742	Nyloc Nut M10 x 1.25 x 10mm	Enquire	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	102901	SPACER WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	160092	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	153148	PAD FASTENING PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	210897	BAR BUFFER-Diam. 19.5-	Enquire	To Order
	212936	BAR BUFFER -Diam. 17-	Enquire	To Order
	130533	BAR BUFFER -Diam. 21-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	188736	UPPER LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186496	FLAMBLOCK FOR LOWER FORK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186493	RH FLANBLOC UPPER FORK 12-30X47	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	144747	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150789	ECCENTRIC SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	106422	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150238	Nut -For car with lifting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601674	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	175077	ECCENTRIC WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150238	Nut -For car with lifting	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169120	REAR ANTI-ROLL BAR -Diam. 17-	Enquire	To Order
	210888	Rear anti roll bar Ã˜ 19.5 mm	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	187016	SPACER FOR FLAMBLOCK	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	183956	R.H. LOWER LEVER	183956 R.H. LOWER LEVER	-	1	Enquire
1	183772	LH. LOWER LEVER	183772 LH. LOWER LEVER	-	1	Enquire
2	186495	FLAMBLOCK FOR LOWER FORK	186495 FLAMBLOCK FOR LOWER FORK	-	4	Enquire
3	186496	FLAMBLOCK FOR LOWER FORK	186496 FLAMBLOCK FOR LOWER FORK	-	4	Enquire
4	168445	SCREW	168445 SCREW	-	2	Enquire
5	150238	Nut -For car with lifting	150238 Nut -For car with lifting	-	2	Enquire
6	105434	WASHER	105434 WASHER	-	2	Enquire
7	171812	TIE ROD	171812 TIE ROD	-	2	Enquire
8	102742	Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	102742 Nyloc Nut M10 x 1.25 x 10mm ARRIVING SOON	-	2	Enquire
9	102901	SPACER WASHER	102901 SPACER WASHER	-	2	Enquire
10	160092	WASHER	160092 WASHER	-	2	Enquire
11	147985	NUT	147985 NUT	-	4	Enquire
12	153148	PAD FASTENING PLATE	153148 PAD FASTENING PLATE	-	2	Enquire
13	210897	BAR BUFFER-Diam. 19.5-	210897 BAR BUFFER-Diam. 19.5- HGTC Version	-	2	Enquire
13	212936	BAR BUFFER -Diam. 17-	212936 BAR BUFFER -Diam. 17- Not for cars with handling "Fiorano equipment" / Valid till stock exhaustion	-	2	Enquire
13	130533	BAR BUFFER -Diam. 21-	130533 BAR BUFFER -Diam. 21- Valid for cars with handling "Fiorano equipment" / Optional	-	2	Enquire
14	188736	UPPER LEVER	188736 UPPER LEVER	-	2	Enquire
15	186496	FLAMBLOCK FOR LOWER FORK	186496 FLAMBLOCK FOR LOWER FORK	-	4	Enquire
16	186493	RH FLANBLOC UPPER FORK 12-30X47	186493 RH FLANBLOC UPPER FORK 12-30X47	-	4	Enquire
17	144747	SCREW	144747 SCREW	-	2	Enquire
18	84653800	WASHER	84653800 WASHER	-	2	Enquire
19	148020	NUT	148020 NUT	-	2	Enquire
20	150789	ECCENTRIC SCREW	150789 ECCENTRIC SCREW	-	4	Enquire
21	106422	SCREW	106422 SCREW	-	4	Enquire
22	150238	Nut -For car with lifting	150238 Nut -For car with lifting	-	4	Enquire
23	12601674	WASHER	12601674 WASHER	-	4	Enquire
24	175077	ECCENTRIC WASHER	175077 ECCENTRIC WASHER	-	4	Enquire
25	150238	Nut -For car with lifting	150238 Nut -For car with lifting	-	4	Enquire
26	169120	REAR ANTI-ROLL BAR -Diam. 17-	169120 REAR ANTI-ROLL BAR -Diam. 17-	-	1	Enquire
26	210888	Rear anti roll bar Ã˜ 19.5 mm	210888 Rear anti roll bar Ã˜ 19.5 mm	-	1	Enquire
27	84653800	WASHER	84653800 WASHER	-	4	Enquire
28	187016	SPACER FOR FLAMBLOCK	187016 SPACER FOR FLAMBLOCK	-	4	Enquire
