Front Suspension - Wishbones And Stabilizer Bar

Ferrari 575M Maranello

Find Your Part

Ferrari 575M Maranello - FRONT SUSPENSION - WISHBONES AND STABILIZER BAR

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
132776 UPPER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
168727 L.H. LOWER LEVER Enquire To Order
168388 R.H. LOWER LEVER Enquire To Order
Photo Part No Description Price (each) Stock
186494 RH SILENT BLOCK BUSH LOWER FORK 14-34X61 Enquire To Order
Photo Part No Description Price (each) Stock
154396 LOWER BALL JOINT Enquire To Order
Photo Part No Description Price (each) Stock
149807 NUT Enquire To Order
Photo Part No Description Price (each) Stock
155002 Washer Enquire To Order
Photo Part No Description Price (each) Stock
15971734 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut Enquire To Order
Photo Part No Description Price (each) Stock
153504 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
101022 SETTING PLATE -mm. 1.50- Enquire To Order
Photo Part No Description Price (each) Stock
164484 SETTING PLATE -mm. 1.00- Enquire To Order
164485 SETTING PLATE -mm. 2.00- Enquire To Order
101022 SETTING PLATE -mm. 1.50- Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
152249 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148773 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
149063 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
148772 BALL JOINT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
148773 SPACER BUSHING Enquire To Order
Photo Part No Description Price (each) Stock
15541021 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
157812 BALL JOINT PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
175801 L.H. UPPER LEVER Enquire To Order
212854 L.H. UPPER LEVER Enquire To Order
175800 R.H. UPPER LEVER Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
186493 RH FLANBLOC UPPER FORK 12-30X47 Enquire To Order
Photo Part No Description Price (each) Stock
16043634 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
106419 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
148020 NUT Enquire To Order
Photo Part No Description Price (each) Stock
150789 ECCENTRIC SCREW Enquire To Order
Photo Part No Description Price (each) Stock
175077 ECCENTRIC WASHER Enquire To Order
Photo Part No Description Price (each) Stock
150238 Nut -For car with lifting Enquire To Order
Photo Part No Description Price (each) Stock
163204 FRONT ANTI-ROLL BAR -¯ 27- Enquire To Order
Photo Part No Description Price (each) Stock
208324 BAR BUFFER -¯ 27- Enquire To Order
208324 BAR BUFFER -¯ 27- Enquire To Order
Photo Part No Description Price (each) Stock
239775 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
16045024 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
190282 COMPLETE SPACER Enquire To Order
Photo Part No Description Price (each) Stock
104030 NYLOC NUT M8 X 1.25 X 9.5 Enquire To Order
Photo Part No Description Price (each) Stock
14496524 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
183711 R.H. COMPLETE TIE ROD Enquire To Order
183712 L.H. COMPLETE TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
183831 R.H. BALL JOINT TIE ROD Enquire To Order
183832 L.H. BALL JOINT TIE ROD Enquire To Order
Photo Part No Description Price (each) Stock
188526 RH FRONT BRACKET Enquire To Order
188528 LH FRONT BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
187013 SPACER FOR FLAMBLOCK Enquire To Order
Photo Part No Description Price (each) Stock
213541 LH. SHAPED TUBE Enquire To Order
213602 R.H. SHAPED TUBE Enquire To Order
Photo Part No Description Price (each) Stock
14662695 SCREW WITH CAGE Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 Enquire To Order
Photo Part No Description Price (each) Stock
12646604 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
213621 AIR DELIVERY TUBE FOR FRONT BRAKES Enquire To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR Enquire To Order
View All

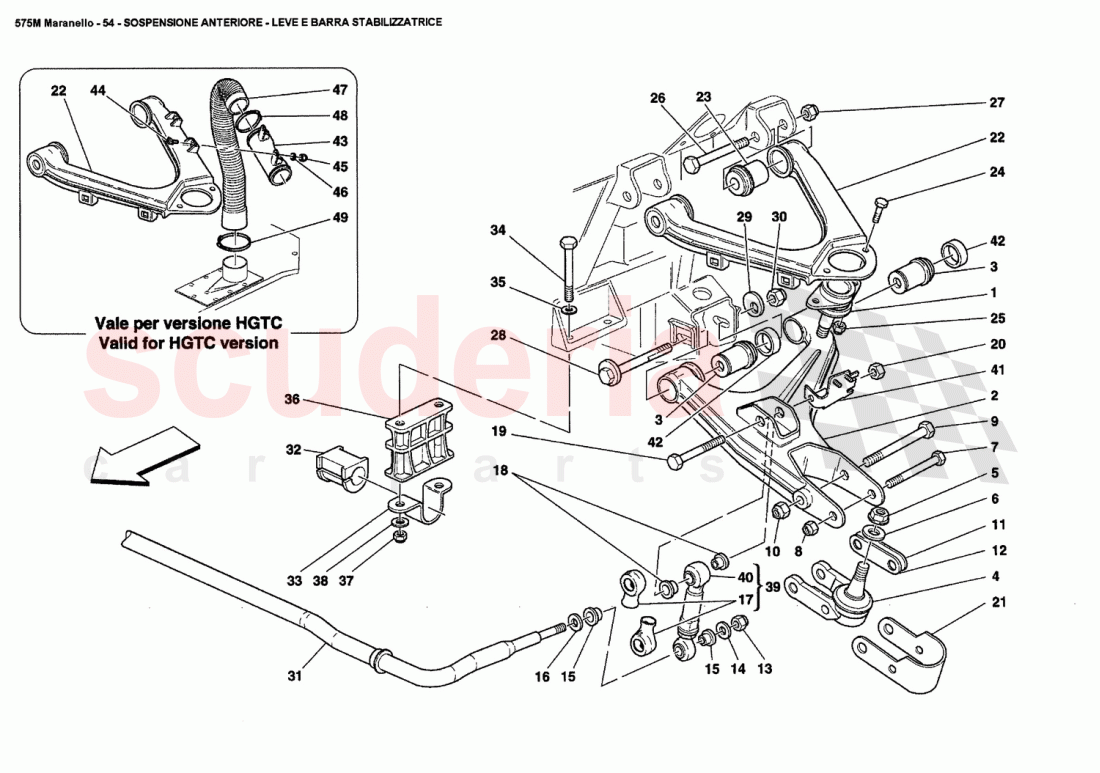

FRONT SUSPENSION - WISHBONES AND STABILIZER BAR of Ferrari Ferrari 575M Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 132776
UPPER BALL JOINT 		- 2 Enquire
2 168727
L.H. LOWER LEVER 		- 1 Enquire
2 168388
R.H. LOWER LEVER 		- 1 Enquire
3 186494
RH SILENT BLOCK BUSH LOWER FORK 14-34X61 		- 4 Enquire
4 154396
LOWER BALL JOINT 		- 2 Enquire
5 149807
NUT 		- 4 Enquire
6 155002
Washer 		- 4 Enquire
7 15971734
SCREW 		- 2 Enquire
8 12574521
Nyloc Nut 		- 2 Enquire
9 153504
SCREW 		- 2 Enquire
10 148020
NUT 		- 2 Enquire
11 101022
SETTING PLATE -mm. 1.50- 		- - Enquire
12 164484
SETTING PLATE -mm. 1.00- 		- - Enquire
12 164485
SETTING PLATE -mm. 2.00- 		- - Enquire
12 101022
SETTING PLATE -mm. 1.50-
Possible fitting 		- - Enquire
12 115073
SETTING PLATE -mm. 1.20- 		- - Enquire
13 148020
NUT 		- 2 Enquire
14 152249
WASHER 		- 2 Enquire
15 148773
SPACER BUSHING 		- 4 Enquire
16 149063
WASHER 		- 2 Enquire
17 148772
BALL JOINT PROTECTION 		- 4 Enquire
18 148773
SPACER BUSHING 		- 4 Enquire
19 15541021
SCREW 		- 2 Enquire
20 148020
NUT 		- 2 Enquire
21 157812
BALL JOINT PROTECTION 		- 2 Enquire
22 175801
L.H. UPPER LEVER 		- 1 Enquire
22 212854
L.H. UPPER LEVER
CCM Version 		- 1 Enquire
22 175800
R.H. UPPER LEVER 		- 1 Enquire
22 212853
R.H. UPPER LEVER 		- 1 Enquire
23 186493
RH FLANBLOC UPPER FORK 12-30X47
SUPPORT 		- 4 Enquire
24 16043634
SCREW 		- 4 Enquire
25 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
26 106419
SCREW 		- 4 Enquire
27 148020
NUT 		- 4 Enquire
28 150789
ECCENTRIC SCREW 		- 4 Enquire
29 175077
ECCENTRIC WASHER 		- 4 Enquire
30 150238
Nut -For car with lifting 		- 4 Enquire
31 163204
FRONT ANTI-ROLL BAR -¯ 27- 		- 1 Enquire
32 208324
BAR BUFFER -¯ 27- 		- 2 Enquire
32 208324
BAR BUFFER -¯ 27- 		- 2 Enquire
33 239775
PLATE 		- 2 Enquire
34 16045024
SCREW 		- 4 Enquire
35 14496524
WASHER 		- 4 Enquire
36 190282
COMPLETE SPACER 		- 2 Enquire
37 104030
NYLOC NUT M8 X 1.25 X 9.5 		- 4 Enquire
38 14496524
WASHER 		- 4 Enquire
39 183711
R.H. COMPLETE TIE ROD 		- 1 Enquire
39 183712
L.H. COMPLETE TIE ROD 		- 1 Enquire
40 183831
R.H. BALL JOINT TIE ROD 		- 1 Enquire
40 183832
L.H. BALL JOINT TIE ROD 		- 1 Enquire
41 188526
RH FRONT BRACKET 		- 1 Enquire
41 188528
LH FRONT BRACKET 		- 1 Enquire
42 187013
SPACER FOR FLAMBLOCK 		- 4 Enquire
43 213541
LH. SHAPED TUBE 		- 1 Enquire
43 213602
R.H. SHAPED TUBE 		- 1 Enquire
44 14662695
SCREW WITH CAGE 		- 4 Enquire
45 14059290
FLANGED NUT M6 		- 4 Enquire
46 12646604
WASHER 		- 4 Enquire
47 213621
AIR DELIVERY TUBE FOR FRONT BRAKES
FRONT BRAKES 		- 2 Enquire
48 13000790
SCREW COLLAR 		- 2 Enquire
49 13000790
SCREW COLLAR 		- 2 Enquire
