Name: HAND-BRAKE CONTROL
Rating: 5.0 (1 reviews)

HAND-BRAKE CONTROL of Ferrari Ferrari 575M Maranello

View All

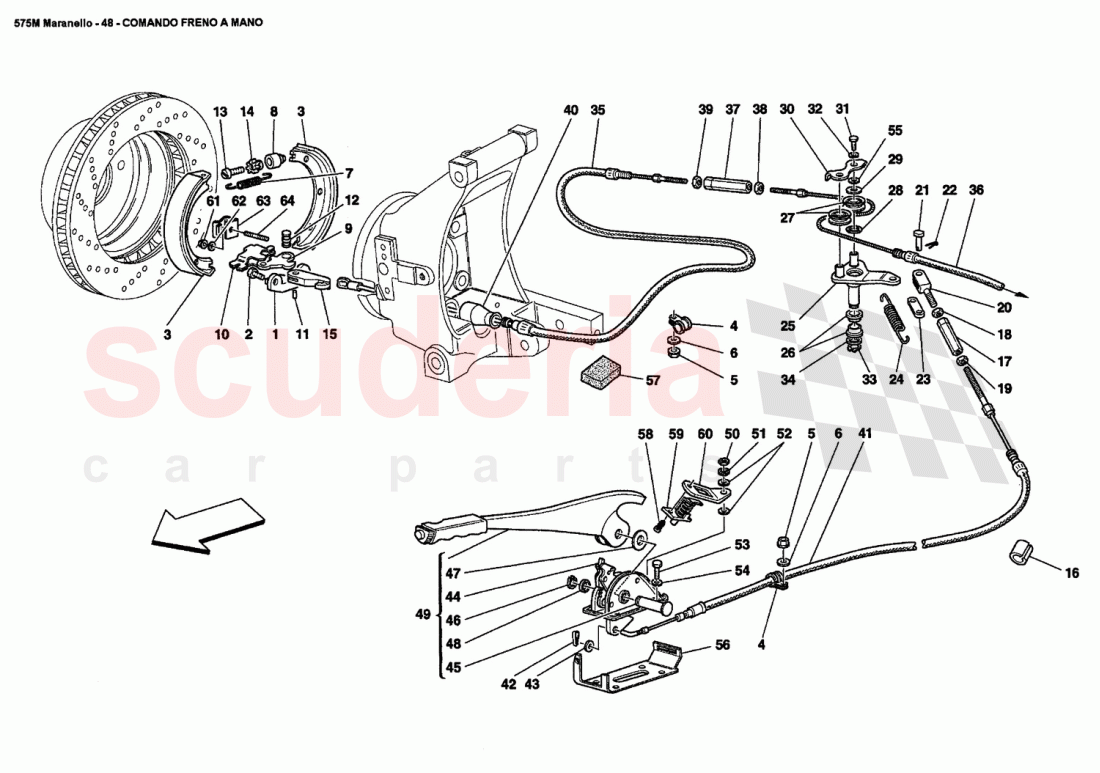

Ferrari 575M Maranello - HAND-BRAKE CONTROL

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	142861	HUB HOLDER SMALL BLOCK	$281.23	To Order

Photo	Part No	Description	Price (each)	Stock
	142856	SCREW	$4.99	To Order

Photo	Part No	Description	Price (each)	Stock
	178382	BRAKE SHOE	$49.90	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.57	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	To Order

Photo	Part No	Description	Price (each)	Stock
	101276	RETURN SPRING FOR BRAKE SHOES	$51.59	To Order

Photo	Part No	Description	Price (each)	Stock
	101279	SEAT FOR ADJUSTMENT SCREW	$126.75	To Order

Photo	Part No	Description	Price (each)	Stock
	101280	Inner Control Lever	$91.45	To Order

Photo	Part No	Description	Price (each)	Stock
	101281	Outer Control Lever	$120.33	To Order

Photo	Part No	Description	Price (each)	Stock
	101282	FIXING FORK TO INNER LEVER PIN	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	101283	Pin for joint	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	101285	SCREW	$63.67	To Order

Photo	Part No	Description	Price (each)	Stock
	101286	Nut for adjusting screw	$77.39	To Order

Photo	Part No	Description	Price (each)	Stock
	105270	Inner lever control fork	$53.02	To Order

Photo	Part No	Description	Price (each)	Stock
	152913	RUBBER HOSE	$6.05	To Order

Photo	Part No	Description	Price (each)	Stock
	152302	ADJUSTMENT SLEEVE	$14.28	To Order

Photo	Part No	Description	Price (each)	Stock
	16102914	L.H. THREADED NUT	$5.59	To Order

Photo	Part No	Description	Price (each)	Stock
	16102314	NUT	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	152301	FORK	$48.12	To Order

Photo	Part No	Description	Price (each)	Stock
	10050814	PIN	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	10734208	SPLIT PIN	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	152303	SMALL PLATE	$27.26	To Order

Photo	Part No	Description	Price (each)	Stock
	104895	SPRING	$33.68	To Order

Photo	Part No	Description	Price (each)	Stock
	152279	LEVER -Not for GD-	$142.79	To Order
	156122	LEVER -Valid for GD-	$142.79	To Order

Photo	Part No	Description	Price (each)	Stock
	152273	BUSHING	$10.44	To Order

Photo	Part No	Description	Price (each)	Stock
	175780	PULLEY	$12.25	To Order

Photo	Part No	Description	Price (each)	Stock
	152617	WASHER	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	109483	WASHER	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	152299	SMALL PLATE -Not for GD-	$7.52	To Order
	158694	SMALL PLATE -Valid for GD-	$7.05	To Order

Photo	Part No	Description	Price (each)	Stock
	10977524	SCREW	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	11193274	WASHER	$0.03	To Order

Photo	Part No	Description	Price (each)	Stock
	11066476	Seeger Ring	$0.65	To Order

Photo	Part No	Description	Price (each)	Stock
	152300	WASHER	$0.66	To Order

Photo	Part No	Description	Price (each)	Stock
	152297	R.H. REAR CABLE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	152298	L. H. REAR CABLE	$240.67	To Order

Photo	Part No	Description	Price (each)	Stock
	10091011	SLEEVE	$115.73	To Order

Photo	Part No	Description	Price (each)	Stock
	10727314	NUT	$0.39	To Order

Photo	Part No	Description	Price (each)	Stock
	312592	NUT	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	143938	STOP LIMIT FOR HAND BRAKE SHEATH	$14.17	To Order

Photo	Part No	Description	Price (each)	Stock
	164021	HAND-BRAKE CONTROL CABLE	$44.60	To Order

Photo	Part No	Description	Price (each)	Stock
	264555	SPLIT PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	$5.75	To Order

Photo	Part No	Description	Price (each)	Stock
	191634	COMPLETE MECHANISM	$269.30	To Order

Photo	Part No	Description	Price (each)	Stock
	191635	PIN	$32.08	To Order

Photo	Part No	Description	Price (each)	Stock
	191638	Seeger Ring	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	191636	WASHER	$15.48	To Order

Photo	Part No	Description	Price (each)	Stock
	191637	SPACER WASHER	$0.37	To Order

Photo	Part No	Description	Price (each)	Stock
	154095	HAND BRAKE LEVER	$2,389.81	To Order
	629965	LINING -See relevant table for	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	$7.33	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63622400	WASHER	$0.19	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	$2.22	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	62501300	WASHER	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	66166400	SUPPORT	$19.24	To Order
	66833000	SUPPORT	$37.25	To Order

Photo	Part No	Description	Price (each)	Stock
	158346	RUBBER THICKNESS	$1.38	To Order

Photo	Part No	Description	Price (each)	Stock
	15915807	SCREW -Valid for GD-	$0.34	To Order

Photo	Part No	Description	Price (each)	Stock
	169292	SWITCH	$2.40	To Order

Photo	Part No	Description	Price (each)	Stock
	169291	SUPPORT BRACKET	$14.68	To Order

Photo	Part No	Description	Price (each)	Stock
	12637824	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	177625	BRAKE SHOE SPRING	$20.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13539224	STUD	$4.99	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	142861	HUB HOLDER SMALL BLOCK	142861 HUB HOLDER SMALL BLOCK	$281.23	2
2	142856	SCREW	142856 SCREW	$4.99	4
3	178382	BRAKE SHOE	178382 BRAKE SHOE	$49.90 MSRP: ~~51.40~~ (2.9% off)	4
4	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	$0.57 MSRP: ~~1.68~~ (66.1% off)	3
5	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
6	12639724	WASHER	12639724 WASHER	$0.05 MSRP: ~~0.50~~ (90% off)	3
7	101276	RETURN SPRING FOR BRAKE SHOES	101276 RETURN SPRING FOR BRAKE SHOES	$51.59	4
8	101279	SEAT FOR ADJUSTMENT SCREW	101279 SEAT FOR ADJUSTMENT SCREW	$126.75	2
9	101280	Inner Control Lever	101280 Inner Control Lever	$91.45	2
10	101281	Outer Control Lever	101281 Outer Control Lever	$120.33 MSRP: ~~154.96~~ (22.3% off)	2
11	101282	FIXING FORK TO INNER LEVER PIN	101282 FIXING FORK TO INNER LEVER PIN	$14.68	2
12	101283	Pin for joint	101283 Pin for joint	$27.26	2
13	101285	SCREW	101285 SCREW	$63.67	2
14	101286	Nut for adjusting screw	101286 Nut for adjusting screw	$77.39	2
15	105270	Inner lever control fork	105270 Inner lever control fork	$53.02 MSRP: ~~112.88~~ (53% off)	2
16	152913	RUBBER HOSE	152913 RUBBER HOSE	$6.05	1
17	152302	ADJUSTMENT SLEEVE	152302 ADJUSTMENT SLEEVE	$14.28	1
18	16102914	L.H. THREADED NUT	16102914 L.H. THREADED NUT	$5.59	1
19	16102314	NUT	16102314 NUT	$0.06 MSRP: ~~1.29~~ (95.3% off)	1
20	152301	FORK	152301 FORK	$48.12	1
21	10050814	PIN	10050814 PIN	$2.61 MSRP: ~~6.25~~ (58.2% off)	1
22	10734208	SPLIT PIN	10734208 SPLIT PIN	$0.02	1
23	152303	SMALL PLATE	152303 SMALL PLATE	$27.26	1
24	104895	SPRING	104895 SPRING	$33.68	1
25	152279	LEVER -Not for GD-	152279 LEVER -Not for GD- Not for GD	$142.79	1
25	156122	LEVER -Valid for GD-	156122 LEVER -Valid for GD- Valid for GD	$142.79	1
26	152273	BUSHING	152273 BUSHING	$10.44	2
27	175780	PULLEY	175780 PULLEY	$12.25	2
28	152617	WASHER	152617 WASHER	$0.75	2
29	109483	WASHER	109483 WASHER	$1.90	2
30	152299	SMALL PLATE -Not for GD-	152299 SMALL PLATE -Not for GD-	$7.52	1
30	158694	SMALL PLATE -Valid for GD-	158694 SMALL PLATE -Valid for GD-	$7.05	1
31	10977524	SCREW	10977524 SCREW	$0.15	2
32	11193274	WASHER	11193274 WASHER	$0.03	2
33	11066476	Seeger Ring	11066476 Seeger Ring	$0.65 MSRP: ~~1.25~~ (48% off)	1
34	152300	WASHER	152300 WASHER	$0.66	1
35	152297	R.H. REAR CABLE	152297 R.H. REAR CABLE	$240.67	1
36	152298	L. H. REAR CABLE	152298 L. H. REAR CABLE	$240.67	1
37	10091011	SLEEVE	10091011 SLEEVE	$115.73	1
38	10727314	NUT	10727314 NUT	$0.39	1
39	312592	NUT	312592 NUT	$2.63	1
40	143938	STOP LIMIT FOR HAND BRAKE SHEATH	143938 STOP LIMIT FOR HAND BRAKE SHEATH BRAKE SHEATH	$14.17 MSRP: ~~59.65~~ (76.2% off)	2
41	164021	HAND-BRAKE CONTROL CABLE	164021 HAND-BRAKE CONTROL CABLE	$44.60	1
42	264555	SPLIT PIN	264555 SPLIT PIN	-	1	Enquire
43	84653800	WASHER	84653800 WASHER	$5.75	1
44	191634	COMPLETE MECHANISM	191634 COMPLETE MECHANISM	$269.30	1
45	191635	PIN	191635 PIN	$32.08 MSRP: ~~39.49~~ (18.8% off)	1
46	191638	Seeger Ring	191638 Seeger Ring	$0.15	1
47	191636	WASHER	191636 WASHER	$15.48	1
48	191637	SPACER WASHER	191637 SPACER WASHER	$0.37	1
49	154095	HAND BRAKE LEVER	154095 HAND BRAKE LEVER Without lining	$2,389.81	1
49	629965	LINING -See relevant table for	629965 LINING -See relevant table for leather colours	-	1	Enquire
50	15896470	NUT	15896470 NUT	$7.33	1
51	12604178	Washer	12604178 Washer	-	1	Enquire
52	63622400	WASHER	63622400 WASHER	$0.19	2
53	81591700	SCREW	81591700 SCREW	$2.22	4
54	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	4
55	62501300	WASHER	62501300 WASHER	$0.96	2
56	66166400	SUPPORT	66166400 SUPPORT	$19.24	1
56	66833000	SUPPORT	66833000 SUPPORT	$37.25	1
57	158346	RUBBER THICKNESS	158346 RUBBER THICKNESS	$1.38	2
58	15915807	SCREW -Valid for GD-	15915807 SCREW -Valid for GD-	$0.34	1
59	169292	SWITCH	169292 SWITCH	$2.40 MSRP: ~~3.25~~ (26.2% off)	1
60	169291	SUPPORT BRACKET	169291 SUPPORT BRACKET	$14.68	1
61	14058319	NUT	14058319 NUT	$0.34	4
62	12637824	WASHER	12637824 WASHER	$0.06 MSRP: ~~0.50~~ (88% off)	4
63	177625	BRAKE SHOE SPRING	177625 BRAKE SHOE SPRING	$20.58	2
64	13539224	STUD	13539224 STUD	$4.99 MSRP: ~~8.75~~ (43% off)	4
