HYDRAULIC STEERING PUMPS

Find Your Part

Ferrari 550 Maranello - HYDRAULIC STEERING PUMPS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
170751 POWER STEERING PUMP $937.64 To Order
Photo Part No Description Price (each) Stock
170831 INTERNAL MOUNT $1,444.12 To Order
Photo Part No Description Price (each) Stock
171271 SUPPORT WITH BELT TIGHTENER $625.78 To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $3.03 To Order
Photo Part No Description Price (each) Stock
14306424 SCREW $0.24 To Order
Photo Part No Description Price (each) Stock
14307224 SCREW $0.66 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
165975 BUSHING $3.83 To Order
Photo Part No Description Price (each) Stock
16052024 Screw $2.58 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER $0.02 To Order
Photo Part No Description Price (each) Stock
148631 PULLEY $497.41 To Order
Photo Part No Description Price (each) Stock
123350 BEARING $42.01 To Order
Photo Part No Description Price (each) Stock
11060076 Seeger Ring $0.44 To Order
Photo Part No Description Price (each) Stock
148638 SPACER $81.04 To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.46 To Order
Photo Part No Description Price (each) Stock
101016 WASHER $17.86 To Order
Photo Part No Description Price (each) Stock
157289 Screw $8.28 To Order
Photo Part No Description Price (each) Stock
165974 PULLEY $738.10 To Order
Photo Part No Description Price (each) Stock
81591700 SCREW $2.22 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
199834 Water & Power Steering Belt $32.38 To Order
Photo Part No Description Price (each) Stock
148020 NUT $4.46 To Order
Photo Part No Description Price (each) Stock
102742 Nyloc Nut M10 x 1.25 x 10mm $0.45 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER $5.75 To Order
Photo Part No Description Price (each) Stock
128944 WASHER $3.18 To Order
Photo Part No Description Price (each) Stock
184727 Banjo bolt For Union M16 x 1.5 $6.03 To Order
Photo Part No Description Price (each) Stock
10278660 GASKET $1.56 To Order
Photo Part No Description Price (each) Stock
153165 PIN $43.31 To Order
Photo Part No Description Price (each) Stock
172537 Belt Tightening Pulley $121.93 To Order
View All

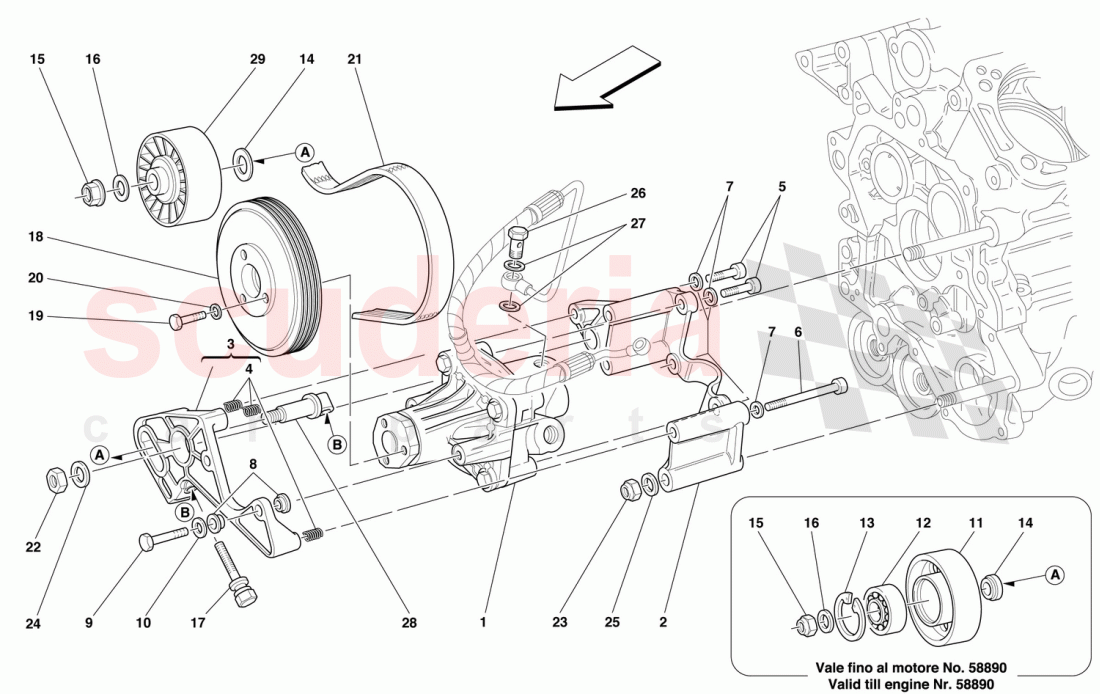

HYDRAULIC STEERING PUMPS of Ferrari Ferrari 550 Maranello Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 175021
PIN
Valid from car No. 58891 		$33.68 1
- 199834
Water & Power Steering Belt
SERVO-CONTROL PUMP / Valid from engine Nr. 51923 and / till engine Nr. 58890 		$32.38 1
- 201455
WATER AND HYDR. STEERING
SERVO-CONTROL PUMP / Valid from car No. 58891 		$38.30 (28.4% off) 1
- 102695
WASHER
Valid from car No. 58891 		$2.24 (31.1% off) 1
- 174508
WASHER
Valid from car No. 58891 		$4.99 (65.4% off) 1
- 133216
NUT
Valid from car No. 58891 		$9.30 (10.7% off) 1
- 175098
MOUNT WITH BELT TENSIONER
Valid from car No. 58891 		$1,781.09 1
1 170751
POWER STEERING PUMP
PUMP 		$937.64 1
2 170831
INTERNAL MOUNT 		$1,444.12 1
3 171271
SUPPORT WITH BELT TIGHTENER
Valid till car No. 58890 		$625.78 1
4 13525770
THREADED INSERT 		$3.03 (17.4% off) 4
5 14306424
SCREW 		$0.24 (41.5% off) 4
6 14307224
SCREW 		$0.66 3
7 11193874
WASHER 		$0.06 7
8 165975
BUSHING 		$3.83 4
9 16052024
Screw 		$2.58 (31.2% off) 2
10 12601374
WASHER 		$0.02 (92% off) 2
11 148631
PULLEY
Valid till car No. 58890 		$497.41 (18.7% off) 1
12 123350
BEARING
Valid till car No. 58890 		$42.01 1
13 11060076
Seeger Ring
Valid till car No. 58890 		$0.44 (76.2% off) 1
14 148638
SPACER
Valid till car No. 58890 		$81.04 1
15 148020
NUT
Valid till car No. 58890 		$4.46 1
16 101016
WASHER
Valid till car No. 58890 		$17.86 (14.3% off) 1
17 157289
Screw 		$8.28 1
18 165974
PULLEY 		$738.10 1
19 81591700
SCREW 		$2.22 3
20 11197774
WASHER 		$0.06 (80% off) 3
21 199834
Water & Power Steering Belt
SERVO-CONTROL PUMP / Valid till engine Nr. 51922 		$32.38 1
22 148020
NUT 		$4.46 1
23 102742
Nyloc Nut M10 x 1.25 x 10mm 		$0.45 (86.2% off) 1
24 84653800
WASHER 		$5.75 1
25 128944
WASHER 		$3.18 1
26 184727
Banjo bolt For Union M16 x 1.5 		$6.03 1
27 10278660
GASKET 		$1.56 2
28 153165
PIN
Valid till car No. 58890 		$43.31 1
29 172537
Belt Tightening Pulley
PULLEY / Valid from car No. 58891 		$121.93 (17.7% off) 1
