STEERING COLUMN of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - STEERING COLUMN

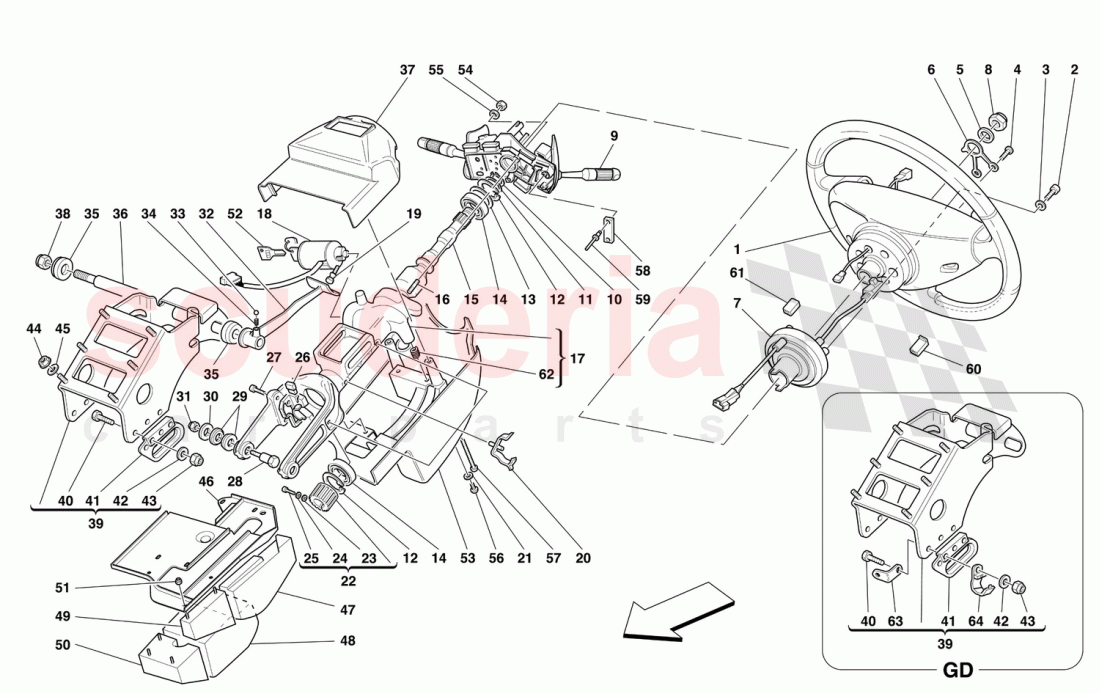

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	175687	COMPLETE STEERING WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13271914	SCREW -Valid for "60Â°anniversario"-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10615274	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11021111	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10730921	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157639	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169471	SPIRAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101648	Ring nut	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	159411	UNHOOK DEVIATION ASSEMBLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11066876	SEEGER RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134070	SPACER WASHER mm. 1,0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11060076	Seeger Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134065	SPACER WASHER mm. 1,0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	134061	BEARING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157968	UPPER SHAFT FOR STEERING CONTROL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11001224	Stud bolt	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	161530	COLUMN SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	162546	DOORS LOCKS SET COMPLETE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168046	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	157385	PILOT SIDE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	150945	COMPLETE THED WHEEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604079	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171835	TOOTHED WHEEL SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14303374	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152044	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156061	BUSHING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	100660	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168055	LOCK LEVER FOR STEERING COLUMN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	101611	BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155865	SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163593	SPACER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	155866	SHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65168000	UPPER COVER FOR STEERING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	148020	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168742	COLUMN SUPPORT BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163587	L.H. SLIDING ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64450700	UNDER COLUMN PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64450900	L.H. FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64450800	R.H. FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64509000	L.H. OUTER INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64508900	R.H. OUTER INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170010	BLANK KEY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63895900	LOWER COVER FOR STEERING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15896470	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12604178	Washer	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13274117	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13275217	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	164081	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	60739400	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	135355	CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	163816	CLOCK SPRING CONNECTOR RESISTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13525170	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171585	SMALL PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129544	Spring -For cars with	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	163579	R.H. SLIDING ELEMENT	163579 R.H. SLIDING ELEMENT Valid till car Ass. Nr. 30647	-	1	Enquire
-	177972	R.H. SLIDING ELEMENT	177972 R.H. SLIDING ELEMENT Valid from car Ass. Nr. 30648	-	1	Enquire
-	231620	SCREW	231620 SCREW Valid for GD	-	1	Enquire
-	177973	L.H. SLIDING ELEMENT	177973 L.H. SLIDING ELEMENT Valid from car Ass. Nr. 30648	-	1	Enquire
-	171600	COLUMN SUPPORT BRACKET	171600 COLUMN SUPPORT BRACKET Valid for GD / Valid till car Ass. Nr. 30647	-	1	Enquire
-	177992	COLUMN SUPPORT BRACKET RHD	177992 COLUMN SUPPORT BRACKET RHD Valid for GD / Valid from car Ass. Nr. 30648	-	1	Enquire
-	176144	COLUMN SUPPORT BRACKET	176144 COLUMN SUPPORT BRACKET Not for GD / Valid from car Ass. Nr. 30648	-	1	Enquire
-	175715	SHAFT	175715 SHAFT Valid from car Ass. Nr. 30648	-	1	Enquire
-	65734700	UPPER COVER FOR STEERING ROD	65734700 UPPER COVER FOR STEERING ROD ROD / Valid from car Ass. Nr. 30648	-	1	Enquire
-	162547	DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE	162547 DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE ANTI-THEFT DEVICE / Valid for USA, CDN and AUS	-	1	Enquire
-	175817	COLUMN SUPPORT	175817 COLUMN SUPPORT Valid from car Ass. Nr. 30648	-	1	Enquire
-	134068	DITTO, THICKNESS mm. 1.3	134068 DITTO, THICKNESS mm. 1.3	-	1	Enquire
-	134069	DITTO, THICKNESS mm. 1.4	134069 DITTO, THICKNESS mm. 1.4	-	1	Enquire
-	134074	DITTO, THICKNESS mm. 1.4	134074 DITTO, THICKNESS mm. 1.4	-	1	Enquire
-	134066	DITTO, THICKNESS mm. 1.1	134066 DITTO, THICKNESS mm. 1.1	-	1	Enquire
-	134067	DITTO, THICKNESS mm. 1.2	134067 DITTO, THICKNESS mm. 1.2	-	1	Enquire
-	134071	DITTO, THICKNESS mm. 1.1	134071 DITTO, THICKNESS mm. 1.1	-	1	Enquire
-	134072	DITTO, THICKNESS mm. 1.2	134072 DITTO, THICKNESS mm. 1.2	-	1	Enquire
-	134073	DITTO, THICKNESS mm. 1.3	134073 DITTO, THICKNESS mm. 1.3	-	1	Enquire
-	658422	COMPLETE STEERING WHEEL	658422 COMPLETE STEERING WHEEL	-	1	Enquire
-	175687	COMPLETE STEERING WHEEL	175687 COMPLETE STEERING WHEEL Valid for USA, CDN, AUS and J / Valid after stock exhaustion of 165021 / Not as spare part now / Replaced by 658422..	-	1	Enquire
1	175687	COMPLETE STEERING WHEEL	175687 COMPLETE STEERING WHEEL Not for USA, CDN, AUS and J / Valid till stock exhaustion	-	1	Enquire
2	13271914	SCREW -Valid for "60Â°anniversario"-	13271914 SCREW -Valid for "60Â°anniversario"-	-	3	Enquire
3	10615274	WASHER	10615274 WASHER	-	3	Enquire
4	11021111	SCREW	11021111 SCREW	-	2	Enquire
5	10730921	WASHER	10730921 WASHER	-	1	Enquire
6	157639	SPRING	157639 SPRING	-	1	Enquire
7	169471	SPIRAL CONTACT	169471 SPIRAL CONTACT	-	1	Enquire
8	101648	Ring nut	101648 Ring nut	-	1	Enquire
9	159411	UNHOOK DEVIATION ASSEMBLY	159411 UNHOOK DEVIATION ASSEMBLY	-	1	Enquire
10	11066876	SEEGER RING	11066876 SEEGER RING	-	1	Enquire
11	134070	SPACER WASHER mm. 1,0	134070 SPACER WASHER mm. 1,0 THINCKNESS mm. 1.0	-	1	Enquire
12	11060076	Seeger Ring	11060076 Seeger Ring	-	2	Enquire
13	134065	SPACER WASHER mm. 1,0	134065 SPACER WASHER mm. 1,0 THINCKNESS mm. 1.0	-	1	Enquire
14	134061	BEARING	134061 BEARING	-	2	Enquire
15	157968	UPPER SHAFT FOR STEERING CONTROL	157968 UPPER SHAFT FOR STEERING CONTROL CONTROL	-	1	Enquire
16	11001224	Stud bolt	11001224 Stud bolt	-	2	Enquire
17	161530	COLUMN SUPPORT	161530 COLUMN SUPPORT Valid till car Ass. Nr. 30647	-	1	Enquire
18	162546	DOORS LOCKS SET COMPLETE	162546 DOORS LOCKS SET COMPLETE ANTI-THEFT DEVICE / Not for USA, CDN and AUS	-	1	Enquire
19	168046	SCREW	168046 SCREW	-	1	Enquire
20	157385	PILOT SIDE SPRING	157385 PILOT SIDE SPRING	-	4	Enquire
21	12604178	Washer	12604178 Washer	-	4	Enquire
22	150945	COMPLETE THED WHEEL	150945 COMPLETE THED WHEEL	-	1	Enquire
23	12604079	WASHER	12604079 WASHER	-	1	Enquire
24	62769800	WASHER	62769800 WASHER	-	1	Enquire
25	14302921	SCREW	14302921 SCREW	-	1	Enquire
26	171835	TOOTHED WHEEL SENSOR	171835 TOOTHED WHEEL SENSOR	-	1	Enquire
27	14303374	SCREW	14303374 SCREW	-	2	Enquire
28	152044	PIN	152044 PIN	-	2	Enquire
29	156061	BUSHING	156061 BUSHING	-	4	Enquire
30	100660	WASHER	100660 WASHER	-	2	Enquire
31	147985	NUT	147985 NUT	-	2	Enquire
32	168055	LOCK LEVER FOR STEERING COLUMN	168055 LOCK LEVER FOR STEERING COLUMN COLUMN	-	1	Enquire
33	101611	BALL	101611 BALL	-	1	Enquire
34	155865	SPRING	155865 SPRING	-	1	Enquire
35	163593	SPACER	163593 SPACER	-	2	Enquire
36	155866	SHAFT	155866 SHAFT Valid till car Ass. Nr. 30647	-	1	Enquire
37	65168000	UPPER COVER FOR STEERING ROD	65168000 UPPER COVER FOR STEERING ROD ROD / Valid till car Ass. Nr. 30647	-	1	Enquire
38	148020	NUT	148020 NUT	-	1	Enquire
39	168742	COLUMN SUPPORT BRACKET	168742 COLUMN SUPPORT BRACKET Not for GD / Valid till car Ass. Nr. 30647	-	1	Enquire
40	10902524	SCREW	10902524 SCREW For GD quantity 5	-	6	Enquire
41	163587	L.H. SLIDING ELEMENT	163587 L.H. SLIDING ELEMENT Valid till car Ass. Nr. 30647	-	1	Enquire
42	10519424	WASHER	10519424 WASHER	-	6	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
44	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	6	Enquire
45	14498801	WASHER	14498801 WASHER	-	6	Enquire
46	64450700	UNDER COLUMN PLATE	64450700 UNDER COLUMN PLATE	-	1	Enquire
47	64450900	L.H. FILLER	64450900 L.H. FILLER	-	1	Enquire
48	64450800	R.H. FILLER	64450800 R.H. FILLER	-	1	Enquire
49	64509000	L.H. OUTER INSERT	64509000 L.H. OUTER INSERT	-	1	Enquire
50	64508900	R.H. OUTER INSERT	64508900 R.H. OUTER INSERT	-	1	Enquire
51	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
52	170010	BLANK KEY	170010 BLANK KEY	-	1	Enquire
53	63895900	LOWER COVER FOR STEERING ROD	63895900 LOWER COVER FOR STEERING ROD ROD	-	1	Enquire
54	15896470	NUT	15896470 NUT	-	2	Enquire
55	12604178	Washer	12604178 Washer	-	2	Enquire
56	13274117	SCREW	13274117 SCREW	-	4	Enquire
57	13275217	SCREW	13275217 SCREW	-	2	Enquire
58	164081	SMALL PLATE	164081 SMALL PLATE	-	1	Enquire
59	60739400	RIVET	60739400 RIVET	-	2	Enquire
60	135355	CONNECTOR	135355 CONNECTOR	-	1	Enquire
61	163816	CLOCK SPRING CONNECTOR RESISTOR	163816 CLOCK SPRING CONNECTOR RESISTOR	-	1	Enquire
62	13525170	THREADED INSERT	13525170 THREADED INSERT	-	4	Enquire
63	171585	SMALL PLATE	171585 SMALL PLATE Valid for GD	-	1	Enquire
64	129544	Spring -For cars with	129544 Spring -For cars with Valid for GD	-	1	Enquire
