TUNNEL - INNER TRIMS of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - TUNNEL - INNER TRIMS

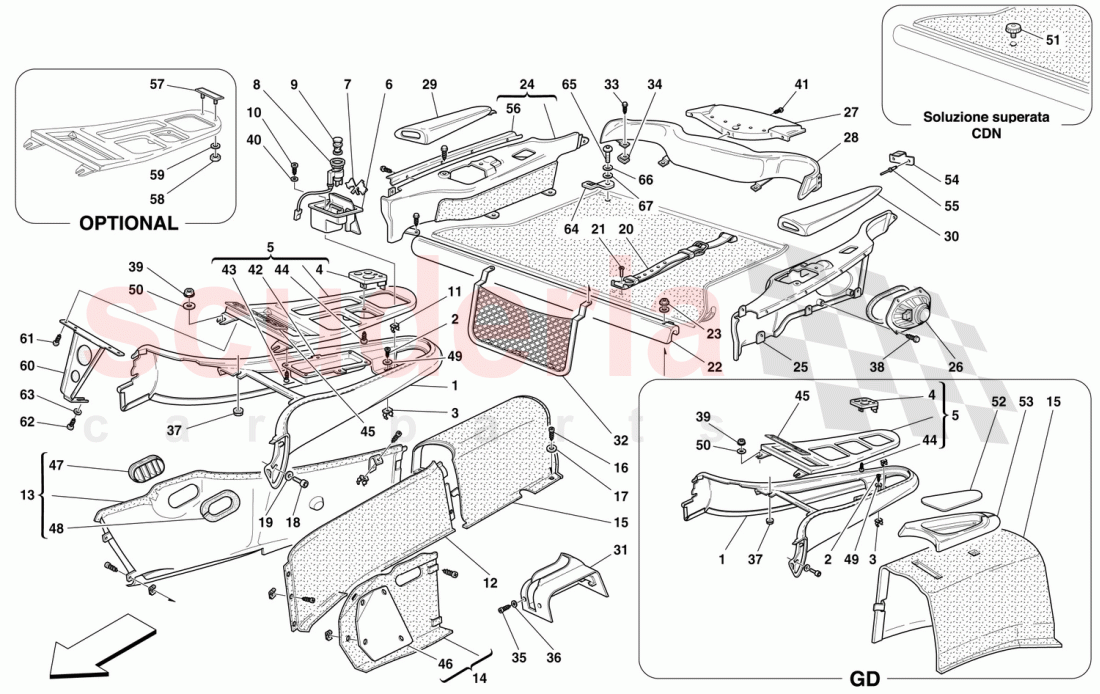

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	647035	TUNNEL COVER CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	168133	Screw M5 x 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14115580	FIXING BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64589200	SWITCH HOLDER UPPER PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	647054	COMPLETE UPPER PANEL FOR CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	67505800	Ash Tray	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64460400	FERRARI-PININFARINA FLAGS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226941	CIGARETTE LIGHTER SOCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	226942	CIGARETTE LIGHTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688375	SELF-TAPPING SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14202782	BLOCK -Valid for SA-	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	649471	L.H. CENTRAL LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645887	R.H. LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645852	COMPLETE LH FRONT LATERAL COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645851	TUNNEL REAR COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15687270	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519304	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16297024	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519278	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64923000	COMPLETE BELT FOR SUIT CASE FASTENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65197800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651224	BAGS RETAINING MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	169209	REAR LOUD SPEAKER WOOFER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	651878	STOP LAMP SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645956	UNDER REAR-WINDOW COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645955	R.H. BELT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645841	L.H. BELT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	646841	MOULDING FOR HAND-BRAKE LEVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	649231	SEAT BACK POCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15803007	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14371974	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15691377	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13337407	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15782601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62769800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15782601	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64706900	UTILITY CONTAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15686170	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15901575	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65260200	550maranello EMBLEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63784900	CARPET PROTECTION PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783700	AIR OPENING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	63783800	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12642821	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65420000	BUTTON WITH PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	652744	COVERED END PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	652741	GLOVE COMPARTMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	64946300	STOP LAMP TIGHTENING SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14643890	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	645898	R.H. LOWER MOULDING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65643100	DEDICATION PLAQUE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	16101714	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	20159109	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66076600	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	15688875	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11022511	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12638124	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66154400	BELT FASTENER BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	66624800	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13550405	WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	82633100	SCREW	82633100 SCREW Valid for AUS	-	1	Enquire
-	645839	L.H. LOWER MOULDING	645839 L.H. LOWER MOULDING	-	1	Enquire
-	652043	MOULDING FOR HAND-BRAKE LEVER	652043 MOULDING FOR HAND-BRAKE LEVER Valid for GD	-	1	Enquire
-	652756	UNDER REAR-WINDOW COVER	652756 UNDER REAR-WINDOW COVER Valid from car Ass. Nr. 24840	-	1	Enquire
-	651109	COMPLETE LH FRONT LATERAL COVER	651109 COMPLETE LH FRONT LATERAL COVER COVER / Valid for GD	-	1	Enquire
-	651111	TUNNEL REAR COVER	651111 TUNNEL REAR COVER Valid for GD	-	1	Enquire
-	651139	L.H. CENTRAL LATERAL COVER	651139 L.H. CENTRAL LATERAL COVER Valid for GD	-	1	Enquire
-	651142	R.H. LATERAL COVER	651142 R.H. LATERAL COVER Valid for GD	-	1	Enquire
-	659684	COMPLETE UPPER PANEL FOR CONSOLE	659684 COMPLETE UPPER PANEL FOR CONSOLE CONSOLE / Valid for GD / Valid for cars with car stereo BECKER	-	1	Enquire
-	659700	COMPLETE UPPER PANEL FOR CONSOLE	659700 COMPLETE UPPER PANEL FOR CONSOLE CONSOLE / Not for GD / Valid for cars with car stereo BECKER	-	1	Enquire
-	651148	COMPLETE UPPER PANEL FOR CONSOLE	651148 COMPLETE UPPER PANEL FOR CONSOLE CONSOLE / Valid for GD / Valid for cars with car stereo SONY	-	1	Enquire
-	651146	TUNNEL COVER CONSOLE	651146 TUNNEL COVER CONSOLE Valid for GD	-	1	Enquire
-	647053	LINING	647053 LINING Not for GD	-	1	Enquire
-	651666	LINING	651666 LINING Valid for GD	-	1	Enquire
1	647035	TUNNEL COVER CONSOLE	647035 TUNNEL COVER CONSOLE Not for GD	-	1	Enquire
2	168133	Screw M5 x 20	168133 Screw M5 x 20	-	2	Enquire
3	14115580	FIXING BLOCK	14115580 FIXING BLOCK	-	2	Enquire
4	64589200	SWITCH HOLDER UPPER PLATE	64589200 SWITCH HOLDER UPPER PLATE	-	1	Enquire
5	647054	COMPLETE UPPER PANEL FOR CONSOLE	647054 COMPLETE UPPER PANEL FOR CONSOLE CONSOLE / Not for GD / Valid for cars with car stereo SONY	-	1	Enquire
6	67505800	Ash Tray	67505800 Ash Tray	-	1	Enquire
7	64460400	FERRARI-PININFARINA FLAGS	64460400 FERRARI-PININFARINA FLAGS	-	1	Enquire
8	226941	CIGARETTE LIGHTER SOCKET	226941 CIGARETTE LIGHTER SOCKET	-	1	Enquire
9	226942	CIGARETTE LIGHTER	226942 CIGARETTE LIGHTER	-	1	Enquire
10	15688375	SELF-TAPPING SCREW	15688375 SELF-TAPPING SCREW	-	1	Enquire
11	14202782	BLOCK -Valid for SA-	14202782 BLOCK -Valid for SA-	-	1	Enquire
12	649471	L.H. CENTRAL LATERAL COVER	649471 L.H. CENTRAL LATERAL COVER Not for GD	-	1	Enquire
13	645887	R.H. LATERAL COVER	645887 R.H. LATERAL COVER Not for GD	-	1	Enquire
14	645852	COMPLETE LH FRONT LATERAL COVER	645852 COMPLETE LH FRONT LATERAL COVER COVER / Not for GD	-	1	Enquire
15	645851	TUNNEL REAR COVER	645851 TUNNEL REAR COVER Not for GD	-	1	Enquire
16	15687270	SCREW	15687270 SCREW	-	2	Enquire
17	10519304	WASHER	10519304 WASHER	-	2	Enquire
18	16297024	SCREW	16297024 SCREW	-	4	Enquire
19	10519278	WASHER	10519278 WASHER	-	2	Enquire
20	64923000	COMPLETE BELT FOR SUIT CASE FASTENING	64923000 COMPLETE BELT FOR SUIT CASE FASTENING CASE FASTENING	-	2	Enquire
21	65197800	SCREW	65197800 SCREW	-	8	Enquire
22	651224	BAGS RETAINING MOULDING	651224 BAGS RETAINING MOULDING	-	1	Enquire
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	5	Enquire
26	169209	REAR LOUD SPEAKER WOOFER	169209 REAR LOUD SPEAKER WOOFER	-	2	Enquire
27	651878	STOP LAMP SUPPORT	651878 STOP LAMP SUPPORT	-	1	Enquire
28	645956	UNDER REAR-WINDOW COVER	645956 UNDER REAR-WINDOW COVER Valid till car Ass. Nr. 24839	-	1	Enquire
29	645955	R.H. BELT COVER	645955 R.H. BELT COVER	-	1	Enquire
30	645841	L.H. BELT COVER	645841 L.H. BELT COVER	-	1	Enquire
31	646841	MOULDING FOR HAND-BRAKE LEVER	646841 MOULDING FOR HAND-BRAKE LEVER Not for GD	-	1	Enquire
32	649231	SEAT BACK POCKET	649231 SEAT BACK POCKET	-	1	Enquire
33	15803007	SCREW	15803007 SCREW	-	4	Enquire
34	14371974	BRACKET	14371974 BRACKET	-	4	Enquire
35	15691377	SCREW	15691377 SCREW	-	2	Enquire
36	13337407	WASHER	13337407 WASHER	-	2	Enquire
37	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
38	15782601	SCREW	15782601 SCREW	-	8	Enquire
39	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
40	62769800	WASHER	62769800 WASHER	-	1	Enquire
41	15782601	SCREW	15782601 SCREW	-	3	Enquire
42	64706900	UTILITY CONTAINER	64706900 UTILITY CONTAINER Not for GD	-	1	Enquire
43	15686170	SCREW	15686170 SCREW	-	6	Enquire
44	15901575	SCREW	15901575 SCREW	-	4	Enquire
45	65260200	550maranello EMBLEM	65260200 550maranello EMBLEM	-	1	Enquire
46	63784900	CARPET PROTECTION PLATE	63784900 CARPET PROTECTION PLATE	-	1	Enquire
47	63783700	AIR OPENING	63783700 AIR OPENING	-	2	Enquire
48	63783800	GASKET	63783800 GASKET	-	2	Enquire
49	12642821	WASHER	12642821 WASHER	-	2	Enquire
50	12642821	WASHER	12642821 WASHER	-	2	Enquire
51	65420000	BUTTON WITH PIN	65420000 BUTTON WITH PIN Valid for CDN	-	1	Enquire
52	652744	COVERED END PLATE	652744 COVERED END PLATE Valid for GD	-	1	Enquire
53	652741	GLOVE COMPARTMENT	652741 GLOVE COMPARTMENT Valid for GD	-	1	Enquire
54	64946300	STOP LAMP TIGHTENING SUPPORT	64946300 STOP LAMP TIGHTENING SUPPORT	-	1	Enquire
55	14643890	RIVET	14643890 RIVET	-	2	Enquire
56	645898	R.H. LOWER MOULDING	645898 R.H. LOWER MOULDING	-	1	Enquire
57	65643100	DEDICATION PLAQUE	65643100 DEDICATION PLAQUE Optional	-	1	Enquire
58	16101714	NUT	16101714 NUT Optional	-	2	Enquire
59	20159109	WASHER	20159109 WASHER Optional	-	2	Enquire
60	66076600	BRACKET	66076600 BRACKET Valid for cars with car stereo BECKER	-	1	Enquire
61	15688875	SCREW	15688875 SCREW Valid for cars with car stereo BECKER	-	4	Enquire
62	11022511	SCREW	11022511 SCREW Valid for cars with car stereo BECKER	-	1	Enquire
63	12638124	WASHER	12638124 WASHER Valid for cars with car stereo BECKER	-	1	Enquire
64	66154400	BELT FASTENER BRACKET	66154400 BELT FASTENER BRACKET Valid for USA, CDN and AUS	-	1	Enquire
65	66624800	SCREW	66624800 SCREW Valid for USA and CDN	-	1	Enquire
66	12601374	WASHER	12601374 WASHER Valid for USA, CDN and AUS	-	1	Enquire
67	13550405	WASHER	13550405 WASHER Valid for USA, CDN and AUS	-	1	Enquire
