Name: CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS/ASR SYSTEM
Rating: 5.0 (1 reviews)

CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS/ASR SYSTEM of Ferrari Ferrari 550 Maranello

View All

Ferrari 550 Maranello - CONTROL UNIT AND HYDRAULIC EQUIPMENT FOR ABS/ASR SYSTEM

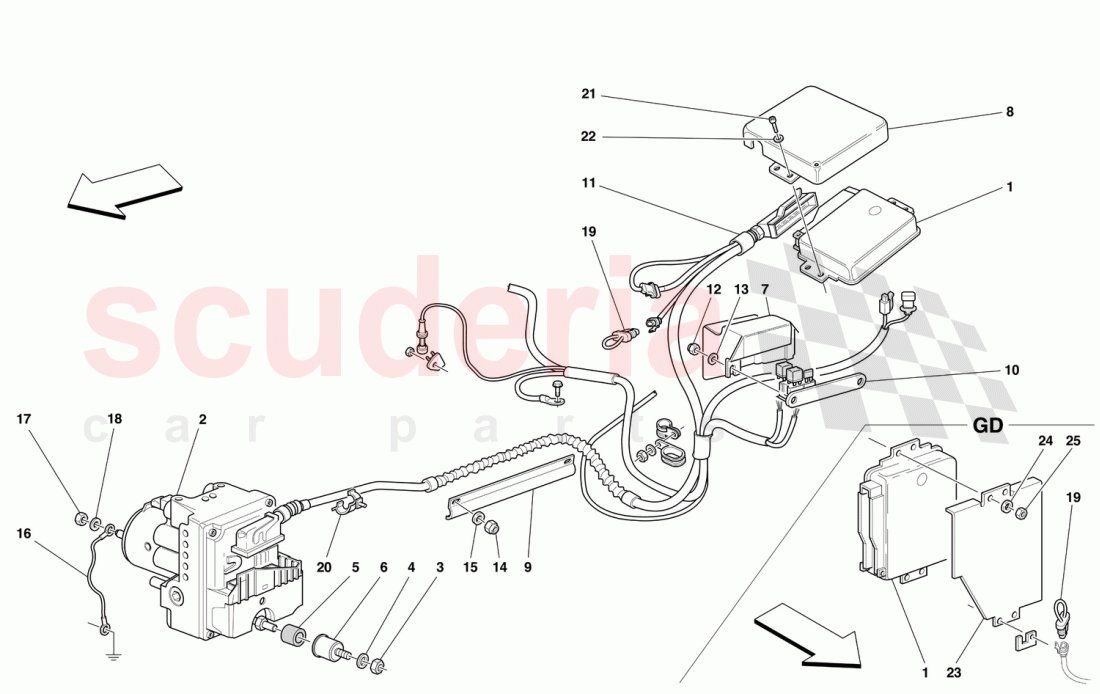

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	164682	ABS/ASR ELECTRONIC CONTROL STATION	$3,972.99	To Order

Photo	Part No	Description	Price (each)	Stock
	164001	ABS/ASR HYDRAULIC CONTROL STATION	$3,309.95	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	154553	SMALL BLOCK	$2.01	To Order

Photo	Part No	Description	Price (each)	Stock
	127614	Cup to fix. control unit	$2.71	To Order

Photo	Part No	Description	Price (each)	Stock
	155056	ABS RELAY COVER	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	168912	ABS/ASR CONTROL STATION COVER	$40.10	To Order

Photo	Part No	Description	Price (each)	Stock
	171020	PROTECTION -Valid for GD-	$24.05	To Order

Photo	Part No	Description	Price (each)	Stock
	155055	SUPPORT BRACKET	$7.26	To Order

Photo	Part No	Description	Price (each)	Stock
	164672	ABS/ASR INSTALLATION CABLES	$609.73	To Order

Photo	Part No	Description	Price (each)	Stock
	319201	FUEL FILLER PIPE ASSEMBLY	$770.19	To Order

Photo	Part No	Description	Price (each)	Stock
	14496324	WASHER	$3.23	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	166854	GROUND CABLE	$5.45	To Order

Photo	Part No	Description	Price (each)	Stock
	62790300	NUT	$0.31	To Order

Photo	Part No	Description	Price (each)	Stock
	12642877	WASHER	$0.10	To Order

Photo	Part No	Description	Price (each)	Stock
	170789	CONNECTOR	$10.76	To Order

Photo	Part No	Description	Price (each)	Stock
	157385	PILOT SIDE SPRING	$0.18	To Order

Photo	Part No	Description	Price (each)	Stock
	14305234	SCREW	$0.26	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	175356	ABS/ASR CONTROL UNIT PROTECTION	$104.06	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.51	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
-	179064	ABS/ASR INSTALLATION CABLES	179064 ABS/ASR INSTALLATION CABLES Valid for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	$657.87	1
-	171388	ABS/ASR INSTALLATION CABLES	171388 ABS/ASR INSTALLATION CABLES Valid for GD	$621.34	1
-	171817	ABS/ASR CONTROL STATION COVER	171817 ABS/ASR CONTROL STATION COVER Valid for GD	$48.12	1
1	164682	ABS/ASR ELECTRONIC CONTROL STATION	164682 ABS/ASR ELECTRONIC CONTROL STATION	$3,972.99	1
2	164001	ABS/ASR HYDRAULIC CONTROL STATION	164001 ABS/ASR HYDRAULIC CONTROL STATION	$3,309.95	1
3	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	3
4	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	3
5	154553	SMALL BLOCK	154553 SMALL BLOCK	$2.01	3
6	127614	Cup to fix. control unit	127614 Cup to fix. control unit	$2.71	3
7	155056	ABS RELAY COVER	155056 ABS RELAY COVER	$24.05	1
8	168912	ABS/ASR CONTROL STATION COVER	168912 ABS/ASR CONTROL STATION COVER Not for GD	$40.10	1
9	171020	PROTECTION -Valid for GD-	171020 PROTECTION -Valid for GD-	$24.05	1
10	155055	SUPPORT BRACKET	155055 SUPPORT BRACKET	$7.26	1
11	164672	ABS/ASR INSTALLATION CABLES	164672 ABS/ASR INSTALLATION CABLES Not for GD / Not for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	$609.73	1
12	319201	FUEL FILLER PIPE ASSEMBLY	319201 FUEL FILLER PIPE ASSEMBLY	$770.19	2
13	14496324	WASHER	14496324 WASHER	$3.23	2
14	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	$1.51	2
15	10519424	WASHER	10519424 WASHER	$0.02 MSRP: ~~0.25~~ (92% off)	2
16	166854	GROUND CABLE	166854 GROUND CABLE	$5.45	1
17	62790300	NUT	62790300 NUT	$0.31 MSRP: ~~0.75~~ (58.7% off)	1
18	12642877	WASHER	12642877 WASHER	$0.10	1
19	170789	CONNECTOR	170789 CONNECTOR	$10.76	1
20	157385	PILOT SIDE SPRING	157385 PILOT SIDE SPRING	$0.18	3
21	14305234	SCREW	14305234 SCREW	$0.26	4
22	127494	WASHER	127494 WASHER	$0.08 MSRP: ~~0.68~~ (88.2% off)	4
23	175356	ABS/ASR CONTROL UNIT PROTECTION	175356 ABS/ASR CONTROL UNIT PROTECTION PROTECTION / Valid for GD	$104.06	1
24	127494	WASHER	127494 WASHER Valid for GD	$0.08 MSRP: ~~0.68~~ (88.2% off)	4
25	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for GD	$1.51	4
