FUEL COOLING SYSTEM -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001 of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - FUEL COOLING SYSTEM -Valid for USA M.Y. 99, CDN M.Y. 99, USA M.Y. 2000, CDN M.Y. 2000, USA M.Y. 2001

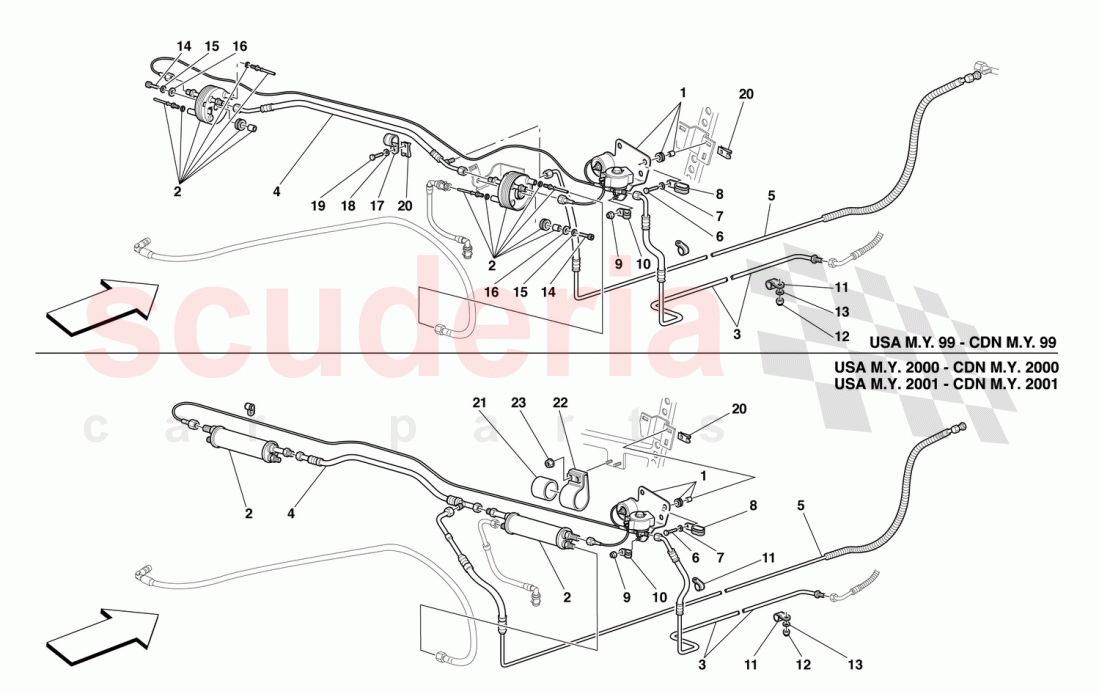

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	65864300	COMPLETE SOLENOID VALVE BODY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179811	FUEL/FREON HEAT EXCHANGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65857000	INLET GAS PIPE TO VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65857400	EXCHANGER PIPE CONNECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	65857500	UNDERFLOOR SUCTION GAS PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	231625	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10440990	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127496	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	81591700	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62766300	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	181267	SLEEVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	180941	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	65930300	UNDERFLOOR SUCTION GAS PIPE	65930300 UNDERFLOOR SUCTION GAS PIPE GAS PIPE / Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
-	65930200	EXCHANGER PIPE CONNECTION	65930200 EXCHANGER PIPE CONNECTION CONNECTION / Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
-	181266	COMPLETE FUEL/FREON HEAT EXCHANGER	181266 COMPLETE FUEL/FREON HEAT EXCHANGER EXCHANGER / Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
1	65864300	COMPLETE SOLENOID VALVE BODY	65864300 COMPLETE SOLENOID VALVE BODY BODY	-	1	Enquire
2	179811	FUEL/FREON HEAT EXCHANGER	179811 FUEL/FREON HEAT EXCHANGER EXCHANGER / Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
3	65857000	INLET GAS PIPE TO VALVE	65857000 INLET GAS PIPE TO VALVE	-	1	Enquire
4	65857400	EXCHANGER PIPE CONNECTION	65857400 EXCHANGER PIPE CONNECTION CONNECTION / Valid for USA M.Y. 99 and CDN M.Y. 99	-	1	Enquire
5	65857500	UNDERFLOOR SUCTION GAS PIPE	65857500 UNDERFLOOR SUCTION GAS PIPE GAS PIPE / Valid for USA M.Y. 99 and CDN M.Y. 99	-	1	Enquire
6	231625	SCREW	231625 SCREW	-	3	Enquire
7	127494	WASHER	127494 WASHER	-	3	Enquire
8	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH	-	1	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
10	10440990	BRACKET WITH SHEATH	10440990 BRACKET WITH SHEATH	-	1	Enquire
11	10441290	BRACKET WITH SHEATH	10441290 BRACKET WITH SHEATH	-	12	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	12	Enquire
13	10519424	WASHER	10519424 WASHER	-	12	Enquire
14	14306374	ALLEN SCREW SOCKET HEAD M8 X 20	14306374 ALLEN SCREW SOCKET HEAD M8 X 20 Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
15	127496	WASHER	127496 WASHER Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
16	84653800	WASHER	84653800 WASHER Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
17	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
18	127494	WASHER	127494 WASHER Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
19	81591700	SCREW	81591700 SCREW Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
20	62766300	CLIP	62766300 CLIP For USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001 q.ty 3	-	5	Enquire
21	181267	SLEEVE	181267 SLEEVE Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
22	180941	CLAMP	180941 CLAMP Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
23	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	4	Enquire
