FUEL SUPPLY SYSTEM of Ferrari Ferrari 550 Maranello (2011-2012)

View All

Ferrari 550 Maranello (2011-2012) - FUEL SUPPLY SYSTEM

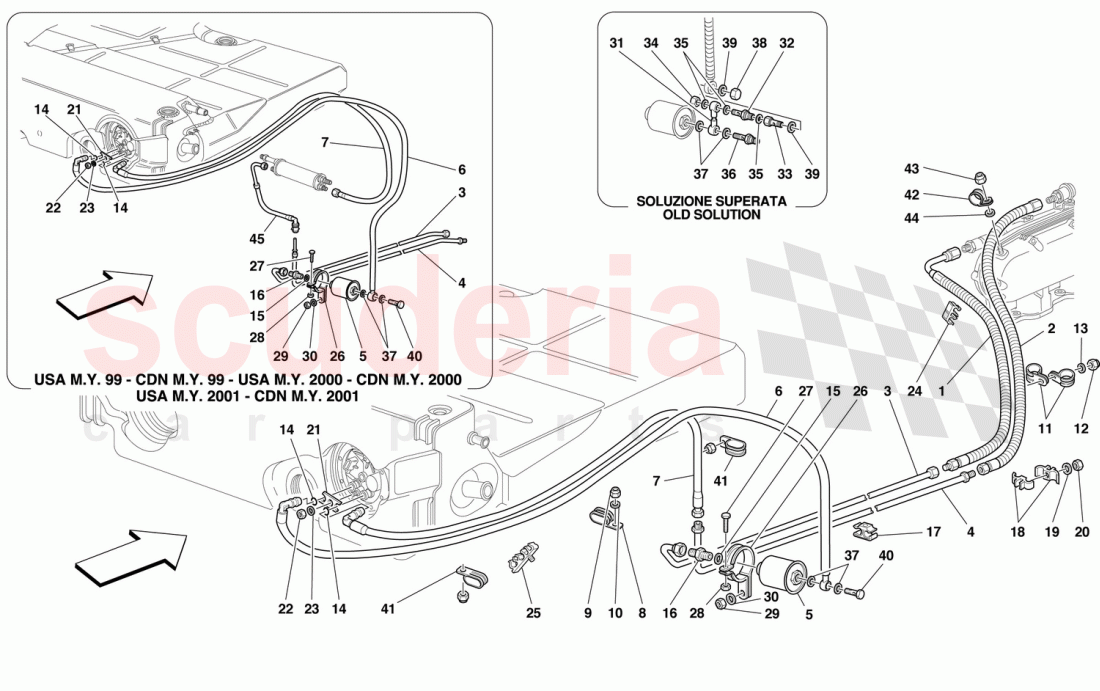

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	178525	R.H. DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179164	R.H. RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166738	R.H. DELIVERY RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	166740	R.H. AND L.H. RETURN RIGID PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186922	Fuel Filter	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170432	R.H. AND L.H. REAR DELIVERY PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	170431	R.H. AND L.H. REAR RETURN PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	291225	P clip Bracket With Sheath	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	127816	O-RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10261060	GASKET COPPER 12 - 16 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	109797	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	232649	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	62658800	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	129316	R.H. SAFETY PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14054577	CAP NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WAVY WASHER D.6.4 X 12 X 1.2	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140730	FASTENER CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	156548	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	152885	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10902424	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	147985	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	84653800	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173034	DOUBLE SWINGING UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	120098	Not return valve	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	173037	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10183217	PLUG FOR UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10298460	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	171996	UNION WITH VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10182817	THREADED PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	277407	HOSE CONNECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	139512	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	10441790	BRACKET WITH SHEATH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	179363	RH FUEL TUBE FROM EXCHANGER TO RIGID PIPE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	179364	LH FUEL TUBE FROM EXCHANGER TO RIGID PIPE	179364 LH FUEL TUBE FROM EXCHANGER TO RIGID PIPE TO RIGID PIPE / Valid for USA M.Y. 99 and CDN M.Y. 99	-	1	Enquire
-	180943	FUEL TUBE FROM EXCHANGER TO RIGID PIPE	180943 FUEL TUBE FROM EXCHANGER TO RIGID PIPE TO RIGID PIPE / Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
-	138478	BRACKET WITH SHEATH	138478 BRACKET WITH SHEATH L.H. side	-	1	Enquire
-	178778	R.H. AND L.H. REAR RETURN PIPE	178778 R.H. AND L.H. REAR RETURN PIPE Valid for USA M.Y. 99 and CDN M.Y. 99	-	2	Enquire
-	182726	R.H. AND L.H. REAR RETURN PIPE	182726 R.H. AND L.H. REAR RETURN PIPE Valid for USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
-	170431	R.H. AND L.H. REAR RETURN PIPE	170431 R.H. AND L.H. REAR RETURN PIPE Not for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
-	186922	Fuel Filter	186922 Fuel Filter Valid after stock exhaustion of 152212	-	1	Enquire
-	170432	R.H. AND L.H. REAR DELIVERY PIPE	170432 R.H. AND L.H. REAR DELIVERY PIPE	-	2	Enquire
-	178777	L.H. RETURN RIGID PIPE	178777 L.H. RETURN RIGID PIPE Valid for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
-	179365	R.H. RETURN RIGID PIPE	179365 R.H. RETURN RIGID PIPE Valid for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
-	179366	R.H. DELIVERY RIGID PIPE	179366 R.H. DELIVERY RIGID PIPE Valid for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
-	166739	L.H. DELIVERY RIGID PIPE	166739 L.H. DELIVERY RIGID PIPE	-	1	Enquire
-	179162	L.H. RETURN PIPE	179162 L.H. RETURN PIPE Valid for GD / Valid from car Ass. Nr. 32105	-	1	Enquire
-	179164	R.H. RETURN PIPE	179164 R.H. RETURN PIPE Valid for GD / Valid till car Ass. Nr. 32104	-	1	Enquire
-	179356	R.H. RETURN PIPE	179356 R.H. RETURN PIPE Not for GD / Valid till car Ass. Nr. 32101 and / till car Ass. Nr. 32056 M.Y. 99	-	1	Enquire
-	179165	R.H. RETURN PIPE	179165 R.H. RETURN PIPE Not for GD / Valid from car Ass. Nr. 32102 and / from car Ass. Nr. 32057 M.Y. 99	-	1	Enquire
-	179356	R.H. RETURN PIPE	179356 R.H. RETURN PIPE Valid for GD / Valid till car Ass. Nr. 32104	-	1	Enquire
-	179165	R.H. RETURN PIPE	179165 R.H. RETURN PIPE Valid for GD / Valid from car Ass. Nr. 32105	-	1	Enquire
-	179164	R.H. RETURN PIPE	179164 R.H. RETURN PIPE Not for GD	-	1	Enquire
-	178301	R.H. RETURN PIPE	178301 R.H. RETURN PIPE Valid for GD / Not as spare part now / Replaced by 179356	-	1	Enquire
-	178522	L.H. DELIVERY PIPE	178522 L.H. DELIVERY PIPE Not for GD	-	1	Enquire
-	178523	L.H. DELIVERY PIPE	178523 L.H. DELIVERY PIPE Valid for GD	-	1	Enquire
-	178525	R.H. DELIVERY PIPE	178525 R.H. DELIVERY PIPE Not for GD	-	1	Enquire
-	178524	R.H. DELIVERY PIPE	178524 R.H. DELIVERY PIPE Valid for GD	-	1	Enquire
1	178525	R.H. DELIVERY PIPE	178525 R.H. DELIVERY PIPE Not for GD / Not as spare part now / Replaced by 178525	-	1	Enquire
2	179164	R.H. RETURN PIPE	179164 R.H. RETURN PIPE Not for GD / Not as spare part now / Replaced by 179164	-	1	Enquire
3	166738	R.H. DELIVERY RIGID PIPE	166738 R.H. DELIVERY RIGID PIPE Not for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	1	Enquire
4	166740	R.H. AND L.H. RETURN RIGID PIPE	166740 R.H. AND L.H. RETURN RIGID PIPE Not for USA M.Y. 99, CDN M.Y. 99, / USA M.Y. 2000, CDN M.Y. 2000, / USA M.Y. 2001 and CDN M.Y. 2001	-	2	Enquire
5	186922	Fuel Filter	186922 Fuel Filter	-	2	Enquire
6	170432	R.H. AND L.H. REAR DELIVERY PIPE	170432 R.H. AND L.H. REAR DELIVERY PIPE Not as spare part now / Replaced by 170432	-	2	Enquire
7	170431	R.H. AND L.H. REAR RETURN PIPE	170431 R.H. AND L.H. REAR RETURN PIPE Not as spare part now / Replaced by 170431	-	2	Enquire
8	61712500	BRACKET WITH SHEATH	61712500 BRACKET WITH SHEATH R.H. side	-	1	Enquire
9	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
10	12643724	WASHER	12643724 WASHER	-	2	Enquire
11	291225	P clip Bracket With Sheath	291225 P clip Bracket With Sheath	-	2	Enquire
12	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
13	12643724	WASHER	12643724 WASHER	-	2	Enquire
14	127816	O-RING	127816 O-RING	-	4	Enquire
15	10261060	GASKET COPPER 12 - 16 X 1.5	10261060 GASKET COPPER 12 - 16 X 1.5	-	2	Enquire
16	109797	UNION	109797 UNION	-	2	Enquire
17	232649	CLIP	232649 CLIP	-	12	Enquire
18	62658800	CLIP	62658800 CLIP	-	2	Enquire
19	12643724	WASHER	12643724 WASHER	-	1	Enquire
20	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	1	Enquire
21	129316	R.H. SAFETY PLATE	129316 R.H. SAFETY PLATE	-	2	Enquire
22	14054577	CAP NUT	14054577 CAP NUT	-	2	Enquire
23	11197774	WAVY WASHER D.6.4 X 12 X 1.2	11197774 WAVY WASHER D.6.4 X 12 X 1.2	-	2	Enquire
24	140730	FASTENER CLIP	140730 FASTENER CLIP	-	6	Enquire
25	156548	CLIP	156548 CLIP	-	2	Enquire
26	152885	BRACKET WITH SHEATH	152885 BRACKET WITH SHEATH	-	2	Enquire
27	10902424	SCREW	10902424 SCREW	-	2	Enquire
28	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6	-	2	Enquire
29	147985	NUT	147985 NUT	-	2	Enquire
30	84653800	WASHER	84653800 WASHER	-	2	Enquire
31	173034	DOUBLE SWINGING UNION	173034 DOUBLE SWINGING UNION	-	2	Enquire
32	120098	Not return valve	120098 Not return valve	-	2	Enquire
33	173037	UNION	173037 UNION	-	2	Enquire
34	10183217	PLUG FOR UNION	10183217 PLUG FOR UNION	-	2	Enquire
35	10298460	GASKET	10298460 GASKET	-	6	Enquire
36	171996	UNION WITH VALVE	171996 UNION WITH VALVE	-	2	Enquire
37	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	4	Enquire
38	10182817	THREADED PLUG	10182817 THREADED PLUG	-	2	Enquire
39	10280060	WASHER COPPER D14. 20 X 1.5	10280060 WASHER COPPER D14. 20 X 1.5	-	4	Enquire
40	277407	HOSE CONNECTOR	277407 HOSE CONNECTOR	-	2	Enquire
41	139512	BRACKET WITH SHEATH	139512 BRACKET WITH SHEATH	-	4	Enquire
42	10441790	BRACKET WITH SHEATH	10441790 BRACKET WITH SHEATH Valid from car Ass. Nr. 32102 GS, / from car Ass. Nr. 32105 GD and / from car Ass. Nr. 32057 M.Y. 99	-	2	Enquire
43	14059290	FLANGED NUT M6	14059290 FLANGED NUT M6 Valid from car Ass. Nr. 32102 GS, / from car Ass. Nr. 32105 GD and / from car Ass. Nr. 32057 M.Y. 99	-	2	Enquire
44	12643724	WASHER	12643724 WASHER Valid from car Ass. Nr. 32102 GS, / from car Ass. Nr. 32105 GD and / from car Ass. Nr. 32057 M.Y. 99	-	2	Enquire
45	179363	RH FUEL TUBE FROM EXCHANGER TO RIGID PIPE	179363 RH FUEL TUBE FROM EXCHANGER TO RIGID PIPE TO RIGID PIPE / Valid for USA M.Y. 99 and CDN M.Y. 99	-	1	Enquire
