Name: CRANKCASE
Rating: 4.1 (1 reviews)

CRANKCASE of Ferrari Ferrari 550 Maranello

View All

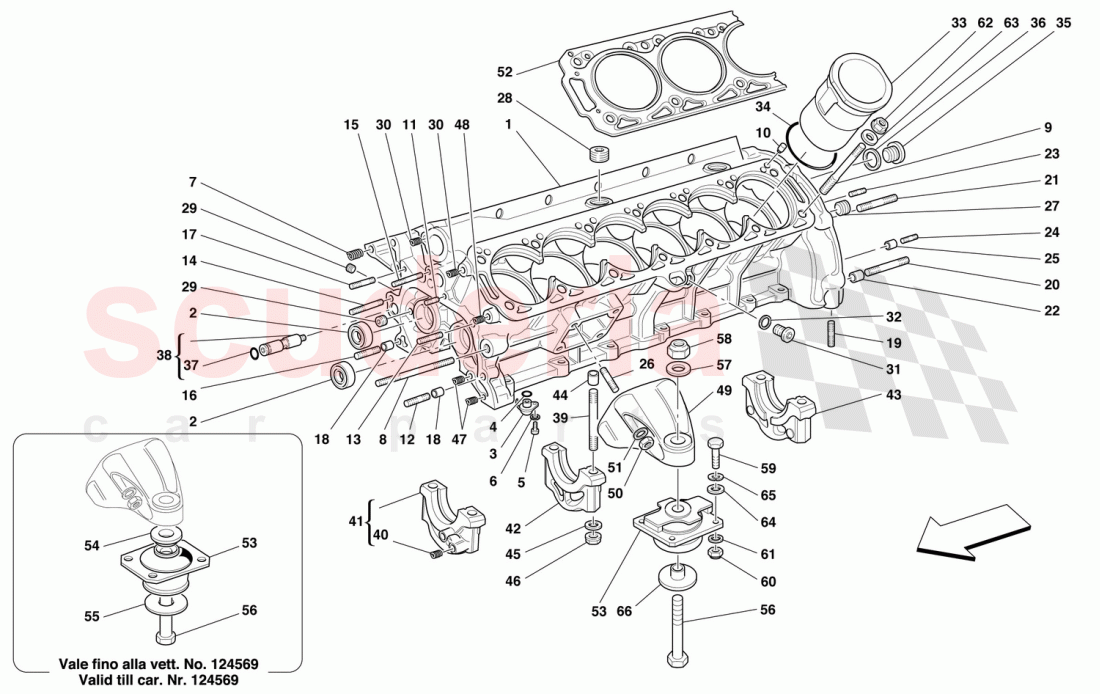

Ferrari 550 Maranello - CRANKCASE

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	171622	COMPLETE CRANKCASE	$8,302.76	To Order

Photo	Part No	Description	Price (each)	Stock
	171177	BALL RACE BEARING	$19.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	196231	PISTON COOLING NOZZLE	$52.94	To Order

Photo	Part No	Description	Price (each)	Stock
	143856	O-RING	$0.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14303123	SCREW	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	13526170	THREADED INSERT	$4.26	To Order

Photo	Part No	Description	Price (each)	Stock
	13972234	STUD BOLT	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	140591	STUD BOLT	$6.90	To Order

Photo	Part No	Description	Price (each)	Stock
	163121	DOWEL	$1.51	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$157.75	To Order

Photo	Part No	Description	Price (each)	Stock
	13543924	Stud Bolt	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	$4.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13541924	STUD BOLT	$1.35	To Order

Photo	Part No	Description	Price (each)	Stock
	13541724	STUD BOLT	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	13543424	STUD BOLT	$1.88	To Order

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100041	CENTERING DOWEL	$7.37	To Order

Photo	Part No	Description	Price (each)	Stock
	13517224	STUD BOLT	$0.78	To Order

Photo	Part No	Description	Price (each)	Stock
	13543924	Stud Bolt	$1.57	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.19	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.95	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13541024	STUD BOLT	$0.32	To Order

Photo	Part No	Description	Price (each)	Stock
	13541224	STUD BOLT	$157.75	To Order

Photo	Part No	Description	Price (each)	Stock
	103038	DOWEL	$1.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546524	STUD BOLT	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	163528	THREADED PLUG	$4.04	To Order

Photo	Part No	Description	Price (each)	Stock
	14325540	THREADED PLUG	$9.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10275550	THREADED PLUG	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock
	13525870	THREADED INSERT	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	150731	CAP	$3.86	To Order

Photo	Part No	Description	Price (each)	Stock
	10280060	WASHER COPPER D14. 20 X 1.5	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140316	CYLINDER LINER	$1,201.23	To Order

Photo	Part No	Description	Price (each)	Stock
	140321	GASKET	$7.03	To Order

Photo	Part No	Description	Price (each)	Stock
	10304640	THREADED PLUG	$5.35	To Order

Photo	Part No	Description	Price (each)	Stock
	10264560	GASKET	$0.47	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134232	O-RING	$1.28	To Order

Photo	Part No	Description	Price (each)	Stock
	151160	OIL PRESSURE LIMITING VALVE	$178.45	To Order

Photo	Part No	Description	Price (each)	Stock
	140553	STUD	$7.23	To Order

Photo	Part No	Description	Price (each)	Stock
	13525770	THREADED INSERT	$2.87	To Order

Photo	Part No	Description	Price (each)	Stock
	140545	FRONT HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140499	INTERMEDIATE HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	140565	REAR HAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	145493	DOWEL	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	142588	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	142590	NUT	$5.24	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	13525570	THREADED INSERT	$2.45	To Order

Photo	Part No	Description	Price (each)	Stock
	141892	SUPPORT FOR MOTOR FIXING	$260.30	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	142865	HEAD GASKET	$545.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	168358	Engine supporting pad	$224.63	To Order

Photo	Part No	Description	Price (each)	Stock
	172936	SPACER	$7.46	To Order

Photo	Part No	Description	Price (each)	Stock
	132269	LOWER SPACER	$19.22	To Order

Photo	Part No	Description	Price (each)	Stock
	11369634	SCREW	$3.65	To Order

Photo	Part No	Description	Price (each)	Stock
	12601774A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	SELF-LOCKING HEX NUT M16 X 1.5	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	$0.44	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140664	NUT	$59.47	To Order

Photo	Part No	Description	Price (each)	Stock
	140603	WASHER	$0.83	To Order

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127497	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182141	RETAINER WASHER	$43.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	15981634	SCREW -Valid till Ass. Nr. 16066-	15981634 SCREW -Valid till Ass. Nr. 16066- Valid from car Nr. 124570	$2.79 MSRP: ~~5.75~~ (51.5% off)	2
-	192022	WICK BODY	192022 WICK BODY Valid from car Nr. 124570	$290.06 MSRP: ~~382.19~~ (24.1% off)	2
-	171622	COMPLETE CRANKCASE	171622 COMPLETE CRANKCASE	$8,302.76	1
-	171177	BALL RACE BEARING IN STOCK	171177 BALL RACE BEARING Valid after stock exhaustion of 144713 IN STOCK	$19.40	2
1	171622	COMPLETE CRANKCASE	171622 COMPLETE CRANKCASE With the complete crankcase	$8,302.76	1
2	171177	BALL RACE BEARING IN STOCK	171177 BALL RACE BEARING IN STOCK	$19.40	2
3	196231	PISTON COOLING NOZZLE	196231 PISTON COOLING NOZZLE	$52.94	12
4	143856	O-RING	143856 O-RING	$0.15 MSRP: ~~0.50~~ (70% off)	12
5	14303123	SCREW IN STOCK	14303123 SCREW IN STOCK	$0.06	12
6	11181474	WASHER	11181474 WASHER	$0.06	12
7	13526170	THREADED INSERT	13526170 THREADED INSERT	$4.26 MSRP: ~~5.92~~ (28% off)	3
8	13972234	STUD BOLT	13972234 STUD BOLT	$3.86	1
9	140591	STUD BOLT	140591 STUD BOLT	$6.90	28
10	163121	DOWEL	163121 DOWEL	$1.51	4
11	13541224	STUD BOLT	13541224 STUD BOLT	$157.75	1
12	13543924	Stud Bolt IN STOCK	13543924 Stud Bolt IN STOCK	$1.57	1
13	13543524	STUD BOLT	13543524 STUD BOLT	$4.55	1
14	13541924	STUD BOLT	13541924 STUD BOLT	$1.35	1
15	13541724	STUD BOLT	13541724 STUD BOLT	$1.30 MSRP: ~~4.00~~ (67.5% off)	1
16	13543424	STUD BOLT	13543424 STUD BOLT	$1.88	1
17	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT IN STOCK	$3.19	1
18	100041	CENTERING DOWEL	100041 CENTERING DOWEL	$7.37	2
19	13517224	STUD BOLT	13517224 STUD BOLT	$0.78 MSRP: ~~1.00~~ (22% off)	2
20	13543924	Stud Bolt IN STOCK	13543924 Stud Bolt IN STOCK	$1.57	2
21	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT IN STOCK	$3.19	3
22	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.95	2
23	13541024	STUD BOLT	13541024 STUD BOLT	$0.32 MSRP: ~~0.60~~ (46.7% off)	2
24	13541224	STUD BOLT	13541224 STUD BOLT	$157.75	2
25	103038	DOWEL IN STOCK	103038 DOWEL IN STOCK	$1.28	2
26	13546524	STUD BOLT	13546524 STUD BOLT	$1.28 MSRP: ~~2.00~~ (36% off)	8
27	163528	THREADED PLUG	163528 THREADED PLUG	$4.04 MSRP: ~~4.25~~ (4.9% off)	2
28	14325540	THREADED PLUG	14325540 THREADED PLUG	$9.11	2
29	10275550	THREADED PLUG	10275550 THREADED PLUG	$0.94	3
30	13525870	THREADED INSERT	13525870 THREADED INSERT	$2.74	2
31	150731	CAP	150731 CAP	$3.86	2
32	10280060	WASHER COPPER D14. 20 X 1.5 IN STOCK	10280060 WASHER COPPER D14. 20 X 1.5 IN STOCK	$0.21 MSRP: ~~1.00~~ (79% off)	2
33	140316	CYLINDER LINER	140316 CYLINDER LINER	$1,201.23	12
34	140321	GASKET	140321 GASKET	$7.03 MSRP: ~~9.63~~ (27% off)	12
35	10304640	THREADED PLUG	10304640 THREADED PLUG	$5.35	1
36	10264560	GASKET IN STOCK	10264560 GASKET IN STOCK	$0.47 MSRP: ~~1.00~~ (53% off)	1
37	134232	O-RING	134232 O-RING	$1.28	1
38	151160	OIL PRESSURE LIMITING VALVE	151160 OIL PRESSURE LIMITING VALVE	$178.45	1
39	140553	STUD	140553 STUD	$7.23	14
40	13525770	THREADED INSERT	13525770 THREADED INSERT	$2.87 MSRP: ~~3.67~~ (21.8% off)	2
41	140545	FRONT HAT	140545 FRONT HAT With complete crankcase	-	1	Enquire
42	140499	INTERMEDIATE HAT	140499 INTERMEDIATE HAT With complete crankcase	-	5	Enquire
43	140565	REAR HAT	140565 REAR HAT With complete crankcase	-	1	Enquire
44	145493	DOWEL	145493 DOWEL	$1.78	14
45	142588	WASHER	142588 WASHER	$1.07	14
46	142590	NUT	142590 NUT	$5.24	14
47	13525570	THREADED INSERT	13525570 THREADED INSERT	$2.45	2
48	13525570	THREADED INSERT	13525570 THREADED INSERT	$2.45	1
49	141892	SUPPORT FOR MOTOR FIXING	141892 SUPPORT FOR MOTOR FIXING	$260.30	2
50	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.21 MSRP: ~~0.35~~ (40% off)	8
51	11190574	WASHER IN STOCK	11190574 WASHER IN STOCK	$0.06	8
52	142865	HEAD GASKET IN STOCK	142865 HEAD GASKET IN STOCK	$545.55	2
53	168358	Engine supporting pad	168358 Engine supporting pad Valid till car Nr. 124569	$224.63 MSRP: ~~300.85~~ (25.3% off)	2
54	172936	SPACER	172936 SPACER Vale fino alla vett. No. 124569	$7.46	2
55	132269	LOWER SPACER	132269 LOWER SPACER Vale fino alla vett. No. 124569	$19.22	2
56	11369634	SCREW	11369634 SCREW Valid till car Nr. 124569	$3.65 MSRP: ~~4.00~~ (8.8% off)	2
57	12601774A	WASHER	12601774A WASHER	-	2	Enquire
58	176573	SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	176573 SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	$1.93 MSRP: ~~2.25~~ (14.2% off)	2
59	15970634	SCREW	15970634 SCREW	$0.44 MSRP: ~~3.25~~ (86.5% off)	8
60	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.21 MSRP: ~~0.35~~ (40% off)	8
61	127497	WASHER IN STOCK	127497 WASHER IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	8
62	140664	NUT	140664 NUT	$59.47	28
63	140603	WASHER	140603 WASHER	$0.83 MSRP: ~~1.07~~ (22.4% off)	28
64	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.93	8
65	127497	WASHER IN STOCK	127497 WASHER IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	8
66	182141	RETAINER WASHER	182141 RETAINER WASHER Valid from car Nr. 124570	$43.31 MSRP: ~~61.45~~ (29.5% off)	2
